OWNER’S MANUAL
The owner’s manual contains assembly, use
and maintenance instrucons. The vehicle
must be assembled by an adult who has read
and understands the instrucons in this
manual. Keep the packaging away from children
and dispose of all packaging before use.
KT1133KM
Styles and colors may vary
Made in China
Thank You
For purchasing the Doc McStuns toy rescue ambulance.
Features include; ashing emergency lights and siren, horn
sounds, seat belt, Power Trax rubber tracon strips on the res
L.E.D. running lights, and Kid Trax Direct ConnectTM one step
charging system. We hope your child will have years of riding
enjoyment with our products. We appreciate your business.
Please call us at Kid Trax Toys Consumer Relaons with
quesons or comments at:
Phone: 1-877-741-6154
The Web: www.kidtraxtoys.com
Email: customerservice@kidtraxtoys.com
Address: 4902 Hammersley Road, Madison, WI 53711
Important!
Do not return the product to the store. Please contact customer
service at 1-877-741-6154 for assistance and replacement parts.
2
Contents
.......................................... 4
Baery Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
User Requirements and Warnings.................. 6
Care Warnings .................................. 6
2 Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Assembly........................................ 8
Connect the Baery to the Motor.................. 8
Install the Baeries.............................. 9
Aach The Wheels ............................. 10
Aach The Ambulance Lights . . . . . . . . . . . . . . . . . . . . 11
Aach The Steering Wheel . . . . . . . . . . . . . . . . . . . . . . 12
Aach The Windshield and mirrors................ 12
4 Use............................................ 13
Charge the Baery ............................. 13
Vehicle Controls ............................... 14
Re-Charge Interval and Time ..................... 15
Baery Storage ................................ 15
Baery Replacement and Disposal . . . . . . . . . . . . . . . . 16
5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
. . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7 Services, Repairs and Parts . . . . . . . . . . . . . . . . . . . . . . . 21
8 Warranty....................................... 22
............................. 24
3
1
4
• Using the vehicle in unsafe condions such as snow, rain,
loose dirt, mud, sand or ne gravel may result in
unexpected acon such as p over and skidding, and
damage to the electrical system and baery.
• Using the vehicle in an unsafe manner. Examples include
but are not limited to:
Pulling the vehicle with another vehicle or similar
device
Allowing more than one rider
Pushing the user from the back
Traveling at an unsafe speed
Always use common sense and safe pracces when using the
vehicle.
This product contains or emits chemicals known to the state
of California to cause cancer or birth defects or other
reproducve harm.
The following safety hazards may result in serious injury or
death to the user of the vehicle:
• This product contains small parts that are for adult assembly
only. Keep small children away when assembling. Remove
and dispose of all protecve material and poly bags before
assembly. Be sure to remove all packaging materials and
parts from underneath the vehicle body.
• Riding the vehicle without a helmet. Riders must always
wear a ed helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard CFR 1183.
• Baery posts, terminals and related accessories contain
lead and lead compounds (acids) chemicals known to the
state of California to cause cancer, reproducve harm, and
are toxic and corrosive. Never open the baery.
• Body parts such as hands, legs, hair and clothing can get
caught in moving parts. Never place a body part near a
moving part or wear loose clothing while using the vehicle.
Always wear shoes when using the vehicle.
• Using the vehicle near streets, motor vehicles, drop-os
such as: steps, water (swimming pools) or other bodies of
water, sloped surfaces, hills, wet areas, ammable vapors, in
alleys, at night or in the dark could result in an unexpected
accident. Always use the vehicle in a safe, secure
environment with connuous adult supervision.
5
• Liquids on the baery may cause re or electric
shock. Always keep all liquids away from the
baery and keep the baery dry.
• Contact or exposure to baery leakage (lead acid)
may cause serious injury. If contact or exposure
occurs immediately call your physician. If the
chemical is on the skin or in the eyes, ush with
cool water for 15 minutes. If the chemical was
swallowed, immediately give the person water or
milk. Do not give water or milk if the paent is
voming or has a decreased level of alertness. Do
not induce voming.
• Baery posts, terminals and related accessories
contain lead and lead compounds (acid), chemicals
known to the State of California to cause cancer,
reproducve harm and are toxic and corrosive.
Never open the baery.
• Tampering or modifying the electric circuit system
may cause a shock, re or explosion and
permanently damage the system. Exposed wiring,
circuitry in the charger may cause electric shock.
Always keep the charger housing closed.
The following safety hazards may result in serious injury or
death to the user of the vehicle:
• Use of a baery or charger other than the supplied
KidTrax Toys 6V rechargeable baery and charger
may cause a re or explosion. Only use the supplied
Kid Trax Toys 6V rechargeable baery and charger
with the vehicle.
• Using the KidTrax Toys 6V rechargeable baery and
charger for any other product may result in
overheang, re or explosion. Never use the
KidTrax Toys 6V rechargeable baery and charger
with another product.
• Explosive gases are created during charging. Charge
the baery in a well venlated area. Do not charge
the baery near heat or ammable materials.
• Contact between the posive and negave
terminals may result in re or explosion. Avoid
direct contact between the terminals. Picking up
the baery by the wires or charger can cause
damage to the baery and may result in a re.
Always pick up the baery by it’s case or handles.
3 to 7 years
No more than 66 lbs (30 kgs)
Before using the vehicle the child should understand the vehicle
controls and safety issues. They must also demonstrate the
capability to handle the vehicle and operate its controls. It is the
responsibility of the adult to educate the child and supervise the
vehicles use. Read the following safety warnings to any child
using the vehicle before riding.
6
• Only use the vehicle when an adult is present to watch
(supervise).
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed on the car at a me.
• Children under three years old cannot use the vehicle.
• Only drive on level ground.
• Do not go near water, drop-os or up and down steep slopes.
• Do not drive the vehicle into loose dirt, mud, sand or ne
gravel.
• Do not drive the vehicle on streets or near cars.
• Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
• Do not leave the vehicle in the sun for long periods of me
or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.
2Parts
7
Important! Check that you have all parts before assembly.
Front wheel (2)
Mirrors (2)
Outside washer (4)
Doc McStuns
Body Includes:
• Headlights
• Seat belt
• Controls
• 6 volt baery
Windshield
Steering wheel
Steering wheel nut
and long screw
Wheel insert (4)
Retaining nut (4)
Hubcap (4)
Wheel screw
(3 per wheel)
Le rear
wheel (1)
Ambulance lights
Rear assembly
Ambulance
light bracket
Rear assembly
screw (3)
Bracket
screw
(4)
Right drive
wheel (1)
Baery charger
Wheel insert (3)
Inner washer (3)
Back view
8
3Assembly
CONNECT THE BATTERY TO THE MOTOR
If wire connecon are not made correctly, damage to the
baery or cause short circuits may occur. Be sure to make
the proper wire connecons.
Note: You will only need to connect the baery to the motor
one me, unless you are removing the baery. To make this
connecon:
Carefully turn the vehicle over onto a so surface to protect
the body from scratching.
Using a phillips head screwdriver, remove the 4 screws on
the baery compartment cover. Note: the baery cover is
aached to the baery.
Li the baery/cover assembly out of the compartment.
Connect the red wire connector coming from the vehicle
body to the red wire connector coming from the baery.
Place the baery/cover assembly back into the baery
compartment.
Insert the screws into the cover and ghten the screws.
2
4
3
5
9
INSTALL THE BATTERIES
• DO NOT mix old and new baeries.
• DO NOT mix alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadium) baeries.
• DO NOT charge non-rechargeable baeries. Always have
adult supervision when charging rechargeable baeries.
Remove the small screw on the baery cover located at the
back of the ambulance light assembly, and li the baery
cover o.
Insert two AA baeries into the baery compartment in
their correct polaries.
Place the baery cover over the baery compartment,
insert the screw and ghten it.
Remove the small screw on the baery cover located in the
center of the steering wheel, and li the baery cover o.
Insert two AA baeries into the baery compartment in
their correct polaries.
Place the baery cover over the baery compartment,
insert the screw and ghten it.
2
1
3
1
2
3
10

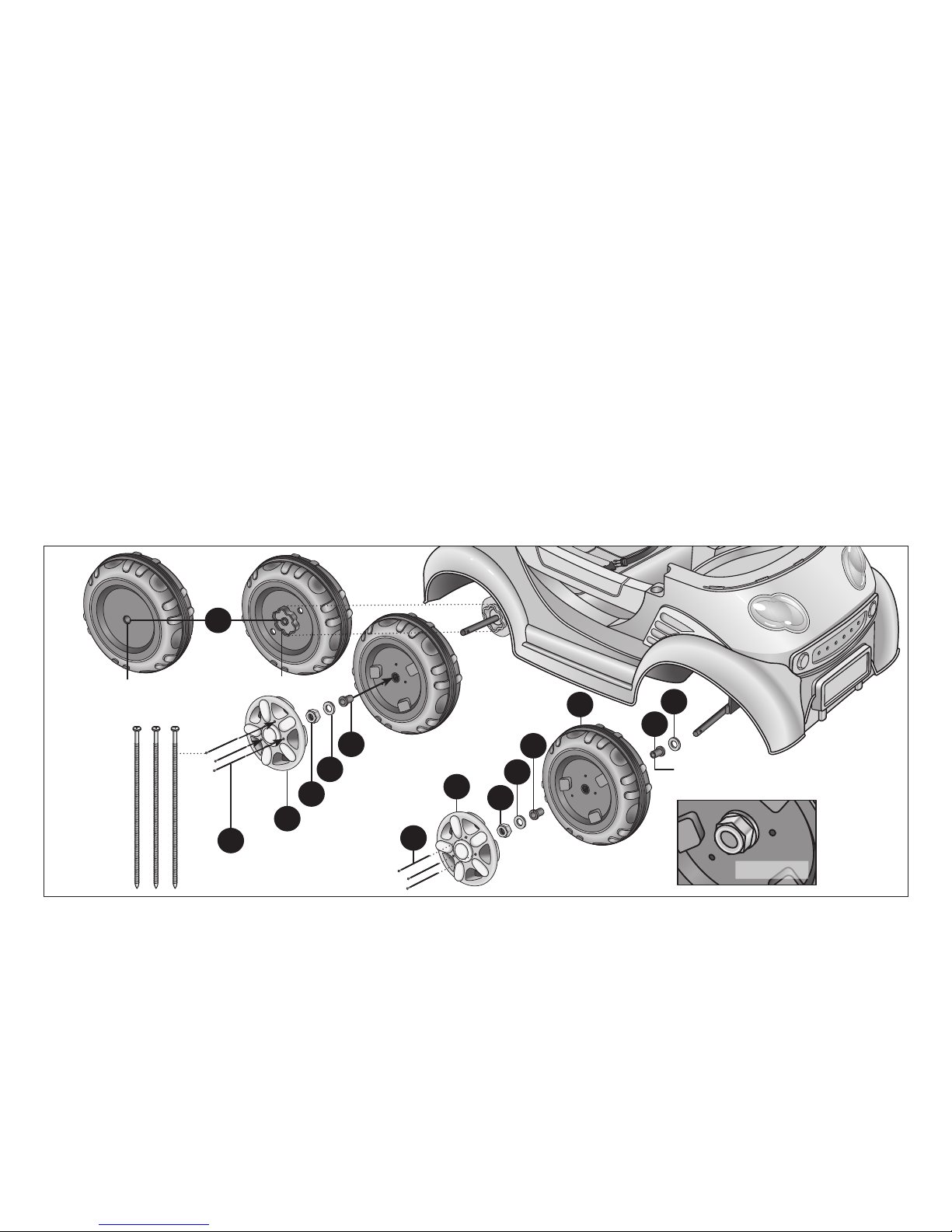

ATTACH THE WHEELS
Slide a inner washer over the axle unl it hits the stop on the
axle on all wheels except the right drive wheel.
Insert the wheel inserts into each side of the wheel hole
Note: The drive wheel does not get a wheel inset for the
axle side of the wheel.
Slide the wheel completely onto the axle. Note: The right
drive wheel does not have a wheel insert on the gear shape.
Insert the outer washer over the axle unl it stops at the
wheel insert.
Insert the retaining nut over the end of the axle, and
ghten.
Place the hubcap over the wheel and snap into place. Note:
the tabs on the wheel will t into the back of the hubcap.
Insert the screws through the holes of the hubcap and
ghten. Repeat steps 1-7 for the remaining wheels.
3 screws
needed for
this step
Le rear wheel
2Wheel insert
4Second washer
5Retaining nut
6Hubcap
7Wheel screws
1
2
2
4
5
6
7
Right drive wheel
3
IMPORTANT: Step 1 and 2 are for
the front and le rear wheels only
3
Table of contents
Other Kid Trax Toys Toy manuals
Kid Trax Toys
Kid Trax Toys KT1010TG User manual
Kid Trax Toys
Kid Trax Toys MINI Cooper S User manual
Kid Trax Toys
Kid Trax Toys Disney Princess Scooter KT1024WM User manual
Kid Trax Toys
Kid Trax Toys nickelodeon PAW PATROL KT1439WM User manual
Kid Trax Toys
Kid Trax Toys KT1052TR User manual
Kid Trax Toys
Kid Trax Toys SRT Viper KT1101WM User manual
Kid Trax Toys
Kid Trax Toys Audi TT User manual
