Kenmore 580.72187300 Manual

REPAIR

PARTS

LIST

Model No.

580.72187300

◆Product Type ◆Part Number

◆Model Number ◆Part Description

Sears, Reobuck and Co., Hoffman Estates, IL 60179 U.S.A.

To Call

Toll Free

For Parts:

1-800-366-PART

(1-800-366-7278)

1-800-4-MY-HOME

(1-800-469-4663)

For Service:

The model number of your Air Conditioner can be found

on the right side of the cabinet.

All repair parts listed are available for immediate

purchase or special order when you visit your nearest

Sears Service Center, or the Service Department at most

Sears stores. To order parts by phone, call the toll free

parts number listed to the left.

When requesting service or ordering parts, always

provide the following information:

ROOM AIR CONDITIONER

OFFON

Auto Swing

TurnoffAutoSwing

WhenOperationSwitchisoff

04/03 - 2 -

4-A

2-A

5-A

6-A

1-A

7-A

3-A

REPAIR PARTS

Room Air Conditioner To order Parts call Toll Free

Model No. 580.72187300 1-800-4-MY-HOME®(1-800-469-4663)

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

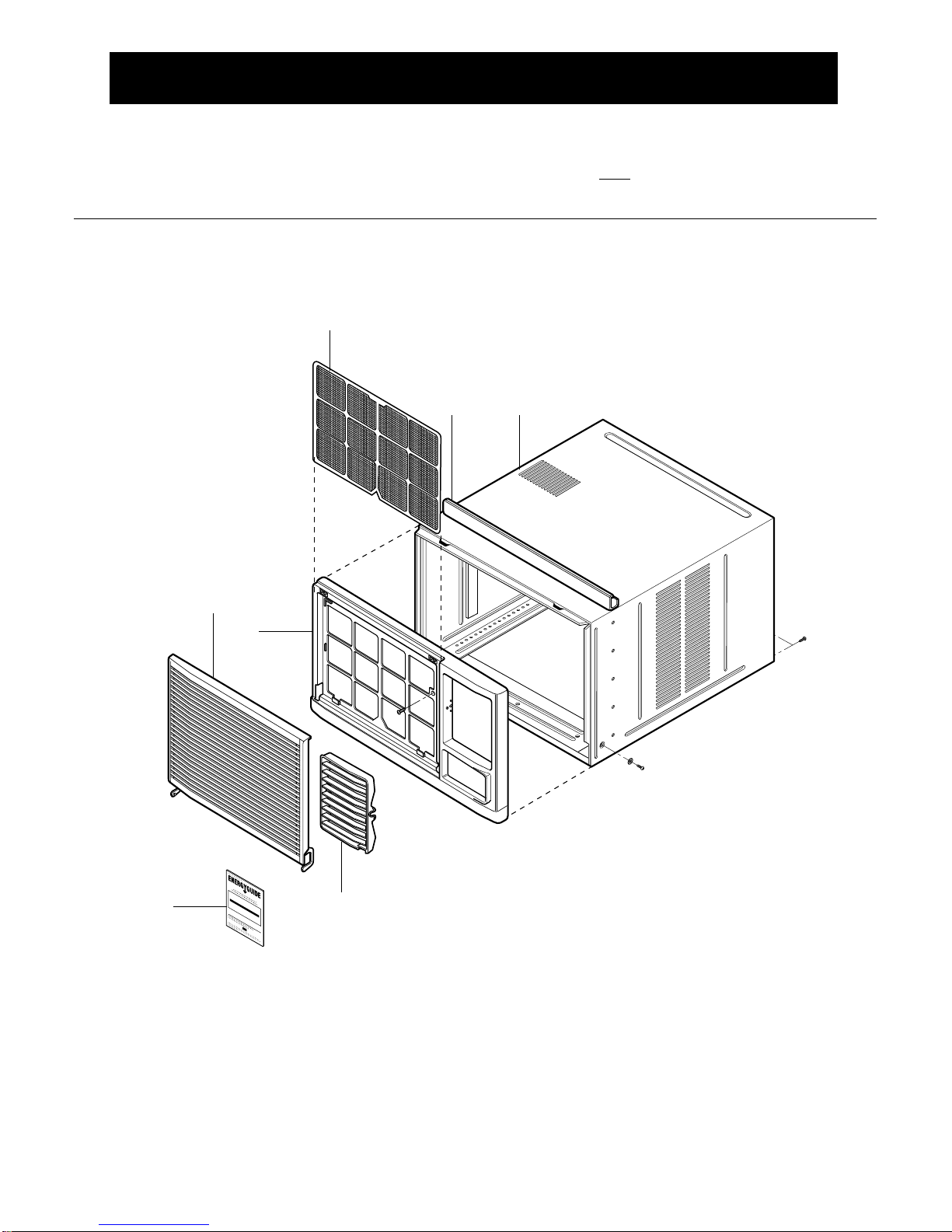

CABINET & FRONT GRILLE ASSEMBLY

- 3 - 04/03

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

CABINET & FRONT GRILLE ASSEMBLY

# = Functional Parts

* = Non-illustrated Parts

ILLUSTRATION NUMBER

1 - A

2 - A

3 - A

4 - A

5 - A

6 - A

7 - A

PART NUMBER

3530AR1182A

3530AR1531A

5230AR1327A

5990AR2972C

3091AR6057C

2H00858E

3850A20423G

3828A20292K

3828A30032T

DESCRIPTION

FRONT GRILLE

INLET GRILLE

AIR FILTER ASSEMBLY

VANE

CABINET ASSEMBLY

UPPER GUIDE

LABEL, ENERGY

MANUAL OWNER'S

MANUAL SERVICE

04/03 - 4 -

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

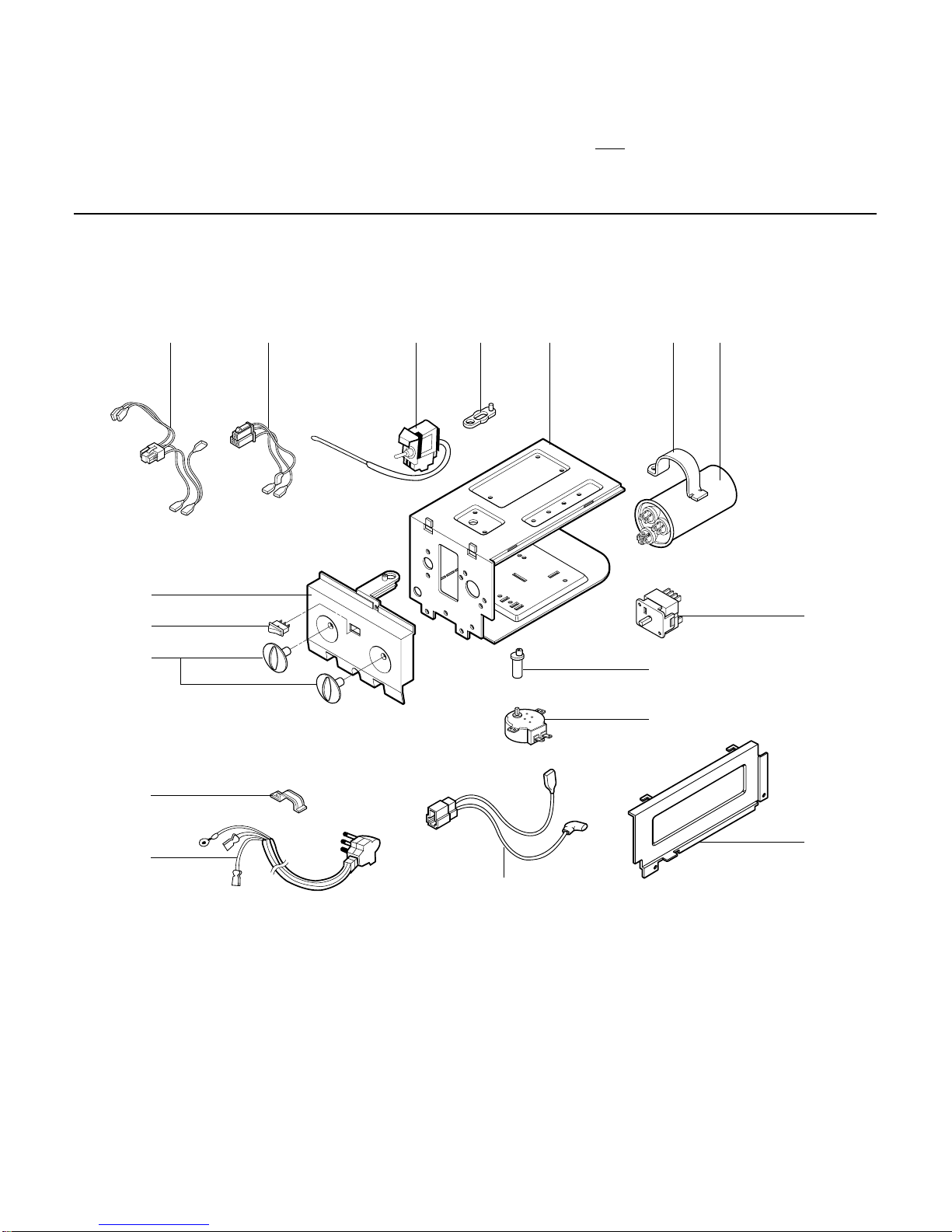

CONTROL BOX ASSEMBLY

2-B14-B10-B 1-B 4-B16-B12-B

3-B

15-B

9-B

17-B

6-B

7-B

8-B

13-B

11-B

5-B

- 5 - 04/03

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

CONTROL BOX ASSEMBLY

# = Functional Parts

* = Non-illustrated Parts

ILLUSTRATION NUMBER

1 - B #

2 - B

3 - B

4 - B

5 - B #

6 - B

7 - B

8 - B

9 - B

10 - B

11 - B

12 - B

13 - B

14 - B

15 - B

16 - B

17 - B

PART NUMBER

4994AR1587A

2H01127B

2H00598F

6120AR2359E

2H00677U

4941AR7134C

2H01316C

3721A20058K

4004AR4357A

6631AR2687P

2H01102A

4520AR4386A

4520AR4339A

6877A20002A

3551A30015A

4H00442F

3661AR6149C

DESCRIPTION

CONTROL BOX

THERMOSTAT

ROTARY SWITCH

SH CAPACITOR

POWER CORD ASSEMBLY

KNOB ASS’Y

ROCKER SWITCH

PANEL, CONTROL

CLIP CORD

CONNECTOR ASSEMBLY

SYNCHRONOUS MOTOR

LINK

CAM

CONNECTOR ASSEMBLY

COVER, CONTROL BOX

CLAMP, CAPACITOR

HOUSING ASSEMBLY(MECH)

04/03 - 6 -

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

AIR HANDLING & CYCLE PARTS

5-C

6-C

9-C

7-C

8-C

12-C

10-C

11-C

2-C

22-C

1-C

4-C

15-C

16-C

21-C

13-C

3-C

14-C

11-C

20-C

19-C

17-C

18-C

23-C

24-C

- 7 - 04/03

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

AIR HANDLING & CYCLE PARTS

# = Functional Parts

* = Non-illustrated Parts

ILLUSTRATION NUMBER

1 - C

2 - C

3 - C

4 - C

5 - C

6 - C

7 - C #

8 - C

9 - C #

10 - C #

11 - C

12 - C

13 - C

14 - C #

15 - C #

16 - C

17 - C

18 - C

19 - C

20 - C

21 - C

22 - C

23 - C

24 - C

PART NUMBER

3041A30002Y

5238AR1584B

3072AR1583A

4790AR1558A

4900AR7265A

4960AR1596A

4681AR6033K

3040AR6160A

5834AR1599B

5900AR1508A

3H02932C

4998AR1597A

4800AR7272A

5421A20059F

5403A20004F

3550AR6173A

4H01029F

3H02773A

4H00261A

4H02023A

3530A20042D

5301A30001B

5220A30006A

3661A20014B

DESCRIPTION

BASE PAN WELD ASSEMBLY

AIR GUIDE

SCROLL

BARRIER

DAMPER

MOTOR MOUNT

MOTOR ASSEMBLY

INSULATION, EPS

BLOWER

FAN

CLAMP SPRING

SHROUD

BRACE

EVAPORATOR ASSEMBLY

CONDENSER ASSEMBLY

COVER, SHROUD

WASHER RUBBER

DRAIN PIPE

PIPE ELBOW

HOLE RUBBER

GRILLE, REAR

ELECTRIC HEATER ASSEMBLY

DRAIN VALVE

HOUSING ASSEMBLY(MECH)

04/03 - 8 -

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

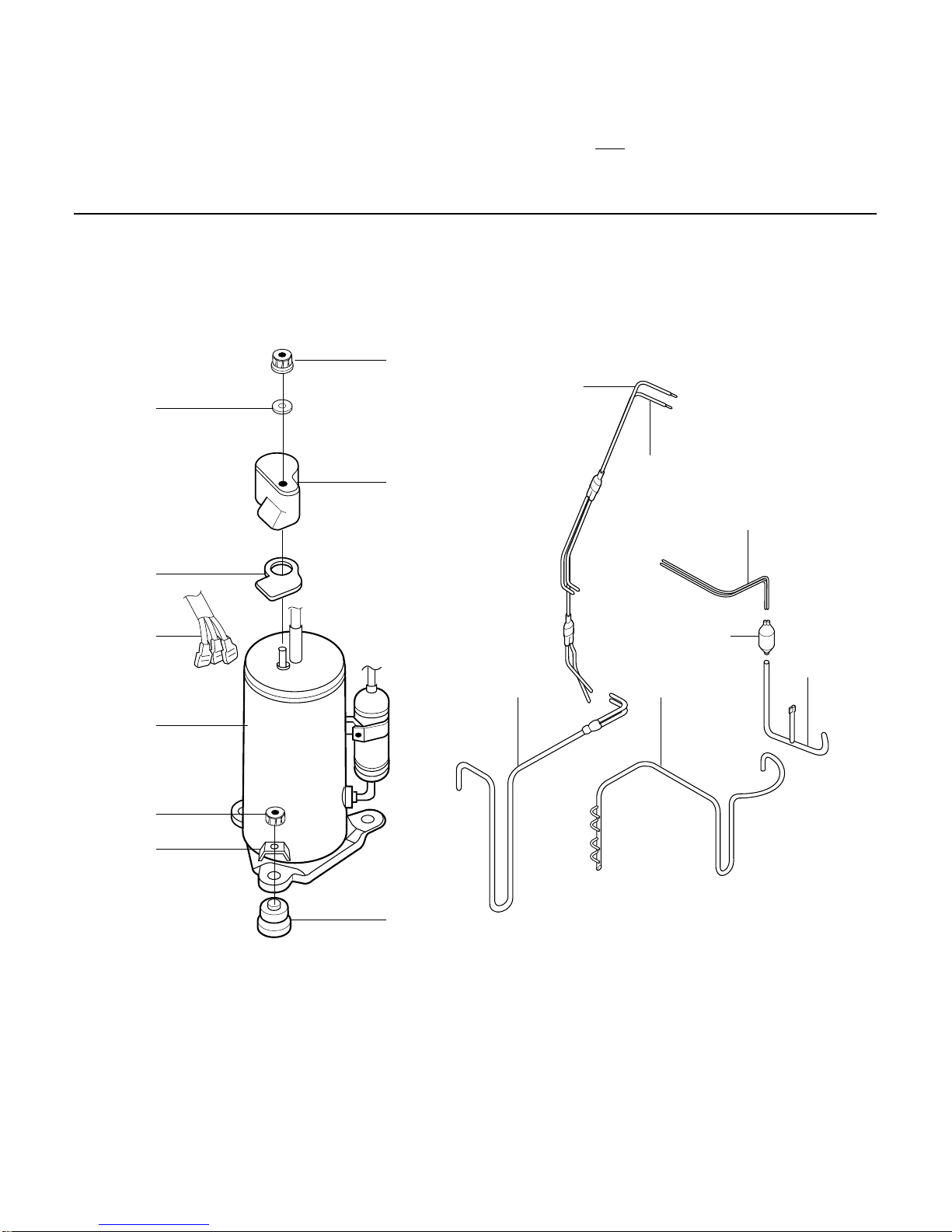

COMPRESSOR PARTS

1-D

3-D

4-D

2-D

5-D

6-D

7-D

9-D

8-D

10-D 11-D

12-D

13-D

14-D

16-D

15-D

- 9 - 04/03

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

COMPRESSOR PARTS

# = Functional Parts

* = Non-illustrated Parts

ILLUSTRATION NUMBER

1 - D

2 - D #

3 - D

4 - D

5 - D

6 - D

7 - D

8 - D

9 - D

10 - D

11 - D

12 - D

13 - D

14 - D

15 - D

16 - D

PART NUMBER

4H00982C

5416A20003J

4H01811C

1NHA0801206

6877A20002B

4986U-L001D

3550U-L002C

4H01058A

4H00947A

5211A30066K

5211A20204C

5211A20433B

5211A20434B

5211AR7059W

5211A20020P

5851A30001F

DESCRIPTION

ANTI-VIBRATION BUSHING

COMPRESSOR ASSEMBLY

BRACKET, WASHER

HEXAGON NUTS

CONNECTOR ASSEMBLY

GASKET

TERMINAL COVER

GASKET NUT

TERMINAL COVER NUT

TUBE ASSEMBLY, DISCHARGE

TUBE ASSEMBLY SUCTION

TUBE ASSEMBLY, EVA IN

TUBE CONNECTION, COND. OUT

TUBE, CAPILLARY

DRIER, ASSEMBLY

04/03 - 10 -

580.72187300

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

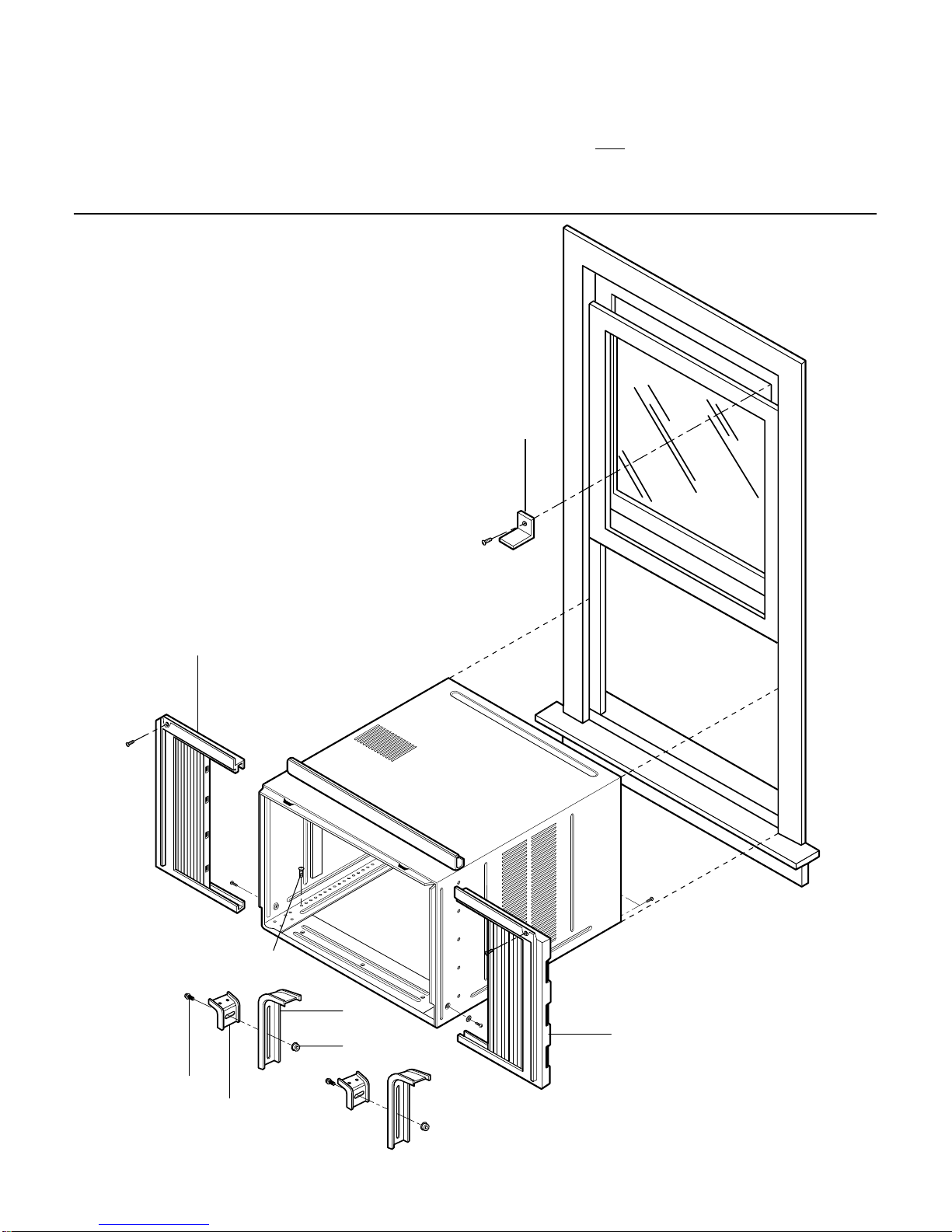

INSTALLATION KIT ASSEMBLY

1-E

4-E

6-E

2-E

7-E 5-E

3-E

8-E
