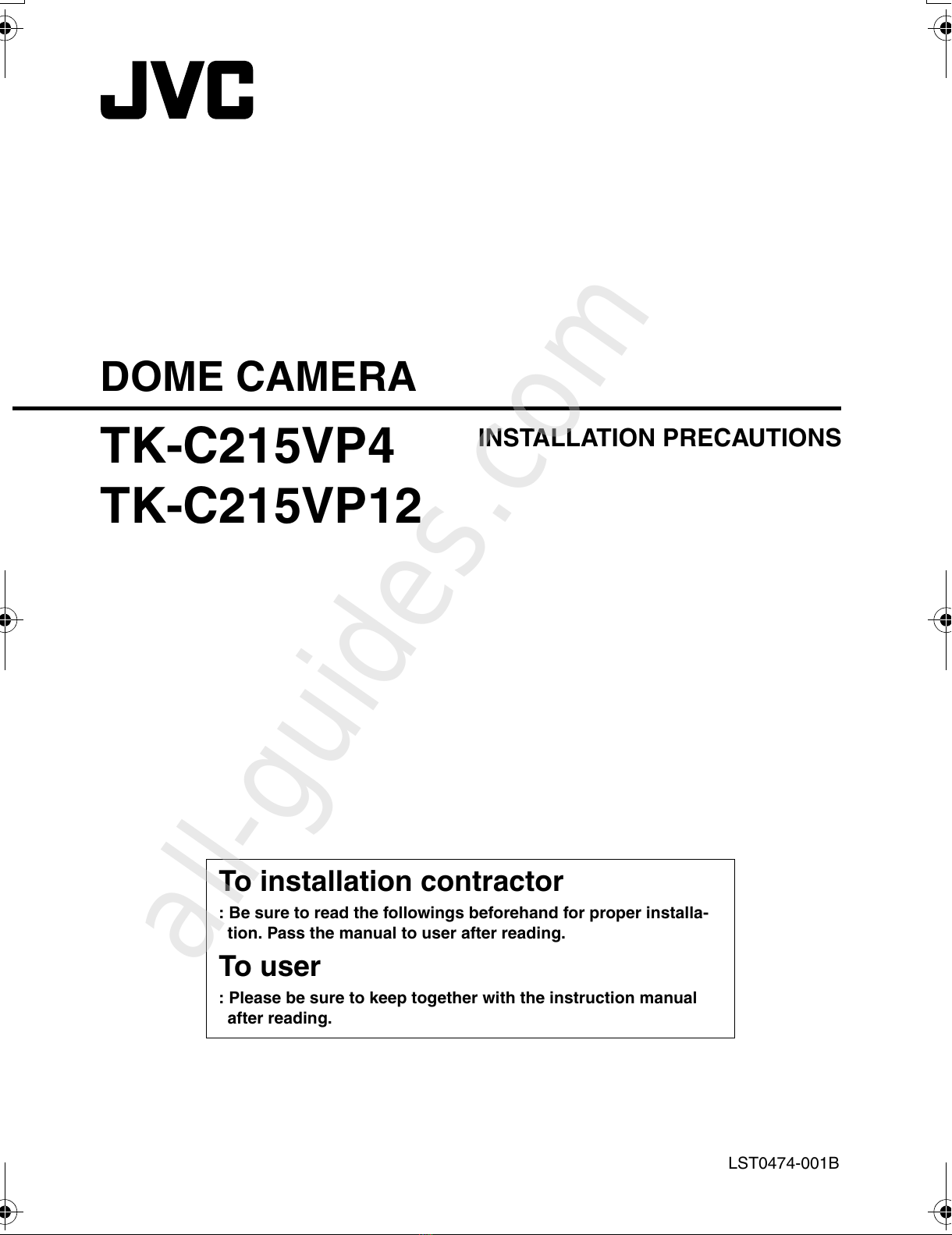

DOME CAMERA

TK-C215VP4

TK-C215VP12

INSTALLATION PRECAUTIONS

LST0474-001B

To installation contractor

: Be sure to read the followings beforehand for proper installa-

tion. Pass the manual to user after reading.

To user

: Please be sure to keep together with the instruction manual

after reading.

TK-C215VP4_JP.book Page 1 Wednesday, September 20, 2006 6:02 PM

All manuals and user guides at all-guides.com

all-guides.com

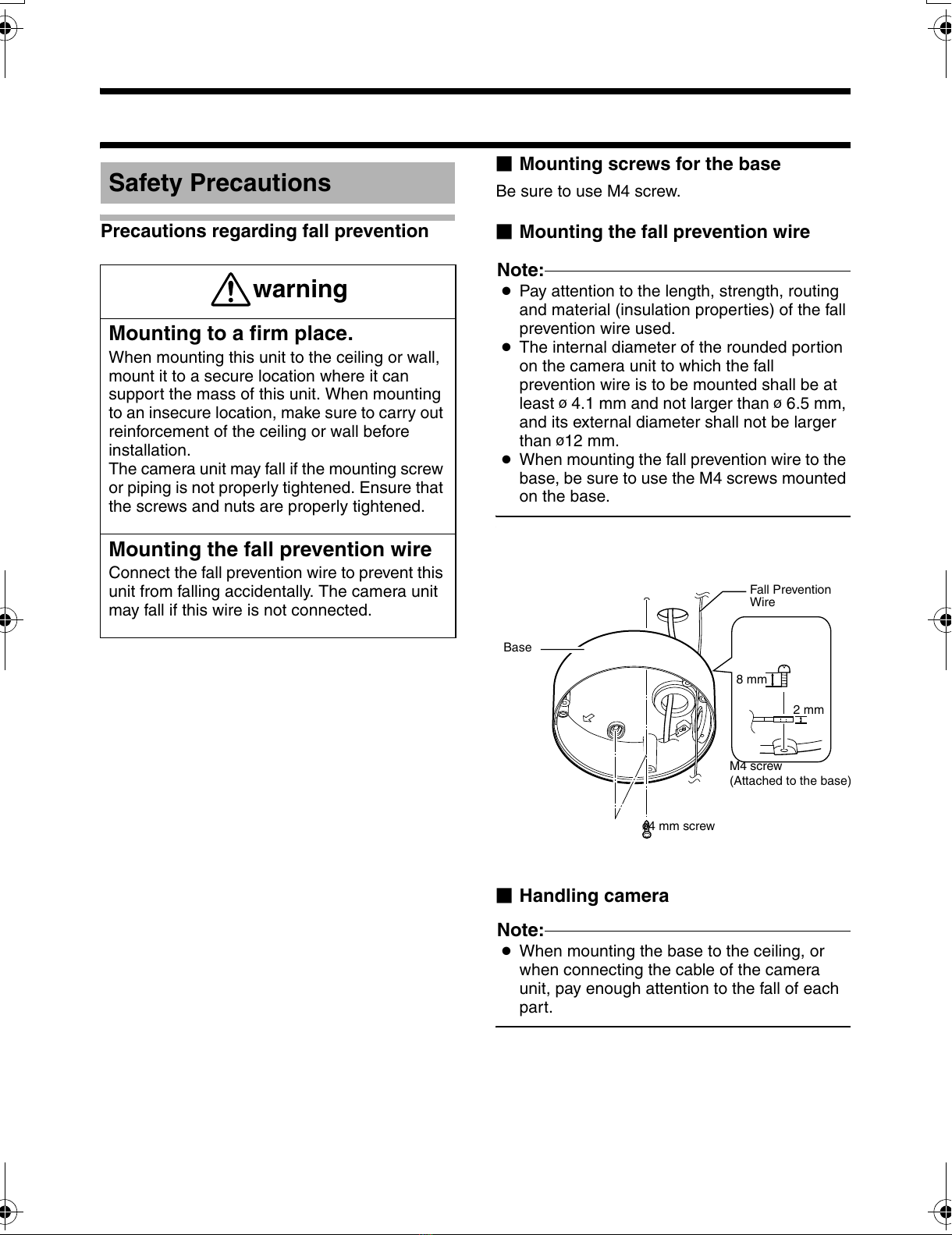

Precautions regarding fall prevention

䡵Mounting screws for the base

Be sure to use M4 screw.

䡵Mounting the fall prevention wire

Note:

●Pay attention to the length, strength, routing

and material (insulation properties) of the fall

prevention wire used.

●The internal diameter of the rounded portion

on the camera unit to which the fall

prevention wire is to be mounted shall be at

least R4.1 mm and not larger than R6.5 mm,

and its external diameter shall not be larger

than R12 mm.

●When mounting the fall prevention wire to the

base, be sure to use the M4 screws mounted

on the base.

䡵Handling camera

Note:

●When mounting the base to the ceiling, or

when connecting the cable of the camera

unit, pay enough attention to the fall of each

part.

Safety Precautions

warning

Mounting to a firm place.

When mounting this unit to the ceiling or wall,

mount it to a secure location where it can

support the mass of this unit. When mounting

to an insecure location, make sure to carry out

reinforcement of the ceiling or wall before

installation.

The camera unit may fall if the mounting screw

or piping is not properly tightened. Ensure that

the screws and nuts are properly tightened.

Mounting the fall prevention wire

Connect the fall prevention wire to prevent this

unit from falling accidentally. The camera unit

may fall if this wire is not connected.

8mm

2mm

Fall Prevention

Wire

Base

R4 mm screw

M4 screw

(Attached to the base

)

TK-C215VP4_JP.book Page 2 Wednesday, September 20, 2006 6:02 PM

All manuals and user guides at all-guides.com

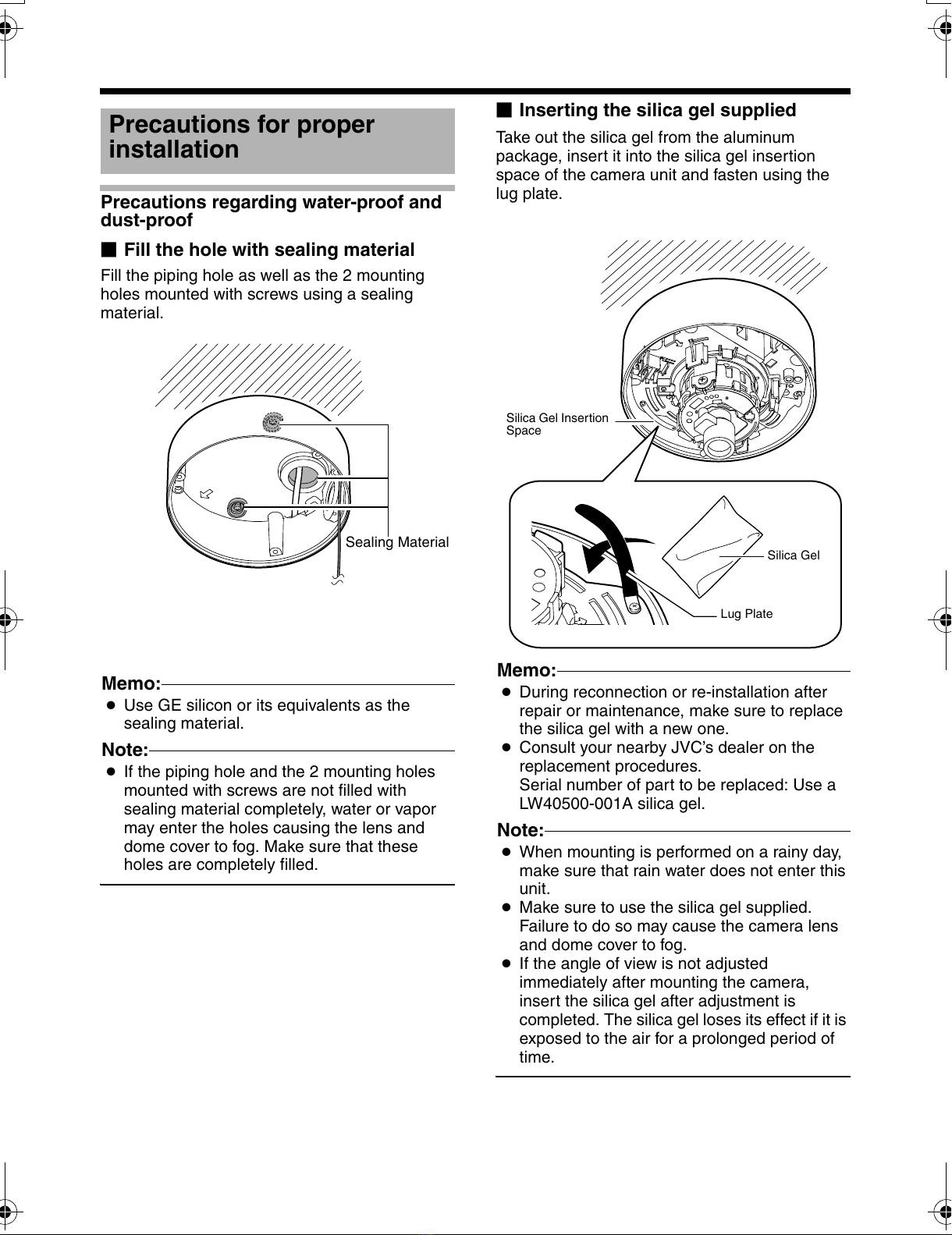

Precautions regarding water-proof and

dust-proof

䡵Fill the hole with sealing material

Fill the piping hole as well as the 2 mounting

holes mounted with screws using a sealing

material.

Memo:

●Use GE silicon or its equivalents as the

sealing material.

Note:

●If the piping hole and the 2 mounting holes

mounted with screws are not filled with

sealing material completely, water or vapor

may enter the holes causing the lens and

dome cover to fog. Make sure that these

holes are completely filled.

䡵Inserting the silica gel supplied

Take out the silica gel from the aluminum

package, insert it into the silica gel insertion

space of the camera unit and fasten using the

lug plate.

Memo:

●During reconnection or re-installation after

repair or maintenance, make sure to replace

the silica gel with a new one.

●Consult your nearby JVC’s dealer on the

replacement procedures.

Serial number of part to be replaced: Use a

LW40500-001A silica gel.

Note:

●When mounting is performed on a rainy day,

make sure that rain water does not enter this

unit.

●Make sure to use the silica gel supplied.

Failure to do so may cause the camera lens

and dome cover to fog.

●If the angle of view is not adjusted

immediately after mounting the camera,

insert the silica gel after adjustment is

completed. The silica gel loses its effect if it is

exposed to the air for a prolonged period of

time.

Precautions for proper

installation

Sealing Material

Silica Gel Insertion

Space

Silica Gel

Lug Plate

TK-C215VP4_JP.book Page 3 Wednesday, September 20, 2006 6:02 PM

All manuals and user guides at all-guides.com

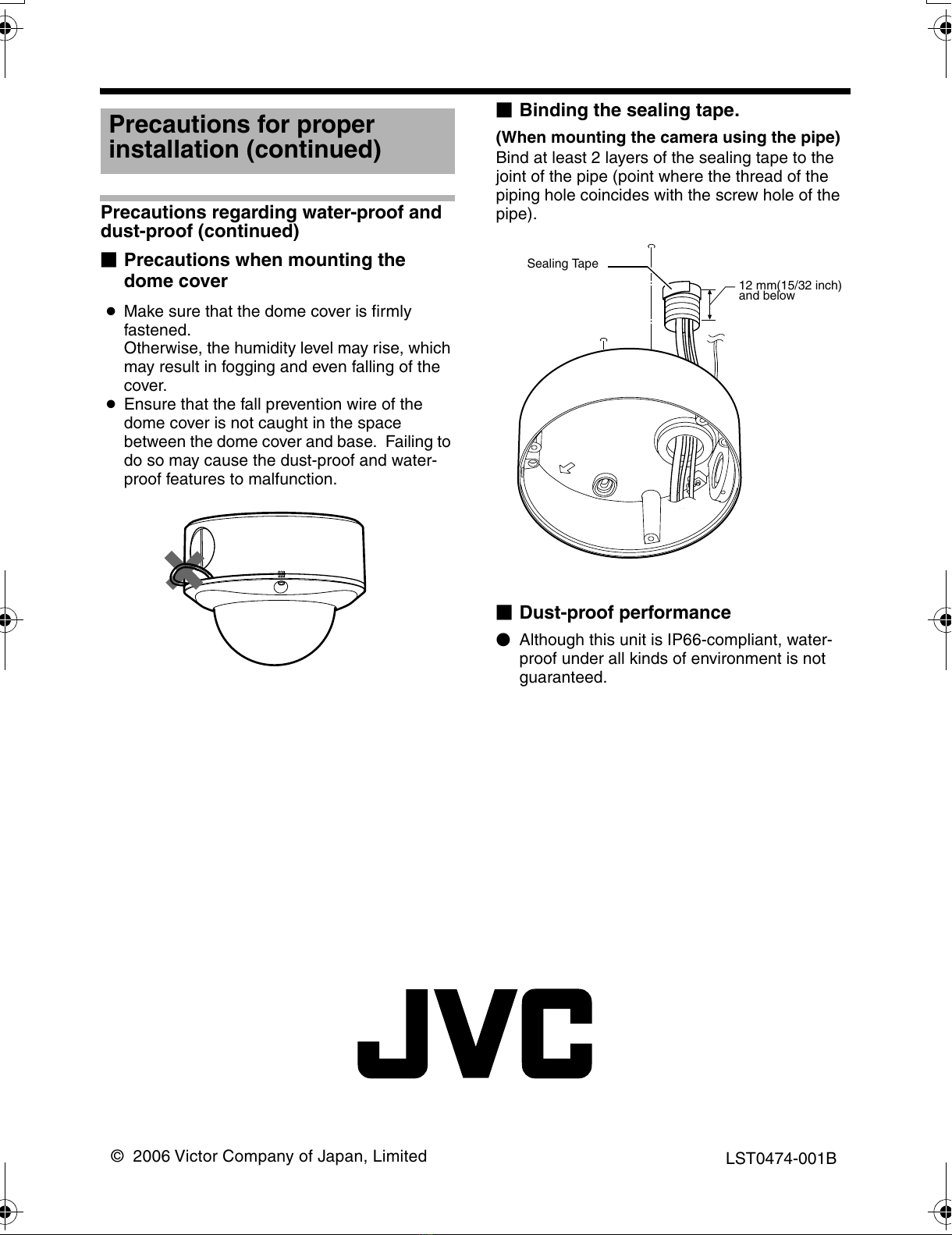

Precautions regarding water-proof and

dust-proof (continued)

䡵Precautions when mounting the

dome cover

●Make sure that the dome cover is firmly

fastened.

Otherwise, the humidity level may rise, which

may result in fogging and even falling of the

cover.

●Ensure that the fall prevention wire of the

dome cover is not caught in the space

between the dome cover and base. Failing to

do so may cause the dust-proof and water-

proof features to malfunction.

䡵Binding the sealing tape.

(When mounting the camera using the pipe)

Bind at least 2 layers of the sealing tape to the

joint of the pipe (point where the thread of the

piping hole coincides with the screw hole of the

pipe).

䡵Dust-proof performance

䢇Although this unit is IP66-compliant, water-

proof under all kinds of environment is not

guaranteed.

Precautions for proper

installation (continued)

Sealing Tape

12 mm(15/32 inch)

and below

TK-C215VP4_JP.book Page 4 Wednesday, September 20, 2006 6:02 PM
