Johnson Controls S1-THXU280W Quick start guide

HxTM TOUCH SCREEN THERMOSTAT

MODEL: S1-THXU280B & S1-THXU280W

Due to continuous product improvement, specifications are

subject to change without notice.

Visit us on the web at www.upgnet.com

WARRANTY SUMMARY*

Standard 5-Years limited parts warranty.

TECHNICAL

GUIDE

TECHNICAL

GUIDE

(QHUJ\6DYHU

5190554-UTG-C-0617

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

Johnson Controls, Unitary Products specializes in creating a

customized home comfort system tailored to the homeowners

needs with our broad selection of residential heating and cool-

ing products. The thermostat is the ultimate control center for all

of your system components. When you add a thermostat to a

compatible modulating, variable-speed furnace or air handler,

and an air-conditioner or heat pump, you'll enjoy longer heating

and cooling cycles at lower fan speeds for a more consistent

temperature throughout your home, better humidity control, as

well as a more energy-efficient comfort system.

FEATURES & BENEFITS

• Wireless Compatible.

• Access Remotely with Apple and Android Devices.

• High definition color, Touch screen interface.

• Incorporates graphics and animation.

• Conventional or communicating wire installation from each

component in the system.

• Intuitive on-screen prompts for ease of installation and ser-

vice.

• Over The Air (OTA) software updates.

• Detailed system staging operation.

• Complete integration of temperature control, humidity con-

trol, and ventilation in every season.

• Ventilation limits to ensure outside air is not introduced in

extreme hot or cold conditions - no extra heating or cooling

load.

• Programmable or non-programmable mode selection.

• App based 7-day programmability with 2 or 4 periods per

day.

• Quick Heat/Quick Cool functionality.

• Day-at-a-glance programming for simplified ease of use.

• Easy timed-override schedule.

• Programmable fan by period.

• Energy saving opportunity.

• Indoor Air Quality pop-up replacement reminders.

• General maintenance reminder messaging.

• Near Field Communication (NFC) allows programming the

Touch-screen thermostat with an Android Dealer App, avail-

able on www.upgnet.com.

- Allows the dealer to display the brand logo.

- Can be used for communicating or conventionally wired

systems.

5190554-UTG-C-0617

2 Johnson Controls Unitary Products

MODEL NUMBER NOMENCLATURE

S1 - T H X U 280 B A

WIRING REQUIREMENTS

Power supply:

Dedicated 24VAC, 40 VA, 60 Hz, via indoor equipment, R & C

wires. Isolated transformer, field supplied.

Wiring material:

Standard thermostat wire 18 to 24 gauge.

FEATURE SPECIFICATIONS

• Temperature set point range: 50F to 90F / 10C to 32.2C

• Separate heat and cool setpoints

• Programming days: 7 day

• Programming periods:

2 Periods: Away, Leave

4 Periods: Awake, Leave, Return, Sleep

• Non-Programmable

• Auto changeover (may be disabled)

• Programmable fan

- Always on, 15 minutes per hour, 30 minutes per hour and

45 minutes per hour

• Humidity Sensor Offsets

• Smart Recovery (in heating and cooling)

• Permanent memory

• Humidity display and control

• Temperature sensor offsets (indoor)

• Wireless accessibility with Apple and Android Devices.

ENVIRONMENTAL REQUIREMENTS

Operating Temperature/Relative Humidity:

User interface and all sensors: 32F to 104F / 0C to 40C, 95%

RH non-condensing.

Storage Temperature/Relative Humidity:

User interface: -40F to 135F /-40C to 57C, 95% RH

non-condensing.

PRODUCT DATA INFORMATION - STANDARD

Compatible Products:

All Johnson Controls Unitary Products non-communicating and

communicating capable Air Conditioners, Heat Pumps, Air Han-

dlers, and Furnaces.

PHYSICAL CHARACTERISTICS

Dimensions:

See drawing

Appearance:

Plastic, black or white color, textured

Electrical Characteristics/Standard

Input Volts/Amps 24VAC:

(*) Conventional = 24VAC (De-Hum/Hum)

(*) Heat Pump = O/B

(R) Red = 24VAC (Hot)

(Y1) Yellow = 24VAC (Cool)

(Y2) Yellow = 24VAC (Cool 2-stage)

(G) Green = 24VAC (Fan)

(W1) White = 24VAC (Heat)

(W2) White = 24VAC (Heat 2-stage)

PRODUCT DATA INFORMATION - COMMUNICATING

Physical Characteristics

Dimensions:

See drawing

Appearance:

Plastic, black or white color, textured

Electrical Characteristics/Communication

Input Volts/Amps 24VAC:

A+ Green = Data A+

R Red = 24 Vac (HOT)

C Blue = 24 Vac (COM)

B- White = Data B-

S1 Source 1

TThermostat

H Home

XExtra Premium

UUniversal

280 Model Number

BB = Black, W = White

ARevision A

Compatible Communicating Products

MODEL

DESCRIPTION YORK COLEMAN LUXAIRE

Air Conditioning CZF, CZH,

YXV AC6, AC8,

AC21 AL6, AL8,

AL21

Heat Pumps YZF, YZH,

YZV HC6, HC8,

HC20 HL6, HL8,

HL20

Gas Furnaces YPLC, YP9C,

TM9V, TM8V CPLC, CP9C,

TM9V, TM8V LPLC, LP9C,

TM9V, TM8V

Air Handlers MVC, MV, AV*,

AHV,AVC,AVV MVC, MV, AV*,

AHV,AVC,AVV

5190554-UTG-C-0617

Johnson Controls Unitary Products 3

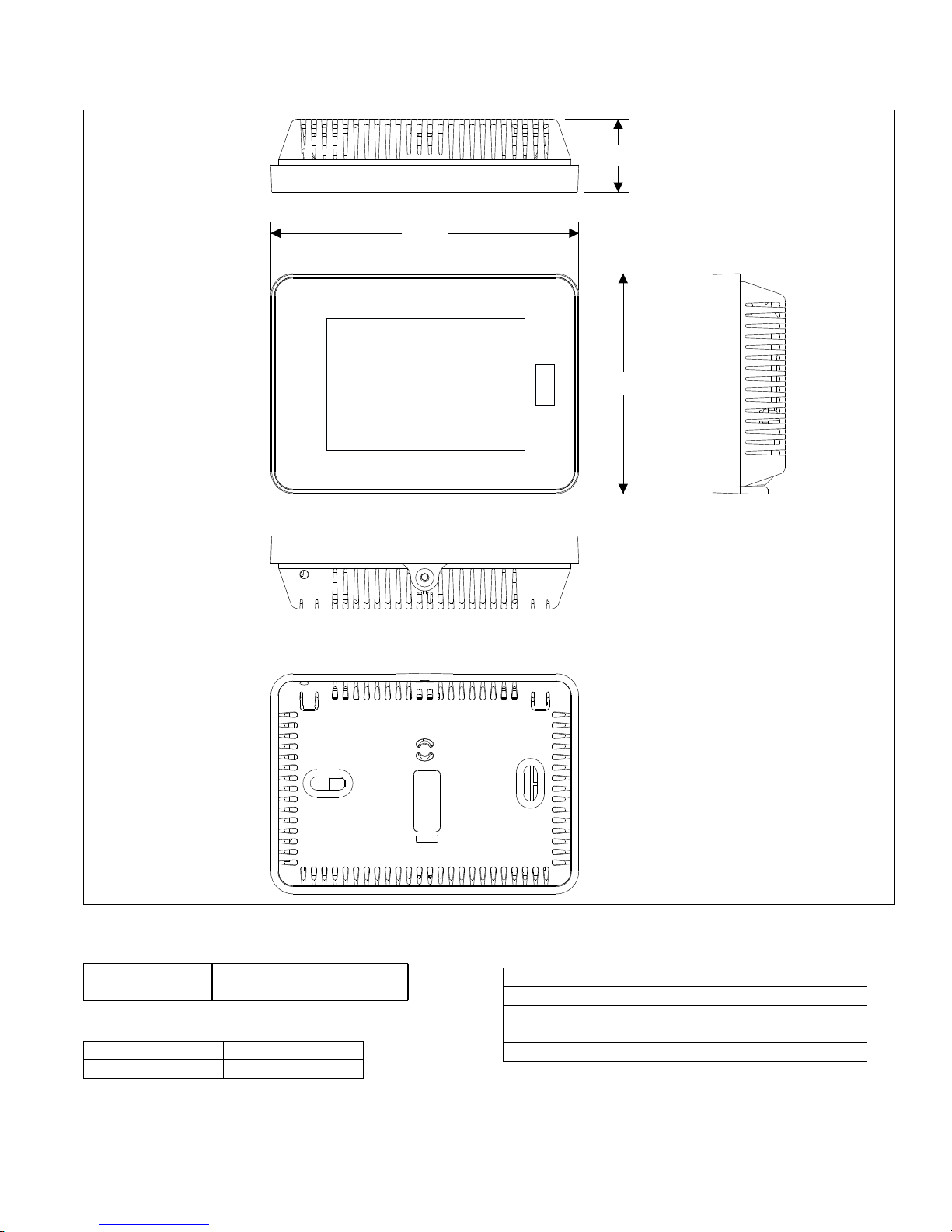

PRODUCT DIMENSIONS

EQUIPMENT







$

Equipment

PART NUMBER DESCRIPTION

S1-THXU280(B, W) HxTM Thermostat

Repair Parts

PART NUMBER DESCRIPTION

S1-02817124000 Back Plate

Optional Accessories

PART NUMBER DESCRIPTION

S1-02817126000 J-Box Back Plate (10 pk)

S1-02542683000 Remote Sensor Connector

S1-02542694000 Wire Harness

S1-02542683000 Outdoor Sensor

Subject to change without notice. Published in U.S.A. 5190554-UTG-C-0617

York International Corp.

5005 York Drive

Norman, OK 73069
