Johnson Controls T7600 User manual

T7600

LCD Digital Thermostat

Installation Guide

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

Building Efciency

Headquarters: Milwaukee, Wisconsin, USA

Branch Officies: Principal Cities World-wide

Johnson Controls®are registered trademarks of Johnson Controls.

All other marks herein are the marks of their respective owners.

www.johnsoncontrols.com

*248578400151F*

87.75

14.20

46.20 60.00

> 50 cm

> 150 cm

°C

ON / OFF

AUTO

°C/°F

TiO2/ESP

Timer

Symbol

ON OFF

• Ambient

• 工作环境

MAX

40 °C

104 °F

MIN

0 °C

-32 °F

MAX

60 °C

140 °F

MIN

-10 °C

-14 °F

MAX 90% RH

MIN 10% RH

 

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

T7601-TF20-...JS0

GND

MODBUS

NTC OCC COM

F-ON

B A

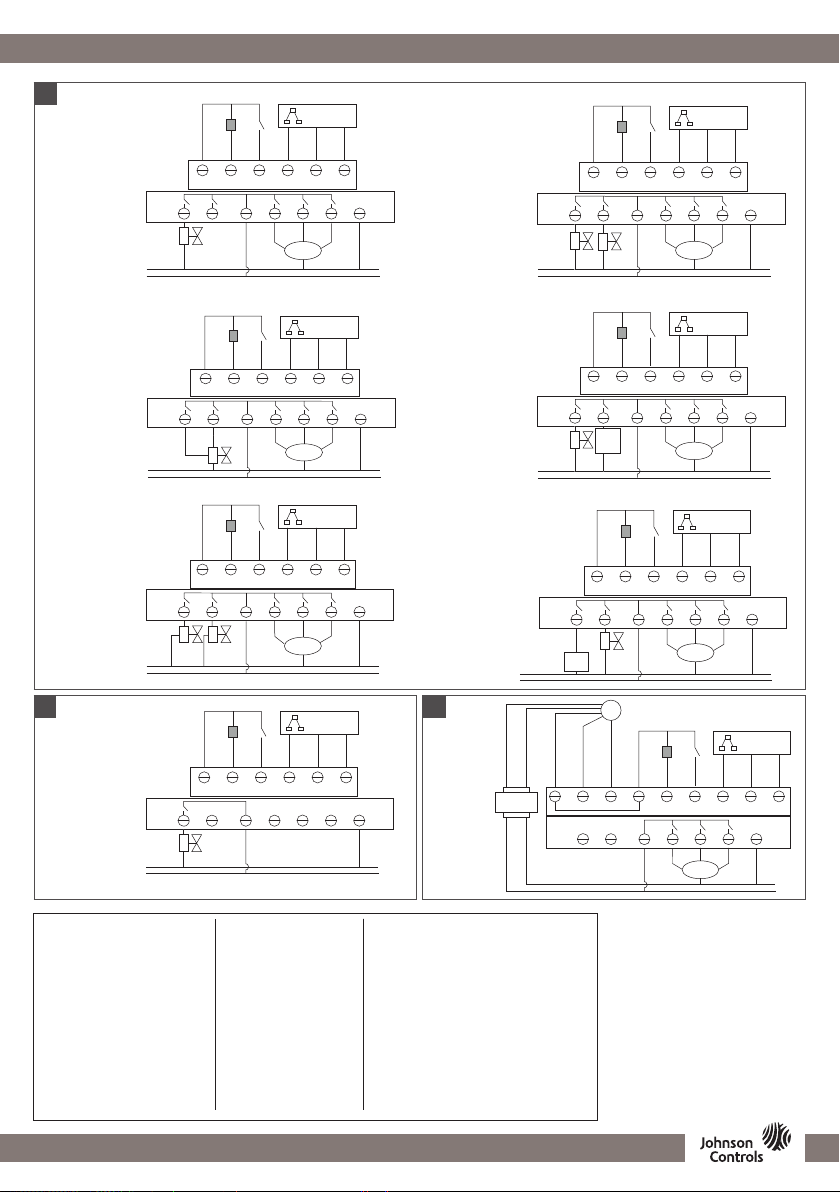

2-pipe ON/OFF with ECM Fan

2管制开关型，ECM风机

GND

0-10 V

100-240 VAC 50/60Hz

ECM

FAN

GND

MODBUS

NTC OCC COM

F-ON

B A

4-pipe ON/OFF with ECM Fan

4管制开关型， ECM风机

GND

100-240 VAC 50/60Hz

FAN

V1V2

COOL

HEAT

0-10 V

ECM

FAN

GND NTC OCC COM

F-ON

B A

2-pipe ON/OFF 3 wires valve

2管制开关型， 3线阀

GND

100-240 VAC 50/60Hz

FAN

ONOFF

0-10 V

ECM

FAN

MODBUS

GND NTC OCC COM

F-ON

B A

2-pipe ON/OFF with TiO2/ESP

2管制开关型+TiO2/ESP

GND

100-240 VAC 50/60Hz

FAN

V1V2

TiO2

ESP

0-10 V

ECM

FAN

MODBUS

GND NTC OCC COM

F-ON

B A

2-pipe ON/OFF with floor heating

2管制开关型, 地暖

GND

100-240 VAC 50/60Hz

FAN

FLOOR

HEAT

COOL

HEAT

0-10 V

ECM

FAN

MODBUS

GND NTC OCC COM

F-ON

B A

Water source heat pump

水源热泵

GND

100-240 VAC 50/60Hz

FAN

V1V2

RV = REVERSING VALVE

CMP = COMPRESSOR

CMP

0-10 V

ECM

FAN

MODBUS

GND NTC OCC COM

F-ON

B A

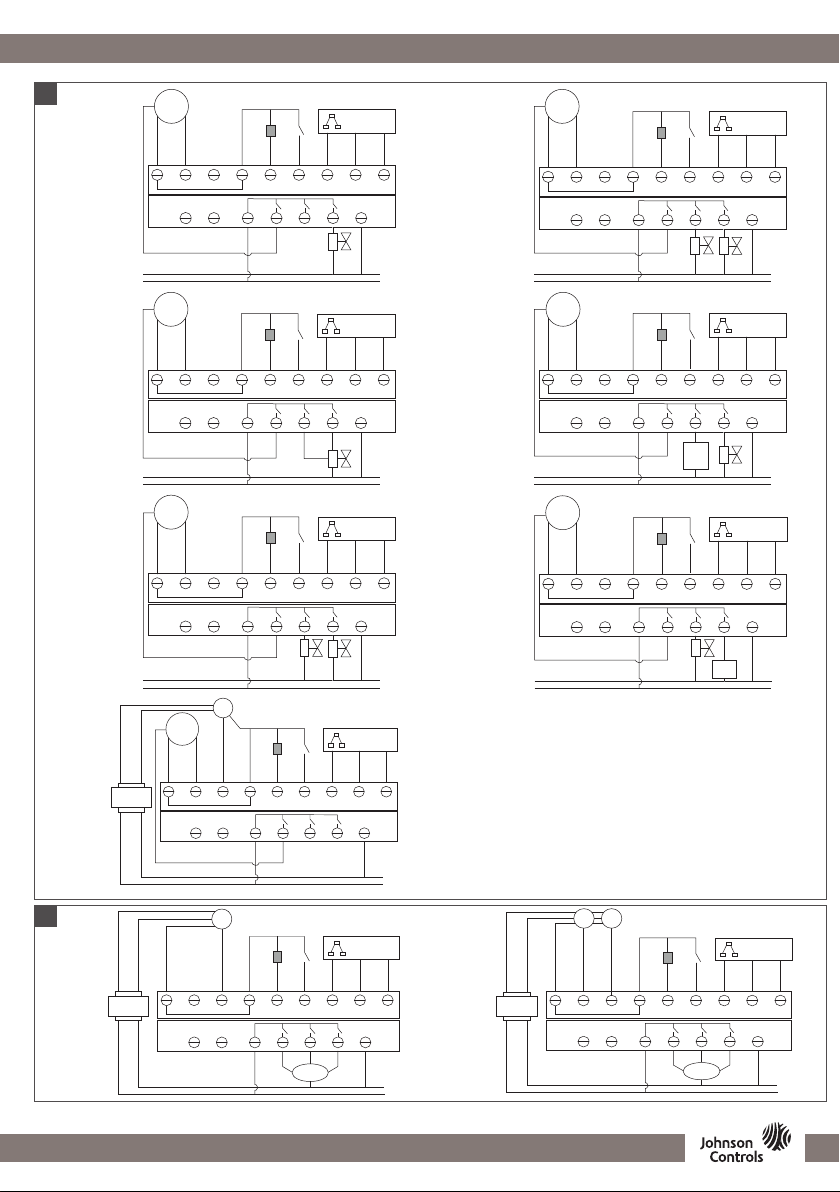

2-pipe Proportional with ECM

2管制比例型， ECM风机

AO1 GND

24 VAC

COM

100-240 VAC 50/60Hz

FAN

0-10 V

ECM

FAN

0-10 V

MODBUS

T7600-TF21-...JS0

GND NTC OCC COM

FAN

LHI MED

B A

2-pipe Proportional 3 speed fan

2管制比例型， 3速风机

AO1 GND

0-10 V

NLOW

24 VAC

COM

100-240 VAC 50/60Hz

MODBUS

COOL/HEAT

GND NTC OCC COM

FAN

LHI MED

B A

4-pipe Proportional

4管制比例型

AO1 GND

NLOW

24 VAC

COM

100-240 VAC 50/60Hz

AO2

HEAT

COOL

0-10 V

MODBUS

English 中文

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

NTC OCC COM

FAN

LHI MED

B A

2-pipe ON/OFF 3 speed fan

2管制开关型，3速风机

GND

NLOW

100-240 VAC 50/60Hz

MODBUS

NTC OCC COM

FAN

LHI MED

B A

4-pipe ON/OFF 3 speed fan

4管制开关型，3速风机

GND

NLOW

100-240 VAC 50/60Hz

V1 V2

HEAT

COOL

MODBUS

T7600-TF20-...JS0

NTC OCC COM

FAN

LHI MED

B A

2-pipe ON/OFF with 3-wire valve

2管制开关型，3线阀

GND

NLOW

100-240 VAC 50/60Hz

V1 V2

OFF

MODBUS

NTC OCC COM

FAN

LHI MED

B A

2-pipe ON/OFF with TiO2/ESP

2管制开关型+TiO2/ESP

GND

NLOW

100-240 VAC 50/60Hz

V1 V2

TiO2

ESP

MODBUS

NTC OCC COM

FAN

LHI MED

B A

2-pipe ON/OFF with floor heating

2管制开关型+地暖

GND

NLOW

100-240 VAC 50/60Hz

V1 V2

FLOOR

HEAT

COOL

HEAT

MODBUS

NTC OCC COM

FAN

LHI MED

B A

Water source heat pump

水源热泵

GND

NLOW

100-240 VAC 50/60Hz

V1 V2

RV = REVERSING VALVE

CMP = COMPRESSOR

CMP

MODBUS

T7603-T000-...JF0

NTC OCC COM

B A

Floor Heating

地暖

GND

100-240 VAC 50/60Hz

HEAT

MODBUS

T7600-TB21-...JA0

GND NTC OCC COM

FAN

LHI MED

B A

2-pipe Proportional with PICV

2管比例型调节阀+AI输入

AI AO GND

0-10 VDC

FEEDBACK

NLOW

24 VAC

COM

100-240 VAC 50/60Hz

MODBUS

English 中文

图例：

MODBUS：

A： MODBUSA线

B： MODBUSB线

COM： MODBUS公共端

NTC： 温度传感器

OCC： 门卡开关

ECMFAN： ECM风机

FAN： 风机

AO1： 模拟输出1

AO2： 模拟输出2

AI： 模拟输入/阀反馈

HEAT： 热水阀

COOL： 冷水阀

FLOORHEAT：地暖阀

LOW： 风机低速档位

MED： 风机中速档位

HI： 风机高速档位

TiO2ESP：TiO2ESP设备

CMP：Compressor压缩机

RV： ReversingValve换向阀

F-ON：风机开关

GND:地

L：火线

N：零线

V1：阀1

V2：阀2

TR：变压器

24V：接24VAC变压器

0：接24VAC变压器

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

English

INSTALLATION INSTRUCTIONS FOR THE TECHNICIAN / FITTER

READ THIS INSTRUCTION SHEET AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND

SAVE IT FOR FUTURE USE

REPAIR AND REPLACEMENT

Do not attempt to repair the T7 Series thermostat. In case of an improperly functioning control, contact the nearest Johnson Controls®representative, and

specify the desired product code number. When contacting the supplier for a replacement please state the type/model number of the control located on the

data plate or cover label.

IMPORTANT

• Use this T7 Series Thermostat only as an operating control. Where failure of malfunction of the T7 Series Thermostat could lead to personal injury or

property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other

devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the T7 Series

Thermostat.

• Do not install this thermostat in condensing, wet, or damp environments. Moisture may cause damage to the thermostat.

• Do not remove PCB from the enclosure cover. Removing the PCB from the enclosure cover voids the product warranty.

• Make all wiring connections in accordance with local, nation, and regional regulations. Do not exceed the T7 Series thermostat’s electrical ratings.

• Remove LCD plastic cover before use.

WARNING

Disconnect power supply before making electrical connections. Contact with components carrying hazardous voltages can cause electrical shock and may

result in severe personal injury or death.

• Risk of Electrical Shock: Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in

electrical shock and severe personal injury and death.

• Risk of Electrical Shock and Property Damage: Insulate and secure each unused wire lead before applying power to the thermostat.

Failure to insulate and secure each unused wire lead may result property damage, electrical shock, and severe personal injury or death.

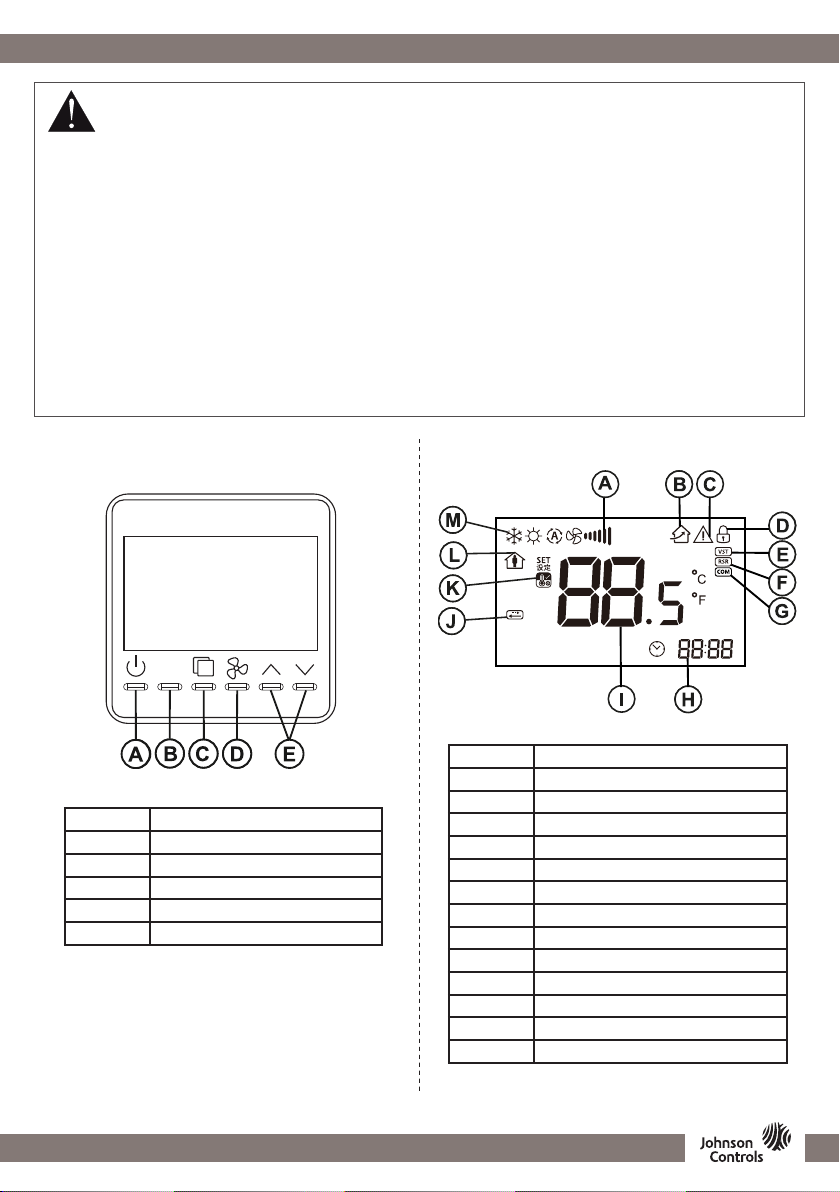

Callout Feature

AFan speed Hi/Med/Low/Auto (ashing)

BTio2/ESP

CAlarm

DLock

EValve status

FRemote sensor

GCommunication

HDelay on/off

ITemperature value

JCompressor protection

KLow temperature protection

LOccupancy

MCooling, heating, or auto mode

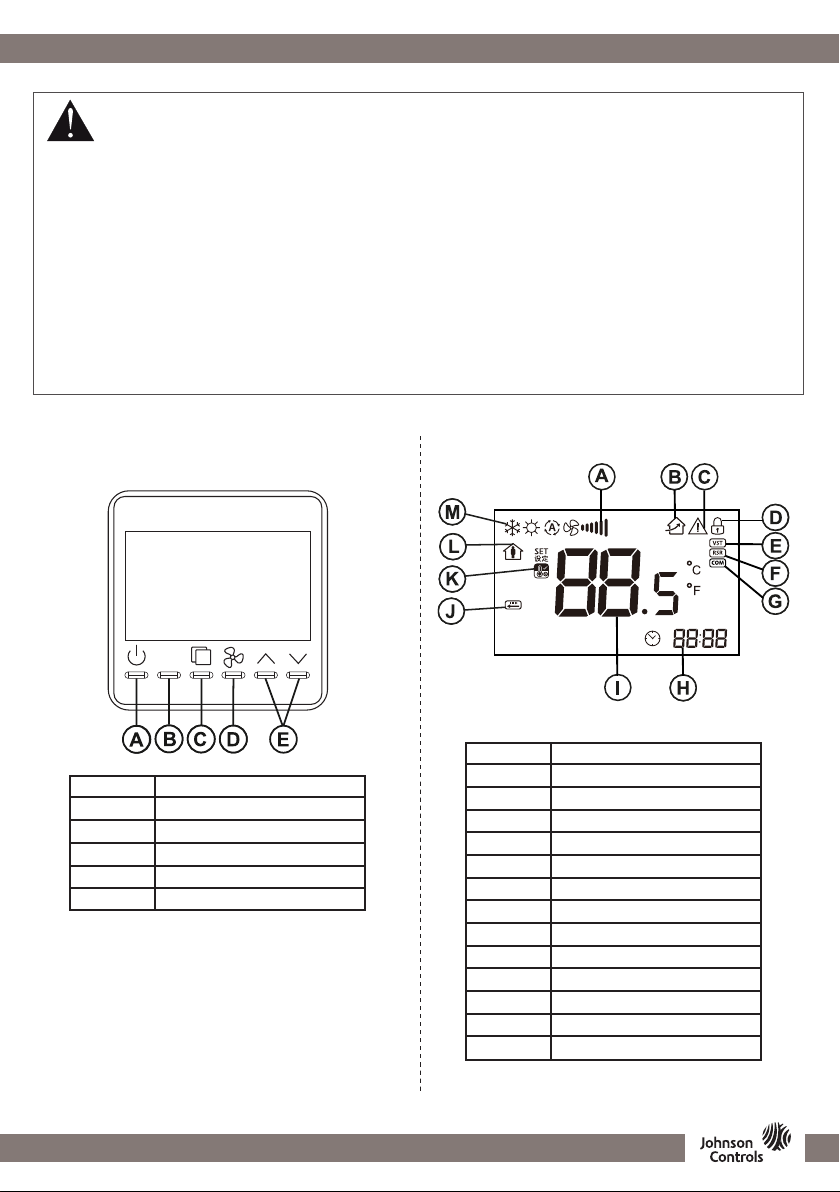

Callout Feature

APower button

BWorking mode button

CGeneral button

DFan speed adjustment button

EUp and down buttons

T7600 Interface

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

INSTRUCTIONS

On/Off Setting: Press to turn on, press again to turn off, close the fan and valve.

Temperature Setting: Press either or button to increase or decrease the temperature by 0.5°C/1°F.

Fan Speed Adjustment: Press to switch the fan mode, auto ash, high , medium , low fan.

Note: Fan stops at Floor Heating Mode, until FH-FAN parameter set to enable, for single stage oor heating application only.

Delay On/Off setup: Press and hold button 5 seconds, then “ON” appears, press button to switch On or Off delay,

then press or to adjust the minute by 30 minutes.

Note: Time-On/Off setting performs only once within one day.

Delay On/Off Cancel: Press and hold button 5 seconds, then “ON” appears, press button to switch to check On or Off

delay time, then press or adjust the time to “00:00”.

Lock setup: If Lock function is enabled, the thermostat locks automatically after 30 seconds unused.

Unlock function: Press and hold the button 5 seconds to unlock. T7603-T000-...JF0 has no button, press and hold the

button 5 seconds to unlock instead.

Tio2/ESP Manual: When Tio2/ESP function is set to Manual, press button once, to switch Tio2/ESP On or Off.

PARAMETER SETTING (PART 1/2)

Press and button for 5 seconds at power off mode to get in parameter list. Press Mbutton to scroll the list and use and button to change

parameter value. With model T7603-T000-...JF0 only press to get parameter list and to scroll the list.

Code

T7600-

TF21-

...JS0

T7601-

TF20-

...JS0

T7600-

TF20-

...JS0

T7603-

T000-

...JF0

T7600-

TB21-

...JA0 Parameter Name Default Function

01 ■■■■■Upper setpoint limit 35°C Setting range 2°C to 40°C (36°F to 99°F)

02 ■■■■■Lower setpoint limit 5°C Setting range 0°C to 38°C (32°F to 95°F)

03 ■ ■ ■ --- --- Application 00

T7601-TF20-...JS0 with EC Motor Control

00: 2-pipe ON/OFF valve

01: 4-pipe ON/OFF Valve

02: 2-pipe ON/OFF 3-wire relay valve

03: 2-pipe ON/OFF valve with TiO2/ESP relay

04: 2-pipe ON/OFF valve with floor heating

05: Water source heat pump

06: 2-pipe Proportional valve

T7600-TF21-...JS0 Proportional Control

00: 2-pipe Proportional valve

01: 4-pipe Proportional valve

T7600-TF20-...JS0 ON/OFF Control

00: 2-pipe ON/OFF valve

01: 4-pipe ON/OFF Valve

02: 2-pipe ON/OFF 3-wire relay valve

03: 2-pipe ON/OFF valve with TiO2/ESP relay

04: 2-pipe ON/OFF valve with floor heating

05: Water source heat pump

04 ■ ■ ■ --- ■Cooling setpoint

unoccupied 26°C Setting range 22°C to 32°C (72°F to 90°F)

05 ■■■■■Heating setpoint

unoccupied 18°C Setting range 10°C to 21°C (50°F to 70°F)

06 ■■■■■Frost protection 00 00: On

01: Off

07 ■■■■■Frost protection setpoint 5°C Setting range 0°C to 20°C (32°F to 68°F)

08 ■ ■ ■ --- ■

Fan speed in AUTO

mode in dead band (room

temperature reach set

point)

01 00: Fan off

01: Low speed

09 ■ ■ ■ --- ■Fan mode when

unoccupied 00 00: Low speed

01: Set speeds

10 --- ■--- --- --- ECM Min voltage 3V Min voltage below which the fan output is 0%,

range 0 V-10 V. The adjustment is 0.5V for every step..

...Continued...

English

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

English

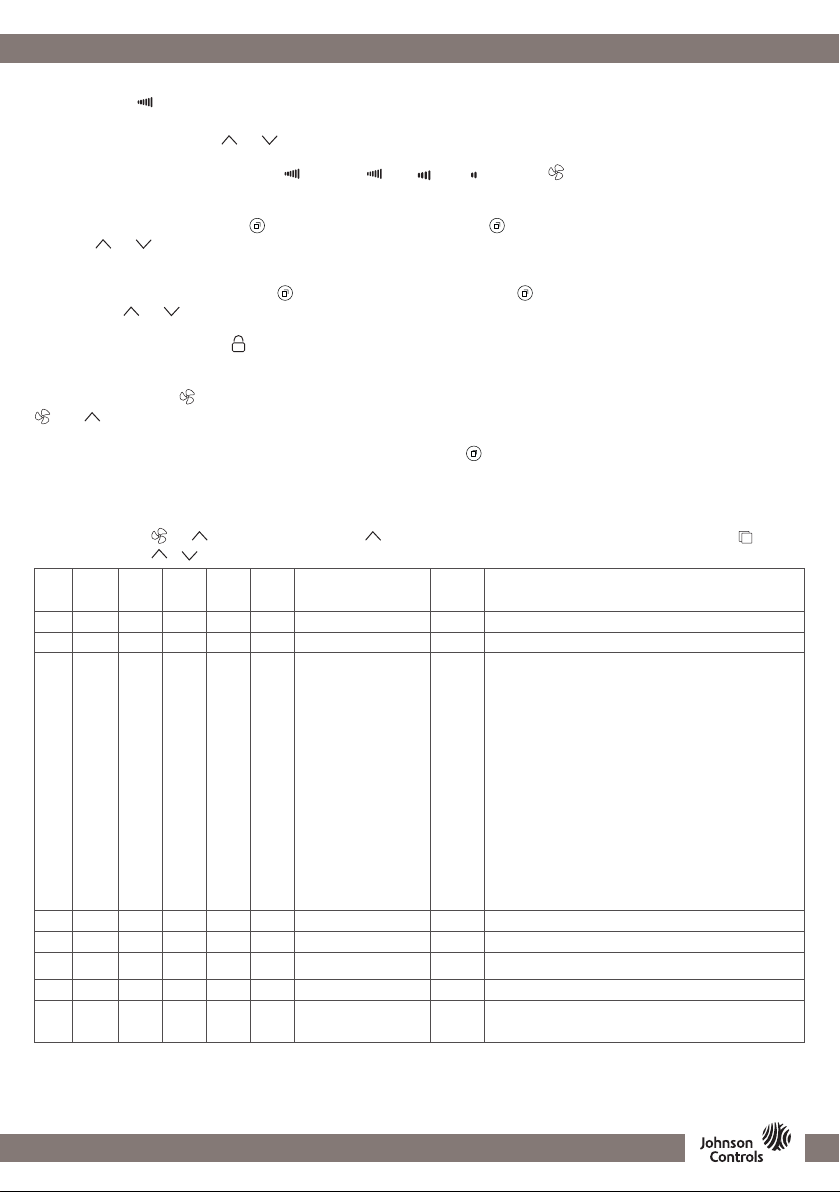

PARAMETER SETTING (PART 2/2)

Code

T7600-

TF21-

...JS0

T7601-

TF20-

...JS0

T7600-

TF20-

...JS0

T7603-

T000-

...JF0

T7600-

TB21-

...JA0 Parameter Name Default Function

11 --- ■--- --- --- ECM Max voltage 10V Max voltage above which the fan output is 100%,

range 0 V-10 V. The adjustment is 0.5V for every step

12 --- ■--- --- --- ECM cut off relay (F-ON) 00 00: Disabled

01: Enabled

13 ■■■■■Restart after power failure 00

00: Keep last status

01: On

02: Off

14 ■■■■■Keypad lock 00

00: No lock

01: Lock all keys

02: Lock the keys except Fan Speed and Temp Adjustment keys

03: Lock the ON/OFF and Timer keys

04: Lock the keys except ON/OFF key

15 ■■■■■Default display 00 00: Display room temp.

01: Display setpoint only

16 ■ ■ ■ --- ■Auto changeover 00 00: Disable

01: Enable (when 2 pipe requires 10K NTC on water tube)

17 ■■■■■Digital input function

(OCC) 00

00: Setpoint reduction when contact is Closed (UnOccupied)

01: Setpoint reduction when contact is Open (UnOccupied)

02: Dew Point Alarm when contact is Closed

03: Dew Point Alarm when contact is Open

04: Shut off Fan and Valves when contact is Closed

05: Filter Alarm when contact is Closed

06: Filter Alarm when contact is Open

18 ■■■■■Unit selection 00 00: Celsius degree (°C)

01: Fahrenheit degree (°F)

19 ■■■■■Temperature offset 0 Setting range -5°C to 5°C (-9°F to 9°F)

20 ■ ■ ■ --- ■Fan speed (ECM not

applicable when auto

mode)

00: 3 Speed

01: 2 Speed (Wiring MED, LOW)

02: 1 Speed (Wiring LOW)

03: No Fan

21 ■■■■■Language 00 00: Chinese

01: English

22 ■ ■ ■ --- ■Mode selection 00

00: Cooling/heating/ventilation

01: Cooling only

02: Heating only

23 ■■■■■Back light 30 The back light will be OFF in 05 seconds to 60 seconds.

25 ■■■■■Remote sensor type 00 00: China market 10k NTC

01: JCI type II 10k NTC

26 ■■■■■MODBUS address 1 1-64

27 ■■■■■Baud rate 00 00: 9600

01: 4800

28 ■ ■ --- --- ■Sample time 10 Setting range 1 second to 99 seconds

29 ■■■■■Deadband 1 Setting range 0°C to 10°C (32°F to 50°F)

30 ■ ■ --- --- ■KP (proportional control

gain, PB = 100/KP) 10 Setting range 1 to 99

31 ■ ■ --- --- ■KI (integral control gain) 01 Setting range 0 to 99

32 --- ■ ■ --- --- TiO2/ESP operation 00

00: Operate separately (Press the General button for a short

period)

01: Work in parallel with FCU fan

33 --- ■ ■ --- --- Inter stage difference 3 Setting range 0°C to 10°C (32°F to 50°F)

34 --- ■ ■ --- --- Heating stage 00 00: 2 Stages

01: 1 Stages

37 ■ ■ ■ --- ■Fan off timer (time

postpone setting for

fan off)

00 00 seconds- 99 seconds

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

ALARM CODE DESCRIPTION

Item Code Description

1 E1 Internal sensor shorted warning. Valves and fan are shut off when error is active.

2 E2 Internal sensor opened warning. Valves and fan are shut off when error is active.

3 HI High temperature warning. Room Temperature >55°C (>131°F)

4 LO Low temperature warning. Room Temperature <0°C (<32°F).

5 E3 Remote sensor shorted. Active with 2 pipe autochangeover configuration.

6 E4 Remote sensor opened. Active with 2 pipe autochangeover configuration.

7 E5 Dew point risk warning. Valves and fan are shut off when error is active.

• icon is visible when TiO2/Esp command is active

• icon ash when lter alarm is active

•

COM

symbol will ash during MODBUS communication fault

Note

• Terminal blocks changes depending on the application selected, please check the table beside rst

• The relay output are line voltage, they are connected with Terminal “L” internally

• The digital input “OCC” can assume different meaning depending on parameter 17 setting

• Thermostat autodiscover Remote Sensor presence, its functionality is depending by P25 and P16 parameters

• Push the Fan button for 3 seconds to unlock the keypad, then congure parameter 14 to cancel the keypad lock function.

English

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

中文

安装指导

请在安装前仔细阅读该安装指导和安全警告

维修和替换：

不要试图现场维修T7000系列温控器。如果T7000不能正常工作，请与附近江森自控办事处联系。当联系办事处更换产品的时

候，请说明外部标签或参数表上印有的类型/型号。

重要：

•T7000系列温控器仅用作设备控制。当T7000系列温控器调节装置失灵或故障时可能会导致人员伤害，财产损失及其他设备损坏。请在系统中增

加预防措施，如使用监控及报警系统、保护开关等，来加强此温度调节装置的机能失效和故障时的保护。

•不要把T7000装在结露、潮湿或有湿气处。湿气会损坏温控器。

•不要拆卸外壳中的PCB，拆卸PCB板将不再享有质保服务。

•使所有接线符合国家、地区和当地的规定。不要超过T7000系列温控器电气参数。

•使用前请移除LCD塑料保护壳。

警告：

在进行电器接线时确保电源断开。在带电时连接各部件可能引起电击，从而导致人员受伤甚至死亡。

•电击危险：按照国家、地区和当地的规定给温控器接地。接地失效可能导致电击和人员受伤甚至死亡。

•电击危险和财产损失：在温控器通电前把未使用的线头保护好，使之绝缘。任何一个未使用的线头未被绝缘和保护可能导致财产损失，电击和

人员受伤甚至死亡。

编号功能

A风速高/中/低/自动(闪烁)

BTio2/ESP

C警告

D键盘锁

E阀状态

F外置传感器

G通讯

H延时启停

I温度读数

J压缩机保护中

K低温保护

L占用模式

M制冷/制热/自动模式

编号功能

A开关键

B模式键

C功能键

D风速键

E上下调节键

T7600 界面

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

使用说明

开关机设置：按 键一次开机；再按一次关机，同时关闭风机盘管、电动阀。

温度设置：在开机状态下，按 或 可进行设置温度的调节，每按一次，温度变化0.5℃/1°F。

风速调节：温控器有4种风机速度，自动 闪烁、高 、中 、低 风速。按 按钮，将循环切换。

注意：地暖模式下，地暖模式-风机设置成启用，风机才可以打开，仅单地暖模式下。

定时开关机设置：开机状态下，按 键，直至出现“on”符号，再次按 键以切换设置“On”延时开或者“Off”延时开

时间，按 或 键调整，每按一次变化30分钟。

注意：设定一次定时开关机时间只能执行一次，即只在一天内有效。

取消定时开关机设置：开机状态下，按 键，直至出现“on”符号，再次按 键以切换查看“On”延时开或者“Off”延

时开时间，按 或 键调整，每按一次变化30分钟，将时间调整为“00:00”，即为取消定时功能。

按键锁功能：如果温控器开启了锁按键功能，在没有人使用的情况下30秒后会自动把按键锁上，禁止其他人员对温控器进

行操作。

按键解锁：按风速按键 5秒即可解锁（在没有人使用的情况下30秒后会自动把按键锁上）。T7603-T000-...JF0没有风速键

，按 键5秒解锁。

Tio2/ESP功能：仅在Tio2/ESP应用，且Tio2/ESP操作设定为手动操作,按 键马上释放以切换Tio2/ESP启用/停止。

参数设定

关机状态下同时按 和 键（T7603-T000-...JF0按 键）5秒进入参数设定列表，按M键（T7603-T000-...JF0按 键）切

换参数设定项，按 / 键修改参数。

编号

T7600-

TF21-

...JS0

T7601-

TF20-

...JS0

T7600-

TF20-

...JS0

T7603-

T000-

...JF0

T7600-

TB21-

...JA0 参数名默认值功能含义

01 ■■■■■设定值上限 35°C 设定范围2℃~40℃(36oF~99oF)

02 ■■■■■设定值下限 5°C 设定范围0℃~38℃(32oF~95oF)

03 ■ ■ ■ --- --- 应用 00

T7601-TF20-...JS0

00：2管制开关阀

01：4管制开关阀

02：2管制3线开关阀

03：2管制开关阀带TiO2/ESP

04：2管制开关阀带地暖

05：水源热泵

06：2管制调节阀

T7600-TF21-...JS0

00：2管制调节阀

01：4管制调节阀

T7600-TF20-...JS0

00：2管制开关阀

01：4管制开关阀

02：2管制3线开关阀

03：2管制开关阀带TiO2/ESP

04：2管制开关阀带地暖

05：水源热泵

04 ■ ■ ■ --- ■无人状态制冷设定值 26°C 设定范围22℃~32℃(72oF~90oF)

05 ■■■■■无人状态制热设定值 18°C 设定范围10℃~21℃(50oF~70oF)

06 ■■■■■低温保护 00 00：开启

01：关闭

07 ■■■■■低温保护设定值 5°C 设定范围0℃~20℃(32oF~68oF)

08 ■ ■ ■ --- ■

风机自动模式下，死区

风速（当房间温度达到

设定点）

01 00:风机关闭

01:低速

...继续...

中文

T7600

P/N 24-85784-00151 Rev. F Issue Date: 10 2020

参数设定

编号

T7600-

TF21-

...JS0

T7601-

TF20-

...JS0

T7600-

TF20-

...JS0

T7603-

T000-

...JF0

T7600-

TB21-

...JA0 参数名默认值功能含义

09 ■ ■ ■ --- ■无人模式风机状态 00 00：低风速

01：用户设定风速

10 --- ■--- --- --- ECM风机电压输入下限 3V 0%对应电压值，设定范围0V-10V.（0.5V阶跃）

11 --- ■--- --- --- ECM风机电压输入上限 10V 100%对应电压值，设定范围0V-10V.（0.5V阶跃）

12 --- ■--- --- --- ECM风机继电器启停

(F-ON端子) 00 00：禁用

01：启用

13 ■■■■■掉电重启 00

00：恢复掉电前状态

01：开启

02：关闭

14 ■■■■■按键锁 00

00：禁用

01：锁定所有按键

02：除风速及温度调节按键，锁定其他按键

03：锁定开关及通用按键

04：除开关键，锁定其他按键

15 ■■■■■默认显示 00 00：室内温度

01：温度设定值

16 ■ ■ ■ --- ■自动切换 00 00：禁用

01：启用（2管制FCU需要在水管安装10KNTC传感器）

17 ■■■■■BI输入(OCC) 00

00：开路表示门卡插入（有人），短路无人

01：短路表示门卡插入（有人），开路无人

02：短路表示露点报警

03：开路表示露点报警

04：开路表示有人，短路表示无人，无人时关闭风扇和阀门

05：短路表示滤网报警

06：开路表示滤网报警

18 ■ ■ ■ ■ ■ 温度单位 00 00：摄氏度(℃)

01：华氏度(oF)

19 ■■■■■温度偏移 0设定范围–5℃~5℃(-9oF~9oF)

20 ■ ■ ■ --- ■风速（自动模式下，ECM

风机不适用） 00

00：三风速

01：两风速（接MED，LOW）

02：单风速（接LOW）

03：风扇禁用

21 ■ ■ ■ ■ ■ 语言 00 00：中文

01：英文

22 ■ ■ ■ --- ■模式 00

00：制冷/制热/通风

01：单冷

02：单热

23 ■■■■■背光 30 05~60s，xx秒无操作，背光熄灭

25 ■■■■■外置传感器类型 00 00：中国版10kNTC

01：JCIII型10kNTC

26 ■■■■■MODBUS地址 11-64

27 ■■■■■波特率 00 00：9600

01：4800

28 ■ ■ --- --- ■采样时间 10 设定范围1~99s

29 ■■■■■死区范围 1设定范围0℃~10℃(32°F to 50°F)

30 ■ ■ --- --- ■KP（比例增益，PB=100/

KP） 10 设定范围1~99

31 ■ ■ --- --- ■KI（积分增益） 01 设定范围0~99

32 --- ■ ■ --- --- TiO2/ESP操作 00 00：单独操作（短按通用键）

01：与风机联动

33 --- ■ ■ --- --- 制热阶段切换阈值 3设定范围0℃~10℃(32°F to 50°F)

34 --- ■ ■ --- --- 制热阶段 00 00：两级制热

01：单级制热

37 ■ ■ ■ --- ■风机延迟关闭时间设定 00 00~99秒

•接线前请查看接线图中的应用表以确定端子接线方式

•温控器继电器输出为市电电压，内部继电器与火线相连

•参数17可配置BI输入“OCC”为不同应用

•温控器可自动检测外置传感器，参数16和25可配置为不同应用

•长按风机键3秒，解锁按键。之后可根据需要进入设置模式改参数14取消按键锁功能

中文

Other manuals for T7600

This manual suits for next models

Table of contents

Other Johnson Controls Thermostat manuals

Johnson Controls

Johnson Controls TEC3000 Series User manual

Johnson Controls

Johnson Controls Hx3 S1-THXU430W Guide

Johnson Controls

Johnson Controls T25 User manual

Johnson Controls

Johnson Controls T8680 Operating instructions

Johnson Controls

Johnson Controls GLAS Service manual

Johnson Controls

Johnson Controls TEC3023-14-000 User manual

Johnson Controls

Johnson Controls T5000-E User manual

Johnson Controls

Johnson Controls Hx3 S1-THXU430W Guide

Johnson Controls

Johnson Controls T8000 Series User manual

Johnson Controls

Johnson Controls WT-4002-MCR User manual

Johnson Controls

Johnson Controls T600MSP-2 User manual

Johnson Controls

Johnson Controls T28 User manual

Johnson Controls

Johnson Controls A19 Series User manual

Johnson Controls

Johnson Controls TEC2101-3 N2 User manual

Johnson Controls

Johnson Controls TEC3000 Series User manual

Johnson Controls

Johnson Controls NXT-TSO-01 TSO User manual

Johnson Controls

Johnson Controls TEC2001-4 User manual

Johnson Controls

Johnson Controls T8000 Series User manual

Johnson Controls

Johnson Controls T7200 User manual

Johnson Controls

Johnson Controls T600MSN-3 User manual

Johnson Controls

Johnson Controls T7600 User manual

Johnson Controls

Johnson Controls T8690 Operating instructions

Johnson Controls

Johnson Controls TEC2104-3 User manual

Johnson Controls

Johnson Controls T9180 Operating instructions

Popular Thermostat manuals by other brands

EWELLY

EWELLY EW-181 manual

Prolon

Prolon T1100 Hardware guide

Computherm

Computherm Q20 operating instructions

Heatmiser

Heatmiser neoStat user manual

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA user manual

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat user manual

Saswell

Saswell SAS920XWHB-7-S-RF User manual and warranty card

Aircalo

Aircalo TFP1-ET85P2 operating manual

Honeywell

Honeywell CM721 user manual

Carrier

Carrier DEBONAIR 33CS Installation and operating instructions

Lennox

Lennox iHarmony Zone Thermostat Installation and setup guide

Gemtech

Gemtech GT7000 Operation

Rollei

Rollei Smartes 45000 manual

Sinope

Sinope TH1300RF user guide

Honeywell

Honeywell RLV4305 owner's guide

Honeywell

Honeywell Prestige 2.0 THX9421 manual

NuTone

NuTone NTBZ48 Installation & operation guide

Stelpro

Stelpro MAESTRO ASMT402AD user guide
