TECHNICAL GUIDE

SPLIT-SYSTEM

AIR CONDITIONERS

13 SEER – R-410A – 3 PHASE

MODELS:

TCGD30 THRU 60

(2.5 THRU 5 NOMINAL TONS)

Due to continuous product improvement, specifications

are subject to change without notice.

Visit us on the web at www.york.com

Additional rating information can be found at

www.ahridirectory.org

LISTED

ISO 9001

Certified Quality

Management System

TECHNICAL

GUIDE

TECHNICAL

GUIDE

415571-UTG-C-0309

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

DESCRIPTION

The 13 SEER Series condensing unit is the outdoor part of a

versatile system of air conditioning. It is designed to be custom-

matched with one of UPG’s complete line of evaporator sec-

tions, with each serving a specific function. Matching Air Han-

dlers are available for upflow, downflow, or horizontal

applications to provide a complete system. Electric Heaters are

available, if required. Add-on coils are available for use with

upflow, downflow, or horizontal furnaces and air handlers.

WARRANTY

1-year limited parts warranty.

5-year limited compressor warranty.

FEATURES

•QUALITY CONDENSER COILS - The coil is constructed of

aluminum microchannel tubing and enhanced aluminum fins

for increased efficiency and corrosion protection.

•PROTECTED COMPRESSOR - The compressor is inter-

nally protected against high pressure, temperature, and

externally by a factory installed high pressure switch. This is

accomplished by the simultaneous operation of high pres-

sure relief valve and a temperature sensor which protects the

compressor if undesirable operating conditions occur. A liq-

uid line filter-drier further protects the compressor.

•DURABLE FINISH - The cabinet is made of pre-painted

steel. The pre-treated galvanized steel provides a better

paint to steel bond, which resists corrosion and rust creep.

Special primer formulas and matted-textured finish insure

less fading when exposed to sunlight.

•LOWER INSTALLED COST - Installation time and costs are

reduced by easy power and control wiring connections.

Available in sweat connect models only. The unit contains

enough refrigerant for matching indoor coils and 15 feet of

interconnecting piping. The small base dimension means

less space is required on the ground or roof.

•TOP DISCHARGE - The warm air from the top mounted fan

is blown up away from the structure and any landscaping.

This allows compact location on multi-unit applications.

•LOW OPERATING SOUND LEVEL - The upward air flow

carries the normal operating noise away from the living area.

The rigid top panel effectively isolates any motor sound. Iso-

lator mounted compressor and the rippled fins of the con-

denser coil muffle the normal fan motor and compressor

operating sounds.

•LOW MAINTENANCE - Long life permanently lubricated

motor-bearings need no annual servicing.

•EASY SERVICE ACCESS - Fully exposed refrigerant con-

nections, and a single panel covering the electrical controls

make for easy servicing of the unit.

•SECURED SERVICE VALVES - Secured re-usable service

valves are provided on both the liquid and vapor sweat con-

nections for ease of evacuating and charging.

•U.L. and C.U.L. listed - approved for outdoor application.

•Agency Listed -U.L. and C.U.L. listed - approved for out-

door application. The unit is certified in accordance with the

Unitary Small Equipment certification program, which is

based on ARI Standard 210/240.

415571-UTG-C-0309

2Johnson Controls Unitary Products

All dimensions are in inches. They are subject to change with-

out notice. Certified dimensions will be provided upon request.

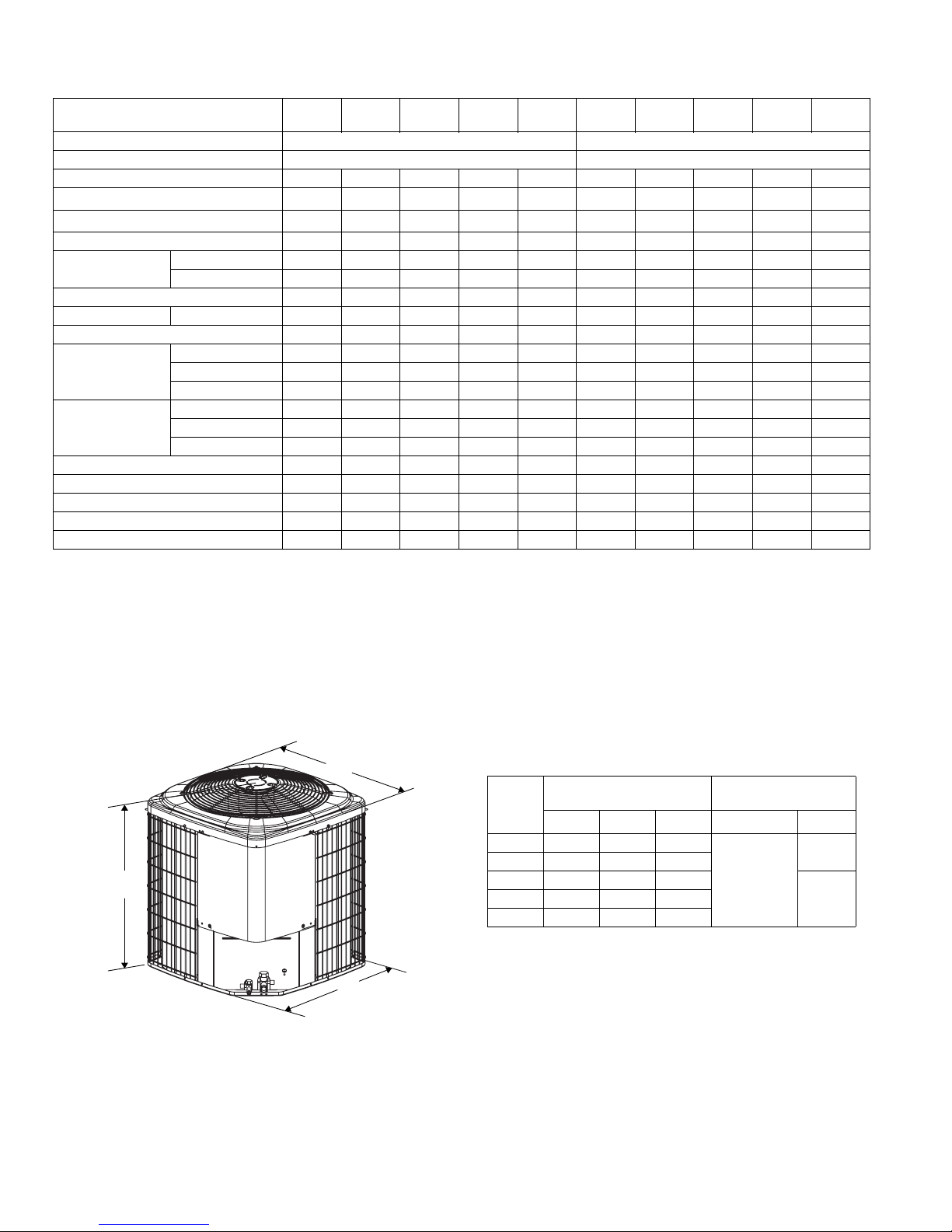

Physical and Electrical Data

MODEL TCGD30

S43S1 TCGD36

S43S1 TCGD42

S43S1 TCGD48

S43S1 TCGD60

S43S1 TCGD30

S44S1 TCGD36

S44S1 TCGD42

S44S1 TCGD48

S44S1 TCGD60

S44S1

Unit Supply Voltage 208-230V, 3 60Hz 460V, 3 60Hz

Normal Voltage Range 1187 to 252 432 to 532

Minimum Circuit Ampacity 11.4 12.3 16.3 15.5 23.9 9.4 7.1 8.0 7.9 13.5

Max. Overcurrent Device Amps 215 20 25 25 40 15 15 15 15 20

Min. Overcurrent Device Amps 315 15 20 20 25 15 15 15 15 15

Compressor Type Recip Recip Recip Recip Scroll Recip Recip Recip Recip Scroll

Compressor Amps Rated Load 8.1 8.6 11.8 11.2 17.9 6.6 4.5 5.2 5.1 9.6

Locked Rotor 63 68 88 88 120 30 34 44 44 70

Crankcase Heater No No No No No No No No No No

Fan Motor Amps Rated Load 1.2 1.5 1.5 1.5 1.5 1.2 1.5 1.5 1.5 1.5

Fan Diameter Inches 17.5 22 22 22 22 17.5 22 22 22 22

Fan Motor Rated HP 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4

Nominal RPM 1100 850 850 850 850 1100 850 850 850 850

Nominal CFM 2050 3200 2950 2950 3600 2050 3200 2950 2950 3600

Coil Face Area Sq. Ft. 9.6 13.07 14.16 14.16 18.68 9.6 13.07 14.16 14.16 18.68

Rows Deep 1 1 1 1 1 1 1 1 1 1

Fin / Inches 23 23 23 23 23 23 23 23 23 23

Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8

Vapor Line Set OD (Field Installed) 3/4 3/4 7/8 7/8 7/8 3/4 3/4 7/8 7/8 7/8

Unit Charge (Lbs. - Oz.) 43 - 14 4 - 9 4 - 5 4 - 9 5 - 6 3 - 14 4 - 9 4 - 5 4 - 9 5 - 6

Charge Per Foot, Oz. 0.62 0.62 0.67 0.67 0.67 0.62 0.62 0.67 0.67 0.67

Operating Weight Lbs. 131 145 173 173 195 131 145 173 173 195

1. Rated in accordance with ARI Standard 110, utilization range “A”.

2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.

3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.

4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or

subtract the amount of refrigerant, using the difference in length multiplied by the per foot value. If line exceeds 25 feet, you may refer to publications

software 036-68001-001 for proper line sizing.

Unit

Model

Dimensions

(Inches) Refrigerant Connection

Service Valve Size

1. Including Fan Guard.

B C Liquid Vapor

30 28 23-1/2 23-1/2

3/8”

3/4”

36 28 29 29

42 30 29 29 7/8”48 30 29 29

60 32 33-5/8 33-5/8

415571-UTG-C-0309

Johnson Controls Unitary Products 3

PROCEDURES:

1. Unit factory charge listed on the unit nameplate includes refrigerant for the condenser, the smallest evaporator and 15 feet of interconnecting

line tubing.

2. Verify the TXV and additional charge required for specific evaporator coil in the system using the above table.

3. Additional charge for the amount of interconnecting line tubing greater than 15 feet at the rate specified in Physical and Electrical Data Table.

4. For orifice or TXV matches requiring additional charge, the refrigerant needs to be weighed in for specific coil match and lineset length.

5. Permanently mark the unit nameplate with the total system charge. Total System Charge = Base Charge (as shipped) + adder for evaporator +

adder for line set.

System Charge for Various Matched Systems

Outdoor Unit TCGD30S4(3,4)S1 TCGD36S4(3,4)S1 TCGD42S4(3,4)S1 TCGD48S4(3,4)S1 TCGD60S4(3,4)S1

Required Orifice or TXV 1,2 0.061/4F1 0.065/4G1 0.075/4G1 0.073/4H1 0.087/4J1

Factory Charge, lbs-oz 3 - 14 4 - 9 4 - 5 4 - 9 5 - 6

Indoor Coil3,4 Additional Charge, oz

AHP30 0––––

AHP36 20–––

AHP42 –00––

AHP/SHP60 –––00

AHX30 0––––

AHX36 20–––

AHX42 –82––

AHX48 –––0–

AHX60 ––––4

F4FP024 –––––

F4FP036 –––––

F4FP040 0––––

F5FP048 –824–

F5FP060 –––00

F6FP030 0––––

F6FP036 0––––

F6FP042 –82––

F6FP048 – – TXV + 2 0 –

F6FP060 ––––4

FC/MC/PC32 0––––

FC/MC/PC35 0––––

FC/MC/PC37 20–––

FC/MC/PC43 200––

FC/MC/PC48 –824–

FC/MC/PC60 –––00

FC/MC62 ––––4

HC36 0––––

HC42 200––

HC60 ––––0

UC48 –824–

UC60 –––00

FOOTNOTES:

1. For applications requiring a TXV use 1TVM series kit.

2. Approved orifice shipped with outdoor unit.

3. Systems matched with furnace or air handlers not equipped with blower-off delays may require blower Time Delay Kit 2FD06700224.

4. PC coils cannot be used in downflow or horizontal applications. FC coils cannot be used in horizontal applications.

415571-UTG-C-0309

4Johnson Controls Unitary Products

— = Not applicable.

COOLING CAPACITY - With Air Handler Coils

UNIT

MODEL

AIR HANDLER COIL

MODEL1

COOLING

MODEL W RATED

CFM NET MBH SEER EER

TOTAL SENS.

13 SEER AC WITH MA

TCGD30S4(3,4)S1 MA12B 17 FC/MC35B 1000 29.0 21.0 13.00 11.00

MA12B 17 FC/MC43B 1000 29.0 21.0 13.00 11.00

TCGD36S4(3,4)S1 MA12B 17 FC/MC43B 1200 35.0 24.8 13.00 11.00

MA14D 24 FC/MC48D 1200 35.0 24.8 13.00 11.00

TCGD42S4(3,4)S1 MA16C 21 FC/MC43C 1400 42.0 29.2 13.00 11.00

MA14D 24 FC/MC48D 1400 42.0 29.2 13.00 11.00

MA16C 21 FC/MC48C 1400 42.0 29.2 13.00 11.00

TCGD48S4(3,4)S1

MA16C 21 FC/MC48C 1600 48.0 34.4 13.00 11.00

MA20D 24 FC/MC48D 1600 48.0 34.4 13.00 11.00

MA16C 21 FC60C 1600 48.0 34.4 13.00 11.00

MA20D 24 FC/MC60D 1600 48.0 34.4 13.00 11.00

TCGD60S4(3,4)S1 MA20D 24 FC/MC60D 1800 57.0 38.5 13.00 11.00

MA20D 24 FC/MC62D 1800 57.0 38.5 13.00 11.00

13 SEER AC WITH AHP / SHP / AHX / F*FP

TCGD30S4(3,4)S1

AHP30 17 – 1015 29.0 21.0 13.00 11.00

AHP36 21 – 1040 29.0 21.0 13.00 11.00

AHX30 17 - 1025 29.4 22.2 14.00 11.75

AHX36 21 - 1005 30.0 22.3 14.50 12.00

F4FP040 18 – 1050 29.0 21.0 13.00 11.00

F6FP030 17 - 1035 29.2 21.6 13.50 11.40

F6FP036 21 - 980 29.4 21.4 14.00 12.00

TCGD36S4(3,4)S1

AHP36 21 – 1235 35.0 24.8 13.00 11.00

AHP42 21 – 1255 35.0 24.8 13.00 11.00

AHX36 21 - 1225 35.2 25.0 13.50 11.50

AHX42 21 - 1190 35.4 25.2 14.00 11.80

F5FP048 24 – 1235 35.0 24.8 13.00 11.00

F6FP042 21 - 1290 35.8 25.8 13.50 11.50

TCGD42S4(3,4)S1

AHP42 21 – 1485 41.0 29.2 13.00 11.00

AHX42 21 - 1395 42.0 29.9 14.50 12.00

F5FP048 24 – 1455 41.0 29.2 13.00 11.00

F6FP042 21 - 1455 42.0 30.1 14.00 11.75

F6FP048 24 - 1380 41.5 29.4 13.50 11.70

TCGD48S4(3,4)S1

AHP/SHP48 24 – 1675 48.0 34.4 13.00 11.00

AHP/SHP60 24 – 1600 48.0 35.0 13.50 11.00

AHX48 24 - 1660 48.0 35.4 13.50 11.50

F5FP048 24 – 1600 48.0 34.4 13.00 11.00

F5FP060 24 – 1600 48.0 34.4 13.00 11.00

F6FP048 24 - 1625 47.0 34.8 13.00 11.30

TCGD60S4(3,4)S1

AHP/SHP60 24 – 1850 57.0 38.5 13.00 11.00

AHX60 24 - 1905 58.5 40.0 13.50 11.50

F5FP060 24 – 1900 57.0 38.5 13.00 11.00

F6FP060 24 - 1710 57.5 39.0 13.50 11.50

Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ARI Standards 210.

Cooling MBH based on 8°F entering air temperature, 50% RH, and rated air flow.

EER (Energy Efficiency Ratio) is the total cooling output in BTU’s at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.

SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTU’s during a normal annual usage period for cooling divided by the total electric power

input in watt-hours during the same period.

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

415571-UTG-C-0309

Johnson Controls Unitary Products 5

COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils

UNIT MODEL FURNACE** COIL

MODEL

COOLING

CFM RANGE

(Min.-max.) WRATED

CFM NET MBH SEER1EER

TOTAL SENS.

TCGD30S4(3,4)S1

800 - 1200 14 FC/MC/PC32 1000 29.0 21.0 13.00 11.00

800 - 1200 17,21 FC/MC/PC35 1000 29.0 21.0 13.00 11.00

800 - 1200 14 FC/MC/PC37 1000 29.0 21.0 13.00 11.00

800 - 1200 17,21 FC/MC/PC43 1000 29.0 21.0 13.00 11.00

800 - 1200 17 HC36 1000 29.0 21.0 13.00 11.00

800 - 1200 21 HC42 1000 29.0 21.0 13.00 11.00

TCGD36S4(3,4)S1

1000 - 1400 14 FC/MC/PC37 1200 35.0 24.8 13.00 11.00

1000 - 1400 17,21 FC/MC/PC43 1200 35.0 24.8 13.00 11.00

1000 - 1400 21,24 FC/MC/PC48 1200 35.0 24.8 13.00 11.00

1000 - 1400 21 HC42 1200 35.0 24.8 13.00 11.00

1000 - 1400 21,24 UC48 1200 35.0 24.8 13.00 11.00

TCGD42S4(3,4)S1

1200 - 1600 17,21 FC/MC/PC43 1400 42.0 29.2 13.00 11.00

1200 - 1600 21,24 FC/MC/PC48 1400 42.0 29.2 13.00 11.00

1200 - 1600 21 HC42 1400 42.0 29.2 13.00 11.00

1200 - 1600 21,24 UC48 1400 42.0 29.2 13.00 11.00

TCGD48S4(3,4)S1

1400 - 1800 21,24 FC/MC/PC48 1600 48.0 34.4 13.00 11.00

1400 - 1800 21,24 FC/MC/PC60 1600 48.0 34.4 13.00 11.00

1400 - 1800 24 HC60 1600 48.0 34.4 13.00 11.00

1400 - 1800 21,24 UC48 1600 48.0 34.4 13.00 11.00

1400 - 1800 21,24 UC60 1600 48.0 34.4 13.00 11.00

TCGD60S4(3,4)S1

1600 - 2000 21,24 FC/MC/PC60 1800 57.0 38.5 13.00 11.00

1600 - 2000 24 FC/MC62 1800 57.0 38.5 13.00 11.00

1600 - 2000 24 HC60 1800 57.0 38.5 13.00 11.00

1600 - 2000 21,24 UC60 1800 57.0 38.5 13.00 11.00

1. Requires a 2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

** Refer to Quick Selection Chart for specific furnace match-up.

415571-UTG-C-0309

6Johnson Controls Unitary Products

COOLING CAPACITY - With High Efficiency Motor Furnaces

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

TCGD30S4(3,4)S1

T*(8,L)X*A12 FC/MC/PC32A 14 970 29.2 21.4 13.20 11.00

T*(8,L)X*B12 FC/MC/PC35B 17 1120 30.0 22.8 14.00 11.50

T*(8,L)X*C16 FC/MC/PC35C 21 1105 30.0 22.8 14.00 12.00

T*(8,L)X*C20 FC/MC/PC35C 21 850 28.8 20.6 14.00 12.00

T*9X*B12 FC/MC/PC35B 17 1085 29.8 22.8 14.00 12.00

T*9X*C16 FC/MC/PC35C 21 1075 29.8 22.4 14.00 12.00

T*(8,L)X*A12 FC/MC/PC37A 14 1105 30.0 22.9 13.80 11.50

T*(8,L)X*B12 FC/MC/PC43B 17 1125 30.0 22.9 14.00 12.00

T*(8,L)X*C16 FC/MC/PC43C 21 710 28.2 19.3 14.00 12.00

T*(8,L)X*C20 FC/MC/PC43C 21 870 29.6 21.2 14.00 12.00

T*9X*B12 FC/MC/PC43B 17 1095 30.0 22.9 13.80 11.50

T*9X*C16 FC/MC/PC43C 21 1055 30.0 22.9 14.00 12.00

T*9X*C20 FC/MC/PC43C 21 720 28.2 19.3 14.00 12.00

TCGD36S4(3,4)S1

T*(8,L)X*A12 FC/MC/PC37A 14 1290 35.2 25.4 13.30 11.25

T*(8,L)X*B12 FC/MC/PC43B 17 1300 35.2 25.4 13.30 11.25

T*(8,L)X*C16 FC/MC/PC43C 21 1175 35.2 24.8 14.00 11.50

T*(8,L)X*C20 FC/MC/PC43C 21 1250 35.6 25.6 13.80 11.70

T*9X*B12 FC/MC/PC43B 17 1270 35.2 25.4 13.25 11.25

T*9X*C16 FC/MC/PC43C 21 1260 35.4 25.4 13.45 11.40

T*9X*C20 FC/MC/PC43C 21 1185 35.0 24.6 13.55 11.40

T*(8,L)X*C16 FC/MC/PC48C 21 1185 35.6 25.2 14.00 11.50

T*(8,L)X*C20 FC/MC/PC48C 21 1270 35.8 25.8 14.00 11.50

T*9X*C16 FC/MC/PC48C 21 1280 35.8 25.8 13.70 11.50

T*9X*C20 FC/MC/PC48C 21 1205 35.4 25.0 13.70 11.50

T*9X*D20 FC/MC/PC48D 24 1240 35.4 25.0 13.70 11.50

T*(8,L)X*C16 UC48C 21 1185 34.2 24.8 13.50 11.50

T*(8,L)X*C20 UC48C 21 1300 34.8 25.4 13.50 11.50

T*9X*C16 UC48C 21 1280 34.6 24.8 13.15 11.20

T*9X*C20 UC48C 21 1205 34.0 24.6 13.25 11.20

T*9X*D20 UC48D 24 1240 34.0 24.6 13.30 11.25

TCGD42S4(3,4)S1

T*(8,L)X*B12 FC/MC/PC43B 17 1300 42.0 29.0 13.50 11.50

T*(8,L)X*C16 FC/MC/PC43C 21 1475 42.0 29.9 13.50 11.50

T*(8,L)X*C20 FC/MC/PC43C 21 1415 42.0 29.5 13.50 11.50

T*9X*B12 FC/MC/PC43B 17 1270 42.0 29.0 13.50 11.50

T*9X*C16 FC/MC/PC43C 21 1410 42.0 29.6 13.30 11.00

T*9X*C20 FC/MC/PC43C 21 1400 42.0 29.6 13.50 11.00

T*(8,L)X*C16 FC/MC/PC48C 21 1360 42.0 29.5 13.80 11.50

T*(8,L)X*C20 FC/MC/PC48C 21 1475 42.0 30.1 14.00 11.50

T*9X*C16 FC/MC/PC48C 21 1425 42.0 29.3 13.50 11.50

T*9X*C20 FC/MC/PC48C 21 1420 42.0 29.3 13.50 11.50

T*9X*D20 FC/MC/PC48D 24 1435 42.0 29.7 13.50 11.50

T*(8,L)X*C16 UC48C 21 1400 42.0 29.4 13.50 11.00

T*(8,L)X*C20 UC48C 21 1515 42.0 30.0 13.50 11.00

T*9X*C16 UC48C 21 1425 41.5 29.2 13.30 11.00

T*9X*C20 UC48C 21 1420 42.0 29.4 13.20 11.00

T*9X*D20 UC48D 24 1435 42.0 29.4 13.40 11.00

For Notes See Page 7.

415571-UTG-C-0309

Johnson Controls Unitary Products 7

TCGD48S4(3,4)S1

T*(8,L)X*C16 FC/MC/PC48C 21 1600 48.0 34.4 13.30 11.00

T*(8,L)X*C20 FC/MC/PC48C 21 1660 48.0 34.4 13.20 11.00

T*9X*C16 FC/MC/PC48C 21 1565 48.0 34.8 13.10 11.00

T*9X*C20 FC/MC/PC48C 21 1615 48.0 34.4 13.20 11.00

T*9X*D20 FC/MC/PC48D 24 1635 48.0 34.8 13.20 11.00

T*(8,L)X*C16 FC/PC60C 21 1605 48.0 34.6 13.30 11.00

T*(8,L)X*C20 FC/MC/PC60D 21 1595 48.0 34.8 13.30 11.00

T*9X*C16 FC/PC60C 21 1575 48.0 34.6 13.30 11.00

T*9X*C20 FC/PC60C 21 1625 47.0 34.6 13.40 11.00

T*9X*D20 FC/MC/PC60D 24 1490 47.5 33.8 13.20 11.00

T*9X*C16 FC/PC60C 21 1575 47.0 33.8 13.10 11.00

T*9X*C20 FC/PC60C 21 1625 47.0 33.8 13.10 11.00

TCGD60S4(3,4)S1

T*(8,L)X*C16 FC/PC60C 21 1605 56.5 37.8 13.50 11.00

T*(8,L)X*C20 FC/MC/PC60D 21 1690 57.0 37.8 13.50 11.00

T*9X*C16 FC/PC60C 21 1575 56.0 37.8 13.30 11.00

T*9X*C20 FC/PC60C 21 1560 56.0 37.8 13.30 11.00

T*9X*D20 FC/MC/PC60D 24 1630 56.5 37.8 13.30 11.00

T*9X*C20 FC/MC/PC60D 21 1645 56.5 37.8 13.30 11.00

T*(8,L)X*C20 FC/MC62D 21 1665 57.0 37.8 13.50 11.00

T*(8,L)X*C16 UC60C 21 1640 56.0 37.2 13.00 11.00

T*(8,L)X*C20 UC60D 21 1735 56.5 38.5 13.00 11.00

T*9X*C16 FC/PC60C 21 1575 56.0 37.2 13.00 11.00

T*9X*C20 FC/PC60C 21 1560 56.0 37.2 13.00 11.00

T*9X*D20 UC60D 24 1630 56.0 37.2 13.00 11.00

T*(8,L)X*C20 UC60D 21 1735 56.5 38.5 13.00 11.00

T*9X*C20 UC60D 21 1645 56.0 37.2 13.00 11.00

1. MC coils available with a factory installed horizontal drain pan. See price pages for specific model number.

2. Variable speed furnaces have B.O.D (Blower on Delay) standard.

COOLING CAPACITY - With High Efficiency Motor Furnaces (Continued)

UNIT

MODEL FURNACE

MODEL COIL

MODEL1WCOOLING

RATED

CFM Net MBH SEER EER

TOTAL SENS.

13 SEER HP WITH VARIABLE SPEED FURNACES2

415571-UTG-C-0309

8Johnson Controls Unitary Products

ACCESSORIES

Refer to Price Manual for specific model numbers.

OFF CYCLE TIMER DELAY - Provides a 5-minute off cycle to

prevent rapid recycling of the compressor.

ROOM THERMOSTATS - A wide selection of compatible ther-

mosets are available to provide optimum performance and fea-

tures for any installation.

1H/1C, manual changeover electronic non-programmable ther-

mostat.

1H/1C, auto/manual changeover, electronic programmable,

deluxe 7-day, thermostat.

1H/1C, auto/manual changeover, electronic programmable.

* For the most current accessory information, refer to the price

book or consult factory.

SOUND POWER RATINGS*

* Rated in accordance with ARI 270-95 Standards.

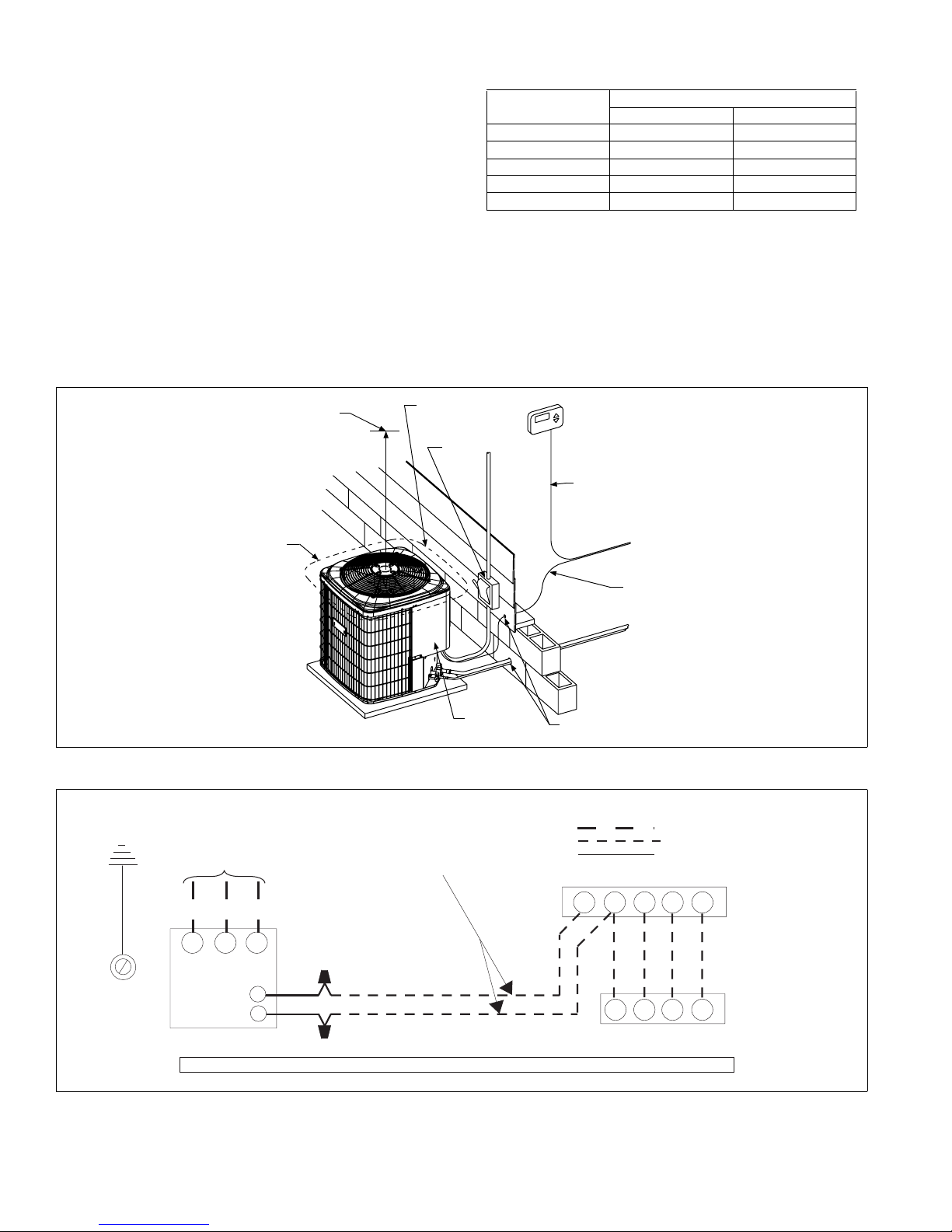

TYPICAL INSTALLATION

TYPICAL FIELD WIRING

UNIT

MODEL (dBA)

230V 460V

30 76 76

36 76 76

42 77 76

48 77 77

60 78 78

THERMOSTAT

SEAL OPENING(S) WITH

PERMAGUM OR EQUIVALENT

TO INDOOR COIL

TO FURNACE OR

AIR HANDLER

TERMINAL BLOCK

NEC CLASS 2 WIRING

NEC CLASS 1 WIRING

ALL OUTDOOR WIRING

MUST BE WEATHERPROOF. CONTROL

ACCESS

PANEL

WEATHERPROOF

DISCONNECT

SWITCH

MINIMUM 18” SERVICE

ACCESS CLEARANCE

ON ONE SIDE

60” OVERHEAD

CLEARANCE

6” CLEARANCE

AROUND PERIMETER

NOTE:

ALL FIELD WIRING TO BE IN ACCORDANCE WITH ELECTRIC CODE (NEC) AND/OR LOCAL CODES

POWER WIRING

CONTACTOR

TERMINALS

COIL

GND.

LUG

CYRGW

YRGW

POWER WIRING

CONTROL WIRING

FACTORY WIRING

24 VOLT CONTROL WIRING

MINIMUM 18 GA. WIRE

(NEC CLASS 2) FURNACE OR AIR HANDLER TERMINAL BLOCK

ROOM THERMOSTAT

CONDENSING UNIT

ALL OUTDOOR WIRING MUST BE WEATHERPROOF. USE COPPER CONDUCTORS ONLY.

TERMINAL W IS ONLY

REQUIRED ON SYSTEMS

WITH HEAT.

415571-UTG-C-0309

Johnson Controls Unitary Products 9

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. TGCGD30S4(3,4)S1

INDOOR COIL MODEL NO. FC/MC/PC35

CONDENSING

ENTERING AIR

TEMPERATURE

IDCFM 800 1000 1200

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

65 T.C. 28.4 31.4 30.8 33.1 34.4 29.8 31.8 31.4 33.4 34.5 31.2 32.3 32.1 33.7 34.7

S.C. 28.8 25.8 21.7 21.2 16.0 30.4 28.2 23.6 22.6 17.1 31.9 30.7 25.4 24.0 18.1

KW 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7

75 T.C. 26.4 28.8 28.2 30.9 32.6 27.9 29.7 28.9 31.4 32.8 29.5 30.5 29.6 31.8 32.9

S.C. 26.9 24.7 20.5 20.3 15.4 28.5 27.1 22.6 22.0 16.4 30.2 29.5 24.6 23.7 17.5

KW 1.8 1.8 1.8 1.9 1.9 1.8 1.8 1.8 1.9 1.9 1.9 1.9 1.9 1.9 1.9

85 T.C. 24.4 26.3 25.6 28.8 30.9 26.0 27.5 26.4 29.3 31.0 27.7 28.7 27.1 29.8 31.2

S.C. 24.9 23.6 19.4 19.4 14.7 26.6 26.0 21.6 21.4 15.8 28.4 28.4 23.9 23.4 16.8

KW 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.0 2.1 2.0 2.0 2.0 2.1 2.1

95 T.C. 22.4 23.8 23.0 26.7 29.1 24.2 25.3 23.8 29.0 29.3 26.0 26.9 24.7 27.9 29.4

S.C. 22.9 22.5 18.2 18.5 14.1 24.8 24.9 20.7 21.2 15.1 26.7 27.3 23.1 23.1 16.2

KW 2.1 2.1 2.1 2.2 2.3 2.2 2.2 2.2 2.2 2.3 2.2 2.2 2.2 2.2 2.3

105 T.C. 20.5 21.8 20.4 23.7 26.3 22.0 23.1 21.3 24.3 26.4 23.6 24.5 22.1 24.8 26.4

S.C. 21.0 20.7 17.1 17.4 13.2 22.6 22.7 19.1 19.7 14.3 24.3 24.7 21.0 22.0 15.4

KW 2.3 2.3 2.3 2.4 2.4 2.4 2.4 2.3 2.4 2.5 2.4 2.4 2.3 2.4 2.5

115 T.C. 18.6 19.8 17.9 20.9 23.5 19.9 21.0 18.8 21.4 23.5 21.2 22.2 19.6 21.8 23.6

S.C. 19.1 18.9 15.9 16.4 12.3 20.5 20.5 17.5 18.6 13.5 22.0 22.2 19.1 20.9 14.7

KW 2.5 2.5 2.4 2.5 2.6 2.5 2.5 2.5 2.5 2.6 2.6 2.6 2.5 2.6 2.6

125 T.C. 16.8 17.9 15.4 18.1 20.7 17.8 18.9 16.2 18.5 20.7 18.9 19.9 17.1 18.8 20.7

S.C. 17.3 17.2 14.8 15.3 11.4 18.4 18.4 16.0 17.6 12.6 19.6 19.6 17.1 19.8 13.9

KW 2.7 2.7 2.6 2.7 2.8 2.7 2.7 2.6 2.7 2.8 2.7 2.7 2.7 2.7 2.8

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

Air Handlers Coils T.C. S.C. KW

– FC/MC/PC35 1.00 1.00 1.00

– FC/MC/PC37 1.00 1.00 1.00

– FC/MC/PC43 1.00 1.00 1.00

– HC36 1.00 1.00 1.00

– HC42 1.00 1.00 1.00

AHP30 – 1.00 1.00 1.00

AHP36 – 1.00 1.00 1.00

AHX30 – 1.01 1.06 0.95

AHX36 – 1.03 1.06 0.95

MA12B FC/MC35B 1.00 1.00 1.00

MA12B FC/MC43B 1.00 1.00 1.00

F4FP040 – 1.00 1.00 1.00

F6FP030 – 1.01 1.03 0.97

F6FP036 – 1.01 1.02 0.93

Furnaces Coils T.C. S.C. KW

T*(8,L)X*A12 FC/MC/PC32A 1.01 1.02 1.01

T*(8,L)X*B12 FC/MC/PC35B 1.03 1.09 0.99

T*(8,L)X*C16 FC/MC/PC35C 1.03 1.09 0.95

T*(8,L)X*C20 FC/MC/PC35C 0.99 0.98 0.91

T*9X*B12 FC/MC/PC35B 1.03 1.09 0.94

T*9X*C16 FC/MC/PC35C 1.03 1.07 0.94

T*(8,L)X*A12 FC/MC/PC37A 1.03 1.09 0.99

T*(8,L)X*B12 FC/MC/PC43B 1.03 1.09 0.95

T*(8,L)X*C16 FC/MC/PC43C 0.97 0.92 0.89

T*(8,L)X*C20 FC/MC/PC43C 1.02 1.01 0.94

T*9X*B12 FC/MC/PC43B 1.03 1.09 0.99

T*9X*C16 FC/MC/PC43C 1.03 1.09 0.95

T*9X*C20 FC/MC/PC43C 0.97 0.92 0.89

415571-UTG-C-0309

10 Johnson Controls Unitary Products

Multipliers for determining the performance with other indoor sections.

NOTE: For dry bulb temperatures different than those listed (between 73-87 F), sensible capacity increases by 1060 BTUH per 1000 CFM per degree above the listed

temperature and decreases by 1060 BTUH per 1000 CFM per degree below the listed temperature.

COOLING PERFORMANCE DATA

AIR CONDITIONER MODEL NO. TCGD36S4(3,4)S1

INDOOR COIL MODEL NO. FC/MC/PC43

CONDENSING

ENTERING AIR

TEMPERATURE

IDCFM 1000 1200 1400

ID DB (°F) 80 80 75 80 80 80 80 75 80 80 80 80 75 80 80

ID WB (°F) 57 62 62 67 72 57 62 62 67 72 57 62 62 67 72

65 T.C. 34.7 36.1 35.2 37.4 37.3 33.8 35.5 34.8 37.0 37.5 32.9 34.9 34.4 36.6 37.6

S.C. 34.3 33.0 27.6 25.5 18.4 33.3 31.0 26.2 24.6 18.0 32.3 29.1 24.7 23.6 17.7

KW 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.9 2.0 1.9 2.0 2.0

75 T.C. 33.6 34.7 33.6 35.9 36.6 32.6 33.9 33.2 35.5 36.6 31.5 33.2 32.7 35.1 36.6

S.C. 33.3 32.5 27.5 25.6 18.6 32.1 30.6 25.8 24.5 18.0 31.0 28.7 24.2 23.3 17.5

KW 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.1 2.2 2.2 2.2 2.2

85 T.C. 32.4 33.2 32.0 34.4 35.8 31.3 32.3 31.5 34.1 35.7 30.2 31.5 31.0 33.7 35.5

S.C. 32.2 32.0 27.3 25.8 18.8 30.9 30.2 25.5 24.3 18.0 29.6 28.3 23.7 22.9 17.3

KW 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.4 2.3 2.4 2.4 2.4 2.4

95 T.C. 31.3 31.7 30.4 33.0 35.0 30.1 30.7 29.9 35.0 34.8 28.9 29.8 29.4 32.2 34.5

S.C. 31.1 31.5 27.2 26.0 19.0 29.7 29.7 25.2 24.9 18.0 28.3 27.9 23.2 22.5 17.1

KW 2.6 2.6 2.6 2.6 2.7 2.6 2.6 2.6 2.6 2.7 2.5 2.6 2.6 2.6 2.6

105 T.C. 27.9 28.8 27.2 29.8 32.5 27.0 27.8 26.6 29.4 32.2 26.0 26.9 25.9 29.0 31.9

S.C. 28.7 28.9 25.0 25.0 18.4 27.3 27.2 23.2 23.2 17.3 25.8 25.6 21.5 21.4 16.2

KW 2.8 2.8 2.8 2.8 2.9 2.8 2.8 2.8 2.8 2.9 2.7 2.8 2.7 2.8 2.9

115 T.C. 24.6 26.0 24.2 26.8 30.1 23.9 25.1 23.4 26.3 29.8 23.3 24.1 22.6 25.9 29.5

S.C. 26.3 26.3 22.8 24.1 17.8 24.9 24.8 21.3 22.2 16.6 23.5 23.3 19.8 20.3 15.4

KW 3.0 3.0 3.0 3.0 3.1 3.0 3.0 2.9 3.0 3.1 2.9 2.9 2.9 3.0 3.1

125 T.C. 21.3 23.2 21.1 23.7 27.6 20.9 22.3 20.2 23.2 27.3 20.5 21.3 19.3 22.7 27.0

S.C. 23.9 23.8 20.6 23.2 17.2 22.5 22.4 19.4 21.2 15.9 21.1 21.0 18.2 19.2 14.6

KW 3.2 3.2 3.2 3.2 3.4 3.2 3.2 3.1 3.2 3.3 3.1 3.1 3.1 3.2 3.3

NOTE: ALL CAPACITIES INCLUDE INDOOR FAN HEAT AT 1250 BTUH/1000 CFM.

Air Handlers Coils T.C. S.C. KW

– FC/MC/PC43 1.00 1.00 1.00

– FC/MC/PC48 1.00 1.00 1.00

– HC42 1.00 1.00 1.00

– UC48 1.00 1.00 1.00

AHP36 – 1.00 1.00 1.00

AHP42 – 1.00 1.00 1.00

AHX36 – 1.01 1.01 0.96

AHX42 – 1.01 1.02 0.94

MA12B FC/MC43B 1.00 1.00 1.00

MA14D FC/MC48D 1.00 1.00 1.00

F5FP048 – 1.00 1.00 1.00

F6FP042 – 1.02 1.04 0.98

Furnaces Coils T.C. S.C. KW

T*(8,L)X*A12 FC/MC/PC37A 1.01 1.02 0.98

T*(8,L)X*B12 FC/MC/PC43B 1.01 1.02 0.98

T*(8,L)X*C16 FC/MC/PC43C 1.01 1.00 0.96

T*(8,L)X*C20 FC/MC/PC43C 1.02 1.03 0.96

T*9X*B12 FC/MC/PC43B 1.01 1.02 0.98

T*9X*C16 FC/MC/PC43C 1.01 1.02 0.98

T*9X*C20 FC/MC/PC43C 1.00 0.99 0.96

T*(8,L)X*C16 FC/MC/PC48C 1.02 1.02 0.97

T*(8,L)X*C20 FC/MC/PC48C 1.02 1.04 0.98

T*9X*C16 FC/MC/PC48C 1.02 1.04 0.98

T*9X*C20 FC/MC/PC48C 1.01 1.01 0.97

T*9X*D20 FC/MC/PC48D 1.01 1.01 0.97

T*(8,L)X*C16 UC48C 0.98 1.00 0.93

T*(8,L)X*C20 UC48C 0.99 1.02 0.95

T*9X*C16 UC48C 0.99 1.00 0.97

T*9X*C20 UC48C 0.97 0.99 0.95

T*9X*D20 UC48D 0.97 0.99 0.95

This manual suits for next models

Table of contents

Other Johnson Controls Air Conditioner manuals

Johnson Controls

Johnson Controls VPCS SERIES User manual

Johnson Controls

Johnson Controls RAC Series Quick start guide

Johnson Controls

Johnson Controls (H,Y,C)IDM048B21E Installation and operation manual

Johnson Controls

Johnson Controls YORK YDHW022 User manual

Johnson Controls

Johnson Controls YXV SERIES User manual

Johnson Controls

Johnson Controls CSV Series User manual

Johnson Controls

Johnson Controls HIDH018B21S Installation and operation manual

Johnson Controls

Johnson Controls HVAHP036B21S Installation and operation manual

Johnson Controls

Johnson Controls Quantech Millennium QCC3080CZE Owner's manual

Johnson Controls

Johnson Controls DHW18CMB21S User manual

Johnson Controls

Johnson Controls York ZN Series User manual

Johnson Controls

Johnson Controls D Series User manual

Johnson Controls

Johnson Controls York YH9FZH12-AFX User manual

Johnson Controls

Johnson Controls PHP024 User manual

Johnson Controls

Johnson Controls (H,Y,C)IDM012B21S Manual

Johnson Controls

Johnson Controls TCHD30 S43S3 Quick start guide

Johnson Controls

Johnson Controls York FREE MATCH EK-Series User manual

Johnson Controls

Johnson Controls 18 Seer-CZH Series User manual

Johnson Controls

Johnson Controls DSH User manual

Johnson Controls

Johnson Controls PCG4 Series User manual

Johnson Controls

Johnson Controls YFK Series User manual

Johnson Controls

Johnson Controls Split Wall-Mounted Type User manual

Johnson Controls

Johnson Controls SERIES 40 Owner's manual

Johnson Controls

Johnson Controls RAC13L Guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
