Jacuzzi Elara 6636 User manual

Elara™ 6636

PURE AIR®BATH

MODEL NUMBER:

GA50 (Left-hand)

GA60 (Right-hand)

EXTERIOR DIMENSIONS:

66" long x 36" wide x

26"high

OPERATING GALLONS:

46-83 gallons

If you enjoy a uniquely gentle, calming experience that caresses the body and

soothes the mind, the Elara™ air bath is right for you.

FEATURES:

• Exclusive 360° Balanced Airow™ system

• 800-watt variable speed heated air blower

• Timed purge cycle

• Safely use salts and aromatic oils

• Flexible drop-in or undermount installation options

• Low-prole deck

• Wave Pulse™ system

• PrO3

™ Cleansing System standard

Elara™ 6636 |PURE AIR®BATH

Elara™6636

PURE AIR® BATH

Technical Speciﬁcations

DIMENSIONS

66” L x 36” W x 26” H

(1676) mm L x (914) mm W x (660) mm H

DRAIN/OVERFLOW

A: 18-1/2” (470 mm) B: 10.6” (269 mm)

CUTOUT

64” x 34” & undermount template DQ51000

TOTAL WEIGHT

1039 lb. (471 kg) / 63 lb/ft2(308 kg/m2)

OPERATING GALLONAGE

Min 46 U.S. Gal. (174 liters)

Max 83 U.S. Gal. (314 liters)

PRODUCT WEIGHT

200 lb (91 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120 VAC, 15 AMP, 60 Hz.

HEATER (STANDARD)

No water heater is available on this unit. Blower has integral air heater.

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#GD82000 01/08

GA50 Elara™ 6636 Pure Air® Bath, Left Hand

GA60 Elara™ 6636 Pure Air® Bath, Right Hand

• Right and Left Hand Drain Location

• Accessories / Hardware:

Sch 40, Rotoary Drain Kit: #DA34

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

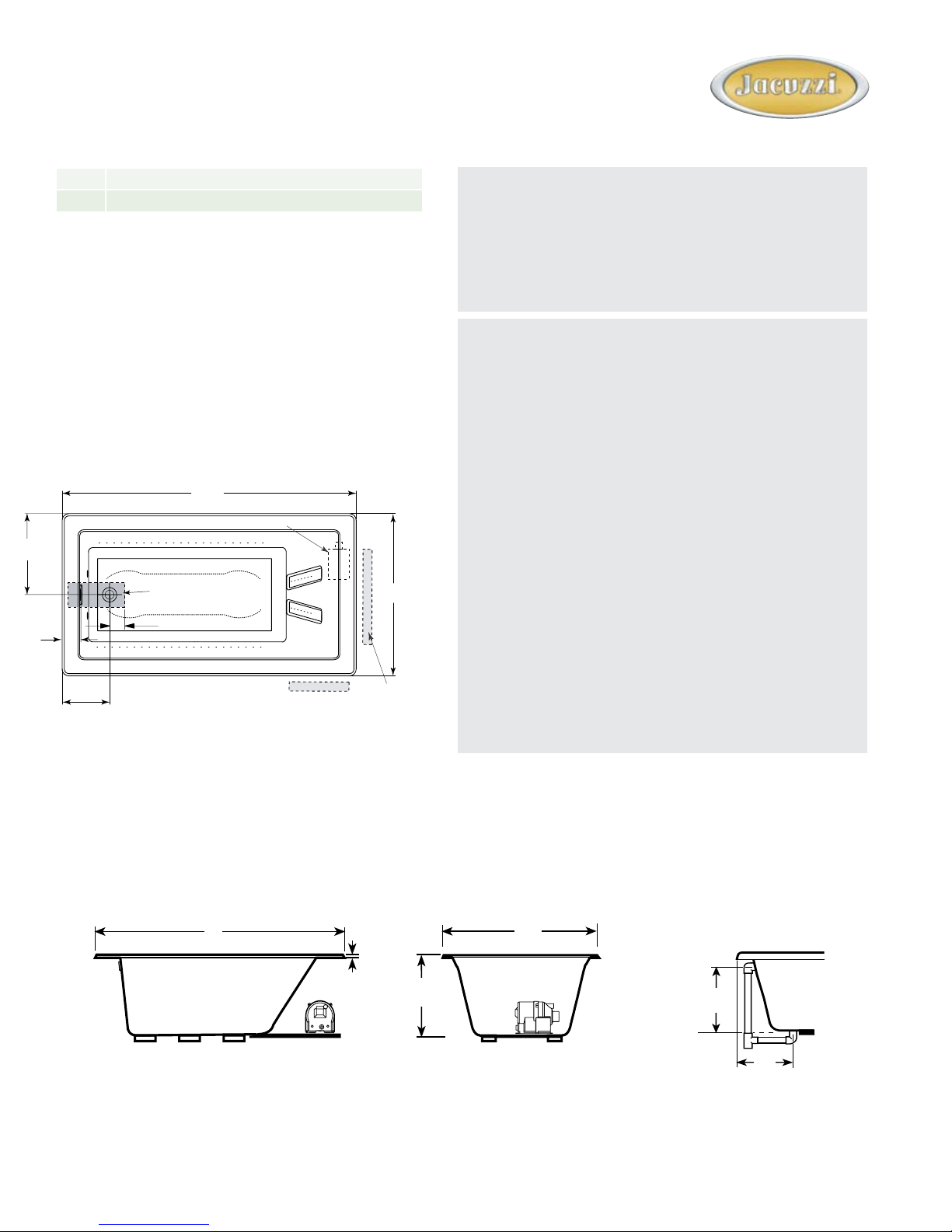

DRAIN/OVERFLOW

Product Shown: Elara™ 6636 Pure Air®

Left Hand Model: GA50

* Measurements inside unit represent cutout

in ﬂoor to allow for drain/overﬂow.

END VIEW

SIDE VIEW

1/2"

(13 mm)

(Blower)

66"

36"

18 "

4.2"

9.6"

12" x 4"

Opt. Service

Access 12" H x 24" L

Service Access

Blower

Elara™ 6636,

Left Hand
