Jabra Pro 9470 Mono User manual

Jabra Pro 9470 Mono

How do I connect my Jabra wireless headset with the Jabra

Link 14201-30 to my desk phone so I have remote call control

using my headset?

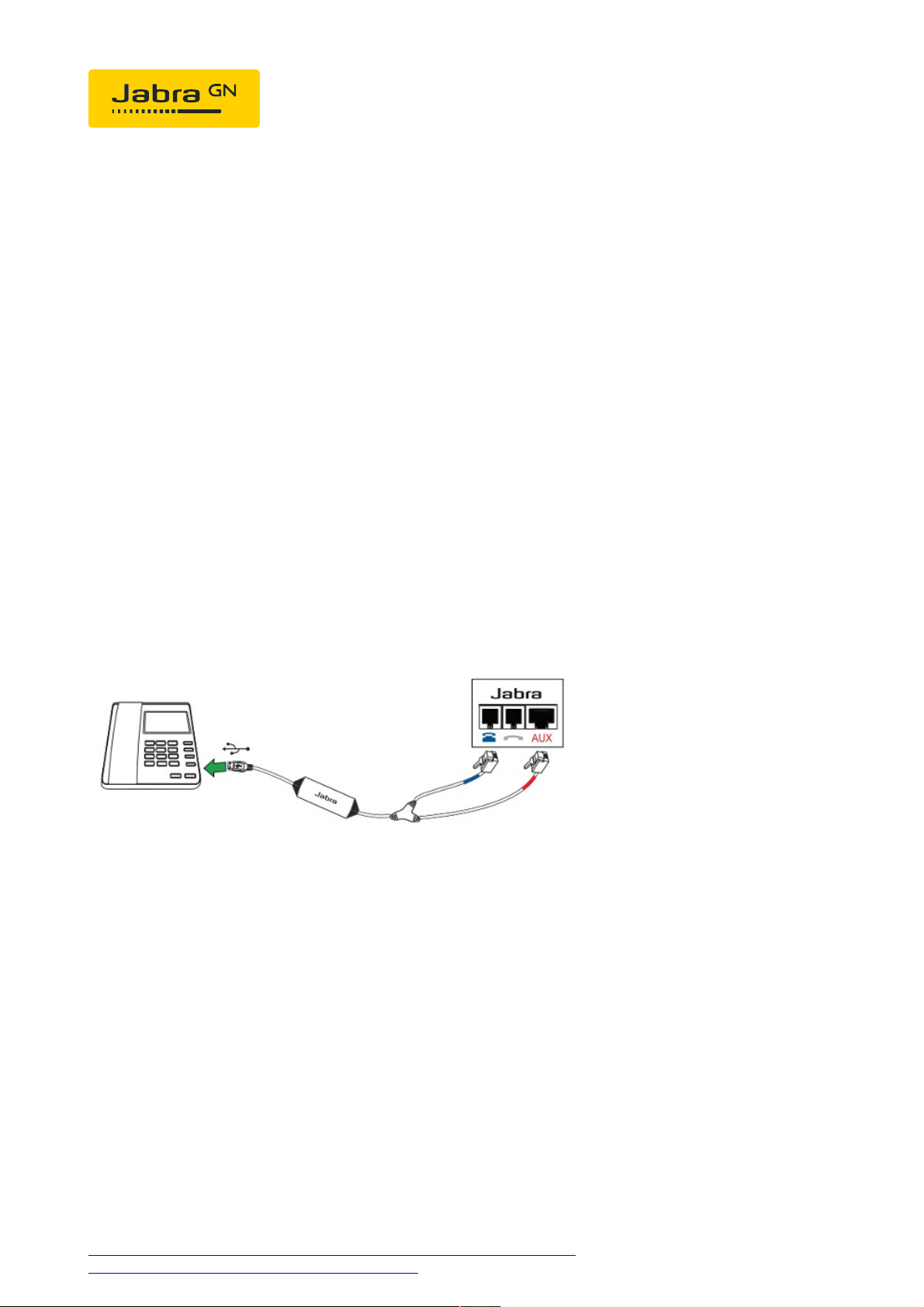

Connection:

1. Connect the AC adapter that is supplied with the headset to the

headset base. Connect the other end to an electrical outlet.

2. Connect the Jabra Link 14201-30 EHS cable with the red band to the

AUX interface on the headset base. Connect the end with the blue

band to the headset base socket that is marked with a phone icon.

3. Connect the single end of the Jabra Link 14201-30 EHS cable to the

USB interface on the desk phone.

Configuration:

1. Ensure the USB headset function on the desk phone is enabled. Refer

to your phone or IT support for assistance.

2. Follow the setup instructions for your Jabra wireless headset. If the

headset base requires manual configuration, set the Electronic Hook

Switch setting to “DHSG” and set the dial tone switch to position

“A”.

3. Make a call to the headset. If the volume of your voice is too loud or

quiet to the person you are calling, adjust the headset microphone

volume until you achieve the optimum level.

13/02/2024 12:22

https://www.apac.jabra.com/supportpages/jabra-pro-9470/9470-26-904-

102/faq/f7b1f50e-e8d0-422e-92bc-fc10f3af6d57

Page 1 of 2

13/02/2024 12:22

https://www.apac.jabra.com/supportpages/jabra-pro-9470/9470-26-904-

102/faq/f7b1f50e-e8d0-422e-92bc-fc10f3af6d57

Page 2 of 2
