Jabra EVOLVE 40 User manual

jabra.com/evolve40

User Manual

JABRA EVOLVE 40

© 2014 GN Netcom A/S / GN Netcom US, Inc. All rights reserved.

Jabra®is a registered trademark of GN Netcom A/S. All other

trademarks included herein are the property of their respective

owners.

Declaration of Conformity can be found on

www.jabra.com/CP/US/declarations-of-conformity

Made in China

MODEL : HSC017

ENC010

FCC ID: BCE-HSC017

IC: 2386C-HSC017

MSIP-REM-

GNM-ENC010

3

ENGLISH

JABRA EVOLVE 40

1. WELCOME.......................................... 4

2. JABRA EVOLVE 40 OVERVIEW........... 5

2.1 STEREO VARIANT

2.2 MONO VARIANT

3. HOW TO WEAR.................................. 7

3.1 LEFT OR RIGHT WEARING STYLE

3.2 ADJUST THE HEADBAND

3.3 POSITION THE MICROPHONE

3.4 STORING THE MICROPHONE

4. HOW TO CONNECT.......................... 10

4.1 CONNECT TO PC (WITH CONTROLLER)

4.2 CONNECT TO MOBILE DEVICE

(WITHOUT CONTROLLER)

5. HOW TO USE ...................................12

5.1 CALLS

5.2 MULTIPLE CALL HANDLING

5.3 BUSYLIGHT

6. SUPPORT..........................................15

6.1 FAQ

6.2 HOW TO CARE FOR YOUR HEADSET

7. TECHNICAL SPECIFICATIONS ...........16

4

ENGLISH

JABRA EVOLVE 40

1. WELCOME

Thank you for using the Jabra Evolve 40. We hope

you will enjoy it!

JABRA EVOLVE 40 FEATURES

Busylight on headset and the Jabra Evolve Link

controller

Discreet microphone boom-arm that integrates

into the headband when not on calls

Connects to multiple devices (smartphone or

tablet) with 3.5 mm jack (plug & play)

Superior music and voice capabilities

Hi-Fi Sound

5

ENGLISH

JABRA EVOLVE 40

2. JABRA EVOLVE 40

OVERVIEW

2.1 STEREO VARIANT

CONTROLLER (JABRA EVOLVE LINK)

Busylight

indicator

Busylight

indicator

Mute microphone

Microphone

boom-arm

Volume up

Volume down

Answer/end

button

Busylight button

6

ENGLISH

JABRA EVOLVE 40

2.2 MONO VARIANT

Controller (Jabra Evolve Link)

Busylight

indicator

Busylight

indicator

Mute microphone

Microphone

boom-arm

Volume up

Volume down

Answer/end

button

Busylight button

7

ENGLISH

JABRA EVOLVE 40

3. HOW TO WEAR

3.1 LEFT OR RIGHT WEARING STYLE

The Jabra Evolve 40 can be worn on the left or

right by flipping the microphone to the other side

(270° limit).

270°

8

ENGLISH

JABRA EVOLVE 40

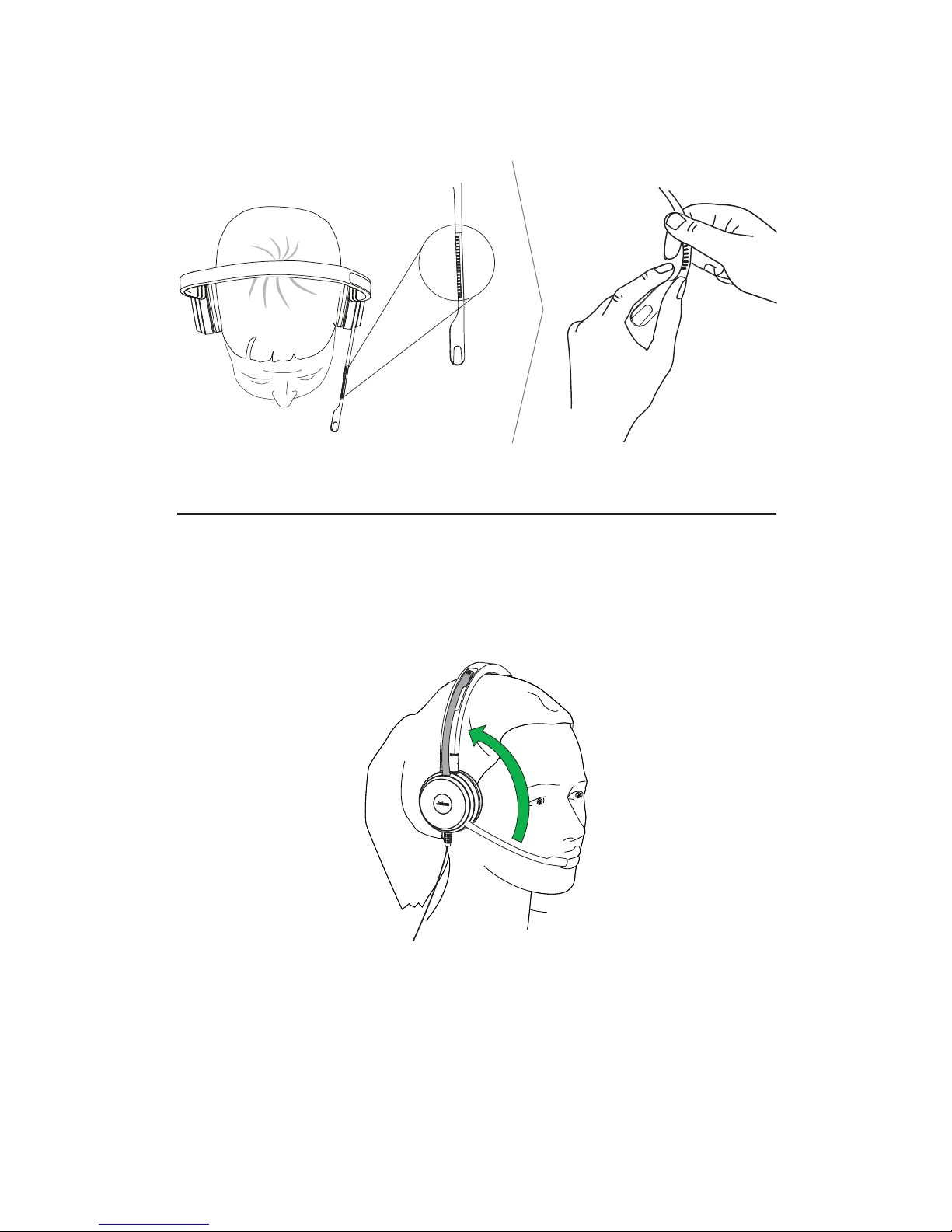

3.2 ADJUST THE HEADBAND

Adjust the headband to find the most comfortable

fit.

3.3 POSITION THE MICROPHONE

It is recommended to position the microphone

close to your mouth (0.5 inches).

9

ENGLISH

JABRA EVOLVE 40

The microphone is bendable for personal

preference.

3.4 STORING THE MICROPHONE

When listening to music or outdoors, the

microphone can be stored in the headband

groove.

10

ENGLISH

JABRA EVOLVE 40

4. HOW TO CONNECT

4.1 CONNECT TO PC WITH CONTROLLER

Fully plug the headset into the controller, and

connect the controller to a USB port on the PC.

The headset jack MUST be fully inserted into the

controller for the headset to work.

NOTE: When the headset is disconnected from the controller,

any active call will be put on hold. To resume the call, reconnect

the headset to the controller and manually resume the call on

the PC (softphone).
