INVENTOR APSI-09 / APSO-0 User manual

Wall Mounted Unit

Owner’s Manual

Models

66129903946

Thank you for choosing INVENTOR air

conditioning system. For correct use of this unit,

please read this manual carefully and keep it for

future reference.

APSI-09 / APSO-09APSI-09 / APSO-09

APSI-12 / APSO-12

APSI-18 / APSO-18

APSI-09 / APSO-09APSI-09 / APSO-09

APSI-12 / APSO-12

APSI-18 / APSO-18

CONTENTS

This symbol stands for the items

should be forbidden. This symbol stands for the items

should be followed

■

..................................1

■

■ ....................................１３

■ ..........................1８

■ ...................................１９

■ ..................................２１

■..................２２

■...............２３

■

■ ................................１６

■ ...............................．．....１１

Operation and maintenance

Notices for operation

Notices for use

......................................3

Names and functions of each part .........................６

■Operation of wireless remote control ........................７

Clean and care

Troubleshooting

Installation service

Notices for installation

Installation dimension diagram

Install indoor unit

Install outdoor unit

Check after installation and test operation

Installation and Maintenance of Healthy Filter

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

Thank you for choosing Inventor air conditioner, please read this owner's manual

carefully before operating the unit and keep it carefully for consulation.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

This appliance is not intended for use by persons (including children) with reduced

physiced, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the appliance

by a person reponsible for thei safety.

Children should be supervised to ensure that they do not play with the appliance.

■

Specificate Model and Technical Data .......................

★

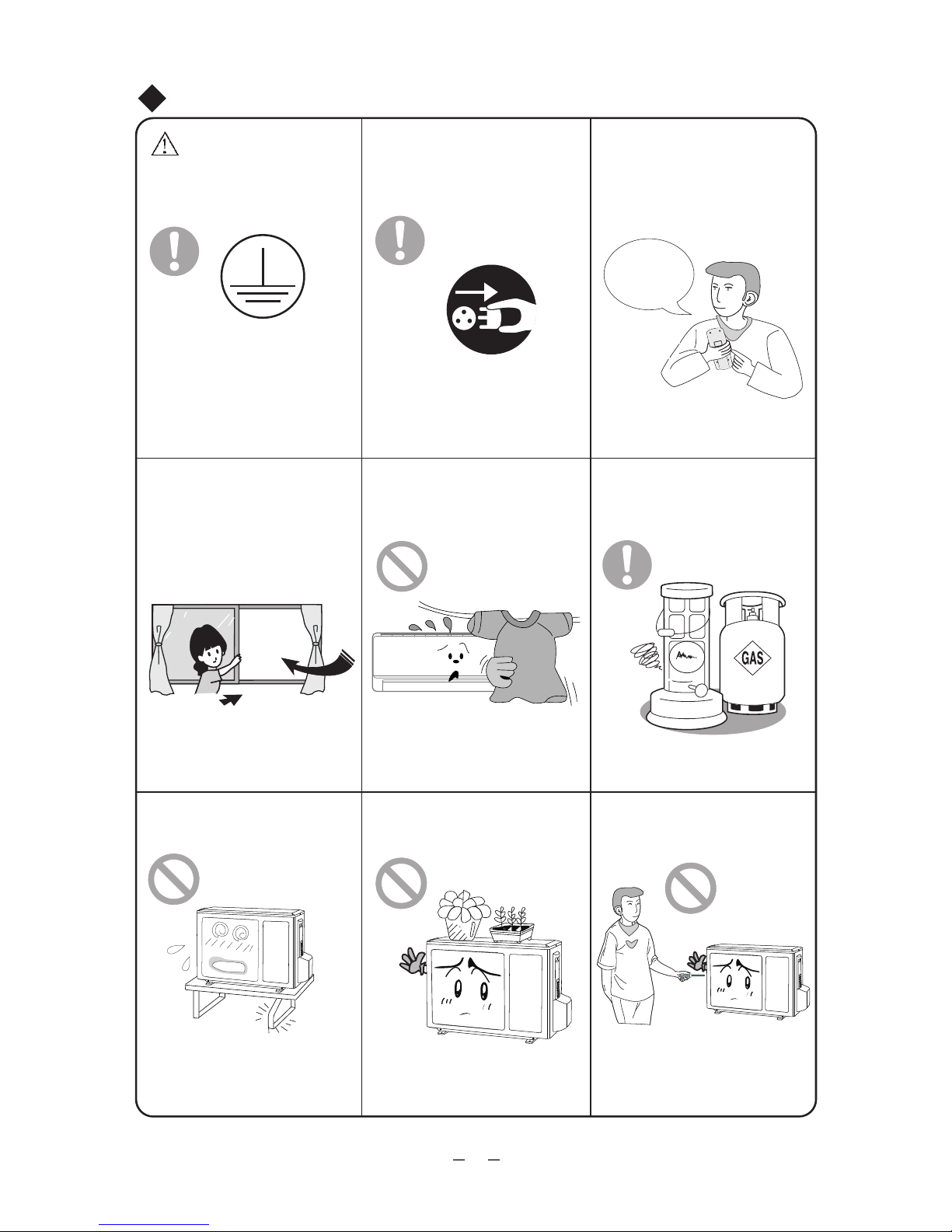

Operation and maintenance-Notices for operation

１

★★Be sure to pull out the power

★

★★

★

Earth: The ground

be connected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water

pipe, drainage pipe or any other impr-

oper places.

plug when not using the air co-

nditioner for a long time.

Otherwise, the accumulated dust

may cause fire or electric shock.

Select the most appropriate tem-

perature.

Keep room coo-

er than outside

about 5 degree.

It can preclude the electricity wasted.

Don't leave windows and

doors open for a long time

while operating the air conditioner.

It can decrease the air conditioning

capacity.

Don't block the air intake or outlet

vents of both the outdoor and indoor

units.

It can decrease the air conditioning

capacity or cause a malfunction.

Keep combustible spray away

from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to

the fall of the unit and cause

the injury.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the

outdoor unit or place something

on it.

As falling off the outdoor unit

can be dangerous.

Don't attempt to repair

the air conditioner by yourself.

The wrong repair will lead to

an electric shock or fire, so

you should contact the service

center to repair.

２

★

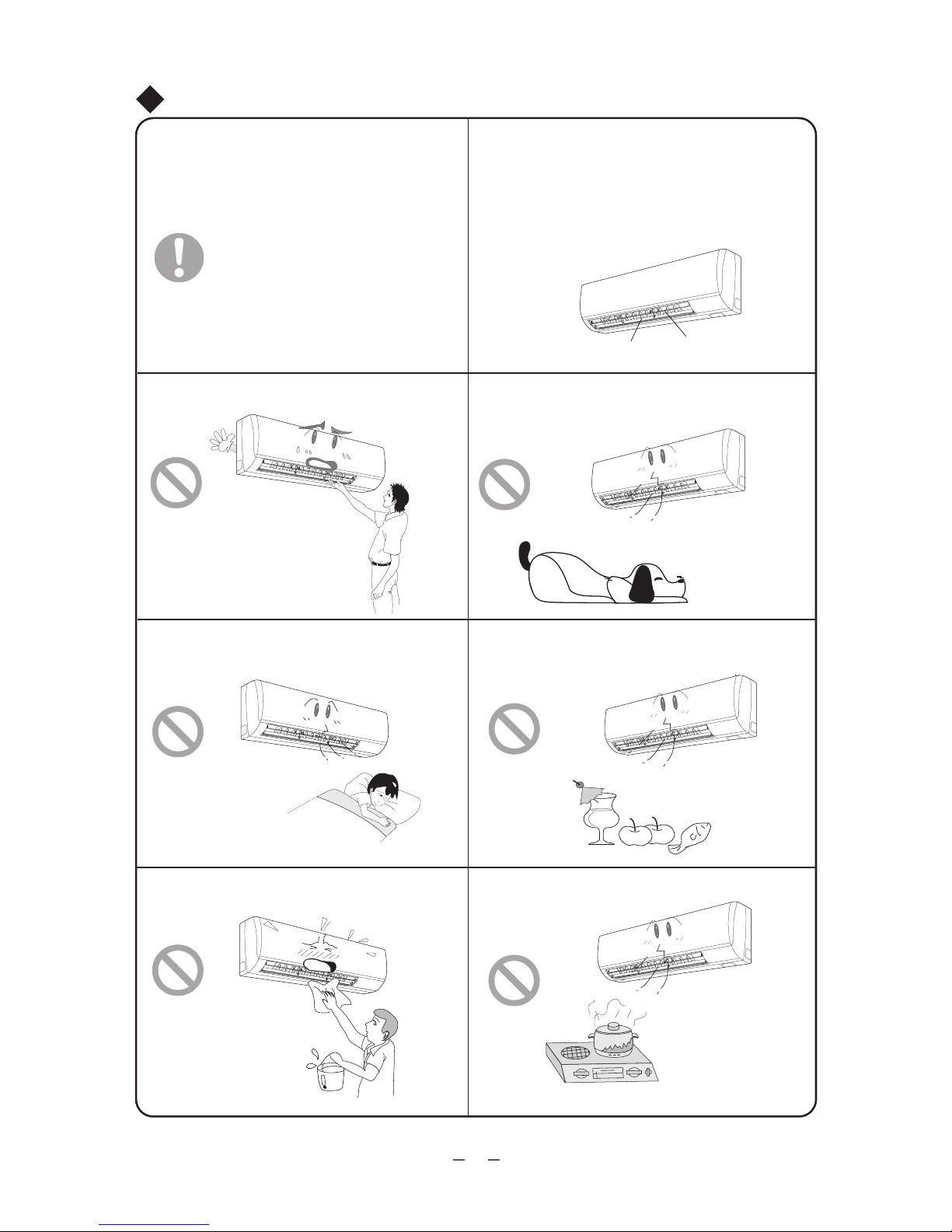

Notices for operation

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a

hazard.

The airflow direction can be adjusted appro-

priately. At operating, adjust the vertical airflow

direction by adjusting the louvers of upward/do-

wnward direction. And then, hold two ends of

left and right louver to adjust the horizontal air-

flow.

Louver of left/right directionLouver of upward/

downward direction.

Don't insert your hands or stick into the air

intake or outlet vents.

Otherwise it will cause accident.

Don't blow the wind to animals and plants

directly. It can cause a bad influence to them.

Don't apply the cold wind to the body for a

long time.

It can cause the health problems.

Don't use the air conditioner for other purposes,

such as drying clothes, preserving foods, etc.

Splashing water on the air conditioner can

cause an electric shock and malfunction. Don't place a space heater near the air

conditioner.

Or CO toxicosis may occur for imcomplete

burning.

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't

arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within

2 mins):

1. Heating starts.

2.After Auto Defrost finished.

3.Heating under the low temperature.

Notices for use

Working principle and special functions for cooling

Principle:

Anti-freezing function:

Working principle and special functions for heating

Principle:

Defrosting:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that

indoorambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

If the unit is running in COOL mode and in low termperature, there will be frost formed on

the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the

indoor unit microcomputer will stop compressor running and protect the unit.

℃

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

If outdoor temperature becomes very low, please operate with other heating equipments.

When outdoor temperature is low but high humidity, after a long while running, frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 8-10mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

Notices for use

The operating temperature range (outdoor temperature) for cooling unit is 21℃~43℃；

for cooling and heating unit is -5℃~43℃.

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)

32/23

21/15

27/---

20/---

43/26

21/-

24/18

-5/-6

Gentle Breeze

In the following situation, the indoor unit may blow gentle breeze, and

the guide louver rotate to a certain position:

1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition

2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop

running about 1min.

Specificate Model and Technical Data

ledoM

tcn

)

ycn

qerf

)

W(tu

detaR

)

gk(

nar

irfe

iltu

uo/ro

W(n

nem

)W(re

V042-022 ～

zH05

APSI-09

APSO-09

gnitaeH dna gnilooC

977/128

1/0001 021

inu roodnI :t

1X552X037 47

:tinu roodtuO 3X045X587 02

gk67.0

)05/05:521/23R(A014R

APSO-12

APSI-12

APSI-18

APSO-18

gnitaeH dna gnilooC

379/4001

0041/0541

inu roodnI :t

1X562X097 57

:tinu roodtuO 3X045X587 02

gk48.0

)05/05:521/23R(A014R

gnitaeH dna gnilooC

0341/0641

0891/0891

inu roodnI :t

2X002X049 89

:tinu roodtuO 3X045X848 02

gk1.1

)05/05:521/23R(A014R

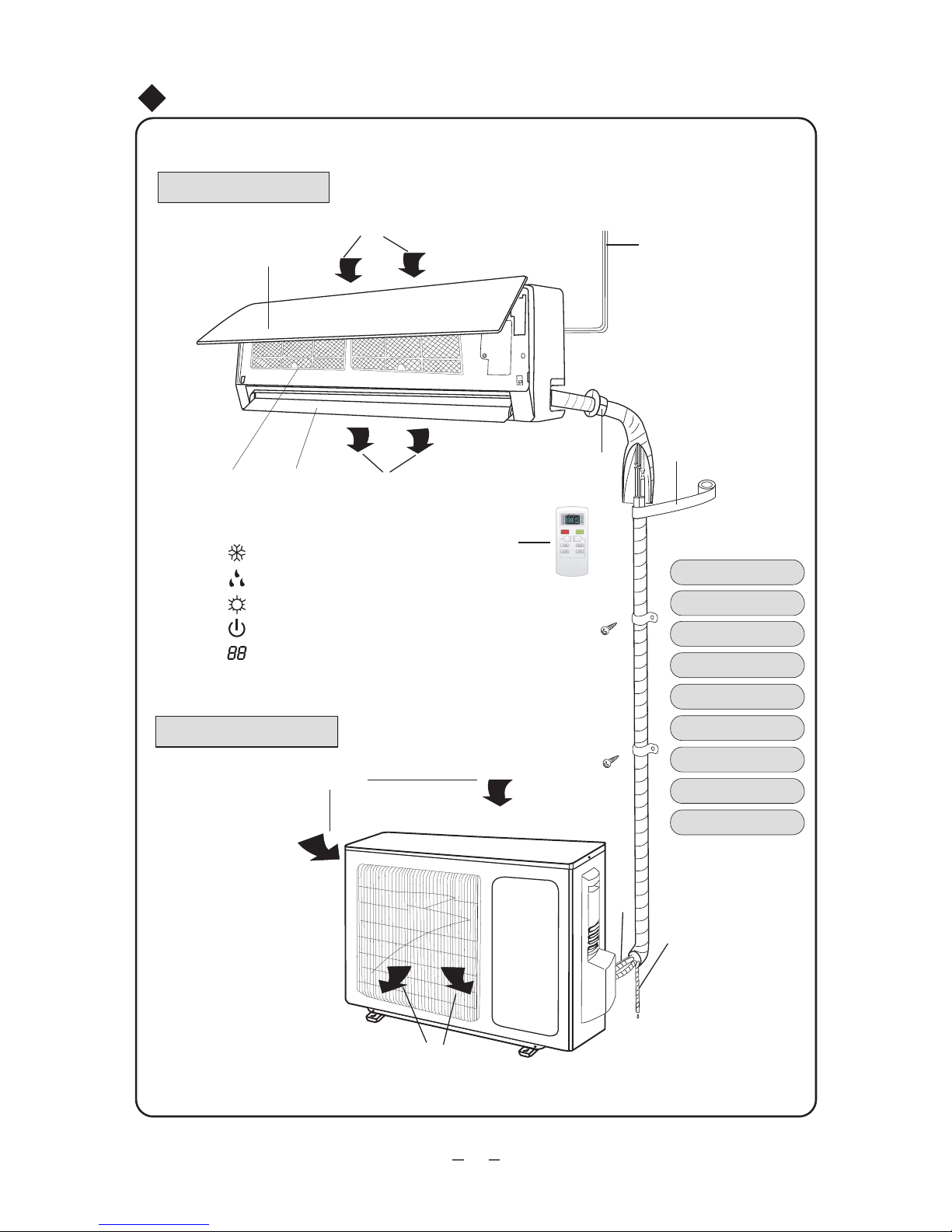

Names and functions of each part

⑴

⑺

⑶

⑼

⑸

⑻

⑴

Indoor unit Air in

Air out

Outdoor unit

Wireless

remote control

Air in

Air out

Power cable

⑷

⑹

６

⑵

：Cool

：Dry

：Heat

：Settemp.

：Run

Thepatternindisplayer：

Remote control

Front panel

Filter

Guide louver

Wall pipe

Bind tape

Connection wire

Drainage pipe

⑼

⑻

⑺

⑹

⑸

⑷

⑶

⑵
