Intelligent Weighing Technology Intell-Print OM7212 Mounting instructions

A Higher Level of Precision…

A Higher Level of Performance

Intell-PrintThermal Printer

OM7212

User Operation Manual

WARNINGS

xDo not subject your printer to excessive force or shock such as treading on it, dropping it, or hitting it.

xDo not install your printer in locations with poor ventilation or in locations in which the air contains salt or toxic gases.

xDo not use your printer at a voltage other than the specified voltage or at frequencies other than the specified frequencies.

xOnly power the printer with the supplied adapter and specified battery.

xDo not insert or remove the power cable or interface cable by pulling on the cable.

xDo not drop or insert foreign objects like paper clips, pins, etc. into the equipment. In such case remove the object, if

accessible, or contact your reseller for help.

xDo not attempt to disassemble or modify your printer. Any such unauthorized action will void the warranty and may cause a

fire hazard or electric shock.

xDo not spill or spray any liquids onto the printer. In such case, immediately turn off the power, remove the power supply

cable, and contact your reseller for help.

xDo not plug in your printer to a receptacle and/or power-strip with too many other devices on the same circuit.

ELECTRONIC EMISSION NOTICES

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult your authorized reseller or service representative for help.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Proper cables and

connectors are available from OMNIPrint authorized dealers.

INDUSTRY CANADA CLASS A EMISSION COMPLIANCE STATEMENT

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

EUROPEAN UNION – EMISSION DIRECTIVE

This product is in conformity with the protection requirements of EU Council Low Voltage Directive 73/23/EEC and

Electromagnetic Compatibility Directive 89/336/ECC on the approximation of the laws of the member states of the EEC

Commission.

Intelligent Weighing Technology, Inc. cannot accept responsibility for any failure to satisfy the protection requirements resulting

from a non-recommended modification of the product.

This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to

CISPR 22 / European Standard EN 55022. In a domestic environment this product may cause radio interference in which case

the user may be required to take adequate measures.

Table of Contents

1 INTRODUCTION ......................................................................................................7

1.1 Features ......................................................................................................7

2 SPECIFICATIONS .............................................................................................8

2.1 General Specifications .................................................................................8

3 Setting up the printer ..........................................................................................9

3.1 Unpacking....................................................................................................9

3.2 Selecting a Place ........................................................................................9

3.3 Connecting the Power Adapter ............................................................................................................10

3 .4 B at ter y ................................................................................................ ......................................................................10

3 .4. 1 O pe r at i on W i th out a B a tt e ry P ac k ................................................................................ 10

3 .4. 2 O pe ra ti on W i th a B a tte ry P ac k ........................................................................................10

3.4.3 Charging procedure .................................................................................................................10

3. 4. 4 Re placing the B attery Pack .................................................................................................12

3.5 Connecting the Interface Cable ..........................................................................................................13

3.5.1 Serial Interface Cable: OM7212-S.................................................................................13

3.6 Loading Paper .................................................................................................................................................. 14

3. 7 At t ach ing the Belt C li p .................................................................................................................................15

4 External Appearance ................................................................................................ .............................................16

5 Control Panel ................................................................ ...............................................................................................17

6 Running the Self Test................................................................................................ .............................................17

7 Acce ssori es ...................................................................................................................................................................18

8 C om m uni cat i on s I nt e rf ac es ................................ ...............................................................................................19

8. 1 RS 232 .......................................................................................................................................................................19

8. 1. 1 Se ri al I nte rfac e S pe cif ic at ions ......................................................................................... 19

8.1.2 RJ12 Connector Pin Assignment: .................................................................................19

8. 2 In fr are d (I R) T rans miss io n .......................................................................................................................19

8. 2. 1 Gu id eline s fo r IR Communi cati on ...................................................................................19

8 .3 B lu et o ot h ................................................................................................................................................................ 20

8. 3. 1 Blue to ot h Devic e A ddr ess (B D Ad dress) .................................................................20

8. 3. 2 Blue to ot h Devi c e Name (BD Name) ........................................................................... 20

8.3.3 Maximum Simultaneous Connections ........................................................................20

8. 3. 4 PIN Code ............................................................................................................................................ 21

8.4 802.11b (Wireless Ethernet) .................................................................................................................21

8.4.1 802.11b Configuration Description ................................................................................ 21

8. 4. 2 TCP /IP P ro toco l Configurati on Descript ion ........................................................... 21

8.4.3 802.1 1b Network Identification Name ....................................................................... 22

8.4.4 Name Resolution Issues (Attention: Network Administrators) ..........22

9 Us er -Co nf ig ura bl e P rinter Sett in gs ............................................................................................................24

9.1 Sleep Timeout Duration.............................................................................................................................. 24

9 .2 P rin t Da rk n ess................................................................................................................................ ....................24

9. 3 Sel ect S er ial C om mun ic at ion Pa ramet ers .................................................................................. 25

9.4 Hardware Handshaking..............................................................................................................................25

9 .5 XO N/ XO FF F lo w C on tr ol ........................................................................................................................... 26

9.6 802.11b Wireless Network Settings.................................................................................................. 26

9. 7 TC P/IP P rotoc ol N et work Setti ngs .....................................................................................................28

9.8 802.11b Wireless Network Name ..................................................................................................... 29

9 .9 D ip S wi t ch S e tt i ngs ................................ ........................................................................................................29

9. 9. 1 Baud R at e ..........................................................................................................................................29

9. 9. 2 Re se rve d Swi tches .....................................................................................................................29

9.9.3 Ignore Carriage Return Mode ............................................................................................29

9. 9. 4 He x Dum p Mo de ..........................................................................................................................29

10 Troubleshooting ........................................................................................................................... 30

A PP E ND IX 1 I N TE RN ATI ON AL C HA RA C TE RS S E T ................................ .............................................31

1 INTRODUCTION

The OM7212 is a thermal line printer designed for portable, wireless applications.

1.1 Features

xEasy paper loading with clamshell mechanism design

xConforming to RS-232C serial

xPortable, powered by a Lithium-Ion Battery

xWireless IrDA Communication (optional)

xWireless Bluetooth Communication (optional)

xPaper out sensor

xLight weight

xBelt clip for hands free operation

xMultiple international character set

xAutomatic sleep mode for battery charge conservation

xWatch dog software shuts off power to the print head in the case of a paper jam

xFull 96 ASCII set (plus additional European/Chinese and scientific characters)

xOptional flash memory for storing logo, etc.

xEpson ESC/POS emulation

xBit mapped graphics with 200 dots per inch resolution

2 SPECIFICATIONS

2.1 General Specifications

Print method Thermal line printing

No. of columns 32 (Font A) and 42(Font B)

Printing speed 60 mm/sec

No. of dots per line 384 at 8 dots/mm resolution

Dot Size 0.125 (W) x 0.125 (H) mm

Character size

(Font Size)

1.125 x 3.0 mm (9 x 24)

1.5 x 3.0 mm (12 x 24)

Font size 12 x 24 (Font A) and 9 x 24 (Font B)

IrDA (optional) IrDA V1. 1 standard or proprietary

STX/ETX protocol

Bluetooth

(optional)

Bluetooth 1.1 compliant

WiFi (optional) 802.1 1b wireless

Cable Interface RS-232C serial

Emulation Epson ESC/POS

Battery Lithium-Ion 8.4V / 1 800mA

Paper Width 58 ±0.5 mm

Diameter 45 mm (Max)

Max Print Width 48 mm

Power supply 12 VDC ±10% 2 A

Dimensions (mm) 85 (W) x 145 (D) x 75 (H)

Reliability (MCBF) 15 million Lines, 50 million Pulses, 50

Weight 400 g (0.88 lbs)

Safety approvals FCC, CE, UL, cUL

Operating

condition

0to50°C 10to80%RH

(Operating)

3 Setting up the printer

3.1 Unpacking

The items illustrated below are included in the printer package. If any items are damaged or missing, please contact your dealer

for assistance:

Printer

Paper Roll

Power Supply

Manual

Belt Clip

Interface Cable (optional)

3.2 Selecting a Place

1. Protect your printer from excessive heat such as direct sunlight or heaters.

2. Avoid exposing the printer to excessive dust and humidity.

3. Place the printer on a firm, level surface free from intense vibration or shock.

3.3 Connecting the Power Adapter

This printer requires an external power supply. An approved Class 2 power supply is required for the operation of this product.

1. Make sure the power switch is turned off.

2. Insert the output plug of the power adapter into the printer DC jack.

3. Plug in the adapter or the power supply’s cord to an outlet.

4. Only use one of the following OMNIPrint adapters:

OMPS7205-915-NA (120 VAC input)

OMPS7205-915-EU (220-240VAC input)

OMPS7205-1220-SMPS (90-240VAC input)

Output: 12VDC 2.0A , 2.1mm x 5.5mm female plug , Center positive.

3.4 Battery

3.4.1 Operation Without a Battery Pack

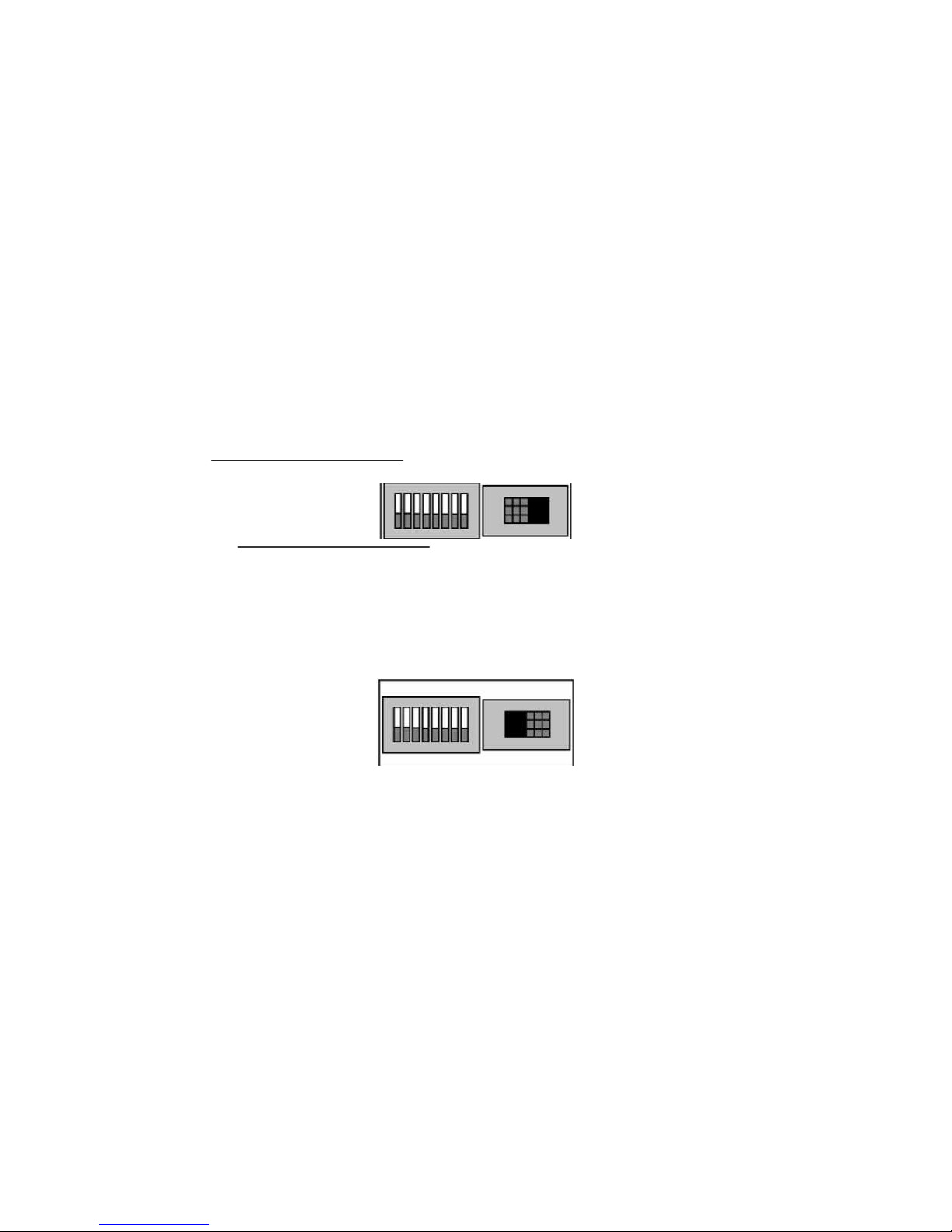

If your printer has dip switches then the sliding switch in the dip switch well must be set so the actuator is adjacent to the dip

switches. If your printer does not have dip switches, and has been specified to operate without a battery, then no configuration is

necessary. The printer power must be off before actuating any of the switches in the dip switch well. If your printer does not

have dip switches, and has not been specified to operate without a battery, then it must be operated with a battery pack.

Actuator adjacent to dip switches 3.4.2 Operation With a Battery

Pack

If your printer has dip switches then the sliding switch in the dip switch well must be positioned away from the dip switches. The

printer power must be off before actuating any of the switches in the dip switch well. If your printer does not have dip switches

then no configuration is necessary to operate with a battery.

Actuator away from dip switches

3.4.3 Charging procedure

The printer is equipped with a lithium-ion battery pack. Although the battery pack is charged when they are shipped from the

factory, your unit may have discharged. Please recharge the pack with the appropriate AC adapter before using the printer. Turn

the printer off and plug the adapter into an AC outlet and connect the cable to the printer. The battery pack takes 3 hours to

become fully charged.

NOTES:

Make sure you turn off the power switch before charging the battery pack.

Do not charge the pack longer than 24 hours, or the batteries may deteriorate.

The printer can be used immediately after the adapter is connected.

The room temperature should be between 5 and 40 °C during charging.

With the Bluetooth or WiFi options, the true charge state of the battery can only

be determined with the printer’s power turned off.
