Warranty

Contact Information

For Warranty Information and the most up-to-date version of this

User’s Guide, go to: www.iLiveElectronics.com

Email Support: [email protected]

Email Parts: [email protected]

Phone Support: 1-888-999-4215

Website: www.iLiveElectronics.com

Warnings and Precautions

• WARNING: To prevent re or shock hazards, do not expose this unit to rain or moisture.

• WARNING: Do not place the unit on top of any soft, porous, or

sensitive surfaces to avoid damaging the surface. Use a protective

barrier between the unit and surface to protect the surface.

• WARNING : Where the mains plug or appliance coupler is used as the

disconnect device, such disconnect device shall remain readily operable.

• Note : This device uses an internal rechargeable lithium-ion battery that should

last the lifetime of the device. If you suspect your battery may be dead after

several attempts to charge, please contact 1-888-999-4215 for support.

• Never disassemble the unit or attempt to remove the battery as

that could cause leakage of an electrolytic substance.

Pairing a Bluetooth Device

1. Turn on the unit using the Power switch. The Pairing/

Line In Indicator will ash blue quickly.

2. Press and hold the Pair button until a beep sounds.

When pairing, remain within 3 feet of the unit.

3. Using the native controls on your Bluetooth device,

select the “ISB212” in your Bluetooth settings to pair.

If your device requests a password, enter the default password “ 0 0 0 0 ”. Refer to the user’s

manual for your specic device for instructions on pairing and connecting Bluetooth devices.

4. When successfully paired and connected, the Pairing Indicator

will display a solid blue light and a beep will sound from the unit.

After initial pairing, the unit will stay paired unless unpaired manually by the user.

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.

2. Use the native controls on the connected

Bluetooth device to select a track.

3. To play, pause or skip the selected track, use the

native controls on the connected Bluetooth device

or press the Play/Pause button on the unit.

4. Audio played through the connected Bluetooth

device will now be heard through the speakers.

5. Press and hold the Vol+/Vol- buttons to adjust the volume.

Using the 3.5mm Audio Input

1. Plug one end of a 3.5 mm audio input cable (not

included) into the 3.5 mm Audio Input on the unit.

The Pairing/Line In Indicator will display a green light.

2. Plug the other end of the cable into the audio output/

headphone output on an MP3 Player or other audio source.

3. Turn on the unit using the Power switch.

4. Audio played through the connected device

will now be heard through the speakers.

Note: Any audio being played through a connected Bluetooth Device

will cease once the 3.5mm Audio source is connected.

USER’S GUIDE

V: 633-02

For the most up-to-date version of this User’s Guide,

go to www.iLiveElectronics.com

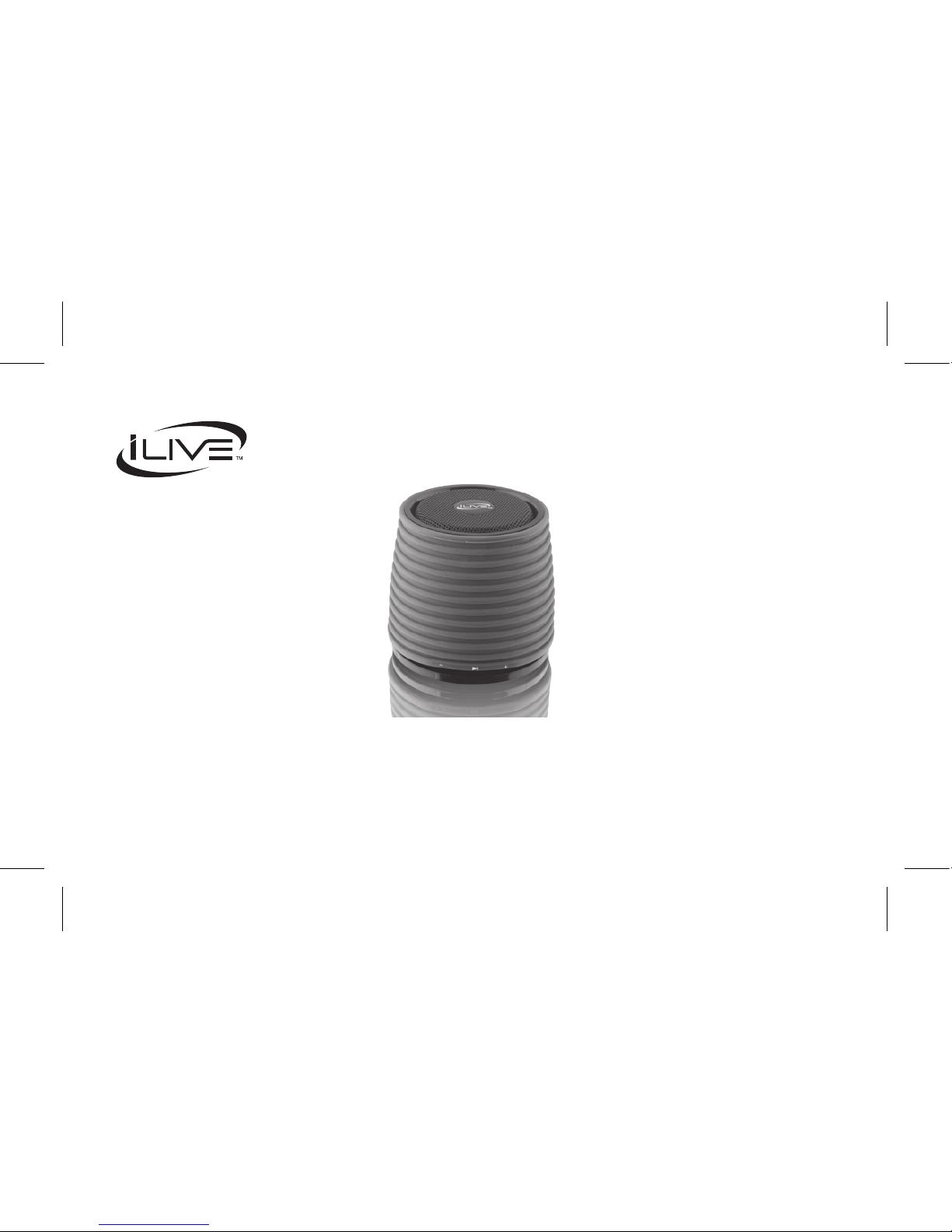

ISB212

Portable Wireless Speaker

To download this User’s Guide in English, Spanish, or French, or to get answers to

frequently asked questions, visit the support section at www.iLiveElectronics.com

Para descargar este Manual del Usuario en inglés, español y francés, o para

obtener respuestas a preguntas frecuentes, visite la sección de apoyo en www.

iLiveElectronics.com

Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour

obtenir des réponses à des questions fréquemment posées, consultez la rubrique

d’assistance sur www.iLiveElectronics.com

International Support

Features

• Built-in Bluetooth speaker

• 3.5mm audio input

• DC battery power: built-in rechargeable lithium ion battery

• Battery life: ~2 hours

• Wireless range: 33 feet

• Can be paired up to 6 mobile or audio players

Included

• Mini USB to USB charging cable

Power

USB Power

Requires a Mini USB to USB cable (included).

Note: PC must not be in sleep mode.

LINE IN DC INBATT. LOW

Status Indicator

Power O No light

Charging Red light

Fully Charged Green light

Low battery Flashing red light

Introduction

–+

LINE IN / PAIR

Pairing/Line In

Indicator

Volume

Press and hold to

increase or decrease

the volume.

Play/Pause

Press to play or pause.

Status Indicator

Power O No light

Charging Red light

Fully Charged Green light

Low battery Flashing red light
