IKey SL-75 Operating and safety instructions

Part Number: SK-101

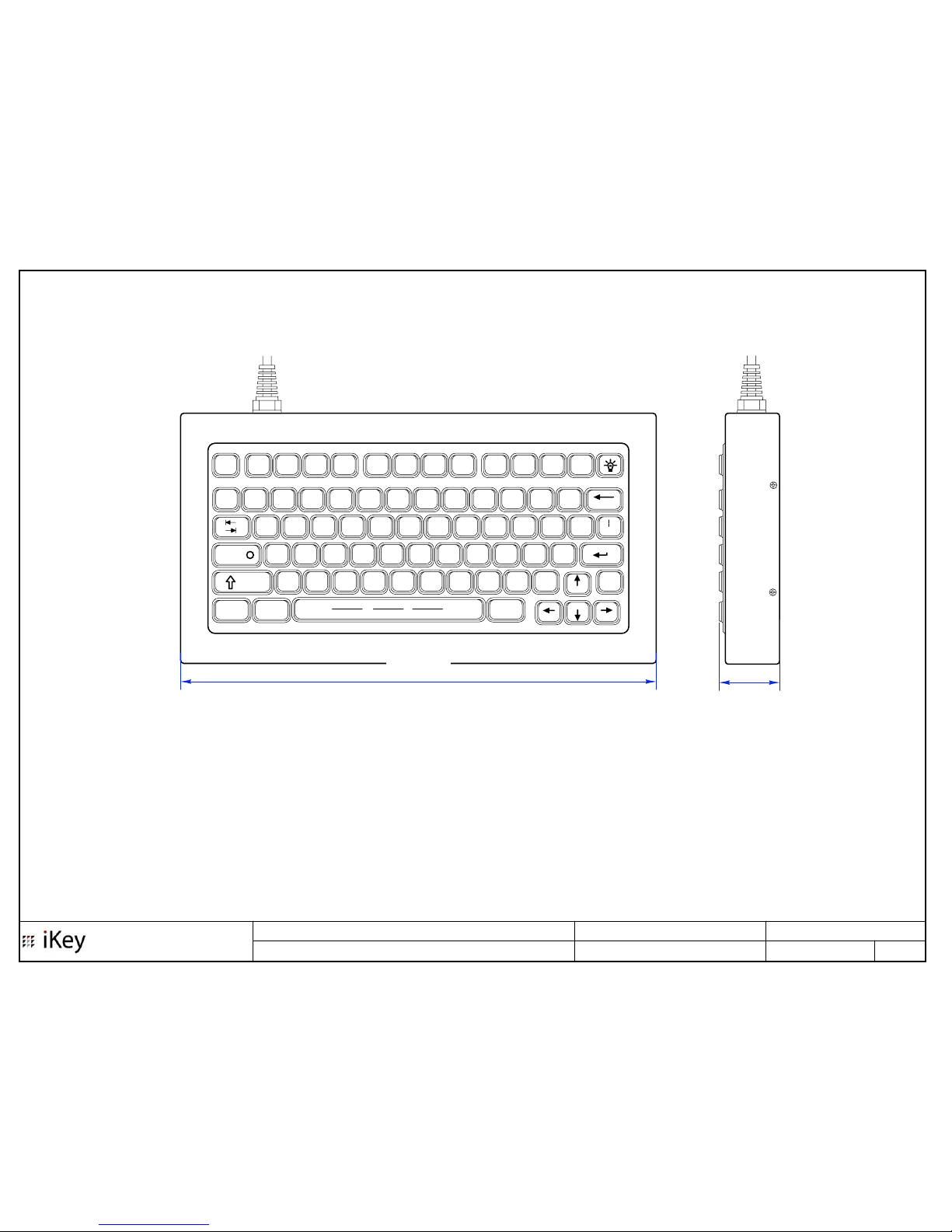

Drawing Title: SK-101-MKT Date: 12.04.03

Sheet:

JAE

Drawing Number: TIPSL75MKT



Revision: 1.000

ph: (512) 837-0283



fx: (512) 927-8530

iKey, ltd.



2621 Ridgepoint Dr. Ste 235



Austin, Texas 78754

1 OF 1

SCALE 1:1.5"

POWER

KEY SWITCH TEMPERATURE

FLAMMABILITY

HUMIDITY

SHOCK

VIBRATION

MATERIAL: Industrial Silicone Rubber

LIFE: Greater than 10 million cycles

TRAVEL: 0.055 in.

ACTUATION FORCE: 6.35 oz. (180g)

FEEDBACK: Tactile with Mechanical Snap

100% Humidity Resistant

KEYBOARD: 5V@20ma (from CPU port)

PRINTED CIRCUIT BOARD: 94VO

SILICONE OVERLAY: 94HB 

INTERFACE CABLE: 94VO

STORAGE: -40º F to +194º F (-40º C to +90º C)

OPERATING: -40º F to +140º F (-40º C to +60º C)

3 X 11 ms pulses of 50g on each of 3 axis

POWER SPECTRAL DENSITY: .04g/HZ

FREQUENCY RANGE: 20Hz-2Khz

DURATION OF TEST PER AXIS: 3 hours

Esc

QWE R T Y U I OP

ASDFGHJKL

ZXCVBNM

)

_

{

[}

/Shift

Backspace

Pg Up

Pg Dn

Home End

Caps

Lock

Shift

Fn Ctrl-L

Ctrl-R



Del

Ins

Alt

F3 F4 F5 F6 F7

F1 F2

F11 F12

F8 F9 F10

Scroll

Lock Print

Screen

Pause

SL-75

8.250"

1.050"
