IKEA VARMFRONT User manual
VARMFRONT
1
2
4
3
Max 300 mm
(max 1')
6
English

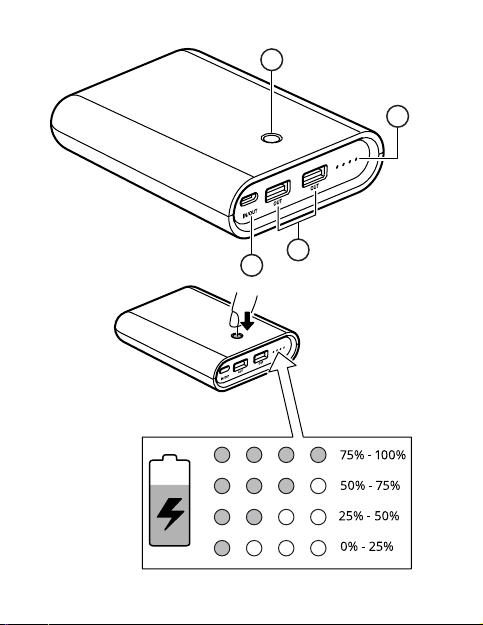

Functions
1. POWER button
2. LED indicators
3. USB-C (charging and supply power)
4. USB-A (only supply power)

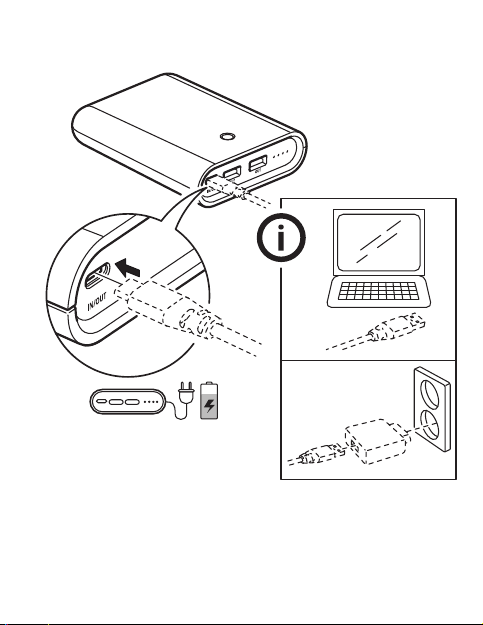

Charging power bank
• Connect the USB-C cable to the USB-C port
of the power bank rst and then connect the
USB cable to a USB-charger or USB-outlet
that can provide sucient power to charge
the power bank. The LED indicators will
display the charging status.

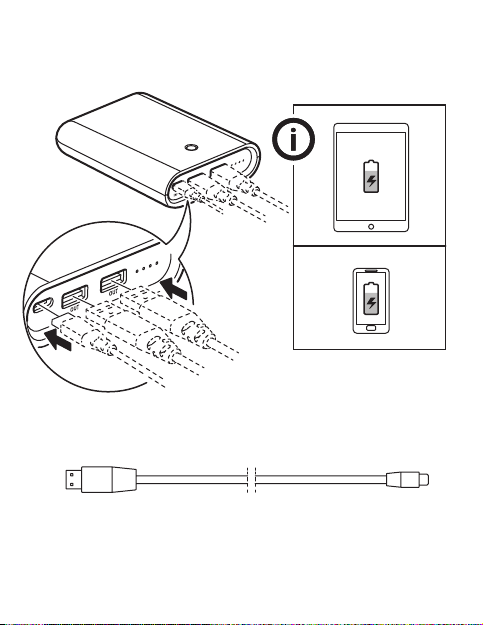

Supply power to devices
• Connect the USB cable to USB-C or USB-A
port of the power bank rst and then
connect the USB-cable to your device that
you want to charge.
• The power bank will detect a connected
device and start charging automatically.
7
• The LED indicators will display the
remaining charge in the power bank during
discharging.
Check power status
• Click once on the POWER button and the
LED indicators will light up and indicate the
remaining power status.
• If the USB cable is not disconnected while
the charging process nishes, push the
POWER button rst to restart the charging.
Small current supply mode
• Press the POWER button for 8 seconds when
your device is being charged.
• The function is mainly used to charge
certain wearable electronic devices. When
charging a device that needs a charging
current less than 100mA via a USB-A port,
this mode should be activated. You can
press the button for 3 seconds to exit this
mode, it also automatically closes after 2
hours.
8
Power button function (E2038)
Supply power
mode
No action
Stop supplying
power
Switch to the small
current supply mode
or back to normal
supply power mode
Charging
mode
USB-A is
ready to
use.
No action
No action
Sleeping mode
Shows via LED
the remaining
charge and
that USB-A is
ready to use.
No action
Turn o after
restart
Current
mode
Single
press
Double
press
Long
press
9
Good to know
• You can charge up to 3 devices at the same
time since the charger has 2 USB-A ports
and 1 USB-C port. (Power Delivery and Quick
Charge)
• The USB-C port is compatible with the Power
Delivery (PD) 3.0 standard and Quick Charge
(QC) 3.0 standard.
• The USB-A ports are compatible with the
Quick Charge (QC) 3.0 standard.
• USB cable length and quality inuences
charging speed and performance.
• Devices may get warm during charging; this
is completely normal and they will gradually
cool down again after they are fully charged.
• Charging time may vary based on the
device’s battery capacity, charge level, the
age of the battery and the temperature in
the surrounding area.
• Storage temperature: -10°C to 25°C
(14 °F to 77 °F ).
• Power bank operating temperature:
0°C to 40°C (32 °F to 104 °F ).
10
• Unplug the power bank from the power
source before cleaning and when it is not in
use.
• Power bank should not be left discharged
for a longer period.
• Power bank should not be charged while
in contact with ammable materials like
textiles.
WARNING
• Do not modify, disassemble, open, drop,
crush, puncture or shred product.
• Only use in dry locations.
• Risk of res and burns. Do not open, crush,
heat above 60°C (140°F) or incinerate.
• Do not subject the product to wet, moist or
excessively dusty environments since this
can cause damage to the unit.
• Keep the product away from open ames or
sunlight to prevent heat buildup.
• Keep the product away from high voltage
devices.
