Ikan PT4900-SDI-P2P-TK User manual
PT4900-SDI-P2P-TK
Quick Start Guide
P2P Interview System with 2x 19” igh Bright Teleprompter, ard Case & 3G-SDI Cables
Features
Includes two SKB rolling hard cases
Includes two teleprompters
Monitor that supports image flip
Monitor built in an aluminum chassis
igh-quality 70/30 beam splitter glass
Screen readable from up to 25′
Works with many different sized cameras
Easy balancing with adjustable base
Perfect size for portability and view-ability
Ships in reusable foam for easy transport
PrompterPro 4 software Included
DMI, VGA, and SDI Video Inputs
What’s Included
2x Large
Riser
2x Bottom Plate
2x Hood Attachment
Frame
2x Glass Frame
Screws 2x 1 mm Rod
Clamps 4x 1 mm Rods 2x Large Riser
Bracket
2x Glass
Holder 2x Hood
2x Glass
2x Medium
Riser
2x Base
2x DSLR/
Mirrorless Riser
2x Glass Frame Holder
Bracket w/ Rod Clamps
2x
Monitor
2x Hard
Case
Teleprompter Assembly Setup
Step 1
Place the ood Attachment Frame over the Glass older. Then place the
glass against the Glass older. Make sure the screws pass through the
holes on the both the ood Attachment Frame and the Glass older.
Step 3
Remove the monitor mounts from the teleprompter base using
the included larger 4mm hex key to loosen from the 15mm rods.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
Step 2
Secure the Glass older by fastening the knurled nuts to the screws as
pictured below.
1
2
-
2
4
V
H
D
M
I
V
G
A
AV
Step
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
Step 6
While sliding the teleprompter bracket into the slot of the Glass Frame
older Bracket, pull on the red knob to allow the bracket to fully slide in.
Step 7
Once the bracket is in place, tighten the side screw to lock in place.
Double check and make sure all the screws are tightened with the
included hex keys.
Step 9
To prevent light from leaking through the hood, seal both zippers down.
Step 8
Fold the flaps of the ood alongside the edges of the ood Attachment Frame. The flaps of the ood are magnetic so they will automatically attach.
Step 10
Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base.Once the screws are aligned, Slide the riser plate into
the Base.
Step 11
Slide in the Riser plate of your choice by aligning the screws on the riser plate to the slot on the Base.Once the screws are aligned, Slide the riser plate into
the Base.
Step 12

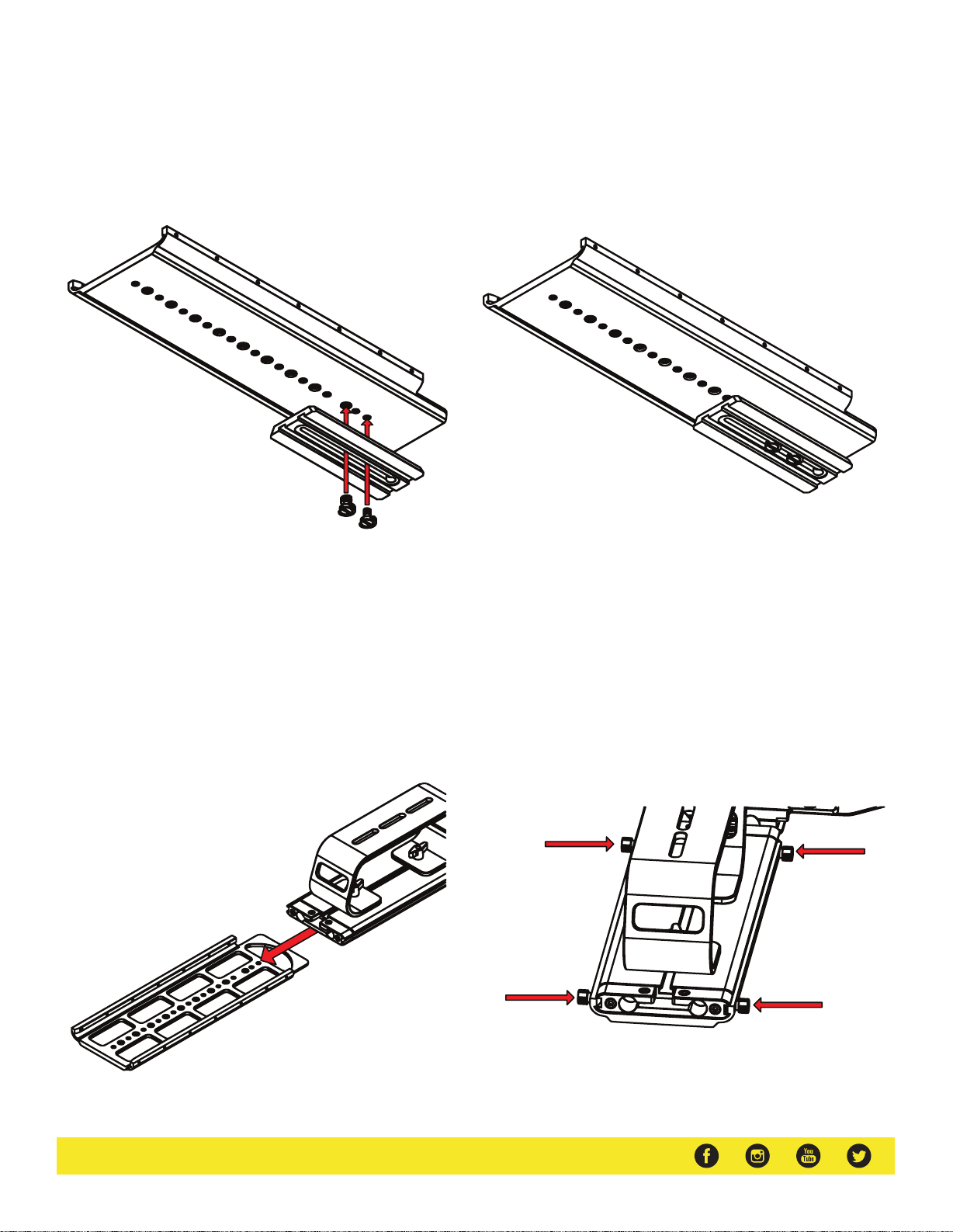

Mount your own tripod plate to the bottom plate by aligning the 1/4-20 and/or 3/8-16 screws and fastening them to the Bottom Plate. It is recommended
that you connect your tripod plate to front of the Bottom Plate so that you can balance your teleprompter easier. Once your tripod plate is connected to the
Bottom Plate, mount the tripod plate to your tripod head.
Step 13
Slide the entire teleprompter system into the Bottom Plate. Once the
teleprompter system is inserted, you can balance it by sliding it along the
Bottom Plate until the center of gravity is determined.
Step 14
Once the center of gravity has been determined, tighten the thumb screws
to keep the base from sliding.
Step 1
To secure your teleprompter system, insert the included headless screws into the threads behind and in front of the Base.
Step 16
The headless screws should be inserted to the threads as pictured below.
Step 17: P2P Interview/Interviewee Setup
After both teleprompters have been setup and placed on tripods/pedestals, using one of the video cables connect it to the camera on
teleprompter 1 (interviewer) to the video input port of monitor on teleprompter 2 (interviewee). Using the other video cable to connect it to
the camera of teleprompter 2 (interviewee) to the video input port of monitor on teleprompter 1 (interviewer).
** DO NOT THROW AWAY FOAM CASE **
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.
Monitor Ports
3G-SDI – Serial Digital Interface Connection
VGA – Video Graphics Array DE15 Connection
DMI – igh-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
DMI – Switch DMI input
VGA – Switch to VGA input
SDI – Switch to 3G-SDI input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma ue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip- – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
H
D
M
I
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-
4. Change FLIP-V and/or FLIP- to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image orizontally or Vertically
7. When FLIP- is ON, the image will flip orizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
orizontal and Vertical flip
