Ikan ELE-EV3-FFSBP User manual

What’s Included

QUICKSTART GUIDE

1 x EV3 Baseplate

2 x 12" 15mm Aluminum Rods

1 x FG Follow Focus Cine-Kit (ELE-FGK)

ELE-EV3-FFSBP

EV3 DSLR Quick Release Baseplate & Follow Focus Kit

[email protected] © 2015 ikan Corporation. All rights Reserved

www.ikancorp.com 713.272.8822

CHECKED BY

Getting to know your Quick-Release Baseplate

EV3 Quick-Release Baseplate

The EV3 baseplate system enables you to

quickly and efﬁciently mount and dismount

your camera - Simply press one level and

the quick-release button.

Height Adjustable

Use the riser plate to adjust the

height of the baseplate to adapt

to different cameras.

Integrated Tripod Mount

Four ½-20"& four 3/8"-16 thread holes line

the bottom of the tripod mount for various

mounting options.

Anti-Rotation plate prevents your camera from

rotating out of alignment.

½"-20

Threaded Holes

3/8"-16

Threaded Holes

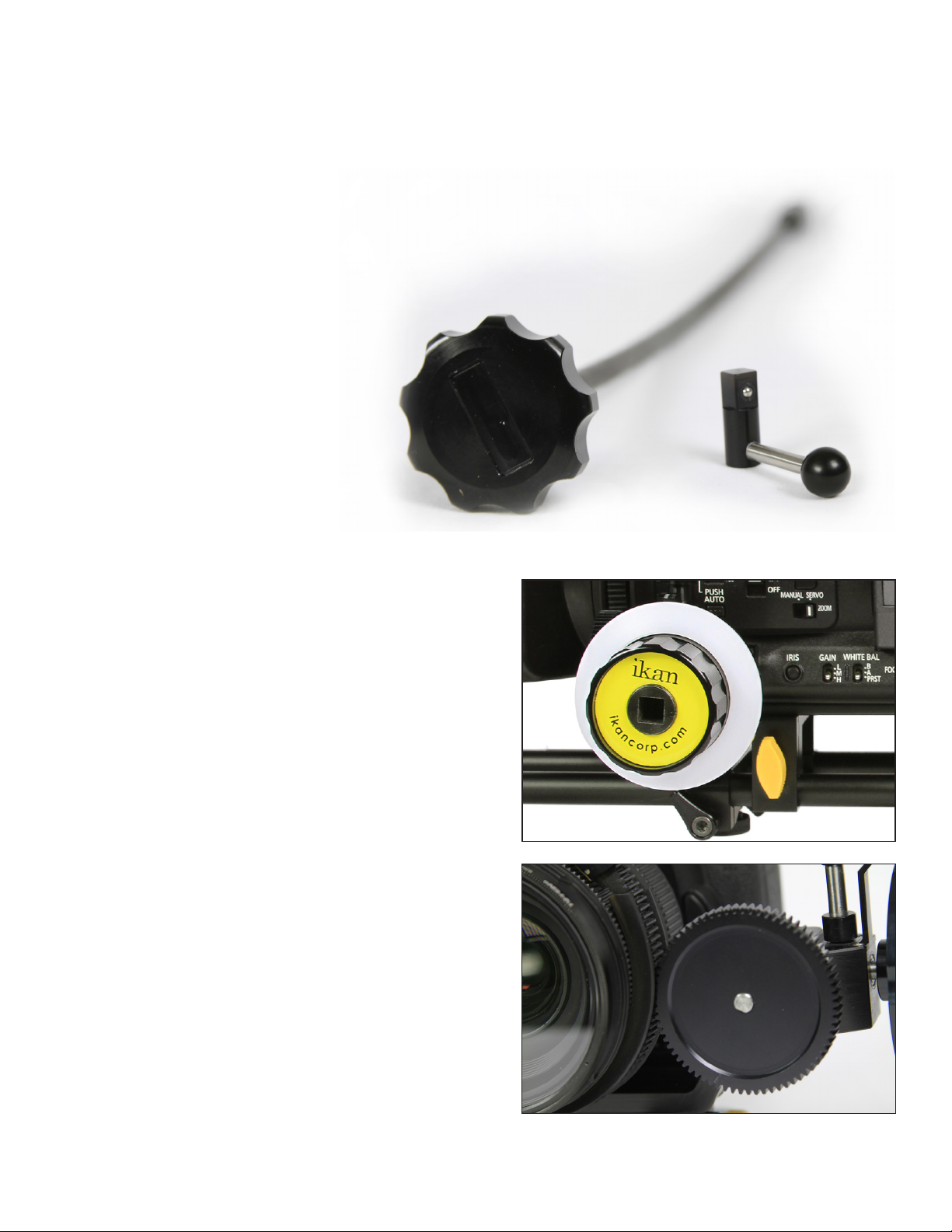

Getting to Know your Follow Focus

Reaching Out

The included 17"FG Follow Focus Whip

features vinyl covering and a crank

stability grip for smooth control.

Utilizing a standard ¾"square

connector, the FG Whip provides

leverage over distance and

smoother focus pulls all around.

Crank It Up

Our 2.3 FG Follow Focus Crank Knob provides

rapid focus, allowing you to move from focus

mark to focus mark at a high rate of speed.

Fitted with standard size square connector, the

FG Crank Knob offers fast and accurate control.

Get It In Gear

Also in the box is a pair of 2.5 to 4.25” diameter

adjustable zip lens gears. Complete with two

no-scuff, non-slip gear liners; your DSLR lens is

protected and ready to pull focus.

Getting Started

Adjust FG Follow Focus vertically to slide

away or towards the lens, depending on

the barrel width.

This is an example of the basic completed

Follow Focus application.

Rig Speciﬁcations

EV3 Baseplate Speciﬁcations

Weight 1.15 lbs

Baseplate Type Quick Release

Rod Compatibility 15 mm

Rod Spacing 60 mm

Tripod Mounting 4 x 1/4"-20 Threaded Holes

4 x 3/8"-16 Threaded Holes

1 x 1/4"-20 Threaded Screw

Camera Compatibility DSLR, Mirrorless DSLR, Micro 4/3, Small Camcorders

Material Aluminum

Rod Speciﬁcations 12 Inch

Rod Type Standard

Rod Diameter 15 mm

Rod Length 12 In.

Weight 0.14 lbs

Quantity 1

Material Aluminum

Follow Focus Speciﬁcations

Follow Focus Speciﬁcations

Dimensions 12.25 x 7 x 4.375 In.

Weight 1

Shipping Speciﬁcations

Shipping Dimensions 14 x 12 x 6 In.

Shipping Weight 4 lbs

Learn More

More dynamic information at ofﬁcial website: www.ikancorp.com

Support

Contact email: [email protected]

CONDITIONS OF WARRANTY SERVICE

• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.

• The components and maintenance service fee will be charged if the warranty period is expired.

Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)

• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.

• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.

©2015 ikan Corporation. All rights reserved
