IFM Electronic Efector 200 OI Series User manual

Operating instructions

Retro-reflective sensor with

polarization filter OI

Diffuse reflection sensor OI

80234481 / 00 01 / 2016

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of pushbuttons, buttons or indications

→Cross-reference

Important note

Non-compliance can result in malfunction or interference.

2 Safety instructions

• Please read this document prior to set-up of the unit. Ensure that the product is

suitable for your application without any restrictions.

• Improper or non-intended use may lead to malfunctions of the unit or to

unwanted effects in your application. That is why installation, electrical

connection, set-up, operation and maintenance of the unit must only be carried

out by qualified personnel authorised by the machine operator.

• In case of malfunction of the unit please contact the manufacturer. If the unit is

tampered with and/or modified, any liability and warranty is excluded.

3 Functions and features

The unit is used as a photoelectric retro-reflective / diffuse reflection sensor.

4 Technical data

4.1 DC

Operating voltage: 10-55 V DC incl. residual ripple

Current consumption: < 30 mA at 24 V

Current rating: 250 mA with short circuit, reverse

polarity and overload protection

Output: PNP / NPN transistor

4.2 AC/DC

Operating voltage: 20-250 V AC, DC

47-63 Hz

Current consumption: < 6 mA

Current rating: 350 mA AC up to +50°C

250 mA AC up to +80°C, 100 mA DC

Output: semiconductor

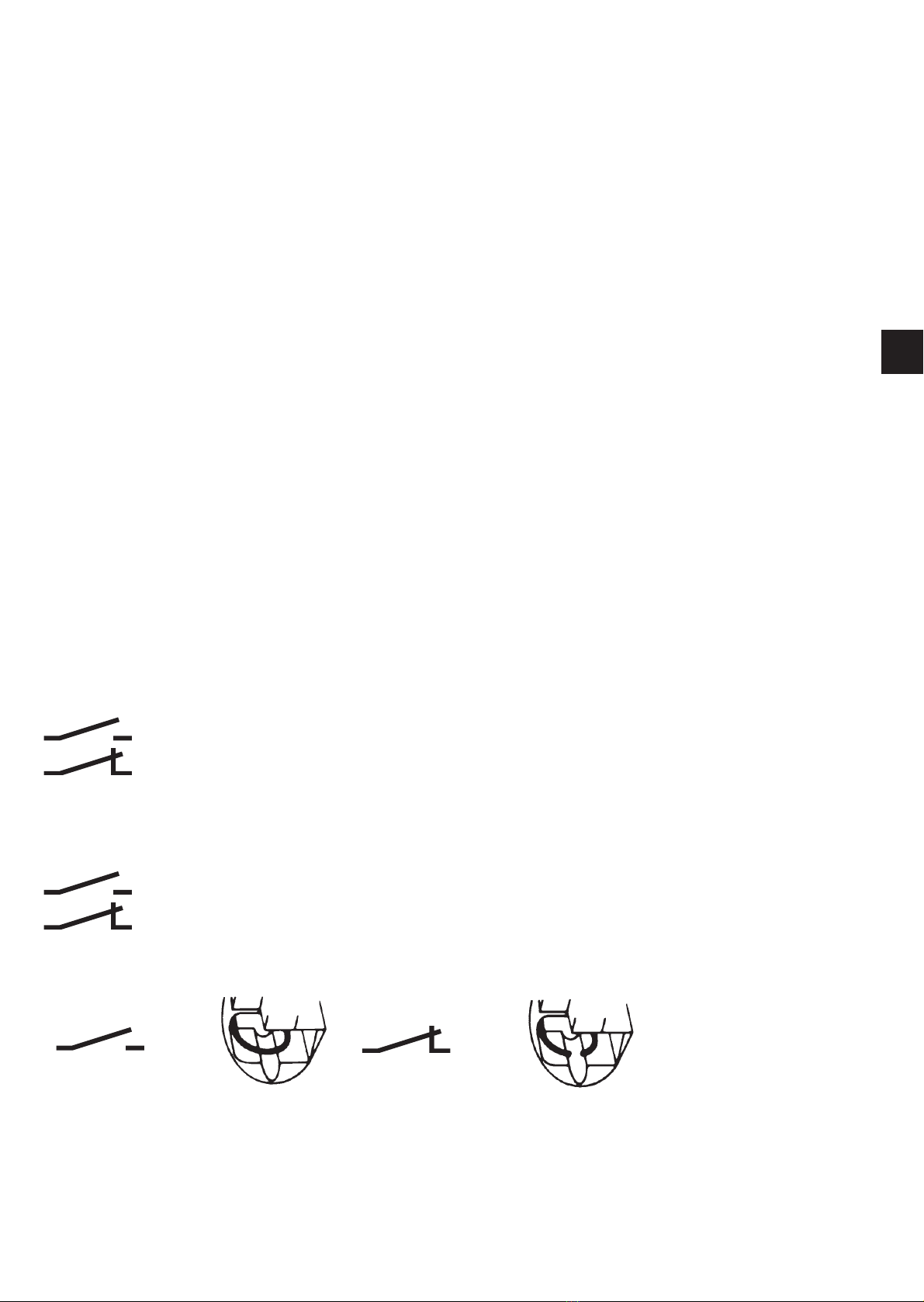

5 Programming

5.1 Diffuse reflection sensor

Bridge closed (light-on mode)

Bridge open (dark-on mode)

5.2 Retro-reflective sensor

Bridge closed (dark-on mode)

Bridge open (light-on mode)

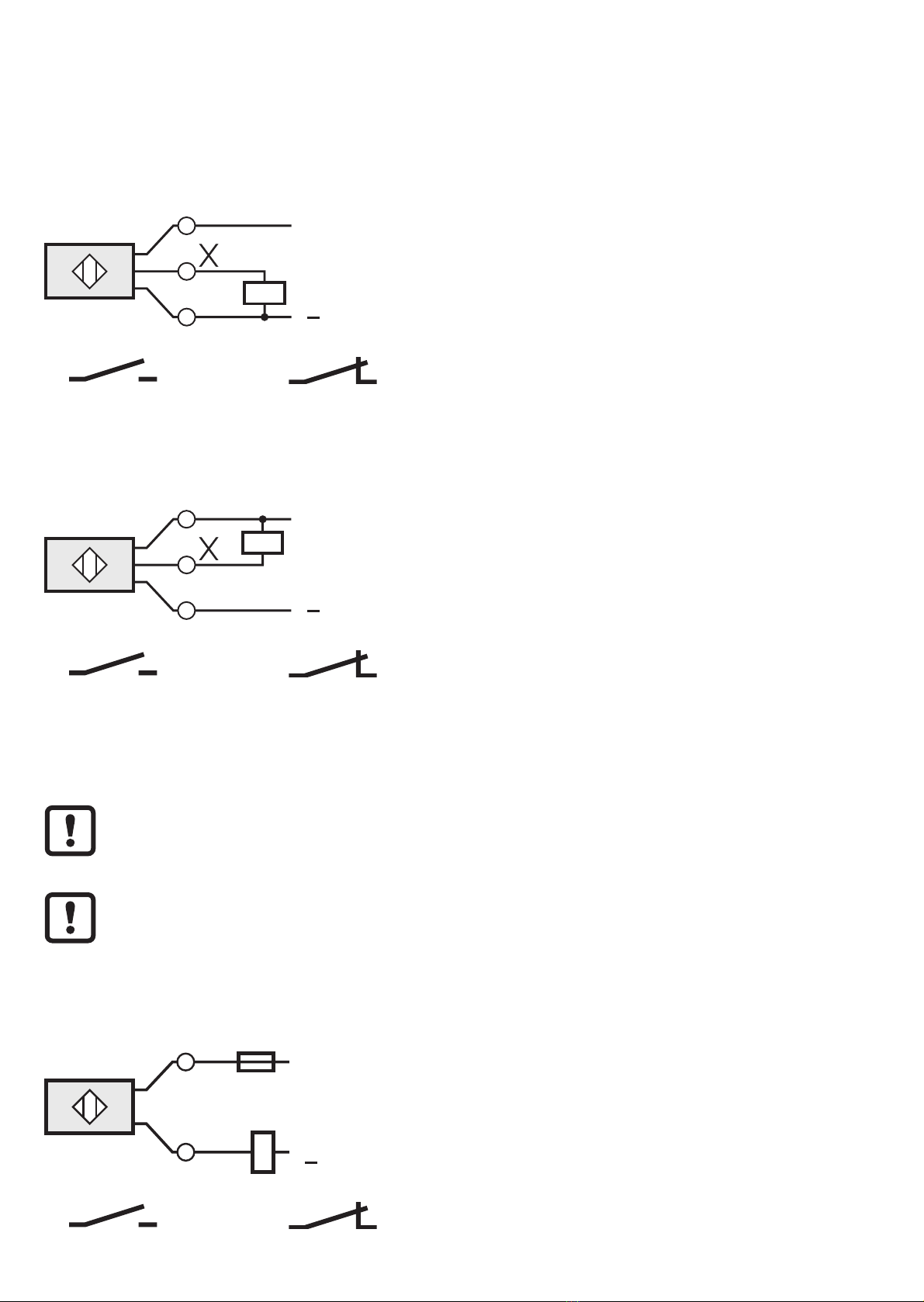

6 Wiring

6.1 DC

6.1.1 OIR / OIP / OIT-FPKG - PNP

or programmable

6.1.2 OIR / OIP / OIT-FNKG - NPN

or programmable

6.2 AC/DC

Insert a miniature fuse according to the technical data sheet, if specified.

Check the unit for reliable function after a short circuit.

6.2.1 OIR / OIP / OIT-FBOA

or programmable

L+



















6.3 AC

Insert a miniature fuse according to the technical data sheet, if specified.

Check the unit for reliable function after a short circuit.

6.3.1 OIT / OIR-FBOW

or programmable

7 Maintenance, repair, disposal

►Keep the lens of the sensor free from soiling.

►For cleaning do not use any solvents or cleaning agents which could damage

the plastic parts.

►After use dispose of the unit in an environmentally friendly way in accordance

with the applicable national regulations.

Faulty sensors must only be repaired by the manufacturer.

Technical data and further information at unter www.ifm.com














