tM-AD5 Quick Start Guide

Quick Start Guide

for tM-AD5

Mar 2012, Version 1.1.0

Congratulations on purchasing the tM-AD5 the most popular automation solution for

remote monitoring and control applications. This Quick Start Guide will provide

information needed to get started with the tM-AD5. Please also consult the User Manual

for detailed information on the setup and use of the tM-AD5.

In addition to this guide, the shipping box includes the following items:

tM-AD5

ICP DAS Website

http://www.icpdas.com/

tM-AD5 Quick Start Guide

----------------------------------------------------------------------------------

Understanding the Hardware Specifications

and Wiring Diagrams

Before installing the hardware, you should have a basic understanding of hardware

specification and the wiring diagrams.

System Specifications：

tM-AD5 Quick Start Guide

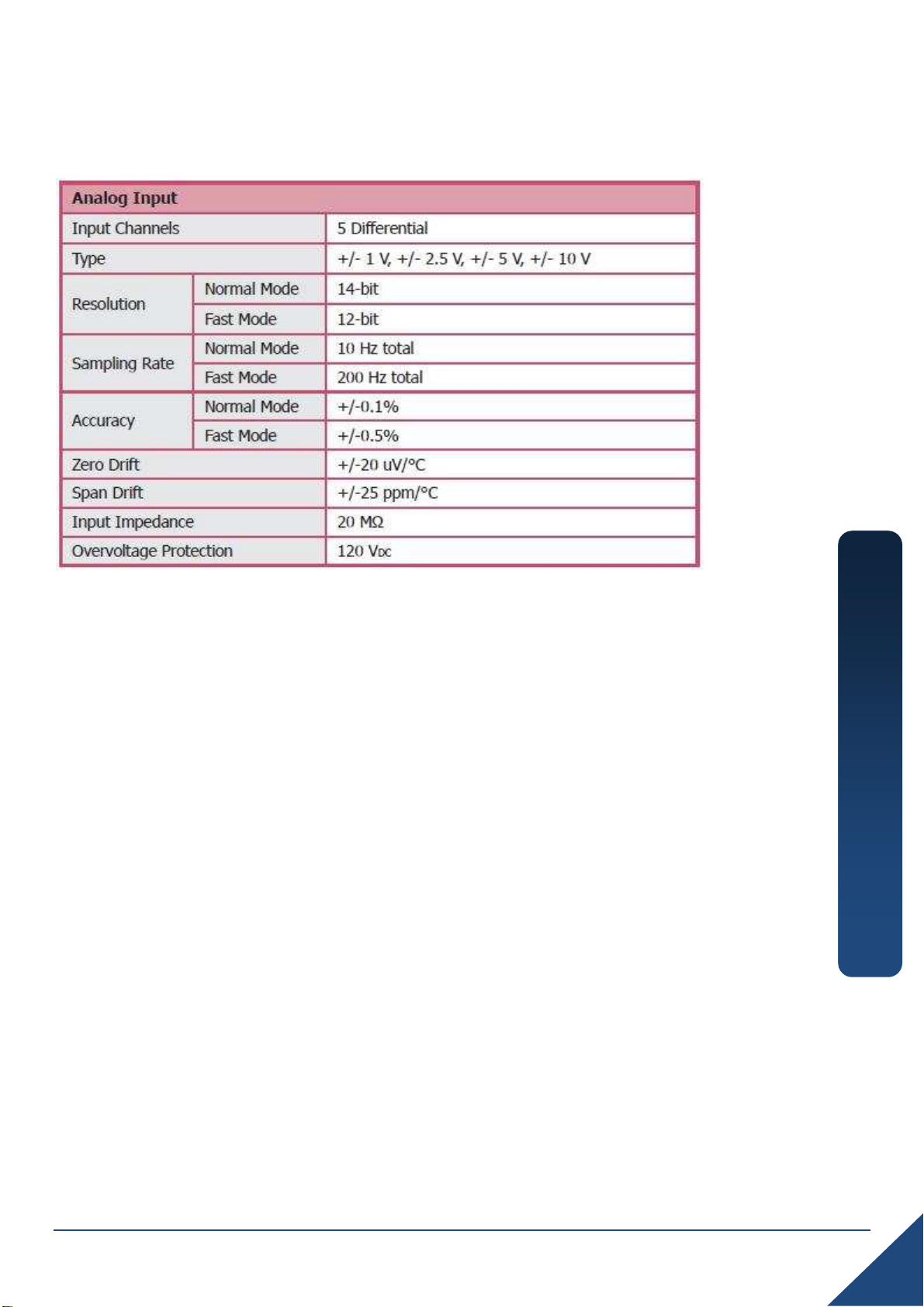

I/O Specifications：

tM-AD5 Quick Start Guide

Wire Connection：

Pin Assignment：

tM-AD5 Quick Start Guide

Make sure the switch placed in the

“Init” position.

---------------------------------

-------------------------------------------------

Connecting to the PC and the Power Supply

The tM-Series series is equipped with an RS-485 port

for connection to a 232/USB converter to PC

--------------------------------------------

Booting the tM-Series in

Init Mode

Connect to the PC

using an RS-485 Converter

Connect to PC

using a USB Converter

7520

Power Supply

232

485

Series

Power Suppl

USB

485

7561

Series

tM-AD5 Quick Start Guide

---------------

------------------------------------------------------------------

Installing the DCON Utility

The DCON Utility is an easy-to-use tool designed to enable simple configuration of I/O

modules that use the DCON protocol.

Step 1: Locate the DCON Utility

The DCON Utility can be obtained from the companion CD or from the

ICPDAS FTP site:

CD:\Napdos\8000\NAPDOS\Driver\DCON_Utility\setup\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

Step 2: Follow the prompts to complete the installation

After the installation has

been completed, there will be a new

shortcut to the DCON Utility on the

desktop.

-----------------------------------------------------------

-----------------------

Using the DCON Utility to Initialize the

tM-Series Module

The tM-Series is an I/O module based on the DCON protocol, meaning that you can use

the DCON Utility to easily initialize it.

tM-AD5 Quick Start Guide

Step 1: Run the DCON Utility

Double-click the DCON Utility

shortcut on your desktop.

Step 2: Use the COM1 port to communicate with the

tM-Series

Click the “COM Port” option from the menu and a dialog box will be displayed that will

allow you to set the communication parameters as described in the table below.

Communication

parameter Factory

default Value

Address 00

Baud Rate 9600

Protocol DCON

Checksum Disabled

Parity N,8,1

tM-AD5 Quick Start Guide

Step 3: Search for the

tM-Series

module

Click “Start Search” button from the toolbox to search for the tM-Series module.

After the tM-Series module is displayed in the list, click “Stop Search” button.

Step 4: Connect to the tM-Series

After clicking on the name of the module in the list, a dialog box will be displayed.

Start Search

Stop Search

tM-AD5 Quick Start Guide

Step 5: Initialize the tM-Series module

Set the “Address” field in the dialog box to 1 and then click “Setting” button to save the

settings.

Make sure the INIT switch is placed in the

“Normal” position.

----------------------------------------------------------------------------------

Starting the Module Operation

After rebooting the tM-Series module, search for the module to make sure the settings

have been changed. You can double click on the name of the module in the list to open

the configuration dialog box.

--------------------------------------------

Rebooting the tM-Series

Module in Normal Mode

tM-AD5 Quick Start Guide

---------------------------------------------------------------------------------

Modbus Address Mapping

Address Description Attribute

30001 ~ 30005

40001 ~ 40005 Analog input value of channel 0 to 4 R

40481 Firmware version (low word) R

40482 Firmware version (high word) R

40483 Module name (low word) , 0x5001 R

40484 Module name (high word) , 0x0700 R

40485 Module address, valid range: 1 ~ 247 R/W

40486 Bits 5:0

Baud rate, 0x03 ~ 0x0A

Code 0x03 0x04 0x05 0x06

Baud 1200 2400 4800 9600

Code 0x07 0x08 0x09 0x0A

Baud 19200 38400 57600 115200

Bits 7:6

00: no parity, 1 stop bit

01: no parity, 2 stop bits

10: even parity, 1 stop bit

11: odd parity, 1 stop bit

R/W

40487 Type code R/W

40488 Modbus response delay time in ms, valid range:

0 ~ 30 R/W

40489 Host watchdog timeout value, 0 ~ 255, in 0.1s R/W

40490 Channel enable/disable, 00h ~ 1Fh R/W

40492 Host watchdog timeout count, write 0 to clear R/W

00257 Protocol, 0: DCON, 1: Modbus RTU R/W

00258 Protocol, 0: determined by 00257, 1: Modbus

ASCII R/W

00261 1: enable, 0: disable host watchdog R/W

00269 Modbus data format, 0: hex, 1: engineering R/W

00270 Host watch dog timeout status, write 1 to clear

host watch dog timeout status R/W

00271 1: enable, 0: disable fast mode R/W
