ICP DAS USA TET-P6 User manual

tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

tET-P6/tPET-P6

Quick Start

What’s in the box?

The package includes the following items:

tET/tPET-P(D)6 Module x 1

Quick Start x1 (This Document)

Product Website:

https://www.icpdas-usa.com/tpet_6.html



tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Connecting the Power and Host PC

1) Make sure your PC has workable network settings.

Disable or well configure your Windows firewall and Anti-Virus firewall first,

else the “Search Servers” on Chapter 5 may not work. (Please contact

with your system Administrator)

2) Connect both the tET/tPET-P(D)6 and your PC to the same sub

network or the same Ethernet switch.

3) Supply power (PoE or +12~+48 V

) to the tET/tPET-P(D)6.

tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Pin Assignments & Wiring Note



Pin Assignments:





Digital Input Wiring of the tET/tPET-P6:



Digital Input

Readback as 1

Readback as 0

+10 ~ +50 V

OPEN or <4 V

DIx

10K

DIx 10K

Sink

+ -

To other

To ther channels

To othe

DI.COM

channels channels

+10 ~ +50 V

OPEN or <4 V

DIx

10K

DIx 10K

Source

- +

To ther channels

To other

To ther channels

DI.COM

channels channels



Digital Input Wiring of the tET/tPET-PD6:



Digital Input

Readback as 0

Readback as 1

Relay Off

Relay On

Dry Contact

DI.GND

Relay Open

DIx

Relay Close

DIx

tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Wire the DI for Self-test



tET/tPET-P6:



1) Supply the External Power +24V to DI0. (External +10V connect to Pin06 )

2) Supply the External Power GND to DI.COM. (External GND connect

to Pin05)



tET/tPET-PD6:



1) Connect the DI0 and DI.COM. (Pin06 connect to Pin05)



tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

Modbus Address



(1xxxx) DI address:



Begin

Points

Description

Bits

Range

Access

address

Per

Type

Point

1~6

Digital Input

0:Off

(0x0)

1:On

1~6

Digital latched status (high)

0:no

(0x20)

1:latched

1~6

Digital latched status (low)

0:no

(0x40)

1:latched



(0xxxx) DO address:



Begin

Points

Description

Bits

Range

Access

address

Per

Type

Point

Clear all DI latched status

1: Clear

(0x20)

(high)

Clear all DI latched status

1: Clear

(0x21)

(low)

150

Enable All DI latched

0:Disable

R/W/F

(0x96)

status (high/low)

1:Enable

151

1~6

Enable high speed digital

0:Disable

R/W/F

(0x97)

counter

1:Enable

Note

For detail “DI/DO Modbus Address” information, refer to Section 6.3 Modbus Register

Table of user’s manual (http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tpet/document/).

tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

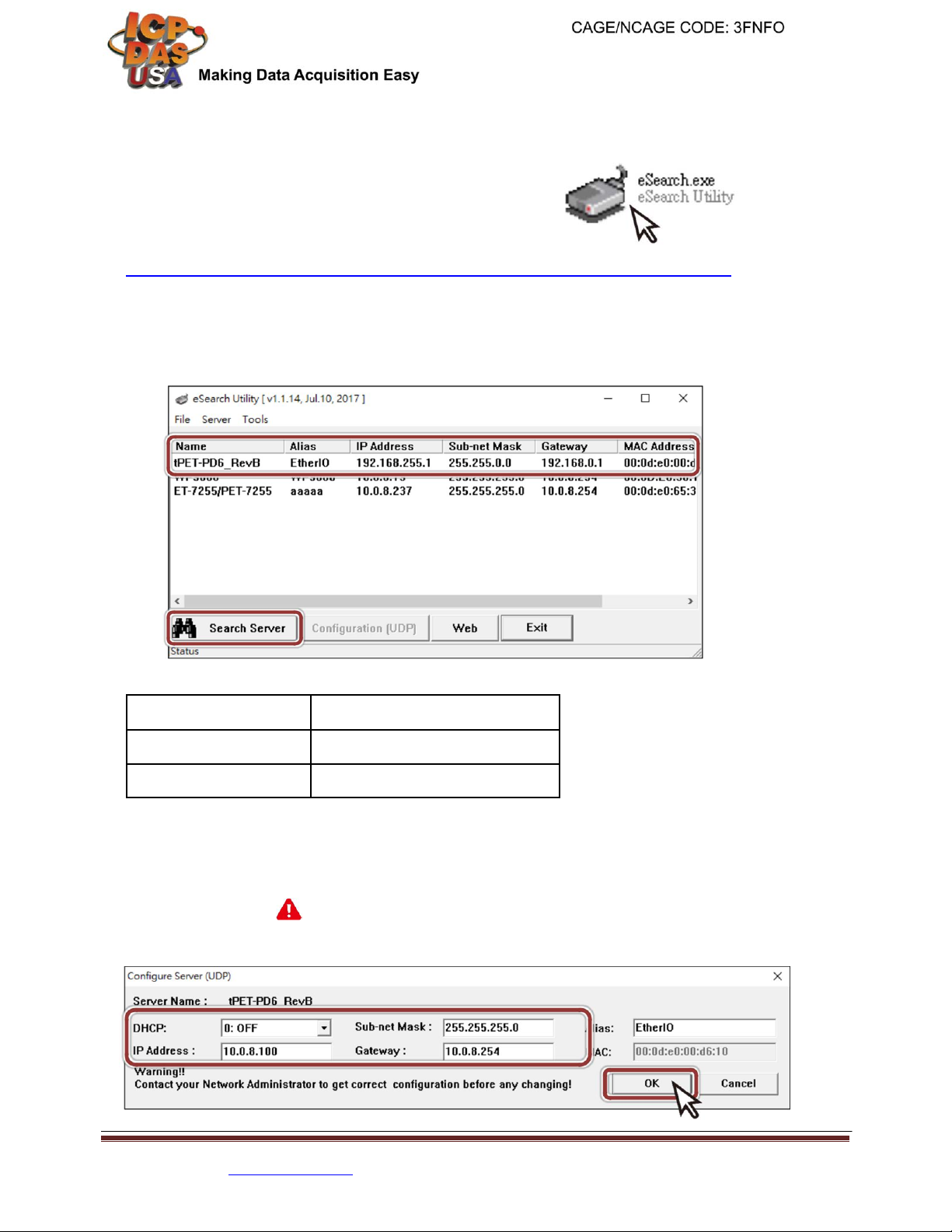

Configuring Network Settings

1) Run the eSearch Utility.

The eSearch Utility is located at:



http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/

2) Click the “Search Servers” to search your tET/tPET-P(D)6.

3) Double-click your tET/tPET-P(D)6 to configure the settings





Factory Default Settings of tET/tPET-P(D)6:

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

4) Contact your Network Administrator to obtain a correct network

configuration (such as IP/Mask/Gateway). Enter the network settings

and click “OK”. Note: The tET/tPET-P(D)6 will use the new

settings 2 seconds later.



tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

6 Testing your tET/tPET Module

1) Wait 2 seconds and click “Search Servers” button again to ensure

the tET/tPET-P(D)6 is working well with new configuration.

2) Click the name of tET/tPET-P(D)6 to select it.

3) Click the “Web” button to log in to the web configuration pages.

(Or enter the URL address of the tET/tPET-P(D)6 in the address bar

of the browser.)







tPET-P6

Tiny Ethernet PoE module with 6 Digital Input Module - QuickStart (Mar/2019)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

4) Enter the password in the “login password” field and click “Submit”.

Use the default

password: Admin



5) In the “Home” page, check that the “DI0” status should show current

status is ON (Green).


