ICM Controls SC 5011 General instructions

1 Heat/1 Cool

Auto Changeover

Hardwire

SC 5011

Programmable Electronic Thermostat

Installation, Operation & Application Guide

For more information on our complete range of American-made

products – plus wiring diagrams, troubleshooting tips and more,

visit us at www.icmcontrols.com

• 7-Day, 5-2-Day or 5-1-1-Day Programmable

• Conﬁgurable

• Single-Stage Heat/Cool Systems

• Single-Stage Heat Pump Systems

• Large Display With Backlight

• Selectable Fahrenheit or Celsius

• Compatible with Gas, Oil, or Electric

• SimpleSet™ Field Programming

• Status Indicator Light

• Relay Outputs

(minimum voltage drop in thermostat)

• Remote Sensor Compatible

• Ideally Suited for:

– Residential (New Construction/Replacement)

– Light Commercial

Table of Contents

PartsDiagram ...........................................................1

IconDescriptions.........................................................2

Speciﬁcations............................................................2

ImportantSafetyInformation ...............................................3

PackageContents/ToolsRequired............................................3

ToRemoveExistingThermostat.............................................3

ToInstallThermostat......................................................4

WiringDiagrams..........................................................5

Remote or Outdoor Sensor Installation (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

ConﬁgurationMode......................................................10

ConﬁgurationModeSettings...............................................11

ModeofOperation.......................................................16

OperatingModes........................................................17

TestingtheThermostat...................................................19

SettingtheTimeandDayoftheWeek .......................................20

Programming...........................................................21

LockoutFeature.........................................................23

FactoryPreprogramming..................................................24

PersonalProgramSchedule................................................24

SimpleSetTM FieldProgramming.............................................26

Troubleshooting.........................................................27

S1 S2 Y W

O/B G RC RH C

RESET CONFIG

Parts Diagram

Conﬁguration switch

Reset switch

Left (system)

button

Right (fan)

button

Down button

Up button

Field programming pins RC/RH Jumper

Specications

Icon Descriptions

Fan operation icon

Cooling operation icon

Heating operation icon

Lock mode

activated

Room

temperature

offset activated

Electrical rating: • 24 VAC (18-30 VAC)

• 1 amp maximum per terminal

• 3 amp maximum total load

Temperature control range: 45°F to 90°F (7°C to 32°C) Accuracy: ± 1°F (± 0.5°C)

System conﬁgurations: 1-stage heat, 1-stage cool, heat pump, gas, oil, electric

Timing:

Anti-short Cycle:

4 minutes

Backlight Operation

Terminations: S1, S2, Y, W/O/B, G, RC, RH, C

Package Contents/Tools Required

Package includes: SimpleComfort®PRO 5011 thermostat on base, thermostat cover, wiring labels,

screws and wall anchors, Installation, Operation and Application Guide

Tools required for installation: Drill with 3/16” bit, hammer, screwdriver

Important Safety Information

WARNING!

Always turn off power at the main power supply before installing, cleaning, or

removing thermostat.

• This thermostat is for 24 VAC applications only; do not use on voltages over 30 VAC

• Do not short across terminals of gas valve or system control to test operation; this will damage your

thermostat and void your warranty

• All wiring must conform to local and national electrical and building codes

• Do not use air conditioning when the outdoor temperature is below 50 degrees; this can damage your

A/C system and cause personal injuries

• Use this thermostat only as described in this manual

To Remove Existing Thermostat

ELECTRICAL SHOCK HAZARD

– Turn off power at the main service panel by removing the fuse

or switching the appropriate circuit breaker to the OFF position before removing the existing

thermostat.

1. Turn off power to the heating and cooling system by removing the fuse or switching the appropriate

circuit breaker off.

2. Remove cover of old thermostat. This should expose the wires.

3. Label the existing wires with the enclosed wire labels before removing wires.

4. After labeling wires, remove wires from wire terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to install this thermostat.

To Install Thermostat

ELECTRICAL SHOCK HAZARD

– Turn off power at the main service panel by removing the fuse

or switching the appropriate circuit breaker to the OFF position before removing the existing

thermostat.

IMPORTANT: Thermostat installation must conform to local and national building and electrical

codes and ordinances.

Note: Mount the thermostat about ﬁve feet above the ﬂoor. Do not mount the thermostat on an

outside wall, in direct sunlight, behind a door, or in an area affected by a vent or duct.

1. Turn off power to the heating and cooling system by removing the fuse or switching the

appropriate circuit breaker off.

2. To remove cover, pull gently at the seam at the top.

3. Put thermostat base against the wall where you plan to mount it (Be sure wires will feed through

the wire opening in the base of the thermostat).

4. Mark the placement of the mounting holes.

5. Set thermostat base and cover away from working area.

6. Using a 3/16” drill bit, drill holes in the places you have marked for mounting.

7. Use a hammer to tap supplied anchors in mounting holes.

8. Align thermostat base with mounting holes and feed the control wires through slit in thermal

intrusion barrier and into wire opening.

9. Use supplied screws to mount thermostat base to wall.

10. For 2 transformer systems, remove and discard RC/RH jumper.

11. Insert stripped, labeled wires in matching wire terminals.

CAUTION!: Be sure exposed portion of wires does not touch other wires.

12. Gently tug wire to be sure of proper connection. Double check that each wire is connected to the

proper terminal.

13. Turn on power to the system at the main service panel.

14. Conﬁgure thermostat (see Page 12) to match the type of system you have.

15. Replace cover on thermostat by snapping it in place.

16. Test thermostat operation as described in “Testing the Thermostat” (Page 19).

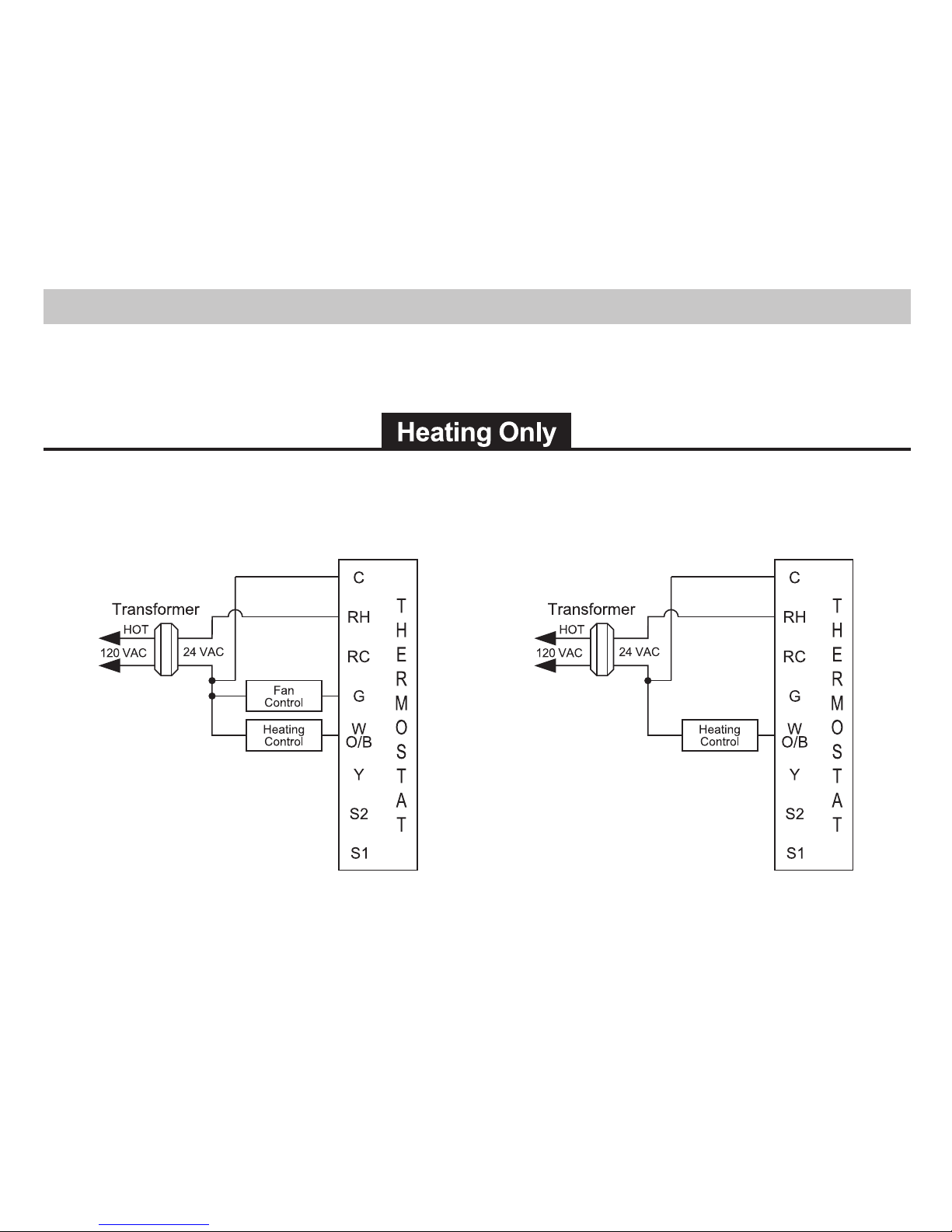

Hardwired

3-Wire, Single Transformer

Hardwired

4-Wire, Single Transformer

Wiring Diagrams

Hardwired

5-Wire, Two Transformer

(Both transformers must be in phase)

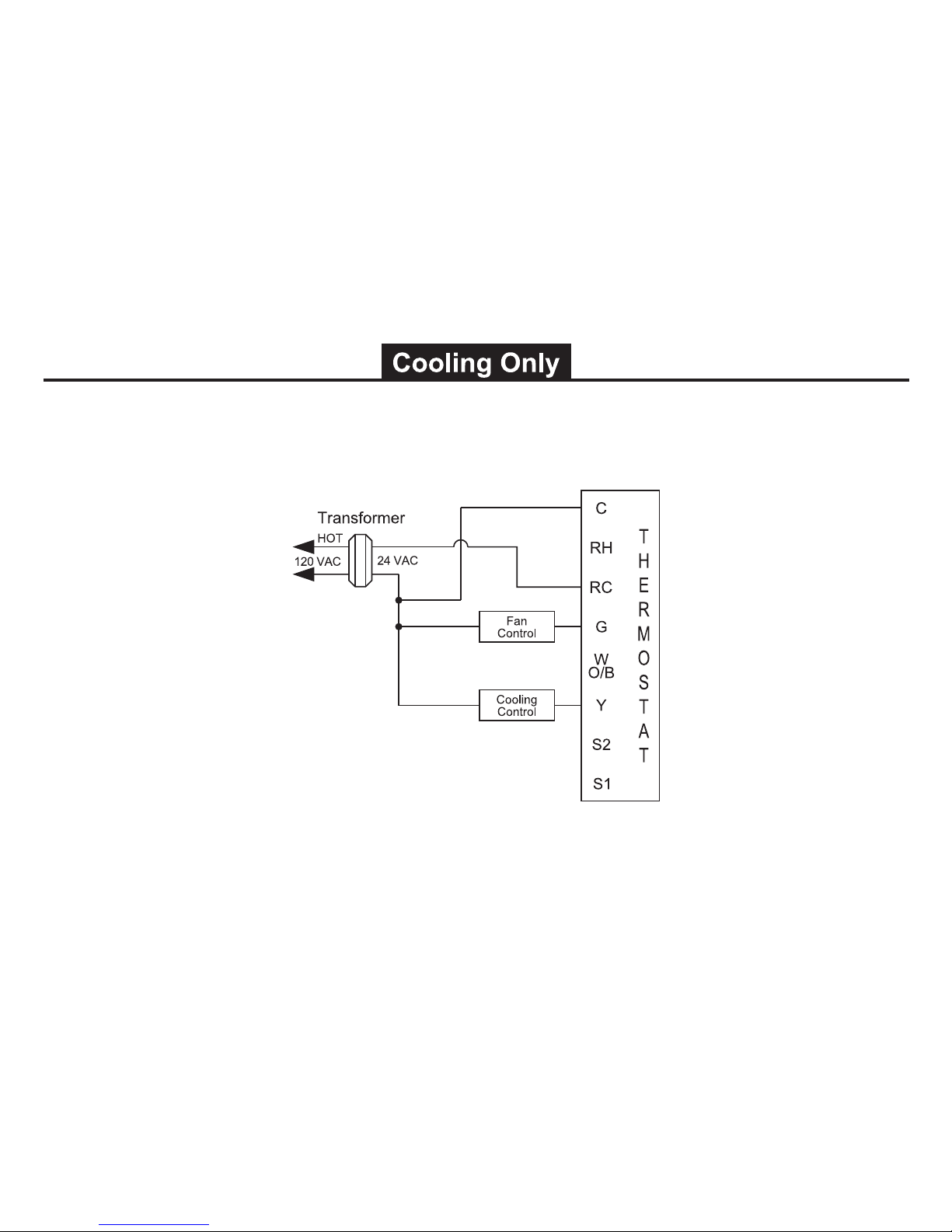

Hardwired

4 or 5-Wire, Single Transformer

Fan

Control

IMPORTANT: Before wiring, remove pre-installed

RC/RH jumper.

Hardwired

Cool or Heat Active Reversing Valve

Hardwired

4-Wire, Single Transformer
