IBM System x dx360 M3 User manual
IBM System x
© 2007 IBM Corporation
nVidia M1060 (43V5909 Installation
on dx360 M3
IBM System x
© 2007 IBM Corporation
2 08/27/2010
2x NV M1060 Configuraiton
IBM System x
© 2007 IBM Corporation
3 08/27/2010
GPU1 Installation

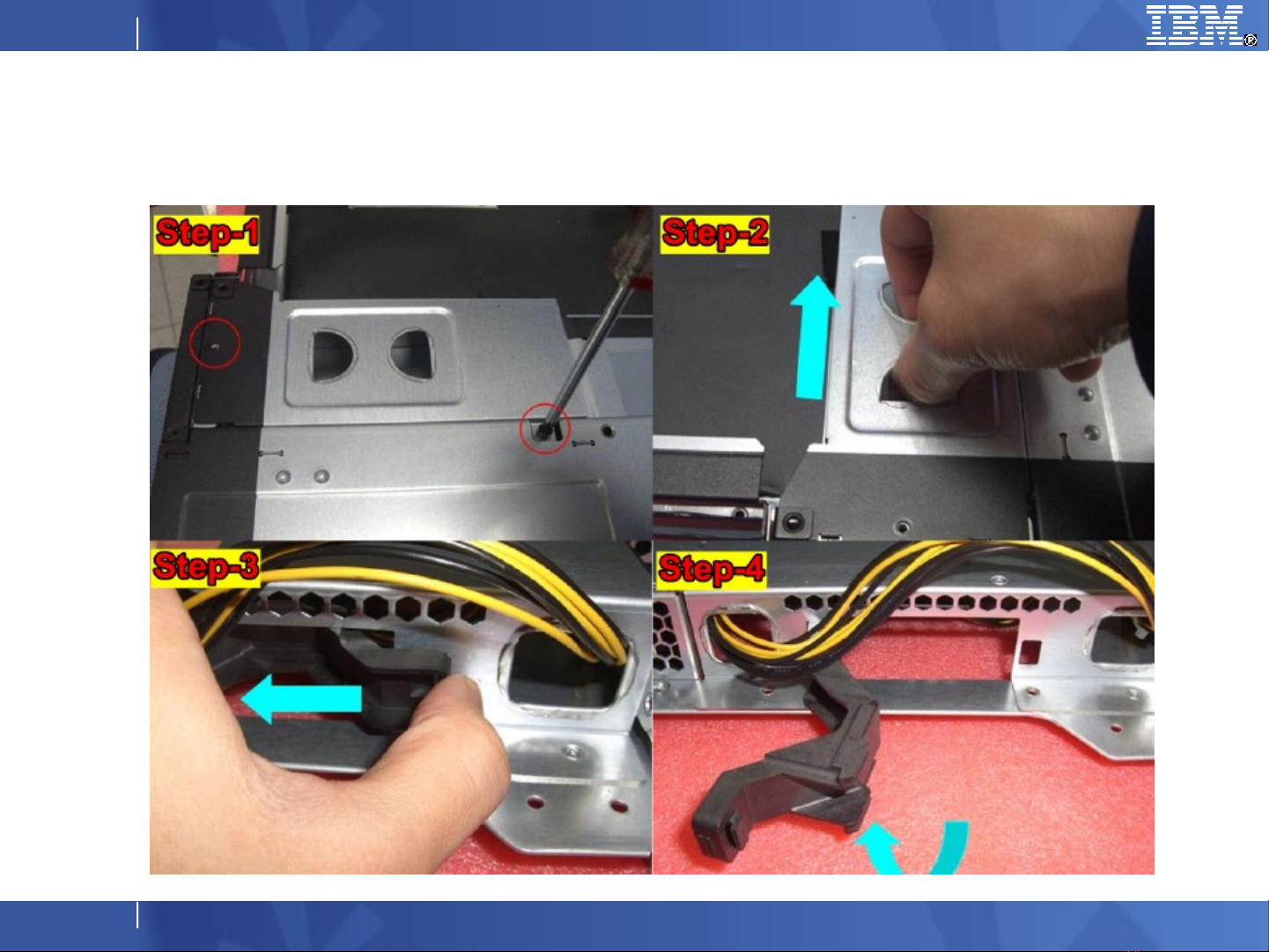

Step 1: Remove screws holding left-slot EMI bottom
cover. (Please use this torque : 6 In-lbs
Step 2: Remove EMI bottom cover
Step 3/4: Unlock PCI holder
IBM System x
© 2007 IBM Corporation
4 08/27/2010
GPU1 Installation
IBM System x
© 2007 IBM Corporation
5 08/27/2010
Step 5: Slide GPU into GPU tray with card aslant
Step 6: Slide GPU into GPU tray
Step 7: Slide GPU into GPU tray and seat fully into
PCIe slot
Step 8: Reinstall EMI bottom cover
GPU1 InstallationGPU1 Installation
IBM System x
© 2007 IBM Corporation
6 08/27/2010
GPU1 Installation
IBM System x
© 2007 IBM Corporation
7 08/27/2010
Step 9: Re-install screws and snug tight
(Please use this torque : 6 In-lbs
Step 10: Plug GPU power cable and route cable
Step 11: Lock PCI holder
Step 12: Remove right-side slots retaining cover
(Please use this torque : 6 In-lbs
GPU1 Installation
IBM System x
© 2007 IBM Corporation
8 08/27/2010
GPU1 Installation
IBM System x
© 2007 IBM Corporation
9 08/27/2010
Step 1:
Slide M1060 halfway into
side bay
Check point 1:
- M1060 extender in the
groove of blue retainer
bracket.
- Power cable for M1060
is not tangled (not yet
connected to M1060 .
GPU2 Installation
IBM System x
© 2007 IBM Corporation
10 08/27/2010
GPU2 Installation
Step 2:
Push the heatsink down
and move the card
forward until the gold
fingers stop at the slot on
the riser card.
- Check point 2:
# While forwarding the
card, ensure the edge of
I/O bracket meets chassis
bottom.
# Do not lift M1060 during
this step.
