HunterDouglas Sonnette Parts list manual
Installation •Operation •Care
Sonnette
™
Cellular Roller Shades
SoftTouch
™
Motorization
CONTENTS
Questions?
Call Hunter Douglas Consumer Support at 1-888-501-8364.
© 2017 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or
their respective owners.
GETTING STARTED:
Product View.....................................................................................................................1
Tools and Fasteners Needed ............................................................................................2
INSTALLATION:
Installation Overview .......................................................................................................3
STEP 1 — Install the Brackets .........................................................................................3
Mount the Installation Brackets – Inside Mount .........................................................4
Mount the Installation Brackets – Outside Mount ......................................................6
STEP 2 — Install the Shade.............................................................................................8
STEP 3 — Connect the Power Source .............................................................................9
Unpack the Wand and Attach the Activation Arm.........................................................13
OPERATION:
Basic Operation ..............................................................................................................14
Troubleshooting .............................................................................................................15
CARE:
Removing the Shade ......................................................................................................20
Cleaning Procedures ......................................................................................................20
WARRANTY......................................................................................................Back Cover
GETTING STARTED
1

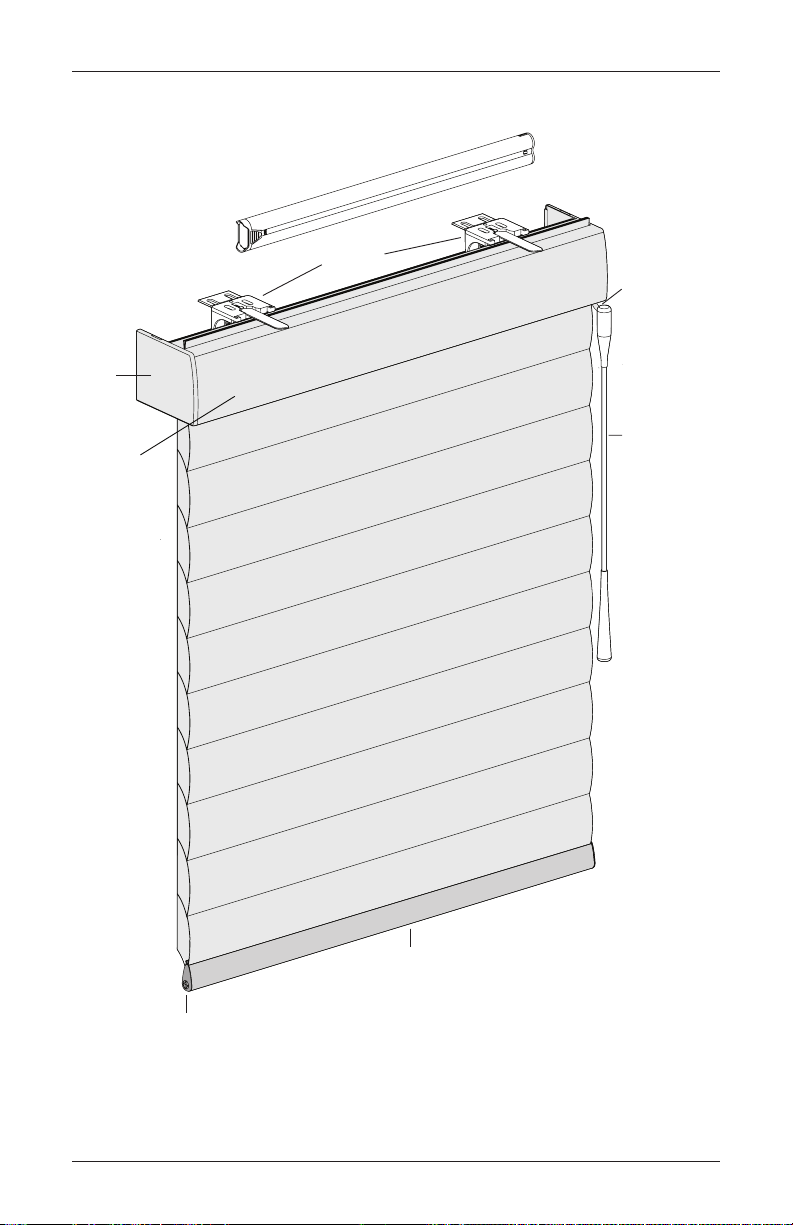

Product View
Installation
Brackets
Bottom Rail
Wand
Bottom Rail
End Cap
End
Cap
18V Battery
Wand
Not Shown:
Satellite Battery Pack, C-Size Satellite Battery Wand,
18V DC Power Supply, and Large DC Power Supply
Activation
Arm
Headrail
2
GETTING STARTED
Thank you for purchasing Hunter Douglas Sonnette™cellular roller shades with SoftTouch™
Motorization. With proper installation, operation, and care, your new shades will provide
years of beauty and performance.
Please thoroughly review this instruction booklet and the enclosed packing list before
beginning the installation.
Tools and Fasteners Needed
■ Flat blade and Phillips screwdrivers
■ Level (laser level is recommended)
■ Measuring tape and pencil
■ Power drill,
3
⁄
32
" drill bit, and
1
⁄
4
" hex driver (or socket wrench with
1
⁄
4
" hex socket)
■ Scissors (heavy-duty)
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■ #6 Hex Head Screws (Provided). Two 1
1
⁄
2
" screws are provided per installation bracket.
■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws
long enough for a secure attachment.
■ Speed Nuts and Screws (Provided). Extension brackets come with screws and
speed nuts.
■ Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
∕
2
"
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
INSTALLATION
3
Installation Overview
To install your shade, you will need to perform the following three steps:
STEP 1: Install the Brackets
STEP 2: Install the Shade
STEP 3: Connect the Power Source
STEP 1 — Install the Brackets
■ Your order will include the correct number of installation brackets for your shade width, as
shown in the table below.
■ Shade orders may also include spacer blocks or extension brackets, if they were specified
for added clearance.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside Mount — Page 4
➤ Outside Mount — Page 6
Installation Bracket For Added Clearance
Shade Width Brackets
2
3
4Extension
Bracket
1
∕
4
" or
1
∕
2
"
Spacer Blocks
15" – 36"
36
1
∕
8
" – 79"
79
1
∕
8
" – 84"
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
INSTALLATION
4
Mount the Installation Brackets — Inside Mount
Prepare the Installation Brackets
■ Use pliers or heavy duty scissors to remove the top
tabs on the installation brackets.
NOTE: Save these tabs once removed. They may be
used as shims, if necessary.
Mount the Installation Brackets
■ Mark 2" to 3" from each jamb for bracket location.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
NOTE: Before the headrail is installed the bracket levers need to be fully to the left and
once the headrail is properly in place, levers click to the right.
Tab
Remove Tab
Back Cover Bracket
Bracket Lever
Space Evenly Space Evenly
2" to 3" 2" to 3"
Jamb Jamb
INSTALLATION
5
■ Center the brackets on your marks and mark the location of the screw holes.
➤ The minimum casement depth required for
installation brackets is 1".
➤ The minimum casement depth required for a fully
recessed mount is 3
3
⁄
16
".
■ Use a level to check that the mounting surface is level.
Shim the brackets, if necessary (use the top tab that
was removed from the brackets).
■ Drill the screw holes using a
3
⁄
32
" drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■ Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to
ensure the bracket lever can be moved easily side to side.
If not, loosen the screws
in one-eighth turn increments until
the lever can be moved easily.
IMPORTANT: The front edges of the installation brackets
must be level and aligned to eachother.
Proceed to “Install the Shade” on page 8.
2" to 3"
Casement
Depth
INSTALLATION
6
Mount the Installation Brackets — Outside Mount
Prepare the Installation Brackets
■ Use pliers or heavy duty scissors to remove the top tabs on
the installation brackets.
NOTE: Save these tabs once removed. They may be used
as shims, if necessary.
Mount the Installation Brackets
■ Center the headrail over the window opening at the desired height. Use a pencil to lightly
mark the wall at each end of the headrail.
➤ Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
■ Mark 2" to 3" from each end of theheadrail.
➤ If more than two installation brackets came with your order, space additional bracket(s)
evenly between the two end brackets and mark their location. Mount into wood
whenever possible.
NOTE: Before the headrail is installed the bracket levers need to be fully to the left and
once the headrail is properly in place, levers click to the right.
■ Center the installation brackets or extension brackets on your marks and mark where to
drill the screw holes.
➤ A minimum 1
1
⁄
8
" flat vertical surface isrequired for the installation brackets. Extension
brackets require 1
1
⁄
4
".
➤ The top of the installation brackets or extension brackets should be at the desired
height. The brackets should be level andaligned to each other.
CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not
mount brackets oncurved molding.
Tab
Remove Tab
Back Cover Bracket
Bracket Lever
Window Opening
Space Evenly Space Evenly
2" to 3" 2" to 3"
Headrail End Mark Headrail End Mark
1
1
∕
8
"Extension
Bracket
1
1
∕
4
"
INSTALLATION
7
■ Drill the screw holes using a
3
⁄
32
" drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■ Attach the installation or extension
brackets using the screws provided.
IMPORTANT: The top of the
installation bracket or extension
brackets must be level with their
front edges aligned.
■ If using spacer blocks for added clearance, attach the
spacer block(s) and installation bracket to a flat vertical
mounting surface with #6screws long enough for a
secure installation.
➤ The top of the spacer blocks should be at the
desired shade height.
IMPORTANT: Do not add more than 1
1
⁄
2
" of
clearance using spacer blocks.
IMPORTANT: The top of the installation brackets
must be level with the front edges aligned.
CAUTION: Use drywall anchors when mounting
into drywall.
■ If using extension brackets, attach an installation bracket
to the underside of each extension bracket using thespeed
nuts and screws provided.
Proceed to “Install the Shade” on page 8.
1
1
∕
2
"
Maximum
Spacer
Blocks
Longer
Screw
Speed Nuts
Screws
INSTALLATION
8
STEP 2 — Install the Shade
■ Ensure that each
lever is pushed to
the left side of the
bracket before
installing the shade.
■ Position the shade
so that the front
faces you.
■ Slide the headrail into the installation brackets so that the headrail is between
the lever and the bracket, asshown.
■ Firmly push the headrail into each bracket until it clicks and the lever snaps to the right
side of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to ensure it is
installedsecurely.
Attach the Dust Cover (Optional for Outside Mounts)
The dust cover is used to protect the top of the headrail from exposure on outside mounted
shades.
■ Cut the dust cover to desired width.
■ Remove the paper backing on one side of the hook and loop
fastener dots.
■ Apply the dots to the installation brackets on each end of the shades.
■ Remove the remaining paper backing from the dots.
■ Center the dust cover over the top of the shade, above the dots.
■ Press the dust cover down onto the dots.
Headrail
Installation
Bracket
Lever
Slide the Headrail
Between the Lever
and the Bracket.
Remove
Paper
Backing
Overhead View
No Dust Cover
Dots
Dust Cover Installed
Table of contents
Other HunterDouglas Window Blind manuals
HunterDouglas
HunterDouglas Solera EasyRise Parts list manual
HunterDouglas
HunterDouglas Silhouette Halo Duolite Parts list manual
HunterDouglas
HunterDouglas Skyline Parts list manual
HunterDouglas
HunterDouglas Designer Roller Shades Parts list manual
HunterDouglas
HunterDouglas VS 100 Guide rail Maintenance and service guide
HunterDouglas
HunterDouglas Provenance Woven Wood Shades Parts list manual
HunterDouglas
HunterDouglas Pirouette Parts list manual
HunterDouglas
HunterDouglas Silhouette Nantucket PowerView Gen 3... Parts list manual
HunterDouglas
HunterDouglas Duette Parts list manual
HunterDouglas
HunterDouglas LiteRise User manual
HunterDouglas
HunterDouglas Luxaflex PowerView User manual
HunterDouglas
HunterDouglas RB 500 Safety guide
HunterDouglas
HunterDouglas Alustra Woven Textures User manual
HunterDouglas
HunterDouglas Reveal with MagnaView Operation manual
HunterDouglas
HunterDouglas RB 500 Safety guide
HunterDouglas
HunterDouglas Brilliance Operation manual
HunterDouglas
HunterDouglas Standard Hardware System Parts list manual
HunterDouglas
HunterDouglas 2" Horizontal Aluminum Blinds Parts list manual
HunterDouglas
HunterDouglas Paramount Headrail Systems Parts list manual
HunterDouglas
HunterDouglas Nantucket EasyRise Operation manual
Popular Window Blind manuals by other brands
Current
Current E-WAND Installation manual and user's guide
weinor
weinor VertiTex ZipR Maintenance Instructions and Directions for use for the end user
Roto
Roto ZAR M R4/R7 Mounting instructions
SOMFY
SOMFY Movelite WT Series instructions
Acmeda
Acmeda RF400 Series instructions
Motura
Motura Pli_353/3 manual
