Hunter 44459 User manual
Owner’s Manual Model 44459
File: AJ570/41383 book p. 1-19/art Created: 9-28-98 db
Folder: AJ570/Hunter/41383 Alt: 2-2-99 db
Prints black
SINCE 1 8 8 6
®
AUTO SAVER 459
PAGE 1
5:
7
2
2
2
3
B99A p1-19 2/7/03 9:58 AM Page 1
Ask Your Local Retailer for
Other Quality Products from Hunter
To locate your nearest Hunter Dealer, call 1-800-4HUNTER,
or visit The Hunter Fan Co. website: www.HunterFan.com.
Fans
Air Purifiers Humidifiers
PAGE 2
B99A p1-19 2/7/03 9:58 AM Page 2
Introduction
Model Information:
Model Number ____________________________________
Serial Number _____________________________________
Date Purchased____________________________________
Where Purchased___________________________________________________________
CONGRATULATIONS!
Your new Hunter electronic thermostat will provide years of
reliable service. By saving energy, your thermostat will pay for
itself during its first season of use. Thank you for buying a
Hunter product!
Please read this manual for complete instructions on installing
and operating your thermostat.
If you require further assistance, call Hunter Technical Support
at 901-745-9222 from 8 am to 5 pm Central Time.
PAGE 3
44459
B99A p1-19 2/7/03 9:58 AM Page 3
Table of Contents
Read This Before Installing Thermostat 6
Features 8
What You Need 10
Remove Old Thermostat 10
Wire Labeling 11
Mount Wallplate and Thermostat 12
Selector Switches 14
Setting Time and Day 16
Auto Programming 17
Personal Program Schedule 18
Manual Programming 19
Weekday Programming 19
Saturday and Sunday Programming 21
Reviewing Programs 22
Reviewing the Current Temperature Setting 23
System Selector Switch 24
Fan Switch 24
(continued)
INTRODUCTION
INSTALLATION
PROGRAMMING
OPERATIONS
4-5
PAGE 4
B99A p1-19 2/7/03 9:58 AM Page 4
OPERATIONS (continued)
SAFETY FEATURES
TROUBLESHOOTING
WIRING DIAGRAMS
Temporary Manual Override 24
Permanent Manual (Vacation) Override 25
Auto Season Changeover 26
Home Today 26
Energy Monitor 28
Filter Monitor 29
Auto Recovery 30
Keyboard Lock 31
Backlighting 31
Low Battery Warning 32
Error Mode 33
Auto Cut-Off 33
Problems & Solutions 34
Technical Support 35
Heat / Cool Systems 36
Single-Stage Heat Pump Systems 37
Heat Only / Cool Only Systems 38
Table of Contents (continued)
PAGE 5
B99A p1-19 2/7/03 9:58 AM Page 5
IMPORTANT
1
Read the entire installation section of this Owner’s
Manual thoroughly before you begin to install or
operate your Hunter Thermostat.
REMOVE THE MYLAR LABEL FROM THE LCD DISPLAY WINDOW.
INSTALLATION
2
All installation is normally performed at your
thermostat.
ARMCHAIR PROGRAMMING
3
Y
ou can program your thermostat before installation by
inserting the batteries and following the instructions
starting on page 16. This can be done while you relax in
your favorite chair and is a very good way to familiarize
yourself with all the functions of your Hunter Thermostat.
Note: At initial power-up this thermostat is programmed at 68°F
(20°C) for Heat and 78°F (26°C) for Cool. Any change to the set
temperature will be treated as a Permanent Manual Override. See
page 25 for more information. Press Auto Program to load the
built-in energy saving programs.
OPERATION
4
Y
our Thermostat is designed to operate with most gas,
oil, electric or 2-wire hot water heating and air
conditioning systems. It will also operate single-stage heat
pumps that do not have auxiliary or emergency heat.
These have 24-volt or millivolt control systems and
represent most central heating, air conditioning, or space
heating units in use in the United States.
This Hunter Thermostat will NOT control multi-stage heat
pumps or 110/220 Volt systems.
COMPRESSOR PROTECTION
5
T
he thermostat provides a 3.5 minute delay after
shutting off the heating or cooling system before it can
be restarted. This feature will prevent damage to your
compressor caused by rapid cycling. Note that this delay
also applies to the heating system control. It does not
provide a delay when there are power outages.
TEMPERATURE RANGE
6
Y
our thermostat can be programmed between 40°F
and 95°F (4°C and 35°C). However, it will display room
temperatures from 32°F to 99°F (0°C and 37°C). “HI” will
be displayed if the temperature is higher than 99°F (37°C),
and “LO” will be displayed if the temperature is lower than
32°F (0°C).
NOTE: The thermostat will automatically change to the Cool
mode if the thermostat measures a temperature over 99°F
(37°C). “Hi” will be displayed on the LCD, and the Cooling
system will turn On. Similarly, the thermostat will
automatically change to the Heat mode if the temperature is
below 32°F (0°C). “LO” will be displayed on the LCD, and the
Heating system will turn On.
Read This Before Installing Thermostat
PAGE 6
6-7
B99A p1-19 2/7/03 9:58 AM Page 6
PAGE 7
Read This Before Installing Thermostat (continued)
POWER FAILURE
7
W
henever the main power is interrupted or fails, the
battery power retains the programs and current time.
AUTO RECOVERY
8
Your thermostat is set from the factory to gradually recover
the room temperature from an energy saving program to
your comfort program. Therefore, the thermostat may turn
your system on several minutes prior to your programmed
time. This operation is normal, but can be turned off. Refer to
the Selector Switches information on pages 14-15.
BATTERY WARNING
9
F
resh alkaline batteries should provide over one year of
service. However, when the batteries become drained,
“BATT” will alternate on the display with the current time.
When this message occurs, install 2 new AA batteries. You
have approximately 1 minute to change the batteries and
keep thermostat’s clock and program settings. Once the
batteries have become too low to ensure proper operation,
your system will be turned Off, and the display will be
cleared except for “BATT” flashing on the LCD display.
CAUTION: Once the “BATT” only display occurs, the
thermostat is shut down, and your system will no longer
operate. In this condition, there is no temperature control of
your dwelling.
NOTE: The INDIGLO®night-light will not function when the
thermostat is in low battery condition.
NOTE: If you plan to be away from the premises over 30
days, we recommend that you replace the old batteries with
new alkaline batteries prior to leaving.
!
B99A p1-19 2/7/03 9:58 AM Page 7
PAGE 8

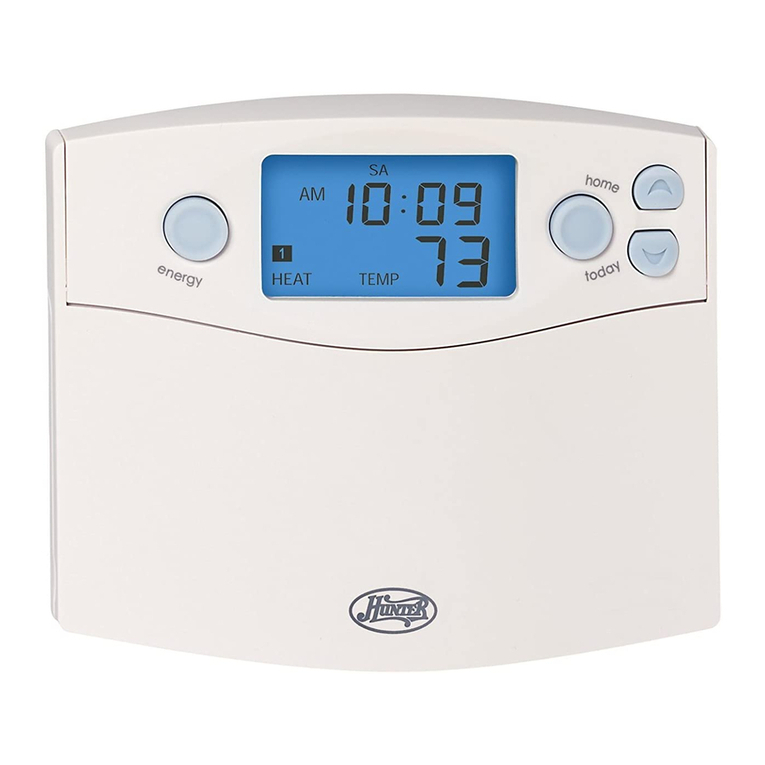

Features
HOME TODAY: Overrides energy-
saving program temperatures while
you are at home for the day.
ENERGY: Measures and
displays heating and
cooling system operating
time for Today, Yesterday,
This Week, Last Week, or
Total. By monitoring your
energy usage, you can
program the thermostat to
optimize energy savings.
Temperature Keys: Keys
for raising or lowering
temperature settings.
Soft-touch
programming keypad,
see details below.
Light Bar: Activates INDIGLO®
night-light to allow display
viewing in the dark.
System Switch: System
selector switch for Cool,
Off, Heat or Auto.
Fan Switch: Fan switch for
Automatic or Continuous
On fan operation.
Battery Door: Front-
access battery door
allows easy battery
changes.
Alpha-numeric display shows time, day,
temperature, program number, and other
feature information as required.
8-9
COOL AUTOOFF HEAT
AUTOONFAN
M T W Th F Sa Su SET TEMP
AM
PM C
C
H
M
°
°
TEMP
AUTO COOLHEAT
Usage Today Yesterday This Week Last WeekTotal
1234
HOME
TODAY
ENERGY
B99A p1-19 2/7/03 9:58 AM Page 8
PAGE 9
Provides permanent
temperature setting by
overriding stored
programs. It also returns
the thermostat to current
program control from
manual override or Home
Today mode.
For entering minute of day.
Enters Program Mode for
reviewing and changing
weekday or weekend
programs.
Selects the day
or days to review
or change in
Program Mode.
Returns display to
current time and
temperature.
Automatically
programs the
thermostat to its
built-in E
NERGY
S
TAR
®
compliant
program
settings. See
page 17.
For entering day of week.
Reviews filter usage in
hours and minutes. Also
resets filter counter to zero.
For entering hour of day.
MIN
AUTO
PROGRAM
HOLD
CLEAR
HOUR
PROG
DAY
FILTER
PROG
DAY RETURN
As an E
NERGY
S
TAR
®
Partner, Hunter Fan
Company has determined
that this programmable
thermostat meets the
E
NERGY
S
TAR
®guidelines for
energy efficiency.
B99A p1-19 2/7/03 9:58 AM Page 9
PAGE 10
10-11
INSTALLATION
This thermostat includes two #8 slotted screws and two wall
anchors for mounting. To install your thermostat, you should have
the following tools and materials.
■Slotted Screwdriver(s)
■Phillips Screwdriver
■Hammer
■Electric drill and 3/16" bit
■Two 1.5 V (AA) size alkaline batteries
What You Need
CAUTION: Do not remove any wiring from existing
thermostat before reading the instructions carefully.
WIRES MUST BE LABELED PRIOR TO REMOVAL.
■IMPORTANT! Turn off the power to the furnace at the main
power panel or at the furnace.
■Remove existing thermostat cover. See Figure 1. Some
thermostats will have screws or other locking devices that must
first be removed. Once wall mounting plate is exposed,
look for wires.
If wires are not visible, they may be connected to the back of
the wallplate. Again, look for screws, tabs, etc. Some models
have doors that open to expose wires and mounting screws.
(See Figure 1).
Remove Old Thermostat
TYPICAL HOME THERMOSTATS
Figure 1
Wall Mounting Plate Thermostat Cover
Wall Mounting Plate Thermostat Cover
B99A p1-19 2/7/03 9:58 AM Page 10
