Huawei Optix OSN 810 User manual

Safety Information

Optix OSN 810

Quick Installation Guide

Issue: 03

Date: 2016-10-20

CAUTION

Following All Safety Precautions

Before any operation, read the instructions and precautions in this document carefully to minimize the possibility

of accidents. The Danger, Caution, and Note items in the documents do not cover all the safety precautions that

must be followed. They only provide the generic safety precautions for operations. When operating Huawei

products and equipment, you must comply with safety precautions and special safety instructions related to

corresponding equipment provided by Huawei. The safety precautions in the document are related to only

Huawei products. Huawei is not liable for any consequence that results from the violation of universal

regulations for safety operations and safety codes on design, production, and equipment use.

Complying with the Local Safety Regulations

When operating the device, comply with the local safety regulations.

Qualified Personnel Only

The personnel in charge of installation and maintenance must be trained and master the correct operating

methods and safety precautions before beginning work.

Symbols

■

Indicates a potentially hazardous situation, which if not avoided, could result in

equipment damage, data loss, performance degradation, or unexpected results.

Provides additional information to emphasize or supplement important points of the

main text.

NOTE

■

Safety of Personnel

When handling optical fibers, do not stand close to, or look into the optical fiber outlet with unaided eyes.

Protect yourself when drilling holes. Flying dust may hurt your eyes or you may inhale the dust.

When working at a height, be cautious about falling objects.

■

2016

Installation Process

Start

End

Chassis outline

Page3

Installing Chassis

Page3-15

Checking the

Installation

Page21-22

Installing Fibers

and Cables

Page16-20

Appendix

Page23-31

Labels

Page31-32

Wire stripper

Marker

Level Phillips screwdriverFlat-head screwdriver

Measuring tape

Installation Tools

Adjustable wrench

[aperture ≥ 32 mm (1.26 in.)]

Protective gloves

Claw hammer

Wrench

Hammer drill Φ8 drill bit

Hex key [4 mm (0.16 in.)]

Diagonal pliers

MultimeterFiber binding tape

1 Chassis Appearance

Installing Chassis

2 Installing Chassis

conversion bracket

Cabling cavity

70mm

90mm

400mm

300mm

Top

Clearance for a Single OSN 810 in Standard Mode Clearance for a Single OSN 810 in Side-Mounted Mode

Recommended Clearances

Minimum Clearances

Recommended Clearances

Minimum Clearances

2 Installing Chassis

Installing the OSN 810 on a Pole

Install the OSN 810 mounting brackets

Verify that the arrows on the mounting

brackets are pointing up.

Adjust the position of the nut and remove

one end of the square-neck bolt from the slot

on the auxiliary bracket.

Slide the mounting brackets onto the pole

horizontally and insert the square-neck bolt

into the slot.

Use a 16 mm (0.63 in.) M10 torque wrench to

tighten the nuts to 40 N·m (354.03 lbf·in.) so that

the mounting brackets are secured onto the pole.

Tighten the nuts on the two square-neck

bolts alternatively. After the main and

auxiliary brackets are secured properly,

measure the spacing between the

brackets on both sides and ensure that

the spacing is the same on the two sides.

NOTE

(1) auxiliary bracket (2) square-neck bolt

Shown in the figure above, it is recommended that the mounting kits be

installed at a position 1200 mm (47.24 in.) to 1600 mm (59.06 in.) high

above the ground.

NOTE

2 Installing Chassis

Installing the OSN 810 on a Pole

Use an M6 inner hexagon screwdriver to remove

the four inner hexagon screws from the mounting

brackets, and remove the main bracket from the

auxiliary bracket.

Remove the conversion bracket from the rear side of the OSN 810 to the side of the OSN 810.

(1) Main bracket

(2) Pole installation bracket

Install the Chassis with RRUs

Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the

holes on the top of the conversion bracket and main bracket to 5 N·m (44.25 lbf·in.) so that the conversion bracket and

main bracket are firmly secured.

(1) conversion bracket

(2) Main bracket

2 Installing Chassis

Install the Chassis with RRUs

Install the main bracket, and install the OSN 810 on the main bracket. Then use an inner hexagon torque screwdriver to

tighten the captive screw into the connection holes on the top of the conversion bracket and main bracket for the OSN 810,

with a torque of 5 N·m (44.25 lbf·in.).

Install the metal sheet for fixing the RRUs and

OSN 810.

(1) Screw

(2) Metal sheet

Insert the removed screw into the hole on the top of

the neighboring RRU and use an M6 torque

screwdriver to tighten the screw to 5 N·m .

Use an M6 Phillips screwdriver to loosen the

screw on the metal sheet farther from the

handle of the OSN 810 and remove the screw.

Use an M6 Phillips screwdriver to loosen the screw

on the metal sheet closer to handle of the OSN 810.

Then rotate the metal sheet to align the vacant hole

in the metal sheet with a hole on the top of the

neighboringRRU.

NOTE

The OptiX OSN 810 can be installed on the right or left side of an RRU. Ensure that the front side of the OptiX OSN

810 faces outwards and the cabling cavity can be opened.

Cabling cavity

Main bracket

Installing the OSN 810 on U-steel

•As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24

in.) to 1600 mm (59.06 in.) high above the ground.

•For details about how to install the chassis on U-steel, see the procedure for mounting the chassis on a pole.

Installing the OSN 810 on Angle Steel

•As shown in the figure above, it is recommended that the mounting kits be installed at a position 1200 mm (47.24

in.) to 1600 mm (59.06 in.) high above the ground.

•For details about how to install the chassis on angle steel, see the procedure for mounting the chassis on a pole.

2 Installing Chassis

NOTE

Installing the OSN 810 on a Wall

2 Installing Chassis

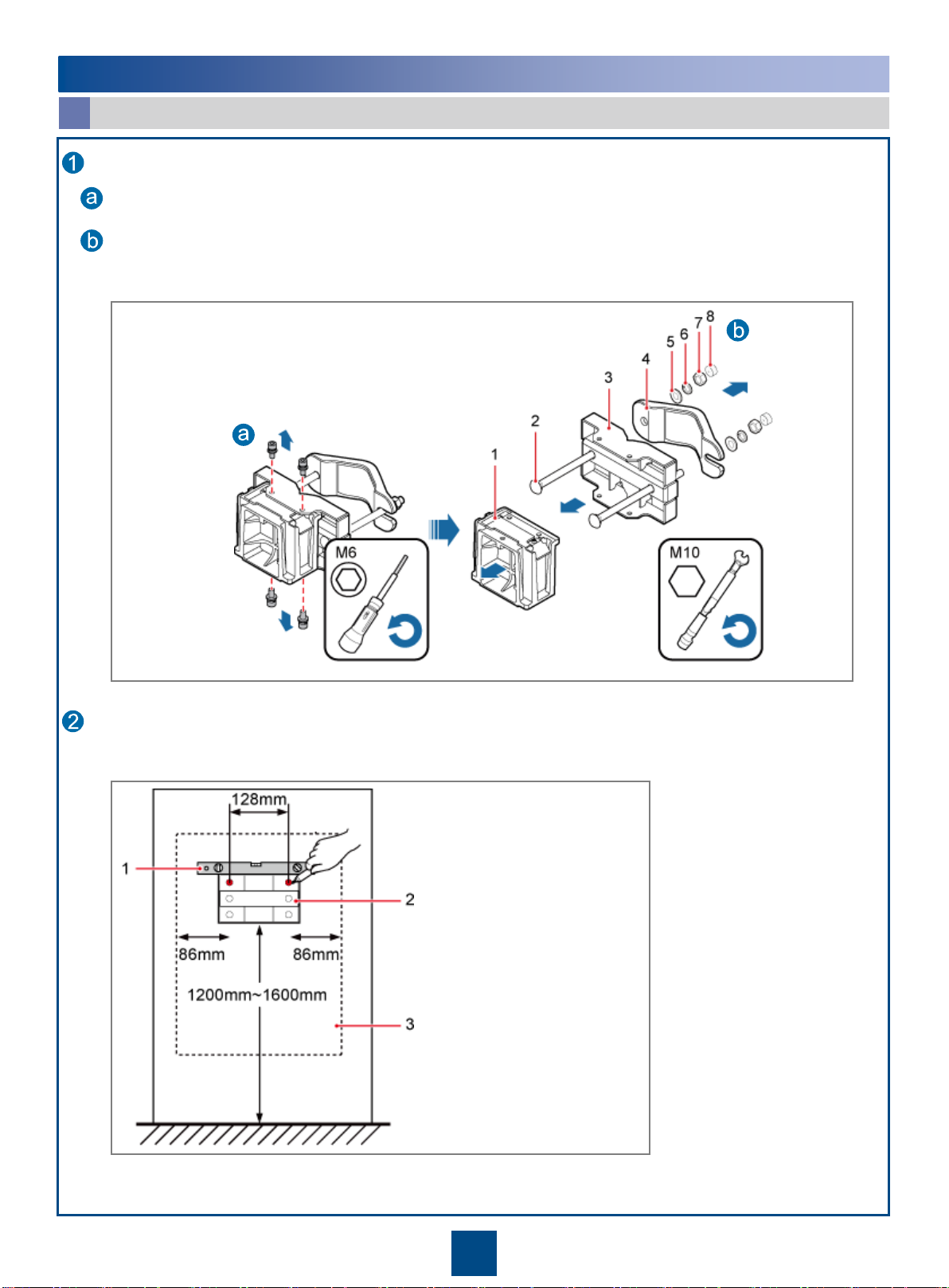

Disassemble the OSN 810 mounting brackets.

(1) Main bracket (2) Square-neck bolt (3) Pole installation bracket

(4) Auxiliary bracket (5) Flat washer (6) Spring washer

(7) Nut (8) Plastic cap

Use an M6 inner hexagon torque screwdriver to remove the four inner hexagon screws on the pole installation bracket,

and remove the main bracket from the pole installation bracket.

Use an M10 torque wrench to loosen the nuts on the two square-neck bolts, and remove the plastic cap, nuts, spring

washers, flat washers, square-neck bolts, and pole installation bracket from the auxiliary bracket.

Place the pole installation bracket against the installation position, use a level to verify that the pole installation bracket is

placed horizontally, and then mark anchor points with a marker.

(1) Level

(2) Pole installation bracket

(3) OSN 810

Installing the OSN 810 on a Wall

2 Installing Chassis

Drill holes at the anchor points, and then insert expansion anchor bolt assemblies.

Use a hammer drill with a Ф12 bit to drill holes vertically at the marked anchor points with the depth ranging from 55

mm (2.17 in.) to 60 mm (2.36 in.), use a vacuum cleaner to clear the dust out from inside and around the holes, and

measure the distances between holes. If any of the hole is beyond the acceptable range, mark a new anchor point

and drill a new hole.

Tighten the expansion anchor bolts slightly and place one vertically into each hole.

Use a rubber mallet to pound the expansion anchor bolt until it goes all the way into the hole.

Tighten and then loosen the expansion bolt, and remove the M10 bolt, spring washer, and flat washer in sequence.

Install the pole installation bracket on the expansion anchor bolts, place the flat washers, spring washers, and nuts

through the expansion anchor bolts in sequence, and then use a 16 mm (0.63 in.) torque socket to tighten the nuts to 30

N·m (265.52 lbf·in.).

Verify that the arrows on the pole installation

bracket are pointing up.

(1) M10x80 bolt

(2) Nut

(3) Spring washer

(4) Flat washer

(5) Expansion tube

Installing the OSN 810 on a Wall

2 Installing Chassis

Install the main bracket onto the pole installation bracket, and use an inner hexagon screwdriver to tighten four M6x16

inner hexagon screws to 5 N·m (44.25 lbf·in.) so that the main bracket and pole installation bracket are firmly secured.

Install the OSN 810 onto the main bracket,use an inner hexagon torque screwdriver to tighten the captive screw into the

holes on the top of the conversion bracket and main bracket to 5 N·m (44.25 lbf·in.) so that the conversion bracket and

main bracket are firmly secured.

(1) Main bracket

(2) Pole installation bracket
