1

Thank you for choosing iFox HiLink 852 you can access

a wireless network at high speed.

Note:

This manual describes the appearance of the USB Stick, as well as the procedures for

preparation, and connection steps. For details about how to set the management

parameters, see help information on the web management page.

Getting to Know Your iFox HiLink 852

The following figure shows the appearance of the USB Stick. It is provided only for your

reference. The actual product may be different.

2

1

3

2

2

4

5

USB Connector

It connects the USB Stick to a PC.

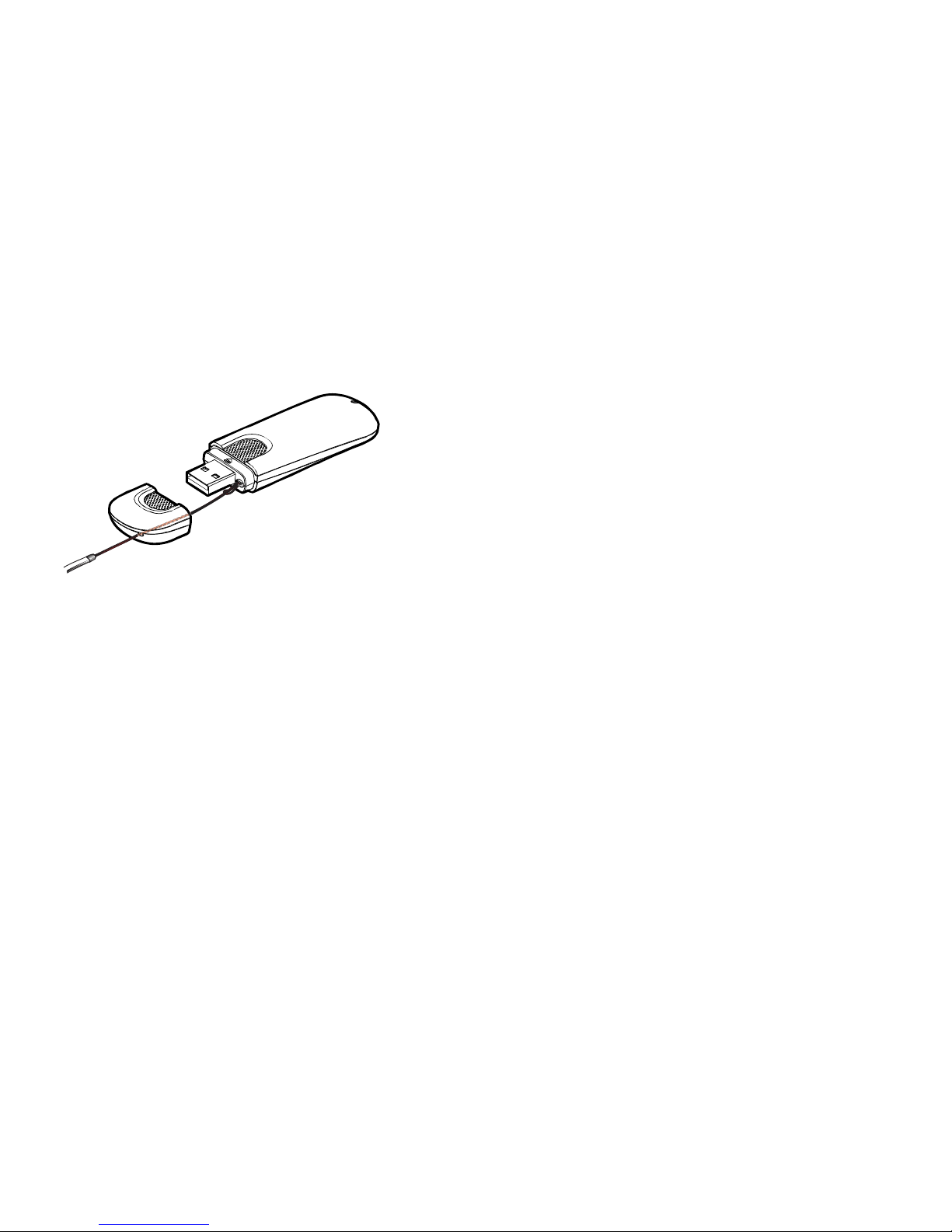

Strap Hole

You can tie the cap and the USB Stick together by threading a strap through the strap holes,

so that the cap will not be easily lost.

3

Indicator

It indicates the status of the USB Stick.

Green, blinking twice every 3s: The USB Stick is powered on.

Green, blinking once every 3s: The USB Stick is registering with a 2G network.

Blue, blinking once every 3s: The USB Stick is registering with a 3G/3G+ network.

Green, solid: The USB Stick is connected to a 2G network.

Blue, solid: The USB Stick is connected to a 3G network.

Cyan, solid: The USB Stick is connected to a 3G+ network.

Off: The USB Stick is removed.

4

SIM/USIM Card Slot

It holds a Subscriber Identity Module (SIM)/Universal Subscriber Identity Module (USIM)

card.

microSD Card Slot

It holds a microSD card.

Getting Your iFox HiLink 852 Ready

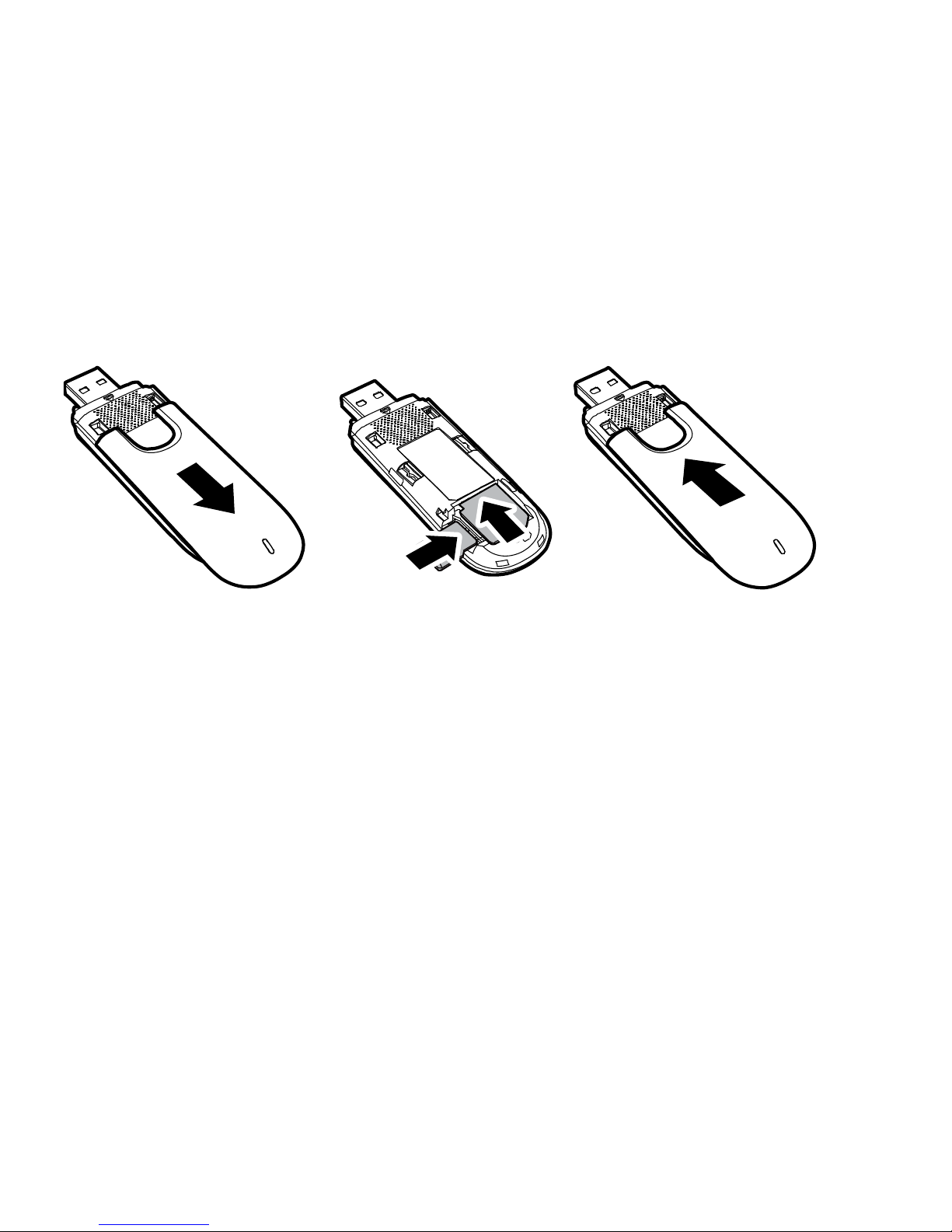

1. Slide the front cover to remove it from the USB Stick.

2. Insert the SIM/USIM card and the microSD card into the corresponding card slots, as

shown in the following figure.

3. Replace the front cover and slide it into place.

5

Note:

The microSD card is an optional accessory. If it is not provided in the package, you can

buy one yourself.

Ensure that the beveled edge of the SIM/USIM card is properly aligned with that of the

SIM/USIM card slot and the microSD card is inserted according to the direction as

labeled on the microSD card slot.

Do not remove the microSD or SIM/USIM card when the card is in use. Otherwise, the

card as well as your USB Stick may get damaged and the data stored on the card may

be corrupted.

6

Using Your iFox HiLink 852

The procedure for installing the management program depends on your computer's

operating system. The following sections are based on Windows XP.

Connecting to a Network

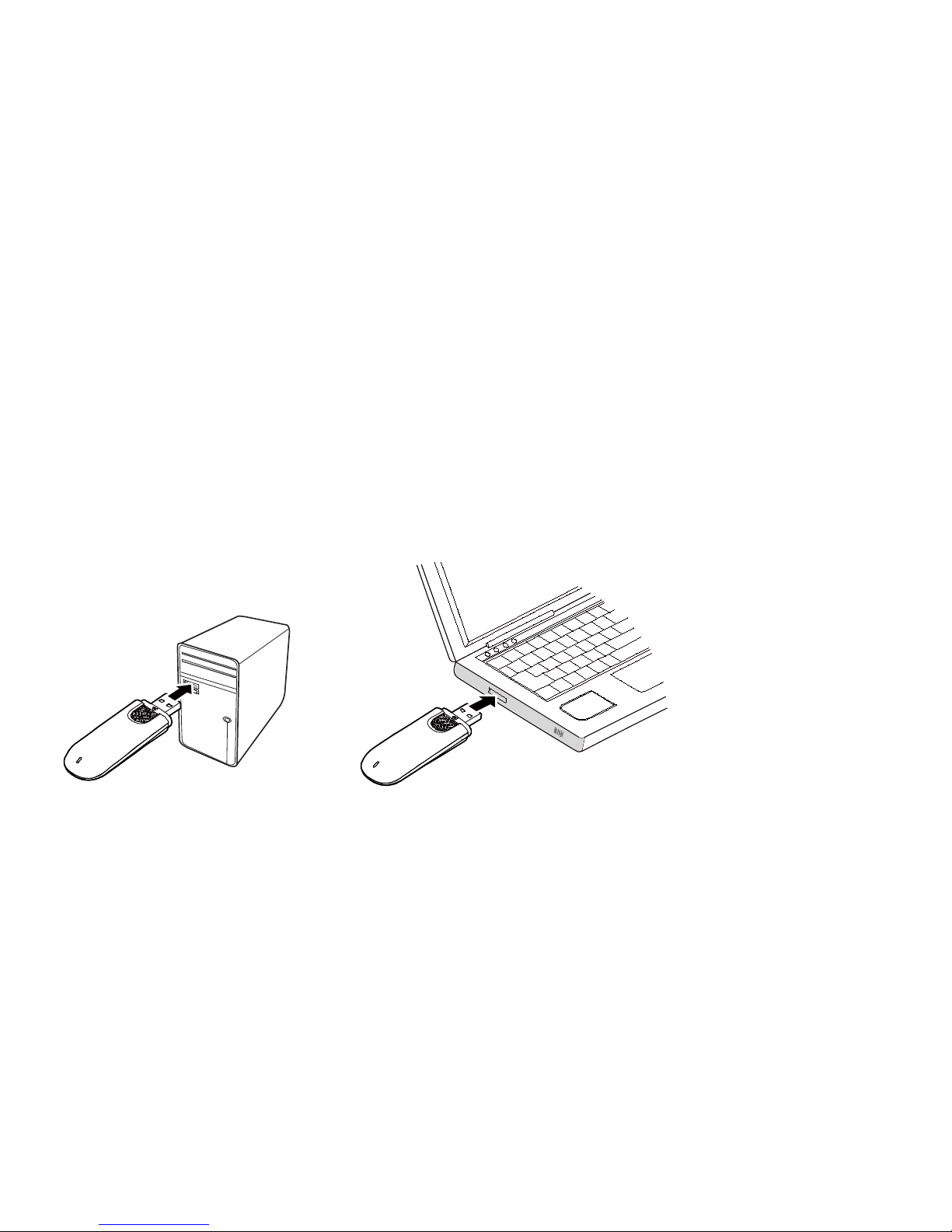

1. Insert the USB Stick into one of your computer's USB ports.

The computer identifies the new hardware and starts its installation automatically.

7

2. When the installation is complete, the USB Stick's web management page is displayed

and the USB Stick connects to the network automatically. The USB Stick's web

management page will be automatically displayed every time the USB Stick is inserted

into the computer.

Note:

If the computer does not start the USB Stick's installation automatically, find the

AutoRun.exe file in the USB Stick's root directory, and double-click the file to run it.

If you are not connected to the network, access http://192.168.1.1 to check the device

status.

If you cannot access http://192.168.1.1, disconnect other network connections, such

as an Ethernet or Wireless Fidelity (Wi-Fi) connection, remove and then insert the USB

Stick, or restart the computer.

Disconnecting from a Network

Remove the USB Stick from the computer.

Note:

If you do not need to connect to a network, it is recommended that you remove the USB

8

Stick from your computer to eliminate unwanted data traffic.

Viewing Service Information

Visit http://192.168.1.1 to view your service information.

Version: V100R001_01Part Number: 31010KGY
