Thank you for purchasing Huawei E181 HSPA Rotate

USB Stick.

Note:

zThis manual briefly describes the preparation, the process for installing/uninstalling and

using Huawei E181 HSPA Rotate USB Stick (hereinafter referred to as the E181).

zRead the manual before using the E181.

Getting to Know the E181

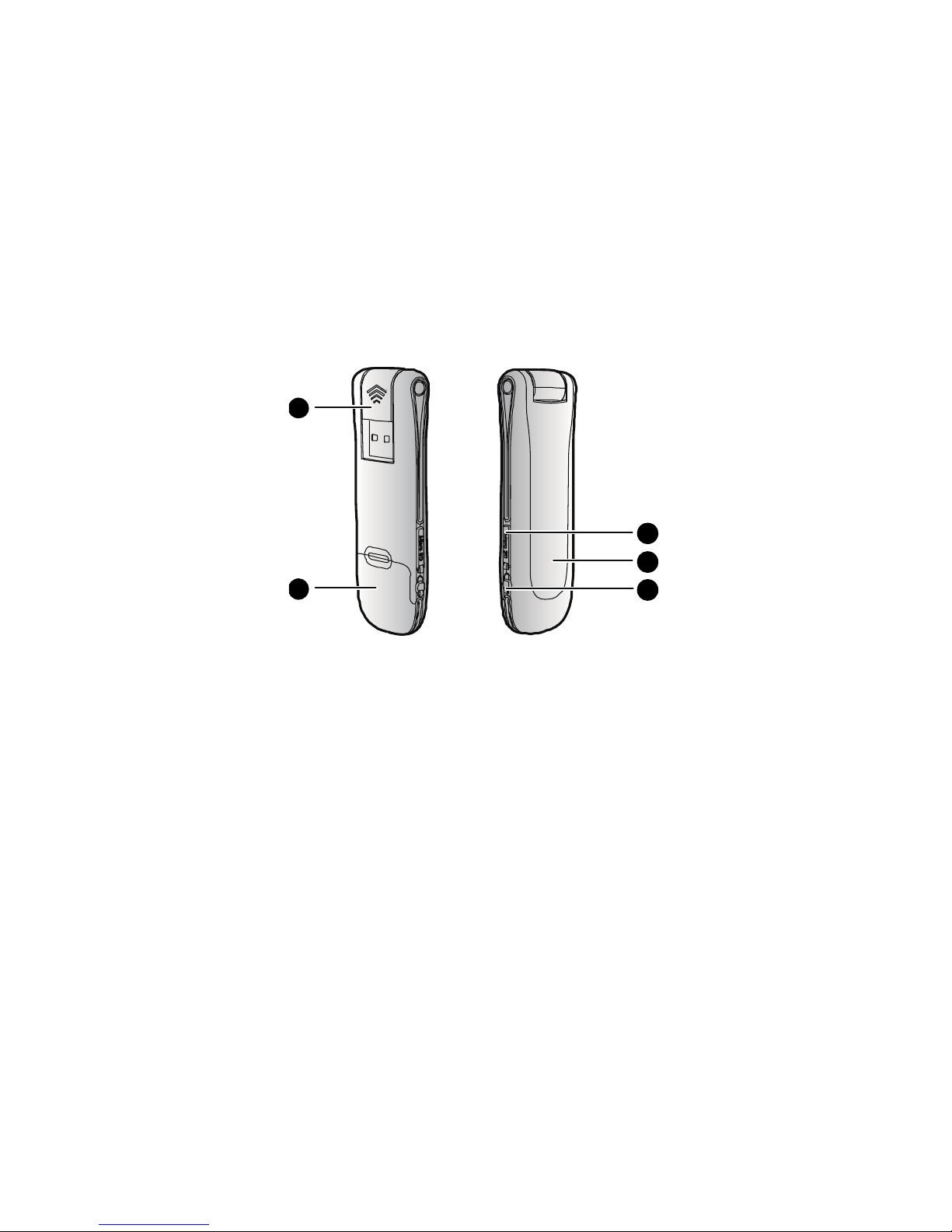

The following figures show the appearance of the E181. The actual device may differ.

2

1

23

5

4

nRotatable USB connector

This is where the E181 connects to the USB interface of your PC.

3

oSIM/USIM card slot

Open the lid to insert the SIM/USIM card in the slot. See “Preparing the E181.” section

for details.

pRF Output Power Port

Connects the RF cable.

4

qIndicator

Indicates the status of the E181.

zGreen, blinking twice every 3s: The E181 is powered on.

zGreen, blinking once every 3s: The E181 is registered to a GSM/GPRS/EDGE network.

zBlue, blinking once every 3s: The E181 is registered to a WCDMA/HSPA network.

zGreen, always on: The GPRS/EDGE connection is set up.

zBlue, always on: The WCDMA connection is set up.

zCyan, always on: The HSPA connection is set up.

zOff: The E181 is removed from the PC.

5

\MicroSD card slot

Insert a microSD card here.

PC Requirements

To use the E181, your PC must meet the following requirements:

zStandard USB interface.

zWindows XP SP2 or Windows Vista.

Mac OS X 10.4 or 10.5 with latest upgrades.

zThe hardware of your PC must meet or exceed the recommended system requirements

for the installed version of OS.

zDisplay resolution: 800 × 600 or above.

Preparing the E181

1. Remove the back cover of the E181.

2. Insert the SIM/USIM card and the microSD card into the card slots. Make sure that the

cards are properly inserted.

6

3. Replace the back cover and slide it into place.

SIM/USIM Card microSD Card

Note:

zA microSD card is an optional accessory and not included with your device.

zDo not remove the SIM/USIM card or the microSD card when they are being used.

Removing the cards during an operation may damage the cards as well as the device,

and data stored on the cards may be corrupted.

zWhen removing the SIM/USIM card from the E181, press the card barrier (as indicated

by 1 in the following figure).

7

1

2

SIM/USIM Card

Card barrier

Installation Guide

The procedure for installing Connect Manager depends on the operating system installed

on your PC. The following section takes Windows XP as an example.

Connecting the E181 with a PC

Note:

Turn on your PC before connecting the E181 with it. Otherwise, the normal installation of

the E181 may be affected.

zMethod 1: Plug the E181 into the USB interface of the PC.

8
