Huawei TE10 Technical specifications

TE10 Videoconferencing Endpoint

V500R003C20

Product Description

Issue

Date

2016-07-30

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://e.huawei.com

TE10 Videoconferencing Endpoint

Product Description

About This Document

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

About This Document

Purpose

This document provides the positioning, highlights, networking schemes, features, and

technical specifications of the HUAWEI TE10 videoconferencing endpoint (TE10 or endpoint

for short).

Intended Audience

This document is intended for:

End users

Agents

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol

Description

Indicates an imminently hazardous situation which, if

not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not

avoided, could result in equipment damage, data loss,

performance deterioration, or unanticipated results.

NOTICE is used to address practices not related to

personal injury.

Calls attention to important information, best practices

and tips.

NOTE is used to address information not related to

personal injury, equipment damage, and environment

TE10 Videoconferencing Endpoint

Product Description

About This Document

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

iii

Symbol

Description

deterioration.

Change History

Changes between document issues are cumulative. The latest document issue contains all the

changes made in earlier issues.

Issue 01 (2016-07-30)

This issue is the first official release.

TE10 Videoconferencing Endpoint

Product Description

Contents

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

Contents

About This Document.................................................................................................................... ii

1 Product Positioning ......................................................................................................................1

2 Product Structure...........................................................................................................................2

2.1 Appearance ...................................................................................................................................................................2

2.2 Front Panel and Rear Panel...........................................................................................................................................3

3 Technical Specifications ..............................................................................................................7

3.1 Physical Specifications .................................................................................................................................................7

TE10 Videoconferencing Endpoint

Product Description

1 Product Positioning

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

1 Product Positioning

The TE10 is an integrated high definition (HD) videoconferencing endpoint with a minimalist

design. It can connect to networks over Wi-Fi and interwork with various cloud platforms.

The TE10 is an innovative product that can also offer cloud services.

Table 1-1 describes the features and application scenarios of the TE10.

Table 1-1 TE10 features and application scenarios

TE10

Feature

Application Scenario

Integrates a camera,

three stereo

microphones, and a

speaker.

Enables video

communication after

having the power cable,

video output cable, and

network cable well

connected.

Adopts a compact design

and a metal shell, which

is easy to move and

install.

Supports a resolution of

up to 720p 30 fps.

Small conference rooms

(less than 20 m2)

TE10 Videoconferencing Endpoint

Product Description

2 Product Structure

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

2 Product Structure

2.1 Appearance

The TE10, as shown in Figure 2-1, is sleek, compact, and aesthetically pleasing.

Figure 2-1 Appearance of the TE10

Figure 2-2 shows the remote control that comes with a TE10.

TE10 Videoconferencing Endpoint

Product Description

2 Product Structure

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

Figure 2-2 Remote control

2.2 Front Panel and Rear Panel

Figure 2-3 shows the TE10 front panel.

Figure 2-3 Front panel

Table 2-1 describes the components on the front panel.

Table 2-1 Components on the front panel

No.

Component

Description

Built-in microphone

Provides 180-degree sound

pickup for the local site,

with an optimal range of six

meters.

TE10 Videoconferencing Endpoint

Product Description

2 Product Structure

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

No.

Component

Description

Lens

Supports 3x digital zoom

and 108-degree wide angle.

Status indicator

Shows whether the TE10 is

running, sleeping,

upgrading, or

malfunctioning.

Table 2-2 describes the TE10 indicator status.

Table 2-2 TE10 indicator status

When The Indicator Is...

The TE10 Is...

Off

Powered off.

Blinking white twice per second

Powering on.

Blinking white four times per second

Being upgraded.

Steady white

Working properly.

Blinking white once

Responding to the press on a button on the

remote control.

Blinking white (on for 1s, off for 2s)

Standby.

Steady red

Having a hardware fault.

Steady orange

Having a software fault.

Blinking orange twice per second

Overheated.

Figure 2-4 shows the TE10 rear panel.

TE10 Videoconferencing Endpoint

Product Description

2 Product Structure

Issue 01 (2016-07-30)

Huawei Proprietary and Confidential

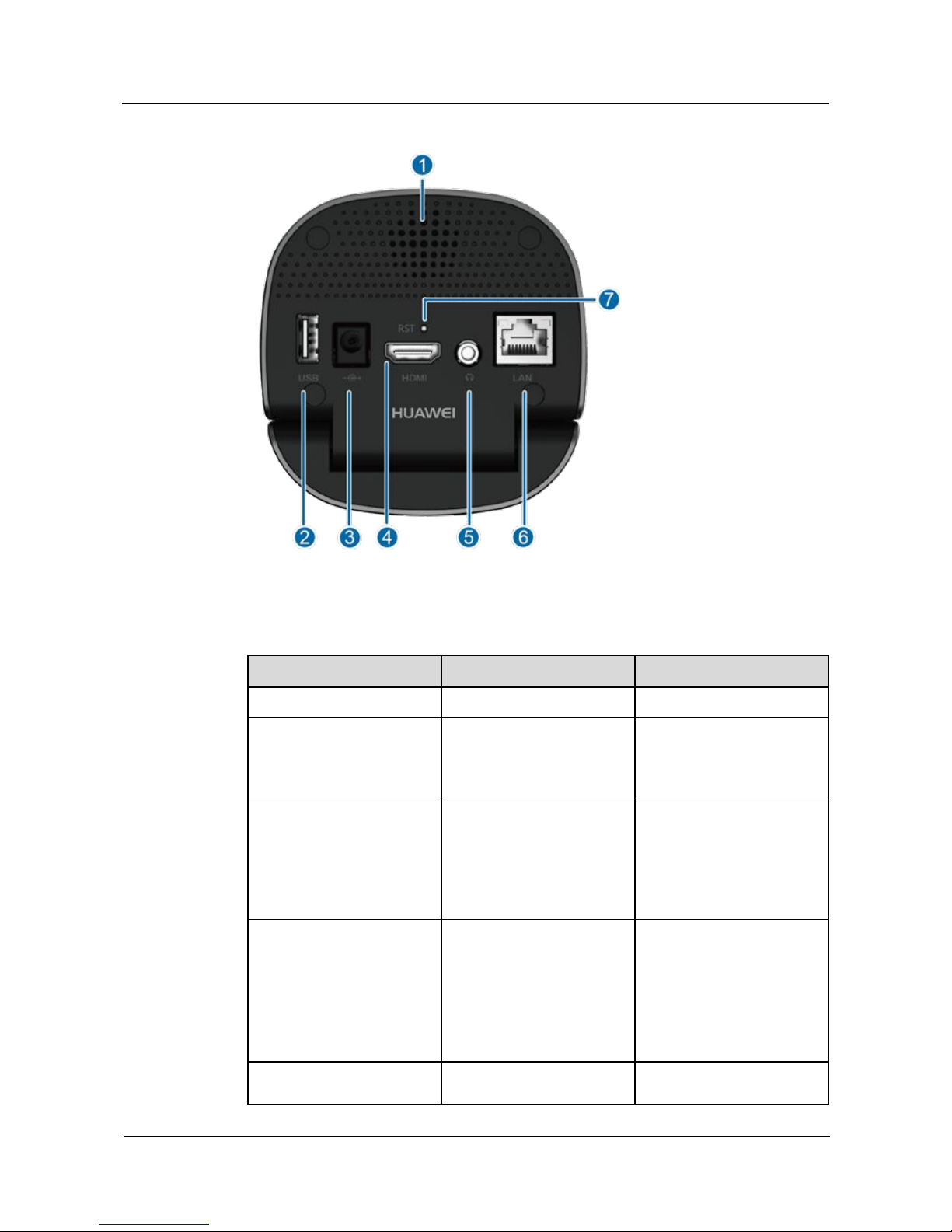

Figure 2-4 Rear panel

Table 2-3 describes the components on the rear panel.

Table 2-3 Components on the rear panel

No.

Component

Description

Built-in speaker

Used for audio output.

USB port

Connects to a USB device,

for example, U flash drive

and wired/wireless keyboard

or mouse.

Power port

Connects to a power supply.

Voltage: 100 V to 240 V AC

or 12 V DC

Current: 1 A

Frequency: 50 Hz or 60 Hz

HDMI OUT

Connects to a TV set or

monitor to deliver video,

presentation, and audio of

the local or remote site.

This port supports a

resolution of up to 1080p 60

fps.

LINE OUT

3.5 mm (0.14 in.) audio

output port, which connects
