Installation Manual

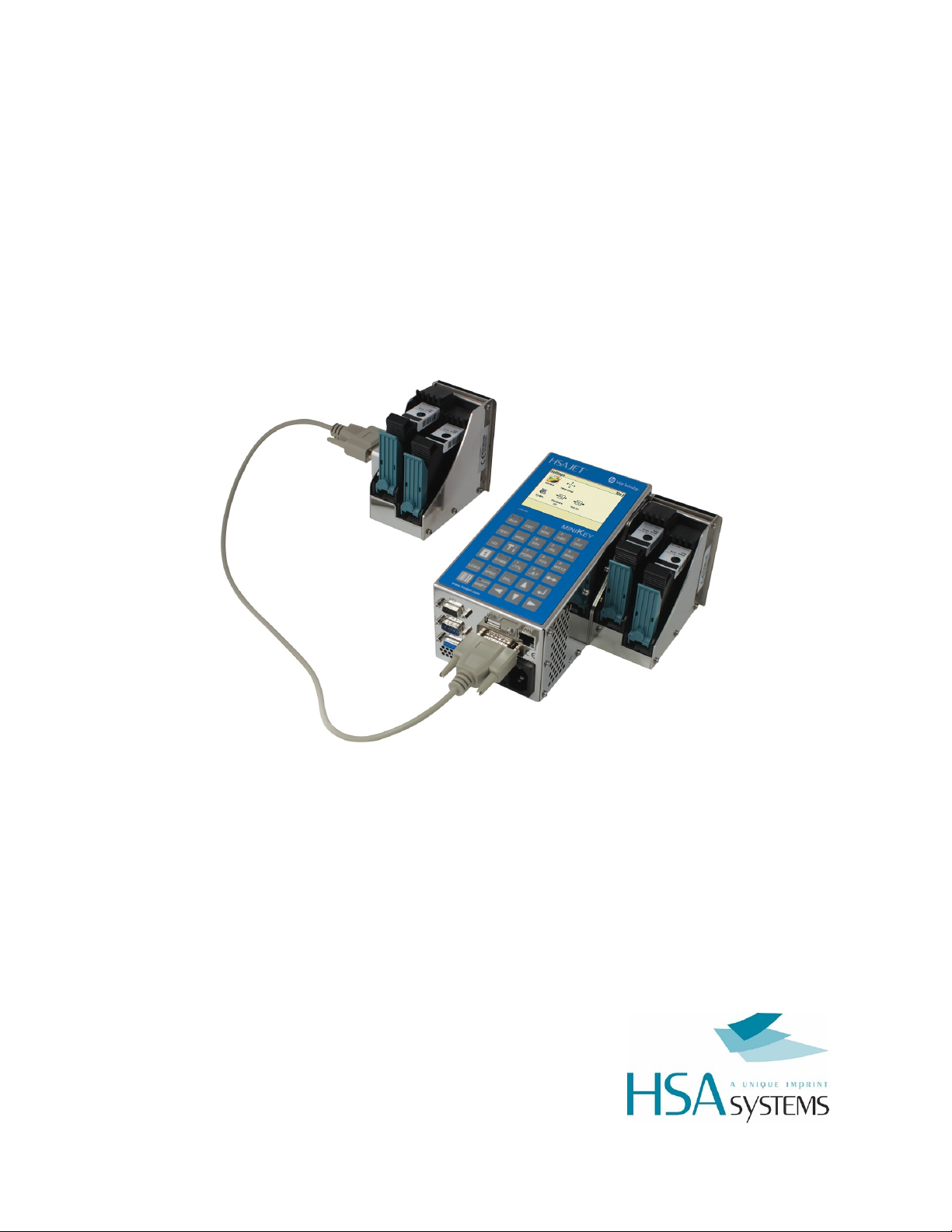

HSAJET MiniKey
MKHP4
Version 1.6
© 2020 HSA SYSTEMS
2
Table of Contents
1. Introduction .................................................................................................3
2. Safety instructions......................................................................................4
3. Installation environment ............................................................................5
4. Dimensions..................................................................................................6
5. Unpack the equipment ...............................................................................7
6. Keyboard ...................................................................................................10
7. Connect the MiniKey ................................................................................ 11
8. Multiple heads...........................................................................................12
9. Mechanical Setup......................................................................................14
10. Test your hardware ................................................................................15
11. Support ...................................................................................................17
3
1. Introduction
Congratulations on your purchase. The MiniKey printer is one of the most advanced, compact and
user-friendly inkjet controllers available.
This manual covers the technician's guide to installation of this product.
Before using the product, please read the manual carefully.
Please also refer to:
Manual
Content
User manual
Covers the usage of the controller.
Quick guide
Technician's guide to settings up this product.
MiniDraw for HSAJET MiniKey
Optional software for creating and uploading print jobs.
Remote Communication for the
Mini-series
Commands for ethernet and Rs232 connections
Features and performance
Features
·
Text, barcode and graphical objects.
·
Static, counter, date/time, shift codes and system content.
·
Prompts.
·
Real time printing.
·
Data logging.
·
Print queue.
Performance
·
Number of pens: Up to 4 pens.
·
Printing speed: 35 m/min at 600 dpi.
·
Resolution: Up to 600 dpi.
·
Print length: 2700mm.
Interface
·
Touch screen
·
Documented protocol for remote operation (Ethernet and RS232)
·
External PC software for creation of print jobs
Hardware
·
Quadrature encoder supported
·
Power supply 85-240V include
4
2. Safety instructions
The MiniKey is a controller unit for inkjet printing. Only use this device for the intended use.
Do not subject the controller to strong shocks or vibrations.
Install the MiniKey in the recommended installation environment only.
Only use the MiniKey with MK print heads. If the controller is used with a different type of print head,
the print head will be destroyed.
Only use the MiniKey with the original power supply. Wrong voltage level will destroy the controller or
cause it to malfunction.
Connect power supply to input voltage 85-265 VAC.
Follow the wiring instructions in the installation manual carefully. Wrong wiring could destroy the
controller unit.
To avoid electric shock, please do not change pen/cartridge with power on if the pen auto switch in the
print head has been disabled.
Shut down MiniKey properly before turning off the power supply. Power loss during normal operation
may result in memory card write failure and data loss.
Do not clean controller with strong solvents.
Do not let liquids get in touch with any electrical parts.
The MiniKey is only to be repaired by trained personnel.
Turn off and disconnect the power before disassembling the controller.
5
Environment Condition
3. Installation environment
Installation Area Indoors
Ambient Temperature 10 - 40 degrees C
Humidity 95 % RH or less and free of
condensation
Surrounding Area Install in an area free from:
oil mist and dust
metal shavings, oil, water or
other foreign materials
radioactive materials
combustible materials
harmful gases and liquids
excessive vibration
chlorides
direct sunlight
Open flames
6
4. Dimensions
FIG 1 - Dimensions of a MiniKey
7
5. Unpack the equipment
If you have ordered a Minikey, you will receive the
following parts.
Controller unit
Two 9 pen SUB D connectors
USB Key with MiniDraw Software and manuals
If you ordered extra head(s), you will receive the following parts.
(Example MK 1-pen remote)
1-pen head or 2-pen head
Print cables (Cable 15 pin M-F, 2m)
8
The following parts are optional
Telescope mount kit
Bridge for HP-printheads w/2 slides
Head mount for HP-printhead (for bridge)
Sensor mount for bridge
Encoder mount for bridge and encoder bracket
Encoder. For accurate measurement of speed.
Encoder wheel
9
Photo Sensor, fibre and optic transmitter
Sensor mount for base
Ink cartridge
10
6. Keyboard
