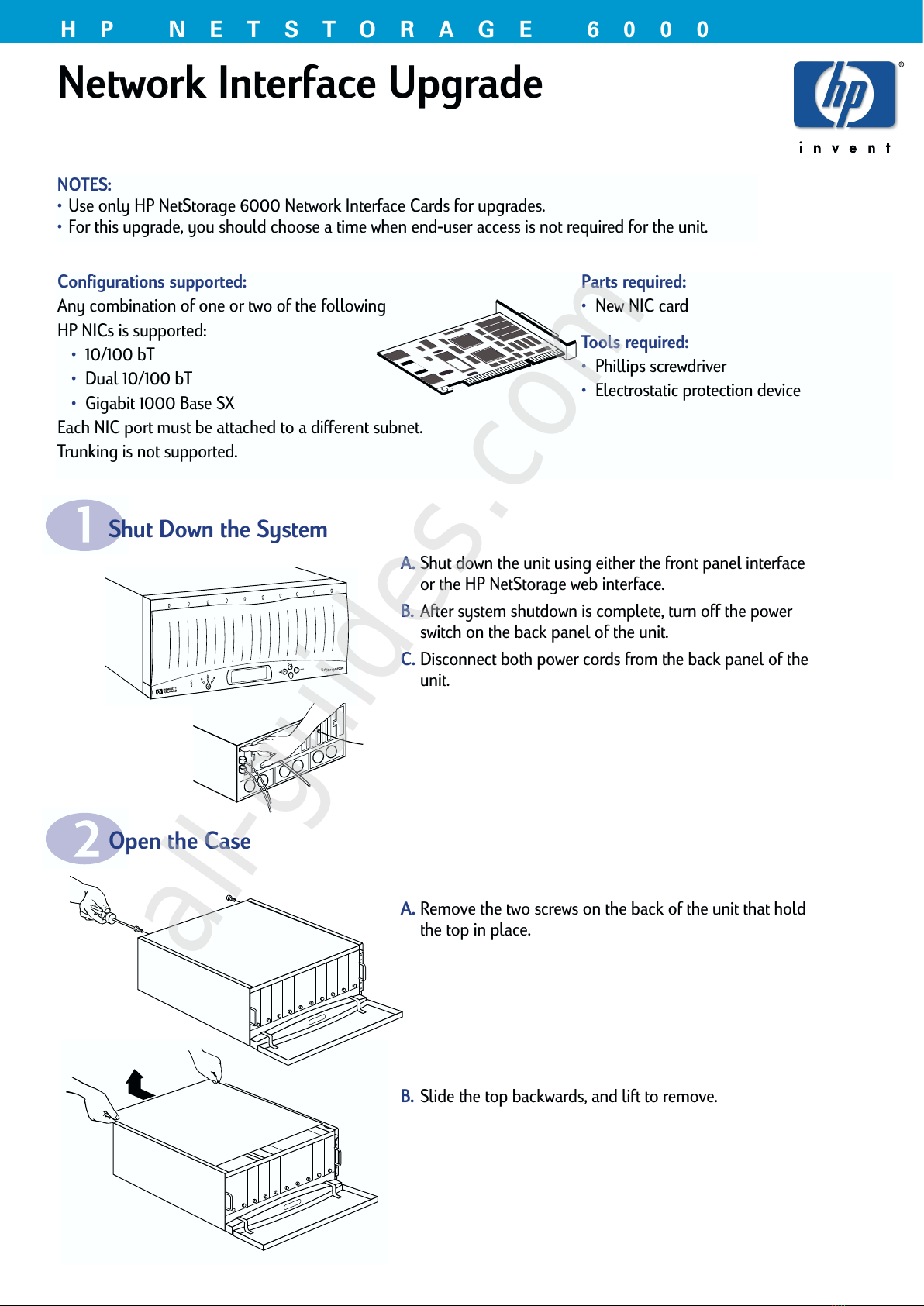

HP NetStorage 6000 User manual

Network Interface Upgrade

HP NETSTORAGE 6000

Configurations supported:

Any combination of one or two of the following

HP NICs is supported:

•10/100 b

•Dual 10/100 b

•Gigabit 1000 Base SX

Each NIC port must be attached to a different subnet.

runking is not supported.

Parts required:

•New NIC card

Tools required:

•Phillips screwdriver

•Electrostatic protection device

NOTES:

•Use only HP NetStorage 6000 Network Interface Cards for upgrades.

•For this upgrade, you should choose a time when end-user access is not required for the unit.

Shut own the System

Open the Case

A. Remove the two screws on the back of the unit that hold

the top in place.

B. Slide the top backwards, and lift to remove.

A. Shut down the unit using either the front panel interface

or the HP NetStorage web interface.

B. After system shutdown is complete, turn off the power

switch on the back panel of the unit.

C. Disconnect both power cords from the back panel of the

unit.

All manuals and user guides at all-guides.com

all-guides.com

A. Unplug the network cable.

B. Unscrew the existing NIC and gently remove it.

NOTE: If you are installing the NIC in an unused PCI slot,

remove the expansion slot access panel.

A. Select an open PCI slot.

B. Gently place the new card in the slot, and screw it into

place.

A. Slide the top back into place.

B. Using the screwdriver, secure the top to the unit.

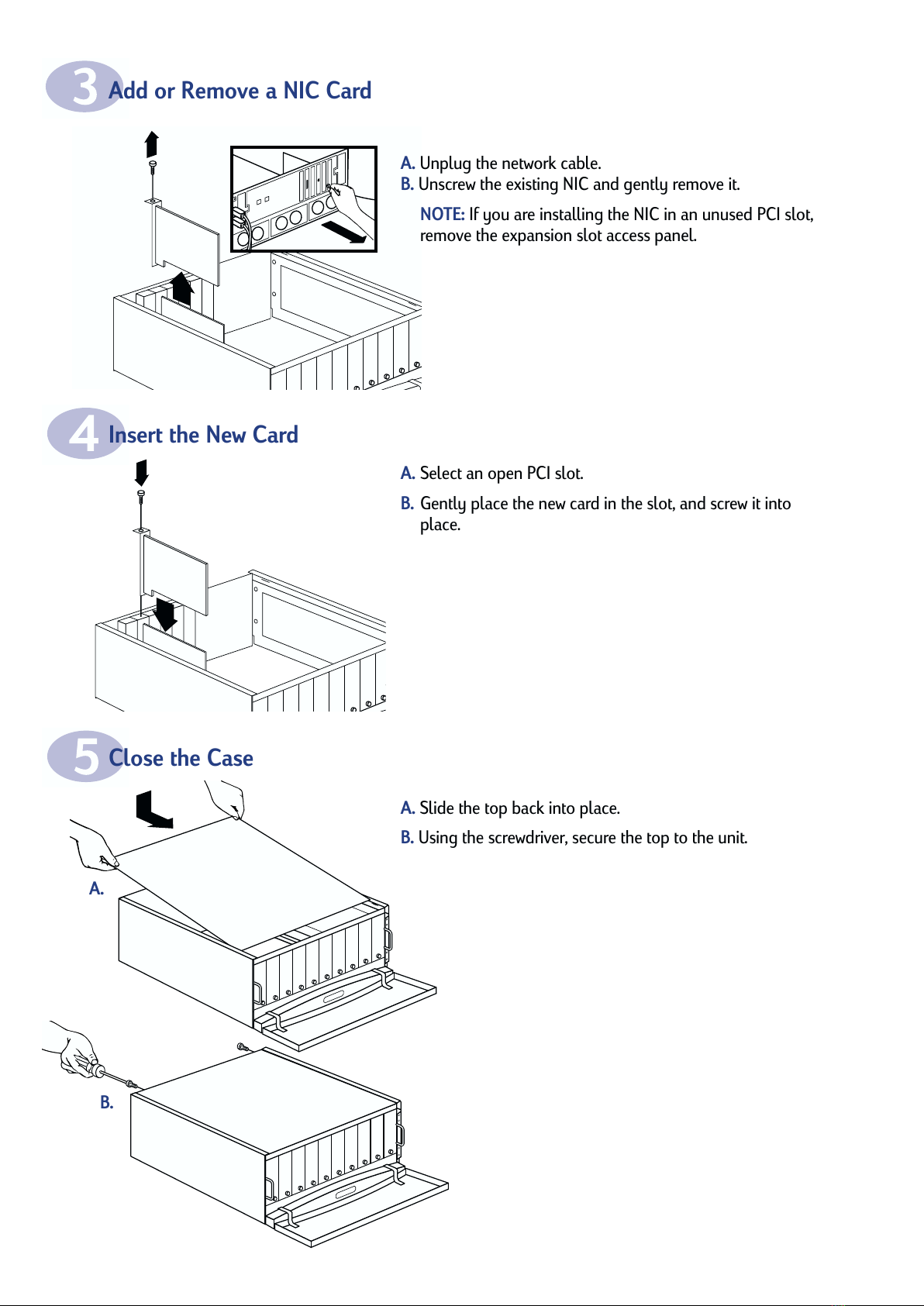

Add or Remove a NIC Card

Insert the New Card

Close the Case

A.

B.

All manuals and user guides at all-guides.com

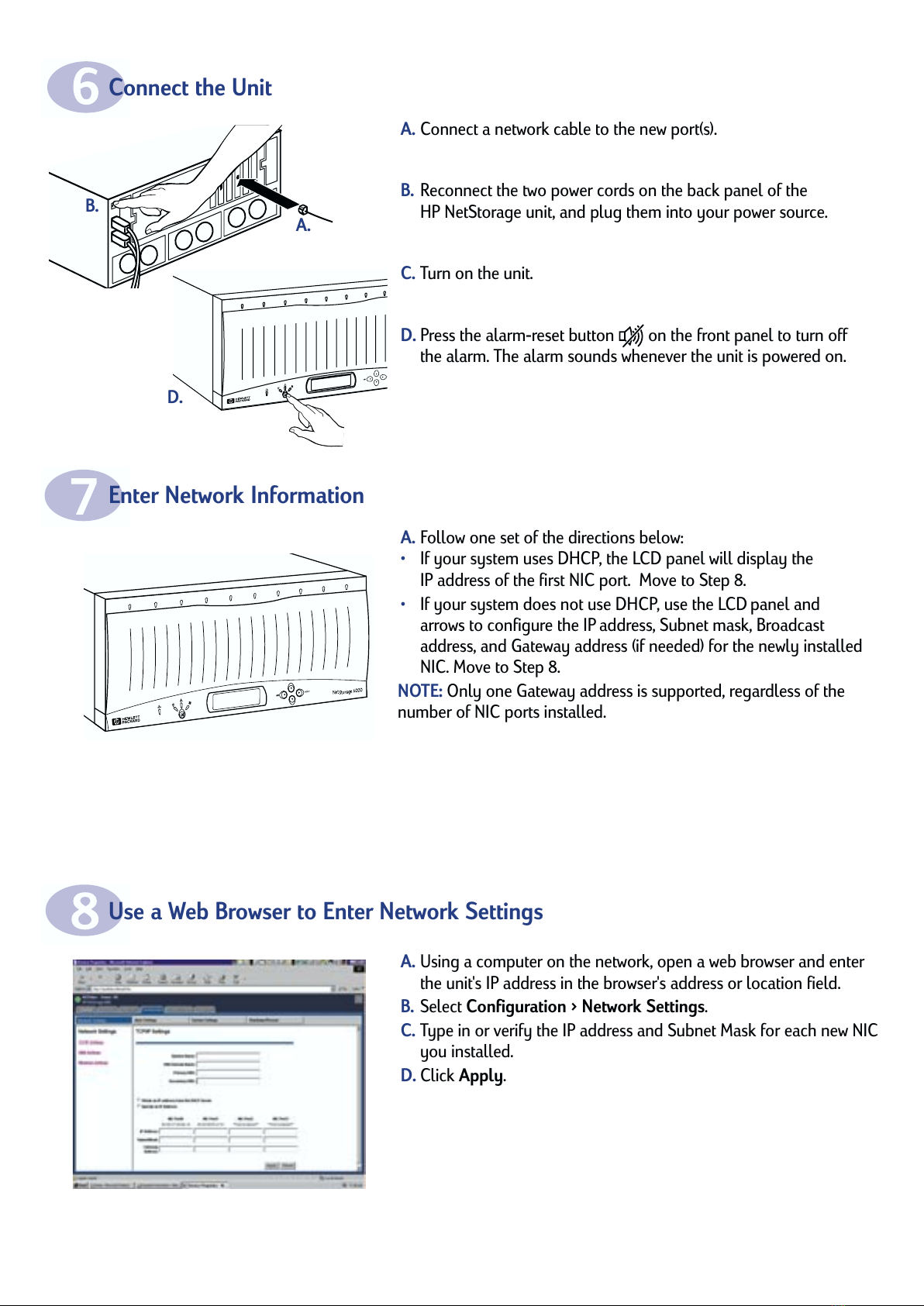

Connect the Unit

A. Connect a network cable to the new port(s).

B. Reconnect the two power cords on the back panel of the

HP NetStorage unit, and plug them into your power source.

C. urn on the unit.

. Press the alarm-reset button on the front panel to turn off

the alarm. he alarm sounds whenever the unit is powered on.

A. Follow one set of the directions below:

•If your system uses DHCP, the LCD panel will display the

IP address of the first NIC port. Move to Step 8.

•If your system does not use DHCP, use the LCD panel and

arrows to configure the IP address, Subnet mask, Broadcast

address, and Gateway address (if needed) for the newly installed

NIC. Move to Step 8.

NOTE: Only one Gateway address is supported, regardless of the

number of NIC ports installed.

Enter Network Information

A.

B.

.

A. Using a computer on the network, open a web browser and enter

the unit's IP address in the browser's address or location field.

B. Select Configuration > Network Settings.

C. ype in or verify the IP address and Subnet Mask for each new NIC

you installed.

. Click Apply.

Use a Web Browser to Enter Network Settings
