Honeywell T8624 User manual
Programmable Multistage Thermostat
OWNER’S GUIDE
Your new programmable thermostat is a precision instrument that’s quality-built to give you many years of satisfactory
service. It’s a “smart” thermostat that lets you save energy while still maintaining the standard of comfort you want in your
home.
This Owner's Guide will show you how to get the most benefit from your new thermostat.
Programmable Multistage Thermostat
OWNER’S GUIDE
Your new programmable thermostat is a precision instrument that’s quality-built to give you many years of satisfactory
service. It’s a “smart” thermostat that lets you save energy while still maintaining the standard of comfort you want in your
home.
This Owner's Guide will show you how to get the most benefit from your new thermostat.

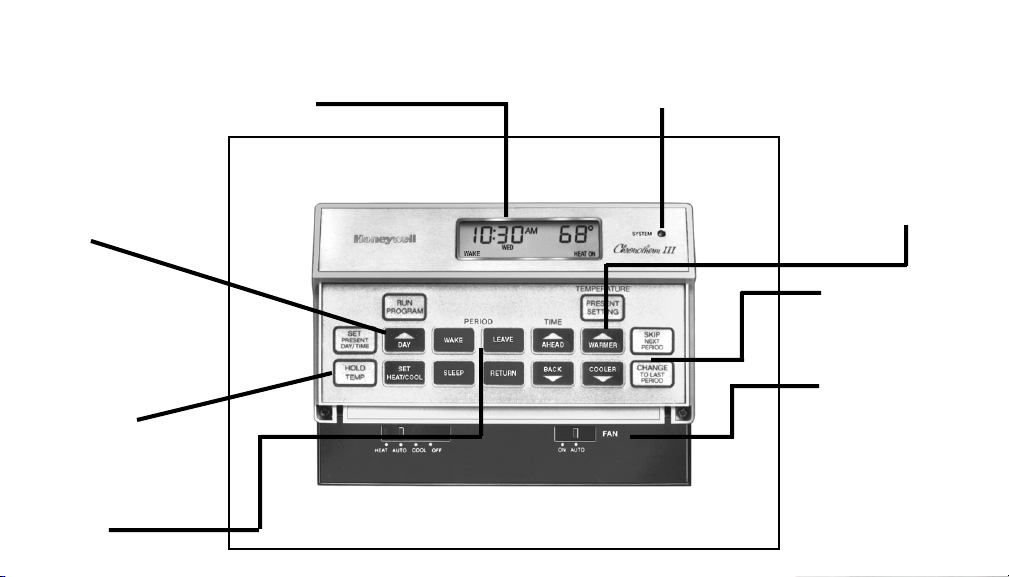

Monitor thermostat operation, read current
time and room temperature at a glance.
Check status light to see if the
thermostat is on, even in the dark.
Set different
schedules for
weekdays,
Saturday, and
Sunday.
Choose manual or
automatic thermo-
stat operation.
Program up to four
different time
periods in each
schedule.
Set the tempera-
ture warmer or
cooler at the touch
of a key.
Bypass the stored
program for a
single period.
Choose system and
fan operating
modes with the
thermostat
switches (on
subbase).
Simple Four-Step Programming
Of course, you can use the schedule preprogrammed into your new thermostat (see
Glossary, page 35). But it’s an easy matter to program the thermostat to fit your
lifestyle.
1Set the current time and day. See page 6.
2Set the program schedule and heating temperatures. See page 7.
3Set the cooling temperatures. See page 14.
4Set the system and fan switches. See page 20.
Features
Adaptive Intelligent Recovery™ ...........................1-4
Programming Your Thermostat ..........................5-22
Set the current day and time .................................. 6
Set the program schedule and
heating temperatures ......................................... 7
Set the cooling temperatures................................ 14
Set the system and fan switches on the subbase 20
Operating Your Thermostat...............................23-30
Temporarily changing the program ...................... 23
Permanently changing the program ..................... 25
Manually operating the thermostat ....................... 26
Canceling the program settings ............................ 27
Checking the program times and temperatures ... 28
Checking the current temperature setting ............ 29
Maintaining Your Thermostat............................31-34
Removing the thermostat ..................................... 31
Replacing the thermostat...................................... 32
Replacing the batteries ......................................... 33
Power outages ...................................................... 34
Glossary ..............................................................35-36
Your Personal Program .....................................37-38
Troubleshooting Guide ......................................39-40
Chronotherm®III Thermostat Questions .........41-42
Quick Reference to the Keys.............................43-44
Index.....................................................................45-46
Limited One-Year Warranty .................................... 47
TABLE OF CONTENTS
i
CONDITIONED
AIR CONDITIONED
AIR
RETURN AIR
REGISTER SUPPLY AIR
REGISTER
STALE AIR
EXHAUST
FRESH AIR
INTAKE
HONEYWELL
HOME
VENTILATION
SYSTEM
HONEYWELL
ELECTRONIC AIR CLEANER
HONEYWELL
WATER FILTER
OPTIMAL
EFFICIENCY
FORCED AIR
FURNACE
FRESH
AIR TO
HOME
HUMIDIFIER
OPTIMAL
EFFICIENCY AIR
CONDITIONER
OR HEAT PUMP
THE
CHRONOTHERM lll
THERMOSTAT IS ONE
PART OF A PERFECT CLIMATE
SYSTEM, AN INDOOR ENVIRONMENT THAT
PROVIDES TOTAL INDOOR COMFORT. IT MAKES
YOU FEEL BETTER; ALLOWS YOU TO LIVE AND WORK
IN A MORE COMFORTABLE ENVIRONMENT; ACHIEVES
MAXIMUM ENERGY SAVINGS AND MAINTAINS PRECISE
CONTROL OVER INDOOR TEMPERATURE AND HUMIDITY.
COLD AIR
RETURN STALE
AIR FROM
BATHS
®
®
M3755
How it works...
HONEYWELL
DEHUMIDISTAT
HOME
VENTILATION
SYSTEM
FRESH AIR
CONTROL
HONEYWELL
ELECTRONIC
AIR CLEANER
PERFORMANCE
STATUS
INDICATOR
HONEYWELL
RESIDENTIAL
SECURITY
SYSTEM
HONEYWELL
CHRONOTHERM lll
PROGRAMMABLE
THERMOSTAT
®
®
CONSIDER THE COMPLETE
PACKAGE FOR A PERFECT
CLIMATE® SYSTEM IN
YOUR HOME
ii
Honeywell manufactures the following components of a Perfect Climate
System:
1. Honeywell Chronotherm®Programmable Thermostats
2. Honeywell F50, the air cleaners of choice
3. Honeywell Dehumidistats
4. Honeywell Home Ventilation Systems
5. Honeywell F76 Water Filter
6. Honeywell Home Security Systems
iii
ADAPTIVE INTELLIGENT
RECOVERY™—BREAKTHROUGH
TECHNOLOGY SENSES
TEMPERATURE MORE LIKE YOU DO
M168
1
ADAPTIVE INTELLIGENT RECOVERY™
The Chronotherm®III Thermostat is
so smart, it’s almost human.
■

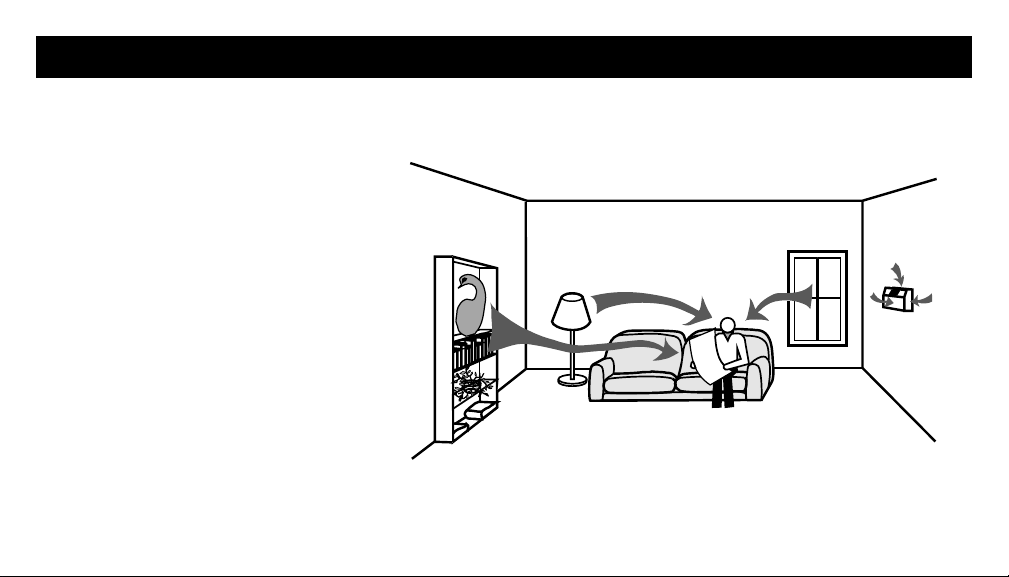

Your body perceives temperature
from a variety of sources, not only from
the air in the room, but also from your surroundings—walls, windows and
furnishings.
■
Human beings feel differences
in temperature as slight as two degrees
Fahrenheit.
■
Common household thermometers and standard thermostats
sense only
air temperature, which may or may not reflect how hot or cold the room
actually feels to a human being.
■
The Chronotherm III Thermostat
reads the temperature of the wall as well
as the air—and responds to temperature changes as little as one degree
Fahrenheit—so room temperature is more likely to
feel right
to you and
your family.
2
ADAPTIVE INTELLIGENT
RECOVERY™
ADAPTIVE INTELLIGENT RECOVERY™
3
AM
PM
SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN SLEEP TEMPORARY UNOCCUIPIED
REPL
BAT
SET
PT
AM
PM
SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN SLEEP TEMPORARY UNOCCUIPIED
REPL
BAT
SET
PT
AM
PM
SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN SLEEP TEMPORARY UNOCCUIPIED
REPL
BAT
SET
PT
AM
PM
SUN MON TUE WED THU FRI SAT COOL ON HEAT ON
WAKE LEAVE RETURN SLEEP TEMPORARY UNOCCUIPIED
REPL
BAT
SET
PT
System Operating
in Energy Savings Mode
Recovery Begins Recovery Continues
System Operating
in Comfort Mode
ENERGY
SAVINGS
PERIOD RECOVERY FROM ENERGY SAVINGS COMFORT
PERIOD
TIME
HEATING TEMPERATURE
M3780
■
The Chronotherm III Thermostat is actually a small but powerful
computer
. When calculating the exact time to turn on your furnace or
air conditioner, it considers: (1) air temperature, (2) the temperature of
the wall and (3) when you want the comfort temperature established.
THE CHRONOTHERM®III
THERMOSTAT—THE OPTIMUM
COMFORT AND ENERGY
SAVINGS SOLUTION
■
During Adaptive Intelligent Recovery™, the thermostat increases the
control temperature gradually and turns the equipment on and off
several
times to save energy by avoiding overshooting the comfort temperature.
You can see the current control temperature anytime during recovery by
pressing the PRESENT SETTING key.
■
This “smart”control learns from experience.
Each day it checks how
closely it hit the target and adjusts the recovery start time accordingly.
It typically takes four to eight days after installation for the Chronotherm III
Thermostat to adjust to the weather, your life style, home construction and
heating/cooling system. The thermostat calculates the LEAVE/RETURN
recovery separately from the SLEEP/WAKE recovery.
PROGRAMMING YOUR THERMO-
STAT
4
This manual suits for next models
