Welcome to Comtronics Smart Homes

Thank you for choosing Comtronics for your security needs.

We are conﬁdent that your new system will provide you with

the security, peace of mind, and convenience that your family

deserves. At Comtronics, we pride ourselves on providing

ﬂexibility and integrity in the products we offer to our customers.

We are thrilled to offer you the protection that is:

Multi-path and redundant alarm communications

While other companies provide only one connection path,

Comtronics values your security and provides redundant

connections via cellular and Wi-Fi. This provides a virtually

undefeatable security pathway to Comtronics’ Five Diamond

UL Certiﬁed Central Station and the redundancy that experts

recommend.

We are the Alarm Company

Many so called “alarm companies” do not monitor their own

customers. At Comtronics, you can sleep peacefully knowing

that the product you chose is monitored 24/7/365 by the same

company that provided it. No third parties, no call centers to

multi-level call systems, and your personal information is safe

and secure as well.

Simple setup

We made it easy for you! No wiring, no drilling, just a quick

and easy setup and you will have a secured home. Need

help? Comtronics provides support and if needed, an on-site

technician to help with installation.

Flexible, yes we mean it!

The Comtronics Smart Homes Security System was designed

with ﬂexibility in mind and can accommodate the largest home

or the most automation–savvy individual! Your system comes

ready to support video cameras, door locks, garage door

opening and closing, lamps, thermostat and MORE! Start small

or go big - either way, you have the ﬂexibility to choose.

Congratulations on joining the thousands of customers that

have chosen a ﬂexible, secure and reliable system that’s easy to

install and fun to use.

Welcome to the Comtronics family!

Comtronics Smart Homes

LYNX 5200 CONTROLLER

KEY FOB

DOOR CONTACTS

MOTION SENSOR

TRANSFORMER

Instructions

Unpack Your Control Panel, Desk Mount and Transformer

1) Mount control panel to desk mount using the pre-aligned notches on the back.

2) Place mounted control panel in a convenient location for you and your family.

3) Plug transformer into wall socket and the system will start up.

Door/Window Contacts

1) Select transmitter and magnet locations as suggested below:

2) See photo on the right for proper magnet and transmitter alignment.

3) Peel and stick tape is included. Use alcohol swab to prepare surface.

When clean and dry, apply contact with even pressure for 15-20 seconds.

Install Additional Purchased Devices

• See insert for smoke and/or carbon monoxide detectors’ suggested

locations from the National Fire Protection Association.

• Additional purchased devices or accessories will have instructions included

for mounting and/or setup.

Set Up User Codes and WiFi on your Lynx 5200 Panel

See page 4 for USER CODES and page 6 for WIFI

Set Up Total Connect on your Computer, Smartphone and/or Tablet

See page 8 (Total Connect activates separately. An email with your login

information will be sent within 24-48 hours.)

Call COMTRONICS to test your system 800-DIY-4757

Select Option #3 to activate your system.

Motion Sensor

Peel and stick tape is included. Use an alcohol swab to prepare the surface.

When clean and dry, apply contact with even pressure for 15-20 seconds.

2) Determine a location at least eight inches down from the ceiling, no closer

than seven feet from the ﬂoor, and mount with the lens facing down.

3) Motion sensor has a 40° view and can detect up to 35 feet away.

4) Do not mount directly near or over a heat source, A/C unit, ceiling fan, or

facing a large window. See below for suggested mounting locations:

Magnet

Transmitter

Spacer

Locate the two raised indicators on the

side of the transmitter and make sure the

magnet and transmitter are within 1/4” of

each other. The magnet height may need

to be raised to align with the transmitter

depending on your door/window frame.

Use the included spacer under the

magnet and/or screws, if needed.

For Help:

800-DIY-4757

(800-349-4757)

www.comtronicsDIY.com

The Motion Sensor can be mounted in a

corner or ﬂat wall mount location. Make

sure the sensor is mounted as shown in the

photo above, with the lens facing down.

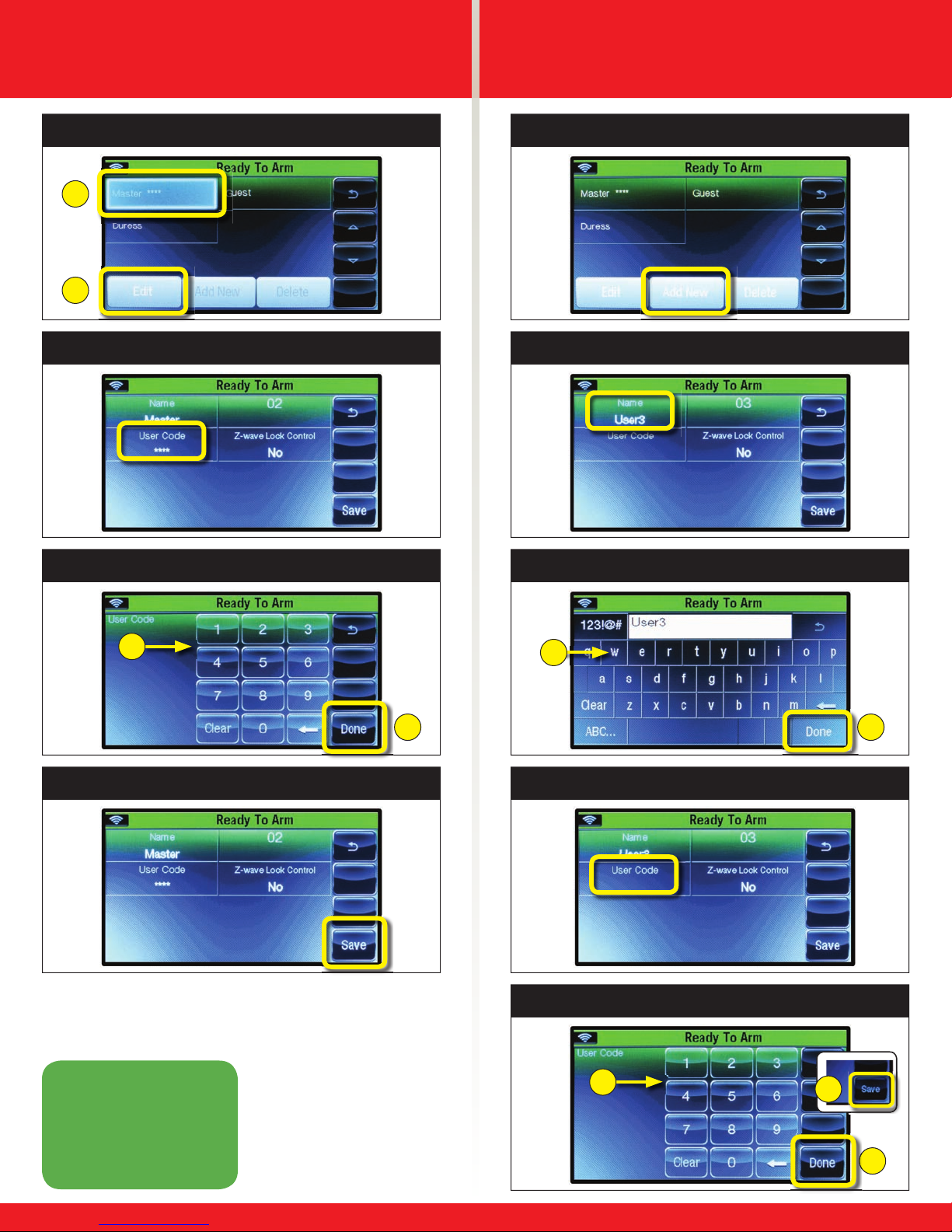

Setting Up Your User Codes

To edit an existing user, see “EDIT USER” on next page.

To add a new user, see “ADD NEW USER” on next page.

STEP 6

Select either Edit or Add New

STEP 5 Select Users

STEP 3 Select Tools

STEP 2 Select More

STEP 1

Push Home then select Security

STEP 4 Type 1234 (Master Code*)

*Change Master Code to main user’s code (see “EDIT USER” on next page).

Edit User

STEP 2 Select User Code

STEP 1 Select Master **** then select Edit

STEP 3

Enter 4 Digit Code then select Done

STEP 3 Enter User Name then select Done

Add New User

STEP 4 Select Save

STEP 5

Enter 4 Digit Code, select Done then Save

STEP 1 Select Add New

STEP 2 Select Name

STEP 4 Select User Code

For Help:

800-DIY-4757

(800-349-4757)

www.comtronicsDIY.com

Setting Up WiFi

STEP 1 Select Home STEP 2 Select Security

STEP 3 Select More STEP 4 Select Tools

STEP 5 Type in Master Code STEP 6 Select WiFi Conﬁg

STEP 7 Select Scan Access Points

STEP 8 Select WiFi Network, then Edit

STEP 9 Select Key (Field will be blank) STEP 10 Type in WiFi Password

STEP 11 Select Join STEP 12 Select OK

(Faint Wi Password will appear under Key)

Navigate to www.TotalConnect2.com

If plugins are installed correctly, you should be presented with the following login screen:

If plugins are not installed, your computer may need QuickTime and Adobe Flash Player installed.

Both are free programs and can be downloaded from the websites listed below.

Enter Username and Password then select Connect.

Internet Explorer Users:

You must allow the add-ons to run on the website.

Click the yellow bar at the top and select Run Add-On.

In the next popup, select Run.

Additional Information

Browsers: All three major web browsers are supported, however, Google Chrome is recommended.

Google Chrome

www.google.com/chrome/

Internet Explorer

http://windows.microsoft.com/en-us/internet-explorer/download-ie

Mozilla Firefox

http://www.mozilla.org/en-US/ﬁrefox/new/

Plugins: Two plugins are required for the Total Connect website.

QuickTime

http://www.apple.com/quicktime/download/

Adobe Flash Player

get.adobe.com/ﬂashplayer/

Setting Up Total Connect on Your PC

Call COMTRONICS to test your system 800-DIY-4757

Select Option #3 to activate your system

Setting Up Total Connect on

Android

1. Navigate to Play Store in the application list.

2. In the Play Store, click on the Magnify or

Search icon and type in Total Connect 2.0.

3. Select Total Connect 2.0

from the drop down menu

4. Click Install.

5. Click Accept.

(Read through the Terms

and Conditions)

6. After downloading the application,

you can ﬁnd the app in the application

list. Find and select TC 2.0.

7. Type the username & password

you provided to Comtronics. If

you want the application to

remember your login credentials,

select Remember Me.

Select Login.

8. You should be presented with

a screen similar to this which

shows the current status of the

alarm system.

You are now fully logged in and

able to send commands to your

alarm system.

1. Locate and select App Store icon.

In the top right, click on the Search

icon and type in Total Connect 2.0.

Select Total Connect 2.0

from

the drop down menu

3. It may be necessary to switch

from iPad and iPhone app if your

device is an iPad.

You should see the Total

Connect 2.0 application along

with FREE. Click FREE.

5. Click Install. You will be

prompted for your Apple ID

credentials. Enter these and

continue to the next step.

6. After downloading the application,

you can ﬁnd the app on the home

page. Find and select TC 2.0.

7. Type the username & password

you provided to Comtronics. If

you want the application to

remember your login credentials,

select Remember Me (ON).

Select Login.

8. You should be presented with

a screen similar to this which

shows the current status of the

alarm system.

You are now fully logged in and

able to send commands to your

alarm system.

Setting Up Total Connect on

iOS

- Two-sided tape works well when all surfaces are clean and dry. Mounting screws are in the bottom of the box if homeowners

want a more permanent attachment.

- Your system has many capabilities that may be off or unusable at installation. Please contact Comtronics if you have any

questions on these great features.

- Your controller has a battery backup but must remain plugged in to charge and power the device. Do not plug in to a GFI

outlet or ‘switch controlled’ outlet.

- If you install a sensor in a different area than what was indicated, please call Comtronics to rename your device location.

- Contacts and sensors have a range that varies but should work within 100 feet of the Lynx 5200 panel. Some

construction types, or obstructions, can reduce that distance.

- Motion sensors are pet resistant but false alarms may still occur. Call Comtronics if you need help with your sensors.

- Comtronics recommends you test your system monthly. Please call 800-DIY-4757 (800-349-4757) to test your system.

Suggestions

In an effort for continual Home Security System

improvement, we welcome your suggestions and

feedback.

www.comtronicsDIY.com/survey

For Help:

800-DIY-4757

(800-349-4757)

www.comtronicsDIY.com

NOTE: If you move your DIY Security System to a new residence, you must notify

COMTRONICS at 800-349-4757. Failure to report the new location may

result in fees and/or lack of Police or Fire response.

Table of contents

Other Honeywell Security System manuals

Honeywell

Honeywell VISTA-21iP User manual

Honeywell

Honeywell XL4600SM User manual

Honeywell

Honeywell VISTA-21iP Operating instructions

Honeywell

Honeywell V4000 Assembly instructions

Honeywell

Honeywell ADEMCO VISTA 10P User manual

Honeywell

Honeywell AlarmNet 7845GSM User manual

Honeywell

Honeywell Ademco VISTA-32FB User manual

Honeywell

Honeywell Ademco VISTA-20P Operating instructions

Honeywell

Honeywell Fire-Lite Alarms MS-9200UDLSC User manual

Honeywell

Honeywell Galaxy 8 User manual

Honeywell

Honeywell X-618 Quick start guide

Honeywell

Honeywell VAM User manual

Honeywell

Honeywell Lynx Plus Series Operating instructions

Honeywell

Honeywell FIRE-LITE ALARMS BG-12LR User manual

Honeywell

Honeywell ADEMCO LYNXR-I Security System User manual

Honeywell

Honeywell LYNX Touch Security System User manual

Honeywell

Honeywell First Alert FA168CPS User manual

Honeywell

Honeywell Galaxy 8 User manual

Honeywell

Honeywell GENT User manual

Honeywell

Honeywell LYNXRPK-2 - Wireless Self-Contained Security Syste - LYNXRPK-2 - Wireless Self-Contained Security... Assembly instructions

Honeywell

Honeywell VISTA-32FBPT Assembly instructions

Honeywell

Honeywell 702 Service manual

Honeywell

Honeywell L5200 Series User manual

Honeywell

Honeywell Friedland FGGA07 Series User manual

Popular Security System manuals by other brands

Inner Range

Inner Range Concept 2000 user manual

Climax

Climax Mobile Lite R32 Installer's guide

CADDX

CADDX NX-6 user manual

FBII

FBII XL-31 Series installation instructions

Johnson Controls

Johnson Controls PENN Connected PC10 Install and Commissioning Guide

Aeotec

Aeotec Siren Gen5 quick start guide

Blaupunkt

Blaupunkt SA 2700 quick start guide

IDEAL

IDEAL Accenta Engineering information

AJAX

AJAX DoubleButton user manual

Swann

Swann SW-P-MC2 Specifications

Ecolink

Ecolink Siren+Chime user manual

Digital Monitoring Products

Digital Monitoring Products XR150 user guide

EDM

EDM Solution 6+6 Wireless-AE installation manual

Highway Safety Group

Highway Safety Group EA401 user manual

Siren

Siren LED GSM operating manual

Detection Systems

Detection Systems 7090i Installation and programming manual

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 instructions

Siemens

Siemens FDM273 manual
