Honeywell XENON 1900 User manual

Xenon™ 1900

Corded Area-Imaging Scanner

Quick Start Guide

Note: Refer to your user’s guide for information

about cleaning your device.

For localized language versions of this document,

go to www.honeywellaidc.com.

Getting Started

Turn off computer’s power before connecting the

scanner, then power up the computer once the

scanner is fully connected.

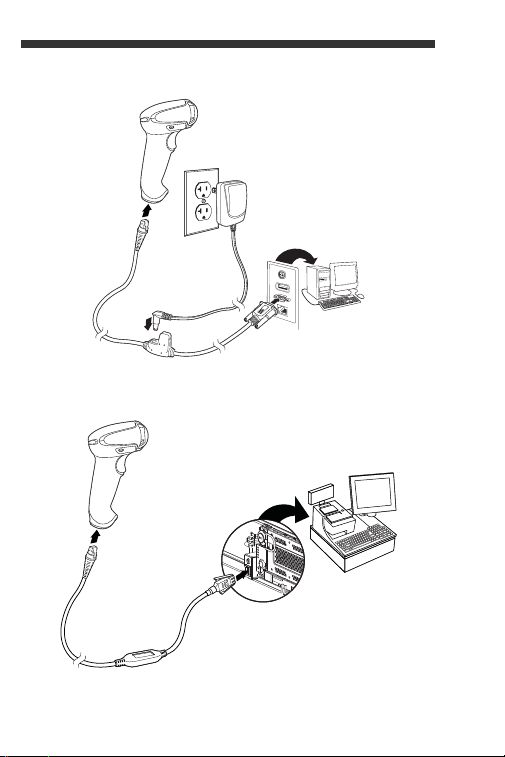

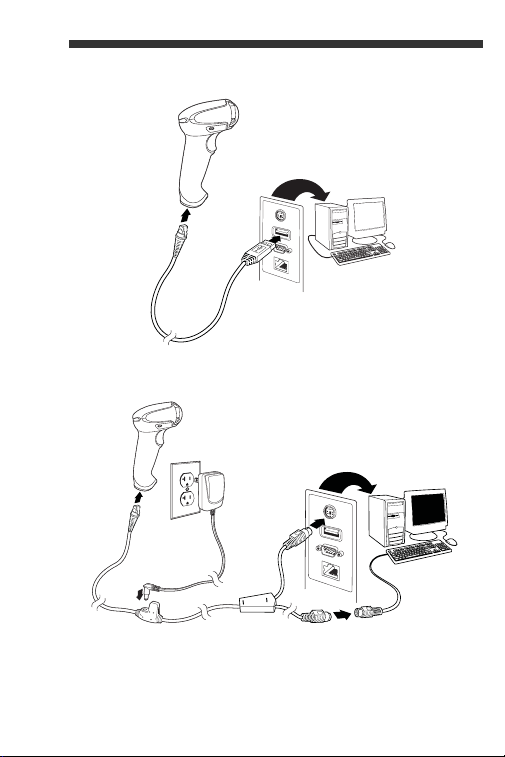

Power Supply Assembly (if included)

USB Connection

Keyboard Wedge Connection

RS232 Serial Port Connection

RS485 Connection

Reading Techniques

The view finder

projects an aiming

beam that should

be centered over

the bar code, but it

can be positioned

in any direction for

a good read.

Hold the scanner

over the bar code,

pull the trigger, and center the aiming beam on the

bar code.

The aiming beam is smaller when the scanner is

closer to the code and larger when it is farther from

the code. Hold the scanner close to smaller bar

codes, and farther away from large bar codes to get

a proper read.

If the bar code is highly reflective (e.g., laminated),

you may need to tilt the scanner at an angle so the

bar code can be scanned.

Standard Product Defaults

The following bar code resets all standard product

default settings.

Standard Product Defaults

RS485 Interface

The RS485 interface defaults to port 5B. If you

have an IBM POS terminal using port 9B, scan the

appropriate code below to program the terminal,

then power cycle the cash register.

Note: For additional RS485 interface selections,

see the User’s Guide for your product at our

website, www.honeywellaidc.com.

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

Keyboard Country

Scan the Program Keyboard Country bar code

below, then scan the numeric bar code(s) from

page 11, then the Save bar code to program the

keyboard for your country. As a general rule, the

following characters are not supported by the

scanner for countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Note: For a complete list of country codes, see the

User’s Guide for your product at our website,

www.honeywellaidc.com.

Country Code Scan Country Code Scan

Belgium 1 Italy 5

Denmark 8 Norway 9

Finland 2 Spain 10

France 3 Switzerland 6

Germany/Austria 4 USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Trigger

The following bar codes will allow you to use the

scanner in Manual Trigger - Normal Mode (need to

press the trigger to read) or Presentation mode (the

scanner is activated when it “sees” a bar code).

Streaming Presentation™

When in Streaming Presentation mode, the

scanner leaves the scan illumination on all the time

and continuously searches for bar codes.

Manual Trigger - Normal

(Default)

Presentation Mode

Streaming Presentation Mode

Suffix

If you want a carriage return after the bar code,

scan the Add CR Suffix bar code. To add a tab

after the bar code, scan the Add Tab Suffix bar

code. Otherwise, scan the Remove Suffix bar

code to remove the suffixes.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a

Code ID prefix to all symbologies at once.

Note: For a complete list of Code IDs, see the

User’s Guide for your product at our website,

www.honeywellaidc.com.

Add CR Suffix

Remove Suffix

Add Tab Suffix

Add Code ID Prefix To All Symbologies

(Temporary)

Function Code Transmit

When this selection is enabled and function codes

are contained within the scanned data, the scanner

transmits the function code to the terminal. Charts

of these function codes are provided in your User’s

Guide. When the scanner is in keyboard wedge

mode, the scan code is converted to a key code

before it is transmitted.

Data Format Editor Instructions

The following are abbreviated instructions for

entering a data format. For complete instructions

refer to your User’s Guide, available at our website,

www.honeywellaidc.com.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0for Primary

Format

3. Terminal Type: scan 099 for any terminal type

4. Code I.D.: scan 99 for any bar code type

Enable

(Default)

Disable
