Honeywell CO301PC User manual

Portable Evaporative Air Cooler

OWNER’S MANUAL

Read and save these instructions before use

Model: CO301PC

Power rating: 270 Watts

Made in P.R.C.

Voltage rating:

220-240 Volt, 50Hz

All manuals and user guides at all-guides.com

all-guides.com

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY RULES ...................................................................................................

4. PARTS DESCRIPTION ........................................................................................

5. USE & OPERATION .............................................................................................

Fill Water ......................................................... .................... ...............

Remote Control .................................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

9. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

.... ............

Control Panel Functions ....................................................................................... 8

Operating the Unit .............................................................................................. 13

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

All manuals and user guides at all-guides.com

THANK YOU!

THANK YOU

Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler. For optimum

cooling performance from your unit, fill the water tank with water & ice (if available) to increase its

cooling power.

Please read these instructions carefully.

All manuals and user guides at all-guides.com

USER TIPS

COOL ~ EFFICIENT ~ NATURAL

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This

breeze drops the temperature and has a relaxing cooling effect.

The evaporative air cooler cools the air by means of the evaporation of water. When water

evaporates into the air, the result is a mixture of air and water molecules. This chemical change

requires heat which is taken from the water molecules, resulting in cooler air propelled from the

unit.

All manuals and user guides at all-guides.com

NOTE

USER TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when the humidity is low.

The evaporative air cooler must be kept at floor level and

there must be water in the water tank. The room should have

doors and windows opened to allow free air flow. The evapora-

tive air cooler works best when placed near an open window,

so that outside air is drawn into the evaporative air cooler, the

air circulates in the room, then exits via the door. The maxi-

mum cooling effect is felt when a person is in the flow of air

coming out of the evaporative air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidification the

windows and doors should be closed to allow the humidified

air to accumulate. The evaporative air cooler is not an air

conditioner as it does not use a compressor or refrigerant gas.

It should not be expected to cool as efficiently as a refrigerated

air conditioner.

When the product is used for the first time the Honeycomb

cooling media will have an odour which will dissipate in a week

or so of initial use.

Room with open windows & door

Room with closed windows & door

All manuals and user guides at all-guides.com

READ AND SAVE THESE INSTRUCTIONS:

SAFETY RULES

220-240 Volt, 50 Hz

SHOCK HAZARD

WATER LEVEL INDICATOR

When using electrical appliances, basic safety precautions should always be followed:

Always unplug the product before refilling the water tank.

•

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

•

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

•

DO NOT use the product in areas where gasoline, paint or

other flammable goods and objects are stored.

•

When using the ''COOL'' setting, please check the water tank

to ensure it is full. Operation of this unit on the ''COOL'' setting

with an empty tank may result in damage to the water pump.

•

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

•

•Your cooler runs on 220-240 Volt AC, 50 Hz current. Check

the household voltage to ensure it matches the appliance's

rate specification.

•Before operating the product remove it from its packaging

and check it is in good condition.

•DO NOT operate any product with a damaged cord or plug.

We recommend not using an extension cord with this

appliance.

All manuals and user guides at all-guides.com

all-guides.com

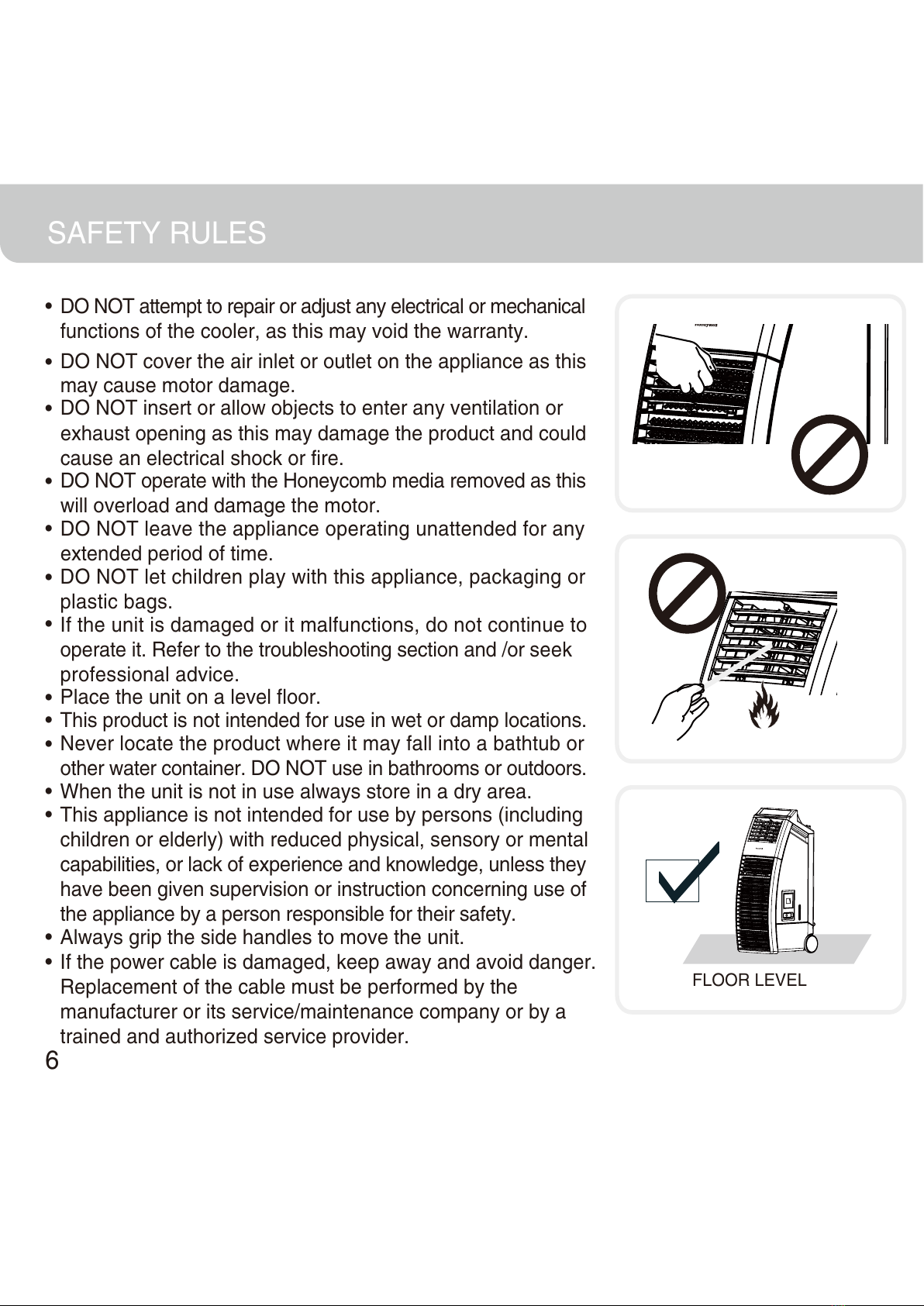

SAFETY RULES

FLOOR LEVEL

may cause motor damage.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

•

When the unit is not in use always store in a dry area.

•

This product is not intended for use in wet or damp locations.

•

DO NOT let children play with this appliance, packaging or

plastic bags.

•

DO NOT leave the appliance operating unattended for any

extended period of time.

•

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

•

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

•

DO NOT attempt to repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

•

DO NOT cover the air inlet or outlet on the appliance as this

•

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or seek

professional advice.

•

Place the unit on a level floor.

•

Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms or outdoors.

•

Always grip the side handles to move the unit.

If the power cable is damaged, keep away and avoid danger.

Replacement of the cable must be performed by the

manufacturer or its service/maintenance company or by a

trained and authorized service provider.

•

All manuals and user guides at all-guides.com

PARTS DESCRIPTION

1. Control Panel

2. Outlet Louvers

3. Front Pad Cover

4. Casters

5. Wheels

6. Water Fill Door

7. Hose Adapter

8. Water Level Indicator

9. Can Holders

10. Top Storage Compartment

11. Rear Pad Cover

12. Cord Wrap

13. Overflow Hole

14. Drainage cap

15. Power Cord & Plug

All manuals and user guides at all-guides.com

CONTROL PANEL FUNCTIONS

USE & OPERATION

TIMER :

Press the ''TIMER'' button until the indicator light comes on to your desired timer. Once the set time

has passed, the unit will automatically shut off. The Timer function allows you to program the unit

for 0.5 to 8 hours OFF timer.

SWING :

Touch SWING button on the touchscreen panel to turn on the automatic swing function to direct

the air stream. The louvers will begin to move automatically from side to side.

UP - DOWN AIRFLOW:

To adjust the vertical direction of air flow, adjust the horizontal louvers manually.

POWER :

Power On:

1. Connect the cord to a power outlet. the unit will start on Stand-by mode, indicated by a “beeping’’

sound and amber power display.

2. Touch POWER to turn the unit on. The blue outer power circle will light up and the TIMER will

display0.0. The FAN will then turn on at HIGH speed for a few seconds then automatically turn

down to LOW speed.

Power Off:

Touch POWER for 2 seconds to turn the unit off.

TIMER SWING POWER SPEED COOL

All manuals and user guides at all-guides.com

USE & OPERATION

SPEED:

Touch SPEED to change fan speed between HIGH and LOW as displayed in incremental bars

HIGH and LOW.

COOL:

To use the unit as an evaporative cooler, touch COOL on the touchsreen panel. The pump will

turn on and distribute water to wet out the cooling pad.

LOW WATER LEVEL WARNING FEATURE :

The CO301PC features low water level warning function. Whenever water is below minimum

level, the COOL display will continuously flash and a warning sound will beep for 10 seconds. At

that moment, the pump will be shut off to protect the life of the pump. Refill the reservoir with

fresh water and turn on the COOL function to enjoy the cool air again.

SAFETY LOCK:

CO301PC features safety lock function to prevent unintentional changes in function when the

touchscreen panel is touched accidentally.

1. To lock the unit at the selected setting, touch POWER and the COOL at the same time and

hold until power icon on the display turns off.

2.To unlock the unit from the safety lock setting, touch POWER and COOL at the same time and

hold until power icon appears on the display.

All manuals and user guides at all-guides.com
