HOMCOM 370-299V00 User manual

ASSEMBLY INSTRUCTION

IN230700271V01_UK

370-299V00

CHILDREN'S Pedal Engineering Vehicle

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

* WARNING: Certiﬁcation Age: 18+ months; Max weight: 25 kg.

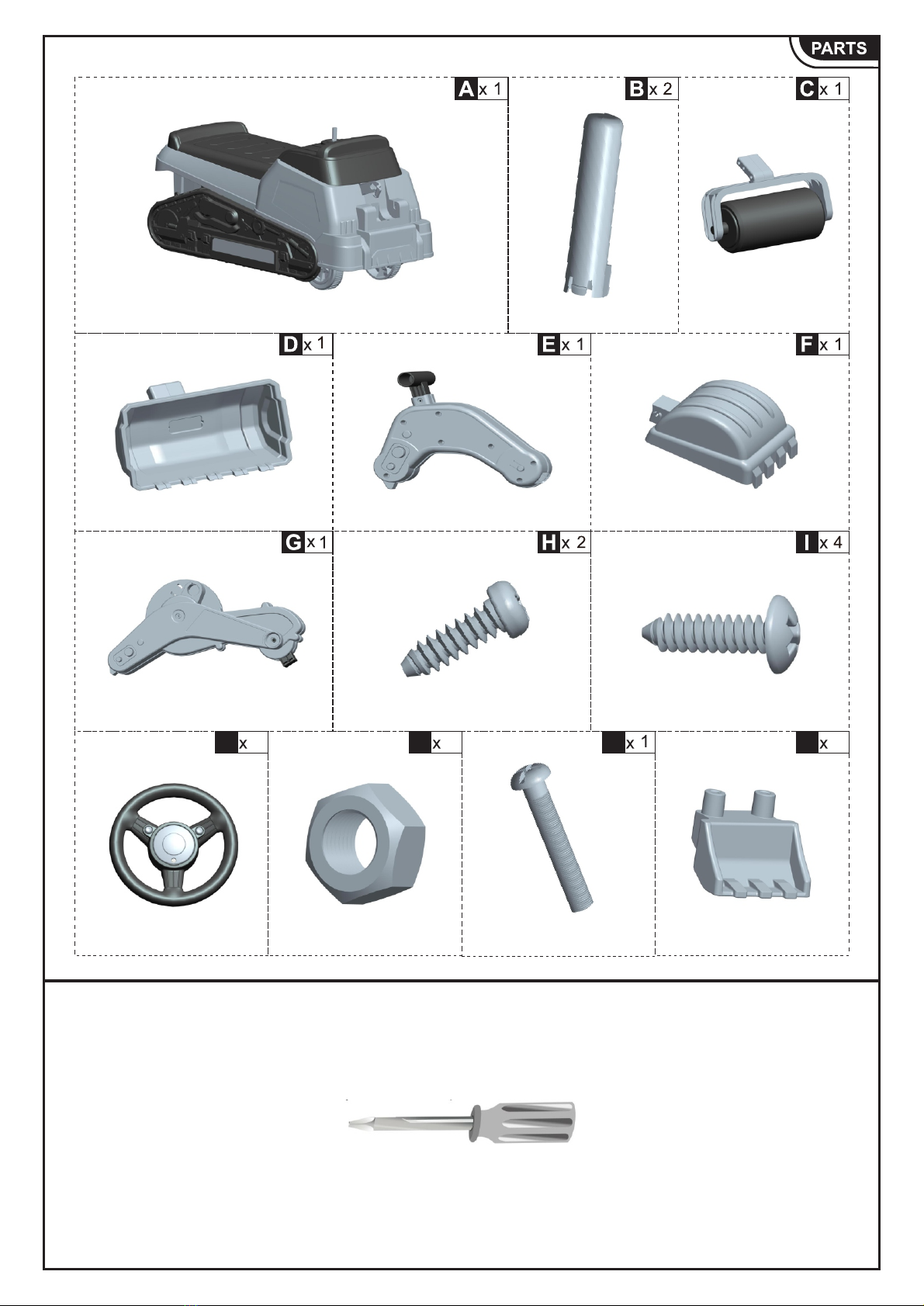

Main body handle braker Road Roller

Pushdozer head Road Roller/Pushdozer arm Excavator head

Excavator arm Screw (4x12mm) Screw (4x12mm)

Steering wheel Nut (M5) Screw (4x25mm)

Note:

Some parts are under the seat, please take out them under seat before assembly.

Assembly tools required:

Screwdriver (not included)

LM2

Anti-tipping support

WARNING:

1. CHOKING HAZARD—Small parts.

2. Only allowed for adults to install, keep children away.

3. To be used under the direct supervision of an adult.

4. Just only allow one child to use.

5. Please use on a ﬂat and clean surface. Never use near steps, sloped driveways, hills

roadways, alleys, swimming pool areas, road, on grass or wet surfaces or other

bodies of water.

6. Before driving toy car each time, adult should inspect screws of every parts, please

tighten the screw cap if any looseness. secure all fasteners before every ride.

7. Always wear shoes and suitable protective equipment. always wear a local standard

approved helmet while riding, with the chinstrap securely fastened.

8. Do not ride the product at dusk, at night or at times of limited visibility.

9. Always comply with local laws and regulations.

MAINTENANCE & CARE

A. Keep all instructions and parts relating to this product for future reference.

B. Regularly check for damage and that all screws are securely tightened.

C. Check that the seat is securely fastened.

D. Lubricate the chain as often as required.

Assembly Instruction

Pushdozer head assembly

NOTE: Some parts under the seat, please take out them under seat before assembly.

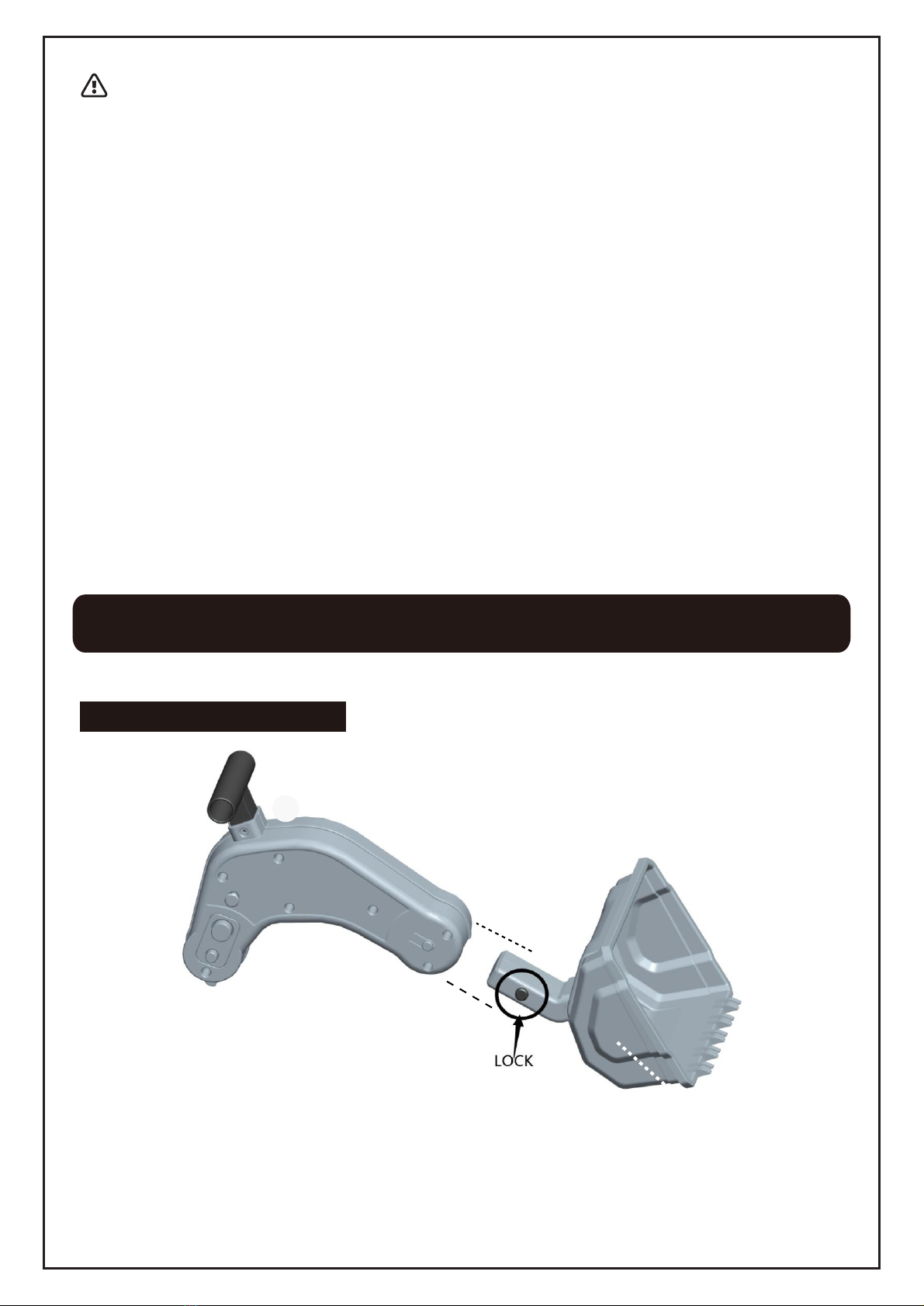

Press the lock on the pushdozer head and insert it to the pushdozer arm as picture

shown.

NOTE: The road roller and pushdozer head share with one arm, if use the pushdozer

head, need to disassembly the road roller.

Assembly Instruction

Road roller assembly

Press the lock on the road roller and insert it to the road roller arm as picture shown.

NOTE: The road roller and pushdozer head share with one arm, if use the road roller,

need to disassembly the pushdozer head.

Excavator arm hand bar assembly

Please insert the left and right hand bar to excavator arm as picture shown.

Assembly Instruction

Excavator assembly

Screw

(4x12mm)

Assembly the excavator head and fasten with 2 screws for two sides as picture

shown.

Front Anti-tipping support assembly

Insert the anti-tipping support and fasten with 2 screws as picture shown.

Screw

(4x12mm)

Assembly Instruction

Rear Anti-tipping support assembly

Screw

(4x12mm)

Insert the anti-tipping support and fasten with 2 screws as picture shown.

Steering wheel assembly

Screw

(5x25mm)

Nut (M5)

Place the steering wheel into the steering column. Tighten the screw with nut.

Assembly Instruction

Assembly Pushdozer head/Excavator head/Road roller

NOTE: The road roller, pushdozer head and excavator share with one main body.

One time can only use one of them as you like.

Press the lock on the pushdozer arm and place it to the main body as picture shown.

If use the road roller or excavator, need to disassembly the pushdozer head. Use the

same method to assembly the road roller or excavator.

Battery Installation

1. For longer life, use alkaline

batteries.

2. Loosen the screw into the battery

compartment door with a Phillips

screwdriver and remove the door.

3. Insert two, new AAA (LR03) alkaline

batteries.

4. Replace the battery compartment

door and tighten the screw. Do not

over-tighten.

Horn Music

Protect the environment by

not disposing of this product

with household waste

(2012/19/EU).

Check your local authority

for recycling advice and

facilities.

Road Roller

Excavator

Pushdozer

Parts Diagram

No. Part

7.Pushdozer head

8.Pushdozer/Road roller arm

9.Seat

10.Steering wheel

11.Hand bar

Quantity

No. Part

1.Excavator head

2.Excavator arm

3.Front support

4.Main body

5.Anti-tipping support

6.Road roller

Quantity

ASSEMBLAGE D’INSTRUCTIONS

IN230700271V01_FR

370-299V00

VÉHICULE À PÉDALES POUR ENFANTS

IMPORTANT : A LIRE ATTENTIVEMEN ET A CONSERVER POUR VOUS

Y REFERER ULTERIEUREMENT

* ATTENTION: Âge de certiﬁcation: 18+ mois; Poids maximum: 25 kg.

Corps principal Barre de guidage Rouleau

compacteur

Tête de bulldozer

Bras du Rouleau

compacteur / bulldozer Tête d'excavatrice

Bras d'excavatrice Vis (4x12mm) Vis (4x12mm)

Volant Écrou (M5) Vis (4x25mm)

REMARQUE:

Certaines pièces se trouvent sous le siège, veuillez les retirer avant l'assemblage.

Outils d'assemblage requis:

Tournevis (non inclus)

LM2

Support anti-

basculement
