Hobbico AXE CX Nano User manual

QUICK START CHECKLIST

™

WARNING!! The instruction manual must be read completely before operating

the Heli-Max AXE CXn Helicopter. It contains speciﬁc warnings about safety and

use of the LiPo ﬂight battery supplied with the AXE CXn. All of these warnings and safety

steps must be read and understood before proceeding to the next step.

❏1. Plug the charger into an AC outlet. The

indicator light on the wall transformer will ﬂash

red during initialization and then turn solid green

once initialization has been completed.

❏2. Plug the battery into the charger. The charge

indicator light will turn red; this indicates that

the battery is being charged. Once the battery is

completely charged, the charge indicator light will

turn solid green. Disconnect the battery from the

charger. Under normal operating conditions, the

battery may take up to one hour to recharge.

The battery is

being charged.

The battery is

fully charged.

The charger

is ready.

Solid Red

Solid Green

(with battery connected)

Solid Green

(without battery connected)

Charge Indicator Light

❏

3. Open the battery cover on the back of the

transmitter, and install four AA batteries. Double

check the polarity of each battery before replacing

the battery cover.

❏4. Place the helicopter on its side and slide the

battery into the battery compartment. Connect

the ﬂight battery and place the helicopter onto a

ﬂat surface.

© 2010 Hobbico®Inc. HMXE13xx Quick Start

❏5. Turn the transmitter on and allow the helicopter

to remain still for 10 seconds. Always step 15 feet

[4.5m] away from the AXE CXn Helicopter before

operating the throttle.

Your AXE CXn helicopter has a safe

start feature built in that prevents

the motor from activating unless the

collective stick has been lowered to

the lowest position. If the motor won’t

run and turn the main blades, please

make sure the collective stick is all

the way down and leave it there for a

couple of seconds. Then try moving

the stick up slowly.

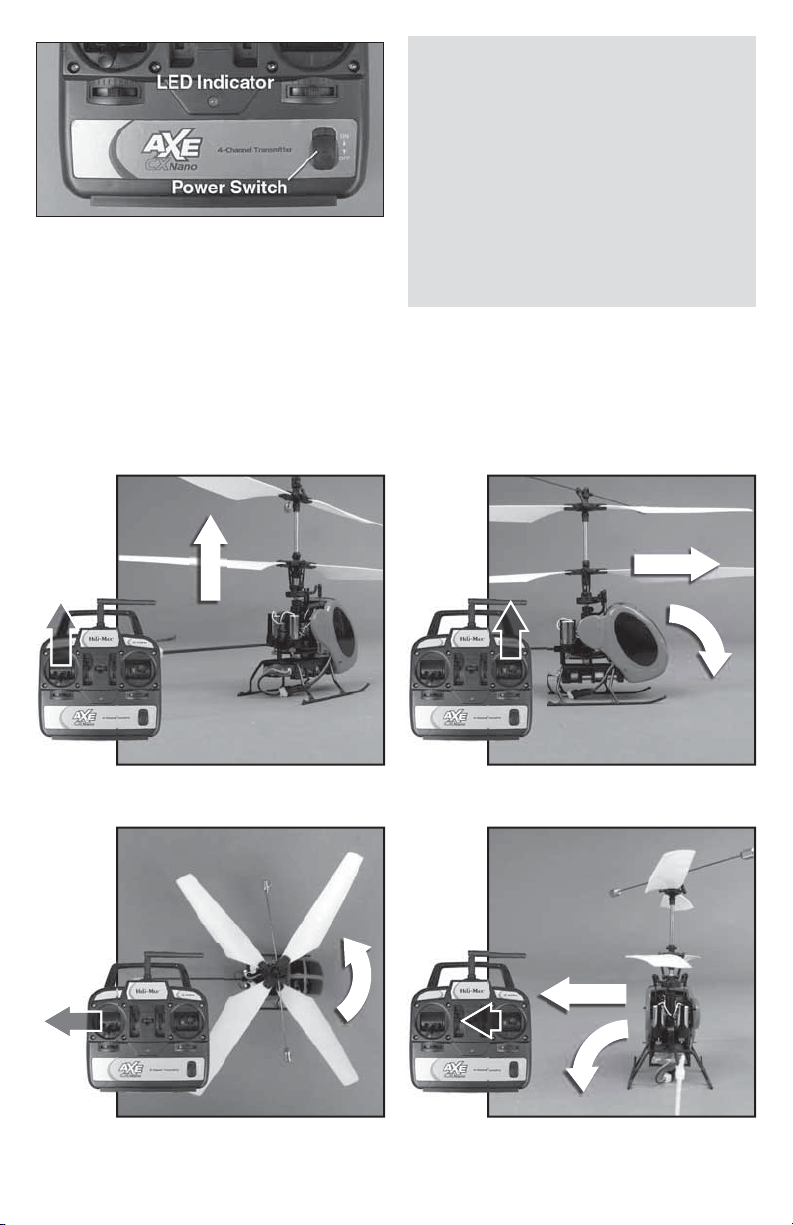

❏6. Transmitter Controls

Your AXE CXn is now ready to ﬂy. Please refer to the ﬂying instructions on page 16 in the manual before

operating the model.

Climbs Moves Forward

Nose Rotates Left Moves Left
