HiTi Digital CS-200e User manual

HiTi

user manual

ᮢ⦦

ᆙ

ᮢ⦦

ᆙ

www.hiti.com

HiTi Digital, Inc.

HiTi CS-200e user manual

CONTENTS

PREFACE

Announcements

Chapter 1. Getting ready

1.1 Checking box contents

1.2 Appearance of the printer and key functions

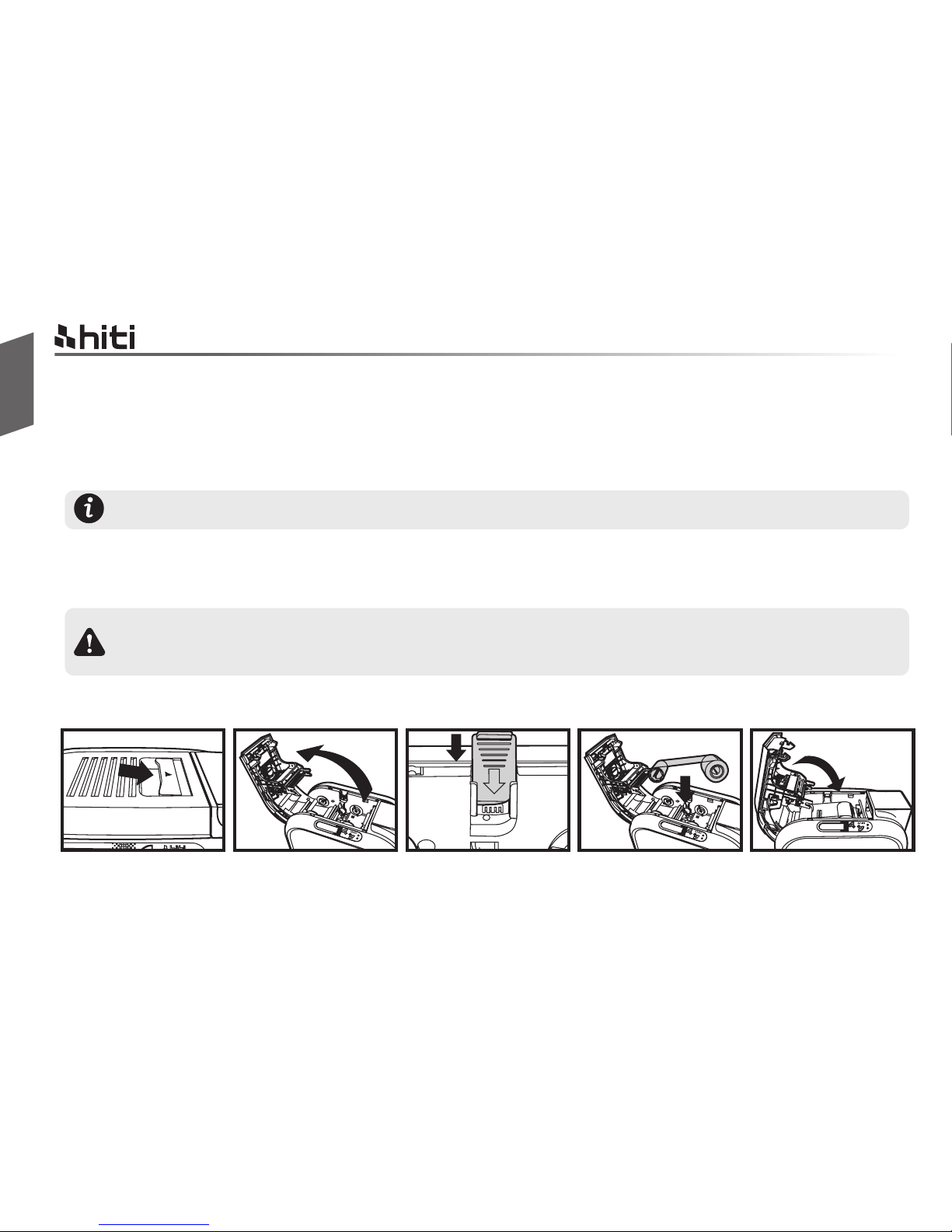

1.3 Installation

1.3.1 Ribbon Installing

1.3.2 Printer Connecting (Power & USB)

1.3.3 Card Placing

Chapter 2. Start Printing

2.1 Printer driver installation

2.2 Print settings

Chapter 3. Printer maintenance

3.1 General warranty information notice announcement

3.2 Routine / Regular printer cleaning

3.2.1 Using cleaning card

3.2.2 Using dust arrester

3.2.3 Cleaning TPH (Thermal Print Head)

Chapter 4. Help diagnosis

4.1 Warnings / Error messages and diagnosis

4.1.1 LCM control panel

4.1.2 Control panel warning messages

4.2 Identify installed driver software version

4.3 Troubleshooting

4.3.1 Printing problems

4.3.2 Releasing from card jams

4.4 Technical support

Appendix A: Technical Specifications

English

HiTi CS-200e user manual

Trademarks acknowledgement

HiTi CS Card Printer is a trademark of HiTi Digital Inc. product. All other trademarks belong to their

respective holders.

Warranty

Refer to the warranty card supplied with your card printer package box for warranty terms, conditions

and limitations.

English

Users must comply with the copyright regulations applicable in their own country. This manual must not be

reproduced, translated, photocopied, transmitted or any kind to be duplicated in whole or in part, for any

reasons and by any electronic or mechanical means whatsoever without the express a written consent of the

HiTi Digital Inc.

All the information contained in this document is subject to changed without prior notice.

HiTi Digital Inc. cannot be held liable for any errors that may be found in this manual, or for any loss or

damage arising accidentally or as a result of dissemination or use of this manual.

HiTi CS-200e user manual

Knowing your new printer

Warranty Registration

Please do take time to register online at www.hiti.com and you will be rewarded with a special offer after

registration is completed.

Assistant Icons

The following assistant icons will show up in this guide to indicate important information to be noticed.

We thank you for choosing HiTi CS card printer, the beginning of our long term successful association with

you together. With HiTi CS card printer, you will be able to enjoy easy operating, high quality plastic cards

printing conveniently for personalized ID card, credit cards, membership cards and badges from various

level of thickness and color style. Please ensure HiTi CS card printer to use the original consumables from

HiTi Digital Inc. For more details, visit our website at www.hiti.com .

Getting ready to start

The main purpose of this user guide is to guide you to set up your printer step by step. Please take time

to read through this carefully and complete the installation before start operating. This will save you time

during installation and use, help you to understand more about this printer and its features. Should you

discover any errors in this guide, please do help us by emailing us at [email protected] .

English

Special warning notice More in-depth information notice

HiTi CS-200e user manual

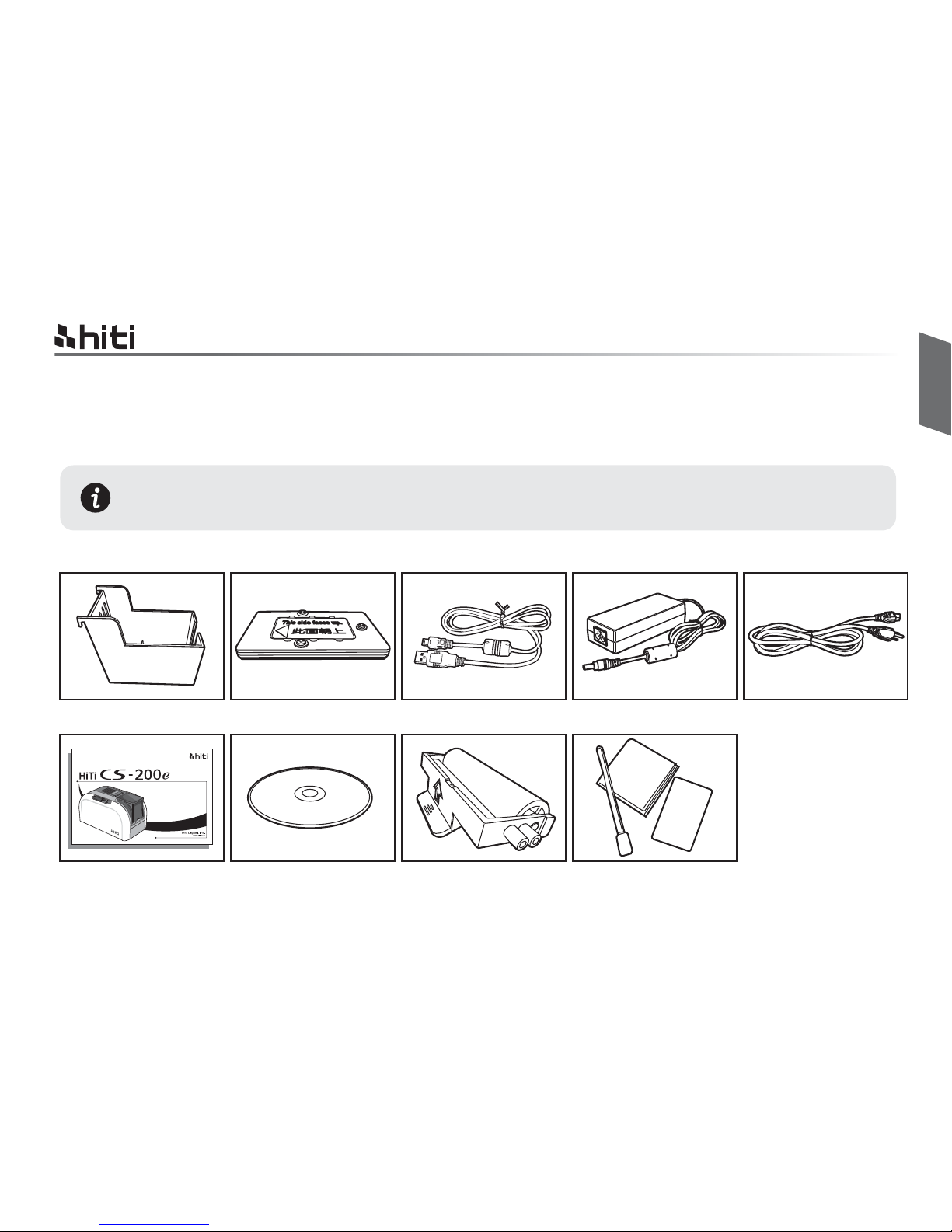

1.1 Checking box contents

Accessories provide with your HiTi CS card printer:

Chapter1. Getting ready

HiTi CS card printer is supplied with several accessories and please do take time to check it closely.

The accessories contents list may vary depending from your region/location.

Card output hopper Weight module USB cable Power adaptor Power cord

user manual Master CD Dust arrester

with cleaning roller

Cleaning kit

English

If any of below item is missing, please contact your nearest HiTi customer support facility of

your local HiTi CS card printer distributor.

user manual

HiTi CS-200e user manual

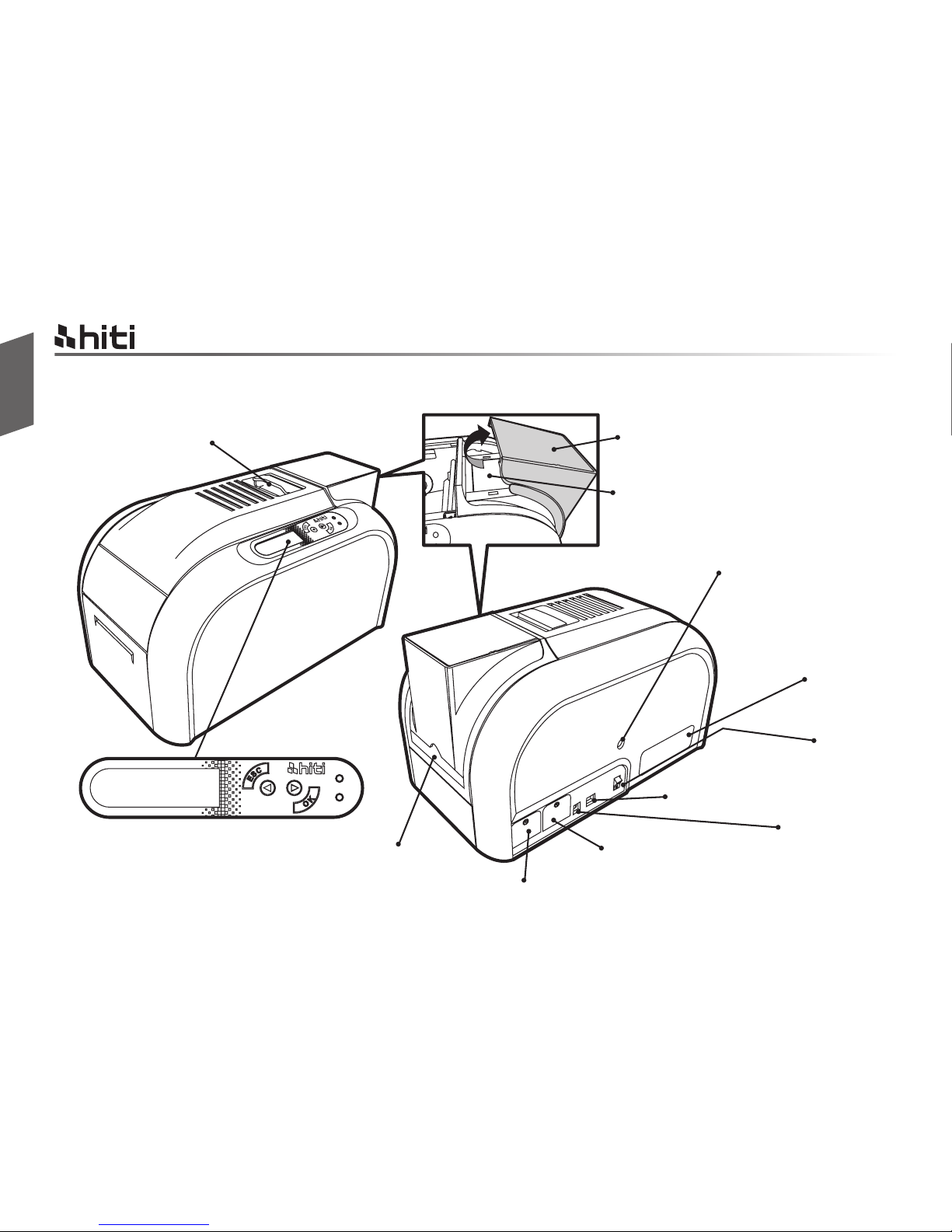

1.2 Appearance of the printer and key functions

Top cover opening button

LCM control panel

Input card cover

Input card feeder (100cards)

Spec. label

Manual releasing card

jam screw socket

(flathead screwdriver)

Smart IC encoding expansion socket (Optional)

Manual card feed

input location

Ethernet expansion socket (Optional)

Power socket

USB cable connection socket

ON / OFF

hard power switch button

English

HiTi CS-200e user manual

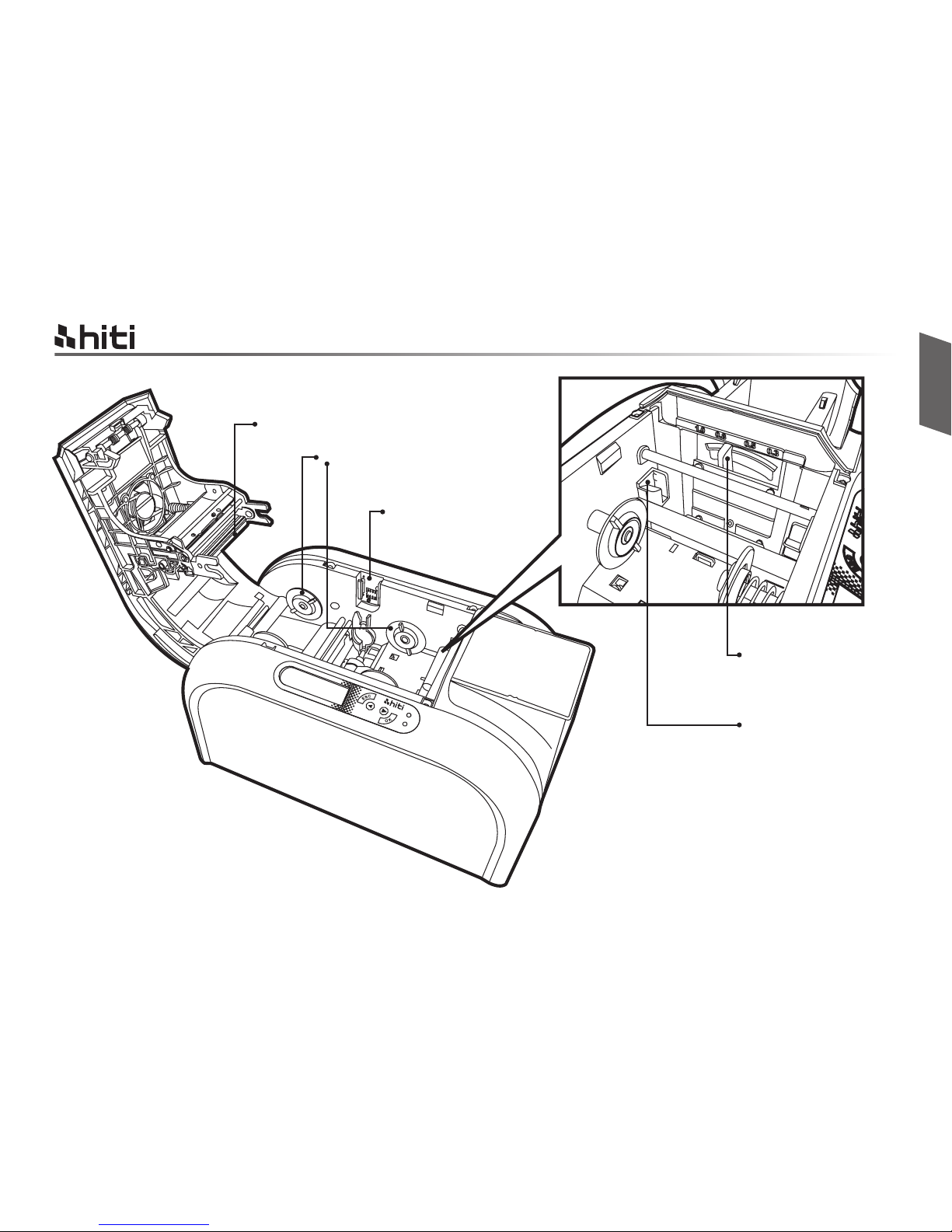

English

Thermal print head

Ribbon ID key socket

Card thickness adjustor

Dust arrester socket

Ribbon spool fitting position

(color coded)

HiTi CS-200e user manual

1.3 Installation

1.3.1 Ribbon Installing

a. Open the top cover.

b. Place the ribbon ID key into ID key socket.

c. Insert the ribbon as shown.

abcd

d. Close the top cover slowly and press until a click sound is heard.

Using the original HiTi CS Card Printer Ribbon consumables will optimize your printer’s performance and

avoid causing damages to it. Use of non HiTi original consumables will void the manufacturer’s warranty

policy for the printer.

English

Please ensure your ribbon format is corresponded to installed ribbon ID key’s label.

Please make sure your ribbon film is facing top side during installation and also ensure the color

of ribbon spool/core is matching to the ribbon adapter/holder.

To optimize printing quality, please engage in printer cleaning every time when the ribbon is changed.

HiTi CS-200e user manual

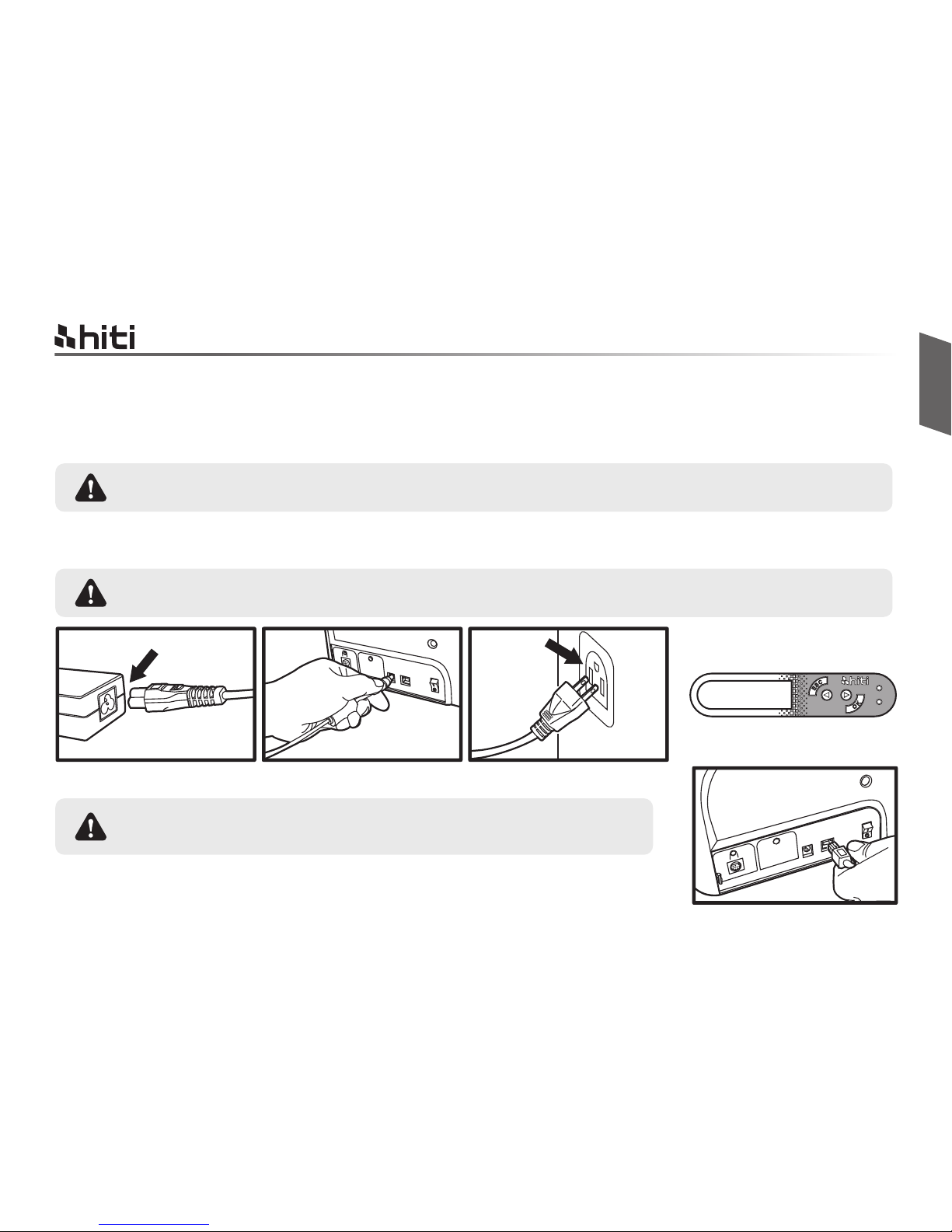

1.3.2 Printer Connecting (Power & USB)

Power

USB

a. Connect power cable to power adaptor, then plug the power connector to printer’s power socket

b. Plug the power plug to an earthed power socket

c. Switch ON from the ON/OFF button to power up the printer, then the LCM control panel should light up

and display “ready” message which indicates the printer is under working condition.

Refer to the print driver installation section of this user guide for more details,

and follow the instruction carefully.

English

Please make sure the power plug is connected into a properly protected and earthed

electrical source.

Please make sure the print driver software is fully installed before

connecting the USB cable to your printer device.

For your own safety, please make sure the power cable is always unplugged before attempting

any service maintenance work.

ab cd

READY

HiTi CS-200e user manual

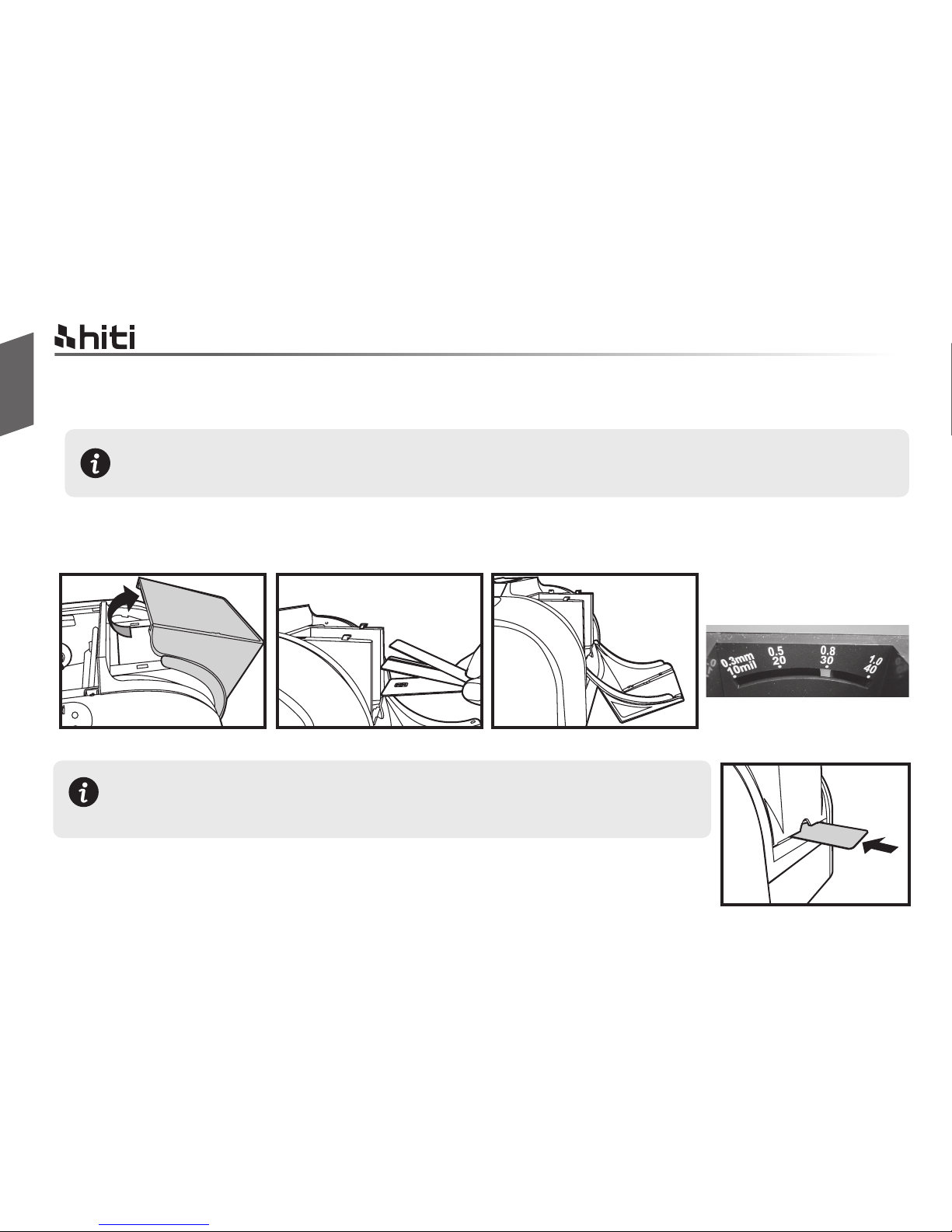

1.3.3 Card Placing

Loading (Automatic)

Loading (Manual queue jump)

a. Open input card cover.

b. Place the cards into input card feeder with positioned shown in the diagram.

c. Close the input card feed cover.

a. Insert card manually with location and positioned shown in the diagram.

b. Start printing or encoding command from PC.

English

For optimum printing quality, please ensure all cards are CR-80 standard with ISO 7810 certified.

Please do not touch the printable surface and not to use any dusty, damaged, folded or embossed

cards in your printer.

This feature is designed when a single manually queue jump in printing or

encoding job is required during fully loaded cards are positioned in input

card feeder.

Weight module is required for manual loading.

abc

Card thickness adjustor

Push
