Hitachi AJ-S55KXP User manual

USER MANUAL

使用說明書

HITACHI FULLY AUTOMATIC WASHING MACHINE

日立全自動洗衣機

Model AJ-S55KXP/AJ-S55KX

Thank you for your purchase of HITACHI

Fully Automatic Washing Machine.

●Please read this manual carefully for proper

operation.

●Please keep this manual for future reference.

承蒙您選購日立的全自動洗衣機，謹此致衷心謝意。

●請細閱本說明書，以便正確使用本洗衣機。

●閱讀完畢，請妥善保存本說明書，以備將來查閱。

CONTENTS

Preface 前言 ......................................................................................................................... 3

Safety Precautions 安全方面的注意事項 .............................................................................. 4

Installation Guide 安裝指南 .................................................................................................. 7

Installation 安裝 .................................................................................................................. 13

Safety Check

安全檢查 ......................................................................................................... 14

Washing Machine Repair

洗衣機修理事宜............................................................................. 14

Technical Description 各部件名稱 ...................................................................................... 15

Control Panel (AJ-S55KXP) 控制面板 (AJ-S55KXP).......................................................... 16

Before Using Your Machine 開始洗衣前............................................................................ 19

Checking Amount of Laundry and Detergent (Approximately Amount)

檢測洗衣量和洗衣粉量(大致用量) ........................................................................................ 20

How to Use Liquid Detergent, Bleach and Fabric Softener

洗衣粉、漂白劑、柔軟劑的使用方法 ................................................................................... 21

Amount of Laundry and Detergent 洗衣量和洗衣粉量........................................................ 23

Selection of Laundry Process 洗衣程序的選擇方法 ........................................................... 24

Content of the Washing Process 洗衣程序的內容 ............................................................. 26

Process Description 各程序的說明 ..................................................................................... 27

Using the PRESET for Washing 預校時間洗衣 .................................................................. 31

Using the Detergent Again 再次使用洗衣液 ....................................................................... 32

Using the Washing Cap 使用洗衣蓋 ................................................................................... 33

AIR JET Process 風乾程序 ................................................................................................. 35

Wash in Your Favorite Way 按照您喜歡的方式進行洗衣.................................................... 38

Maintenance of Washing Basket (TUB DRY •TUB CLEAN) 洗衣槽的保養（筒風乾 •筒清洗）............................

Use Guidelines 使用中的注意事項 ..................................................................................... 41

Maintenance and Repair 維護保養方法 .............................................................................. 42

When Failure Happens 有故障發生時 ................................................................................ 46

Optional Parts 另售部件 ..................................................................................................... 52

Product Specifications 產品規格.......................................................................................... 52

Preface

前言

Air jet 空氣噴射乾燥

Infiltration washing 滲透清洗

Infiltrate the detergent inside the cloth to detach the dirt off the cloth fiber.

使洗衣粉滲入到衣料內部，使污垢從布料纖維上脫落。

The detergent dissolves sufficiently to become the high-concentration detergent that washes the

laundry in infiltration mode for easier detachment of dirt off the cloth fiber.

洗衣粉充分溶解，形成高濃度洗衣液，對衣物進行滲透清洗，使污垢更易從布料纖維上分離。

The number next to the sign is the page number for detailed description.

後面的數字表示具體說明的頁數。

※Please use concentrated powder detergent to wash.

請使用濃縮合成粉末洗衣粉進行洗衣。

The infiltration washing can't be performed to the processes of "WOOL", "BLANKET" and "TUB CLEAN". (Because of no

detergent dissolution course in these processes)

『毛絨』、『被毯』、『筒清洗』程序不能進行滲透清洗。 (因為沒有溶解洗衣粉的過程)

It's an economic mode of drying without heating.

無需進行加熱的節能乾燥方式。

●May be used to dry the heat-irresistible swimsuit or the underwear containing the amino heat-insulation materials.

可乾燥不耐熱的泳衣或含氨基隔熱材料的內衣。

●Keep room free of mugginess for causing no temperature rise.

由於溫度不上升，房間不會悶熱。

●Control the black mildew.

抑制洗衣槽的黑色霉菌。

※The drying capacity can be as high as 1.5kg.

乾燥容量可達1.5kg。

※The duration is irrelevant to the dryness level for applying the preset mode of drying.

採用定時乾燥方式，結束時間與乾燥程度無關。

Please read "USER MANUAL" carefully for proper operation.( 35)

請仔細閱讀“使用說明書”，以便您能正確使用。( 35)

Make the detergent

dissolves fast by

rotating the spinning

basket.

通過脫水桶旋轉加速

洗滌劑溶解

※The laundry rearrangement may be out of service in the case that the washing capacity is less than 1kg

or more than 4kg.

洗衣量不足 1kg或超過 4kg時，有可能無法進行理衣程序。

※The laundry rearrangement doesn't perform in the case of manual setup of "RINSE", "SPIN" or "SPIN

ONLY".

手動設定“沖洗”、“脫水”或“只脫水”等時，不進行理衣程序。

Laundry rearrangement and spinning 理衣脫水

Loosen the post-spinning laundry for easy taking out. 疏鬆脫水後的衣物，使之易於取出。

Put detergent in, adding some water

加入洗衣粉，供給少量水

The detergent put in at the

injection opening will fall below the

pulsator.

從注入口加入的洗衣粉將落在攪拌翼下

方，并注入少量水。

4123

Detergent injection

opening

洗衣粉注入口

Outer basket

外槽 Pulsator

攪拌翼

Stainless-steel basket

不銹鋼槽

The detergent dissolves

inside the cloth

溶解洗衣粉使其滲入衣物

The concentrated detergent

dissolves with the power agitating

of pulsator, and infiltrates

sufficiently inside the cloth.

濃縮洗衣粉在攪拌翼強力攪拌下溶

解，充分滲透到衣物內部。

THREE-STEP washing

三步洗衣

Inject a little water, and the dirt will

detach with the high-concentration

detergent; inject more water to the

normal water level for washing.

加入少量水，污垢在高濃度洗衣液

下脫落，再加水到通常水位處進行

洗衣。

To prevent electricity leak which may cause injuries.

避免因漏電故障引起傷害。



Otherwise, electricity leak causing electric shock or fire may occur.

避免觸電或因漏電而引發火災事故。

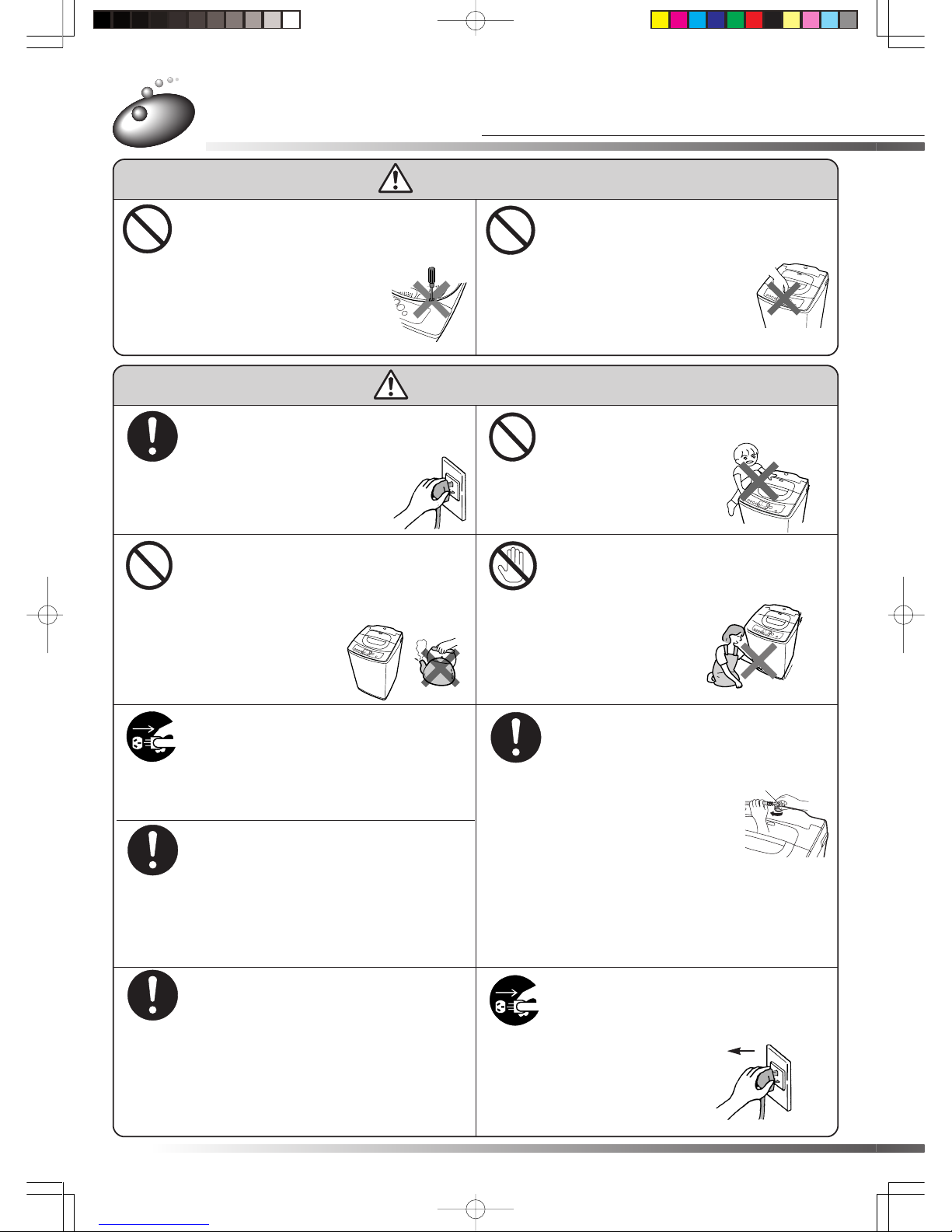

Safety Precautions

安全方面的注意事項

Please read this part of substance carefully for proper operation before using your machine.

使用之前，請仔細閱讀這部分的內容，以便正確使用。

★The precautions stated here are classified as "Warning" and "Attention" according to the damage and the emergency

caused by misoperation, and are described respectively in line with the marks below

這裏所說的注意事項根據誤操作而引起的傷害大小以及緊迫程度，分為“警告”和“注意”兩種，並且按照以下標識進

行區分說明

With no respect to this mark, the misoperation may cause death or GBH.

表示如果無視此標記，誤操作後，可能引起死亡或重傷事故。

With no respect to this mark, the misoperation may cause body harm or object damage.

表示如果無視此標記，誤操作後，可能引起人身傷害或物體損壞事故。

警告

This mark indicates the content of warning or attention.

表示敦促警告及需要注意的內容。

This mark indicates the prohibited action.

表示禁止行為。

This mark indicates the compulsory action to be carried out.

表示必須執行的強制行為。

Graphic mark

圖形例子

Dismantle, repair or alterations should

only carried out by professional

technicians.

除指定的專業維修人員外，應絕對禁止他

人拆卸、修理或改裝洗衣機。

Avoid electric shock, fire, and body injury due to

improper activity.

避免因不恰當行為而導致觸電、火災及入身傷害。

This washing machine is equipped

with the electricity wire with bi-

electrode grounding plug, please use

the bi-electrode grounding socket.

The creepage protector shall be used

if possible.

本品採用二極接地插頭電源線，請使用二

極接地電源插座。可能的話，最好使用漏

電保護器。

Electricity supply must be unplugged

with dry hands.

嚴禁使用濕手插拔電源插頭。

Otherwise, this may cause electric shock.

否則可能導致觸電事故。

Please use the single socket with

220V, 10A specification.

請單獨使用額定值為交流 220V 、10A

以上容量的電源插座。

The share of the same socket with

other electric appliances may cause

fire due to excessive heat.

若與其他電器設備共用同一插座，

可能因異常發熱而導致火災事故。

Washing machine should not be

installed in humid place or in places

exposed to wind and rain.

請勿將洗衣機安裝在潮濕或容易受到風吹

雨淋的地方。

Do not put water in direct contact with

the unit during maintenance and repair.

進行保養時，請勿直接將水淋灑在洗衣機的

各個部位。

This may cause short circuit or electric shock.

否則可能造成短路而導致觸電事故。

禁止拆卸

Dismantling

Prohibited

接地連接

Grounding

禁止濕手觸摸

Wet hands

Prohibited

Power

電源

禁止潮濕地方

Humid places

prohibited

Prohibited

禁止

警告

Warning

警告

Attention

注意

警告

Warning 警告

Do not damage or alter the wire

forcibly bend, pull, twist or handle

the wire. Beside, please do not

put weight on or trap the wire.

請勿隨意進行改裝、強行彎曲、拉

伸、扭曲及捆扎電源線。此外，亦請

勿將重物壓在其上或夾於其中。

禁止

Prohibited

禁止

Prohibited

清掃

Clear

Do not put your hand into the basket

until it has stopped completely.

在脫水槽完全停止轉動前，嚴禁將手伸進

槽內拿取衣物。

Even when the spinning of the basket

is slow, there is still a danger of being

caught in the motion, resulting injuries.

Particular attention should be paid

when children are around.

即使旋轉緩慢，手部仍有被衣物纏繞

的危險。兒童尤需注意。

Damaged or loosen wire or plug

should not be used.

嚴禁使用已損壞的電源線、插頭或鬆動

的插座。

Keep child away from the washing •

spinning basket and do not place box

or shelves next to the washing machine.

嚴禁讓兒童探看洗衣•脫水槽。也請勿在

洗衣機旁放置台架等物品。

Children may fall into the

basket resulting in injuries.

兒童可能因掉入洗衣•脫水槽

中造成人身傷害。

Otherwise electric shock, short circuit or fire may take place.

否則可能導致觸電、短路或起火。

Do not put your hands into the

washing •spinning basket during the

washing and rinsing process.

洗衣和沖洗過程中，嚴禁將手伸入洗衣•

脫水槽內。

Even when the spinning is slow, hands may be trapped by

clothes. If necessarily, please press pause button, and put

your hands into the basket after it has stopped completely.

即使旋轉緩慢，手部仍有被衣物纏繞的危險。(若必須將手伸

入槽內時，請按下暫停按鈕，待洗衣•脫水槽完全停止旋轉後

再伸入槽內)。

Do not damage wire.

嚴禁損壞電源線。

Damage of wire may cause electric shock or fire.

若電源線遭受損傷，可能導致觸電或火災。

Thoroughly wipe the power plug

when dirt is adhering the prong or

around the base of the prong.

電源插頭的插片以及插片的夾緊面上，若

有塵垢附著時，請擦拭乾淨後再使用。

Failure to do so may cause a fire.

可能會引起火災。

To prevent fire or explosion which may cause injuries.

否則可能引發爆炸或火災事故。

Do not put gasoline, benzine,

alcohol, thinner of fabrics with

these stains into or near to the

washing machine.

請勿將汽油、香蕉水、酒精、燒鹼或

沾有上述液體的衣物放入槽內或靠近

洗衣機。

禁止

Prohibited

禁止

Prohibited

禁止

Prohibited

禁止

Prohibited

This washing machine is strictly

prohibited to get close to the

locations with candle, mosquito-

repellent incense, dog-end or other

kinds of open flame.

本洗衣機嚴禁靠近蜡燭、

蚊香或煙頭等有明火的場

所。

禁止煙火

No smoke or fire

To avoid injuries caused by the lock damage.

避免因机構損壞而招致意想不到的傷害。

警告

Warning 警告

警告

Attention 注意

警告

Warning 警告

Do not open the lid in locked status by force.

嚴禁強行打開處於鎖定狀態的機蓋。



Otherwise, the lid or locking device

may be damaged, resulting in

unstoppable spinning of washing •

spinning basket and thus causing

injuries.

否則將會損壞機蓋或鎖緊裝置，導致

洗衣•脫水

槽

無法停止旋轉，造成人

身傷害。

Safety Precautions (continued)

安全方面的注意事項（續）

Do not pull the wire from the

socket when unplugging the unit.

拔掉電源插頭時，切勿拉扯電源線，

必須拿住插頭本體向外拉。

To avoid electric shock or fire cause by short

ciruit may result.

避免觸電或因短路導致火災事故。

Do not connect to the hot water supply.

And, water of above 50oC should not be

used for washing.

請勿連接至熱水管，並且用溫水進行洗滌

時，水溫嚴禁超過 50 oC。

Electric shock or leakage may occur

due to deformation of plastic parts of

the unit.

可能因塑料部件的變形受損而導致觸

電或漏電事故。

Please unplug the unit when not using

the unit for a long period of time.

不使用洗衣機時，必須將電源插頭拔出。

Electric shock or leakage due to aging of insulator may

cause fire.

可能因絕緣老化而引發觸電、漏電或火災事故。

Water supply hose should be tightly

screwed to the unit.

供水管連接機體的螺母必須擰緊。

Failure to do so may result in water leakage.

可能導致漏水。

Used for a long period of time, the unit may

result in water leakage caused by loosen

union nut. So please check it in time and

screw tightly again.

長期使用後，可能會因連接螺母鬆動造成漏

水而遭受不必要的損失。因而請務必定期檢

查並重新擰緊巳鬆動的螺母。

Check water supply hose connection

by turning on the water before

washing.

開始洗衣前，請先打開水龍頭，檢查供水

管的連接狀況。

To prevent damages caused by possible water leakage due

to loosen screw.

如果螺釘鬆脫，會因漏水而招致不必要的損失。

Do not stand on or put weight on the

top of the unit.

請勿站立在洗衣機上，或

者在其上放置重物。

Otherwise, deformation and damage

may result causing injuries.

可能因變形或損壞而造成人身傷害。

Ports in motion beneath the

unit may cause injuries.

旋轉部件可能會引起人身傷

害。

Keep hands and feet away from the

bottom of the washing when it is motion.

運轉過程中，請勿將手或腳伸至洗衣機的

下部。

Electricity supply must be unplugged

with dry hands during maintenance

and repair.

維修保養時，請務必將電源插頭從插座拔

出。

Otherwise, electric leakage causing

injuries may occur.

避免因漏電而招致傷害。

Do not insert a screwdriver into the Lid

Lock hold.

嚴禁用螺絲刀插入洗衣機機蓋緊鎖裝置部位的孔

內。

To avoid injuries caused by the lock damage.

避免因裝置損壞而招致意想不到的傷害。

When installing the washing machine,

be sure to hang the water drainage hose.

安裝洗衣機時，請務必將排水管挂起。

•If water drainage hose is not hung up, the remained water

inside will flow out and result in unnecessary loss.

如果排水管沒有挂起，殘留在內部的水會流出，從而造成不

必要的損失。

禁止

Prohibited

禁止

Prohibited

漏水

water

leakage

禁止

Prohibited

漏水

water

leakage

Union nut

連接螺母

禁止

Prohibited

禁止

Prohibited

禁止

Prohibited

漏水

water

leakage

( )

Installation of Washing Machine 洗衣機的安裝

Solid, horizontal surface

堅硬、平坦的地面

Weak surface

柔軟的地面

Irregular surface

凹凸的地面

Do not incline installing the washing cap. Do not use the washing cap except WOOL

process, BLANKET process.

嚴禁傾斜安裝洗衣蓋，並絕對禁止在『毛絨』、『被毯』程序以外使用洗衣蓋。

禁止

Prohibited



Splash of water may occur or washing cap may be swung out of the basket.

可能會因水滴飛濺或洗衣蓋彈飛出造成洗衣機受損或人身傷害事故。

AJ-S55KX

AJ-S55KXP

Please install on a solid horizontal

surface.

請安放在堅硬、平坦的地面上。

Installation on a slippy or irregular surface

may result in noise and shaking.

安放在易於滑動、柔軟的地面上，會容易產

生振動和噪音。

The unit should be installed on a flat horizontal surface.

請水平安裝洗衣機。

Otherwise sudden stop or abnormal sound may result during the spinning cycle.

若安裝得不水平，會導致脫水時停機或產生異常聲音。

Avoid installing the unit too close to the

wall.

請勿靠近牆壁安放。

This is to prevent abnormal vibration and noise.

以防止異常振動和噪音。

Where to install 安裝地方

How to install 安裝方法

Installation Guide

安裝指南

Do not wash, rinse and spin the water

proof fabric or cloth.

請勿洗滌防水性的苫布或衣物。

sleeping bag, raincoat, cover of skiing, utilities,

bicycles, cars and motors

睡袋、雨衣、滑雪用具以及自行車、轎車、摩托車

的車罩等。

禁止

Prohibited



Otherwise may lead to injury by abnormal vibration during spinning

or damage the washing machine, wall, floor and clothes.

可能在脫水時產生異常振動而引起人身傷害，或者導致洗衣機、牆

壁、地板以及衣物的損壞。

警告

Attention 注意

Please turn off the water tap when not

using the unit.

不使用洗衣機時，必須關閉水龍頭。

To prevent damages caused by water

leakage.

以防產生漏水。

漏水

water

leakage

Spinning hole

脫水孔

How to Use the Adjustable Leg 可調機腳的使用

1Loosen the lock nut by unscrewing in

arrow direction 1before using the

adjustable leg to stabilize unit.

將鎖緊螺母沿箭咀方向 1旋鬆，再旋轉可

調機腳調整機身的平穩。

2After adjusting of the unit, tighten

the lock nut by screwing it in arrow

direction.

調整完畢後，將鎖緊螺母沿箭咀方向 2

旋緊。

Lowering

調低時

Loosening

旋鬆

Lock nut

鎖緊螺母

Adjustable leg

可調機腳

Elevating

調高時

Maximum adjust able

range is 40mm.

調節範圍在40mm以內。

Tightening

旋緊

Lock nut

鎖緊螺母

Plastic base

塑料底盤 Tighten the lock nut until it reaches the plastic base.

鎖緊螺母應擰至塑料底盤為止。

At most 40mm

40mm以下

Put some water into the washing barrel and reconfirm its

horizontality.

在洗衣槽內放些水，請再一次確認其水平度。

The ground is level if all front, rear, left and right height difference between

the spinning hole and water surface are less than 3mm.

脫水孔相對於水面的高度差(B與C的差)，如果前後左右均在3mm以內，就

表示地面是水平的。

Installation Guide (continued)

安裝指南（續）

Installation of Washing Machine 洗衣機的安裝

1Adjust the instability of the washing

machine with adjustable leg.

用可調機腳來調整洗衣機的不平穩。 2Please make sure of the horizontality of the

washing machine.

請確認機體的水平度。

As shown in the figure, the horizontality can be easily

observed by the string used to hang an object.

如圖所示，用懸掛重物的細繩來觀察，即可輕易確認其

水平度。

Fixed leg

固定腳 Adjustable leg

可調機腳

Inspection of trial run 試運轉的檢查

■To install the machine on an inclined floor, leg caps in the attached accessory kit can be used to adjust height by

connecting them to the fixed leg.

安裝在傾斜的地面上時，請將附有的腳套套在固定腳上進行調整。

※Confirming the machine type of AJ-S55KXP, please install the water drninage hose and hang it on, otherwise there

will be no water in washing basket.

AJ-S55KXP 机型確認時，請先安裝排水管並將其挂起，否則洗衣槽內無法盛水。

排水管的安裝及固定方法。 9

It is level if the

clearance between A

and machine body is

the same with that

between Aand the

machine body.

A和A兩點與機體

之間的間隙相同，

即表示水平。

string

細繩

object

重物

(front or

profile)

（正面或

側面）

※This discharge pipe installs the method to be only suitable in AJ-S55KXP.

此排水管安裝方法只適用于 AJ-S55KXP 。

Water drainage joint

排水管接頭

•To avoid direct draining due to the fallen water drainage hose, the water

drainage hose must be used only after installing into fixing holder, and its

hanging height should not exceed 1m.

為了避免排水管掉落造成直接排水，請務必將排水管嵌入固定架後再進行使

用，且排水管的掛靠高度不應超過 1 米。

•Do not release the water drainage hose lest the water is splashed.

請勿將排水管放倒，以免水洒落。

•Do not use extended water drainage hose.

請勿使用延長排水管。

•Do not immerse the U-shaped hose on the tail of the water drainage hose

in the water.

請勿將排水管尾部的 U型管浸沒在水中。

•When using it in winter, to prevent icing, please release the water

drainage hose after using and place the its tail in water container such as

basin, set the washer to single dehydration mode and drain the remained

water. 44

在冬季使用時，為防止結冰，使用結束後，請將排水管放倒，並將其尾部放

入水盆等盛水容器，設定洗衣機為單脫水，將殘留的水排乾。 44

•

Be sure not to install the water drainage hose at a position lower than water

drainage joint, otherwise, it could lead to difficulties in water drainage.

排水管安裝時，請勿低於排水接頭，如低於排水接頭可能會導致排水不暢。

How to Install the Water Drainage Hose

排水管的安裝方法（AJ-S55KXP）

Attention 注意

•Fully insert it into place to avoid leakage.

應切實地插入到位，以免漏水。

Water drainage hose

排水管

2After the connection is completed, please

use hose clipper to clamp the water

drainage hose to avoid fall-off.

連接完成後，請用軟管夾子將排水管夾住以防

止掉落。

1Connect the water drainage hose with the

water drainage joint on the back of the

body.

將排水管連接到机體背後的排水接頭上。

1Insert the fixing holder of

water drainage hose into

mounting hole.

將排水管的固定架插入安裝

孔。

2As shown in illustration,

rotate the fixed leg for 90

degree into hole.

如圖所示，將固定腳旋轉 90

度旋入孔中。

Pull the water drainage

hose straight, concave

to fix into the fixing

holder of water drainage

hose.

將排水管拉直，使其嵌

入排水管的固定架。

Water drainage hose from the right or (left) side

of the unit.

排水管從右側（或左側）引出。

Concave

嵌入

1Insert

插入

2Rotate

旋轉

Fixing holder

固定架

Unplug U-shaped

hose and insert

into water

drainage hose.

拔出 U型軟管並

插入排水管。

Hose Clipper

軟管夾子

Water drainage hose

排水管

Water drainage hose retainer must be tightened.

排水管固定夾必須夾緊。

The inner section of the water drainage hose must be

secured by the retainer before fetched out.

排水管機內部分必須經固定夾固定後再引出。

Attention

Back 後側

1Remove the right water drainage hose cover

(The cover can be disposed).

將機體右面的排水管蓋拆下（排水管蓋可丟

棄）。

2After pulling out the“Black”mark of the

water drainage hose from the left groove of

the unit , the“Purple”mark of the water

drainage should be inserted into the

corresponding groove of the right unit.

把排水管“黑色”標記部從機體左惻的凹槽內

引出，“紫色”標記部應嵌入機體右側對應的

凹槽內。

3The water drainage hose should be pulled out

through the proper hose retainer when the hose

is pulled out on the right.

排水管從右面引出時，排水管應通過相應的軟

管固定夾後再引出。

※This discharge pipe installs the method to be only suitable in AJ-S55KX .

此排水管轉換方法只適用于 AJ-S55KX 。

Water

drainage hose

排水管

Water

drainage outlet

排水口

Installation Guide (continued)

安裝指南（續）

How to Change the Water Drainage Hose

排水管的轉換方法（AJ-S55KX）

■When fitting the water drainage hose to the

water drainage outlet

排水管插入排水口時

If the water drainage outlet is too shallow

or the end of the water drainage hose

touches the grounds, cut the end of the

water drainage hose in an oblique angle.

排水口較淺或排水管前端與地面碰觸時，可將

排水管的前端沿斜向切除一部分。

Water drainage hose which inserts into the unit, can 't

touch other parts, to prevent the damage caused by

water leakage.

排水管在機體內的部分，不應與其他部件碰觸，以免因

破損產生漏水而導致不必要的損失。

The black or purple mark of the water

drainage hose should be inserted into the

corresponding groove of the unit.

安裝洗衣機時，請務必將排水管的黑色或

紫色標記部嵌入機體相對應的凹槽內。

Failure to do so may cause

insufficient rinsing or unit

malfunction due to poor drainage

or too much subbles during rinsing

and spinning.

若不切除，在沖洗及脫水時，由於

排水狀況的不良，將會引起漂洗不

充分或因肥皂沫而影響電機運轉。

■Water drainage hose is attached on the left side of unit at shipment, nonetheless, it can be

reattached on the right side to suit drainage needs.

產品出廠時，排水管安裝在機身左側，請視排水位置的具體情況將其換至右側。

2Purple mark

紫色標記

Water drainage hose outlet

排水管引出口

3Hose retainer

軟管固定夾

Black mark

黑色標記

Front 前側

The water drain-

age hose pulled

out (right)

排水管引出口（右）

The water drain-

age hose pulled

out (left)

排水管引出口（左）

The water

drainage hose

排水管

Corrugate

paper etc.

硬紙板等

1Lay the unit down slowly.

請將機體慢慢地放倒。

Lay the unit down on some corrugate paper to

prevent damage.

放倒機體時，請在地面上放置一些瓦楞紙纇的

襯墊，以免損傷機身。

2Pull out the water drainage hose from

the right side of the unit.

把排水管從右面引出。

This manual suits for next models

Table of contents

Other Hitachi Washer manuals

Hitachi

Hitachi AJ-S75MXP User manual

Hitachi

Hitachi HWF-800X Specification sheet

Hitachi

Hitachi SF-170ZCV User manual

Hitachi

Hitachi NW-80AS User manual

Hitachi

Hitachi SF-P105JJ User manual

Hitachi

Hitachi AJ-S70WXP User manual

Hitachi

Hitachi AJ-S55GZ User manual

Hitachi

Hitachi SF-120MV User manual

Hitachi

Hitachi BD-100XFVEADM User manual

Hitachi

Hitachi PS-T800BJ TH User manual

Hitachi

Hitachi BW-V80FSP User manual

Hitachi

Hitachi BD-W85SAE Product guide

Hitachi

Hitachi AJ-S60TXP User manual

Hitachi

Hitachi BD-70CVE User manual

Hitachi

Hitachi PS-80JS TH User manual

Hitachi

Hitachi BD-W80PAE Product guide

Hitachi

Hitachi BD-W75AAE Product guide

Hitachi

Hitachi HB-B101 User manual

Hitachi

Hitachi BD-W70MAE Product guide

Hitachi

Hitachi BD-W75SV Product guide

Hitachi

Hitachi SF-140XA Product guide

Hitachi

Hitachi SF-140TE User manual

Hitachi

Hitachi PS-70AP User manual

Hitachi

Hitachi Twin-tub PS-99BSP User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
