Hitachi RAS-DX10HDK User manual

RAS-DX10HDK/RAC-DX10HDK

RAS-DX13HDK/RAC-DX13HDK

RAC-DX10HDK

RAC-DX13HDK

RAS-DX10HDK

RAS-DX13HDK

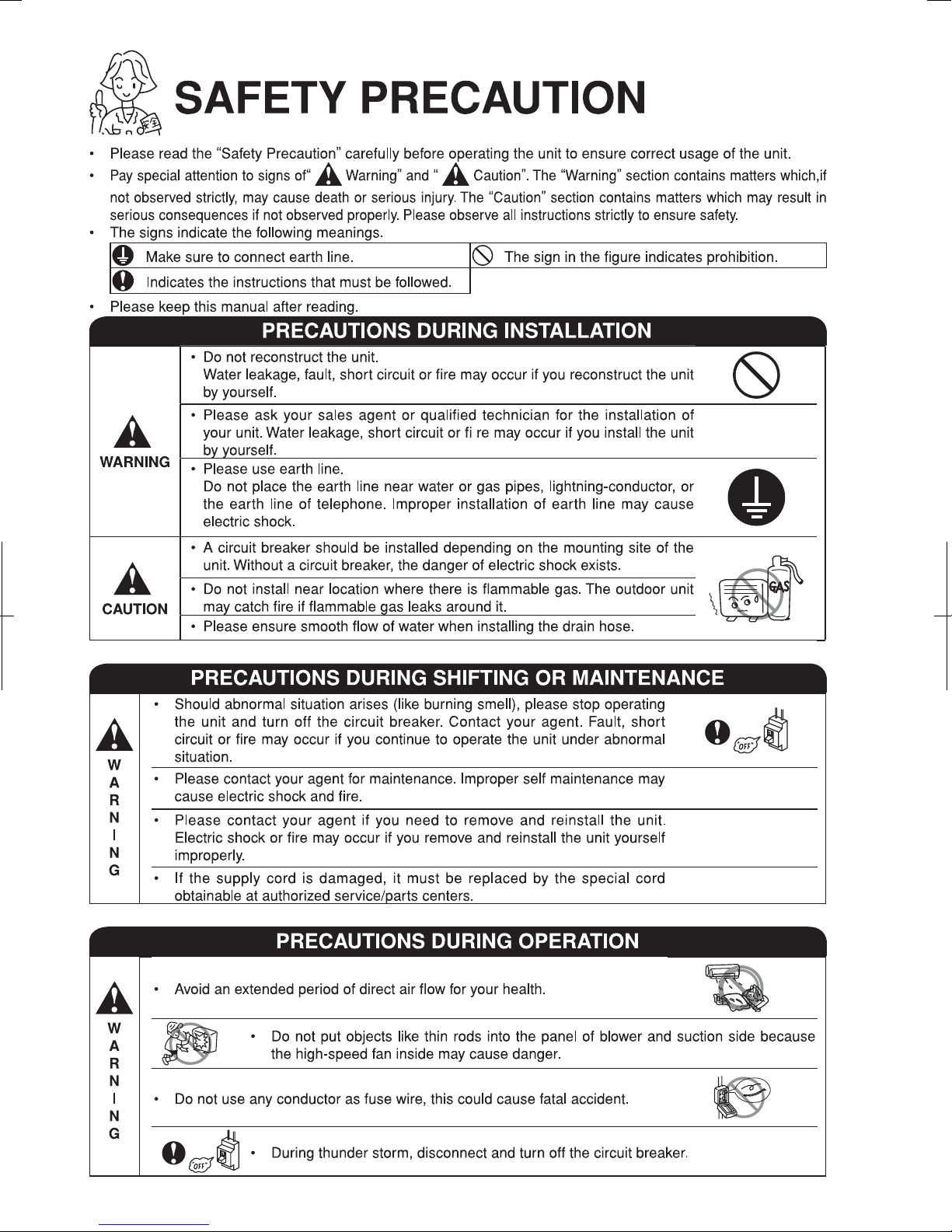

– 2 –

– 3 –

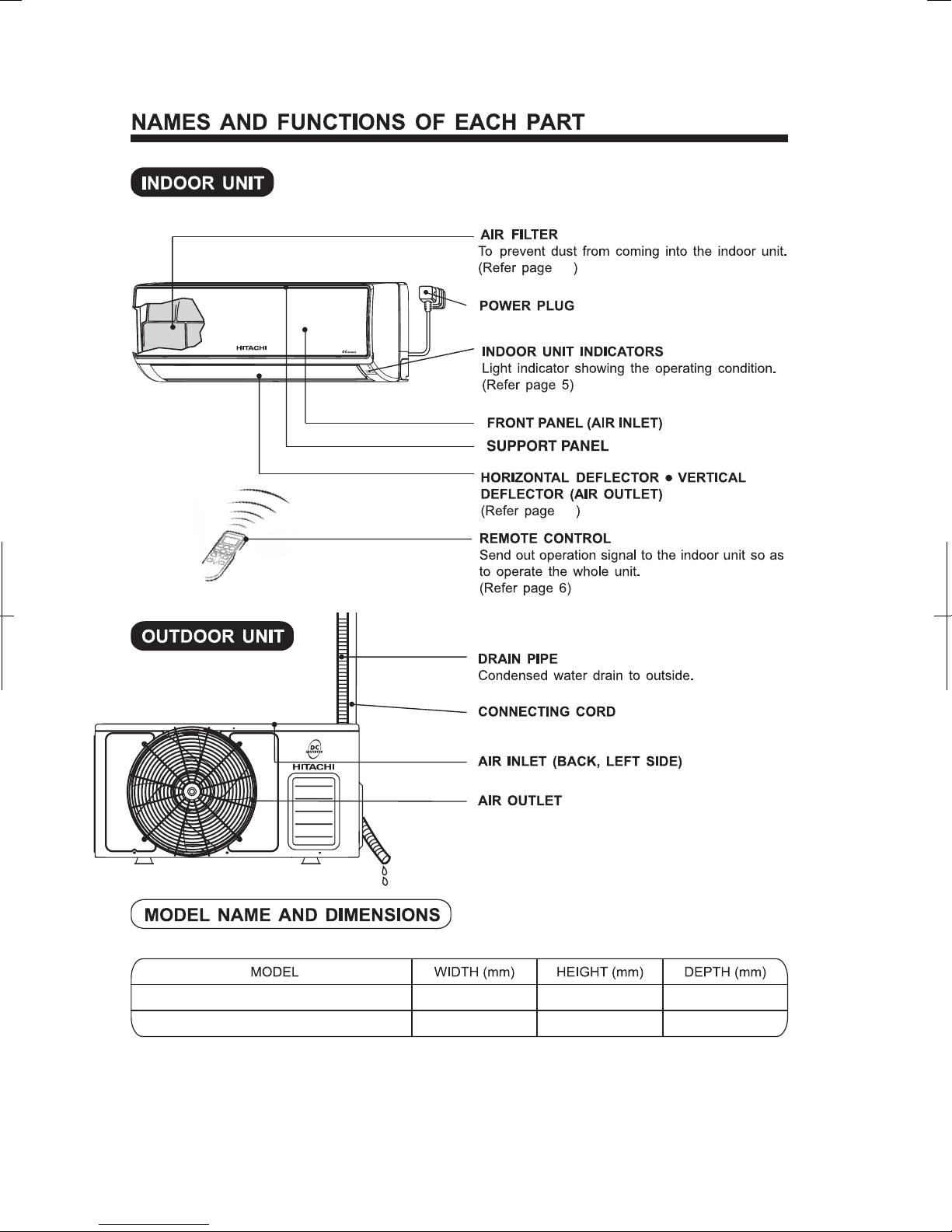

– 4 –

RAS-DX10HDK/RAS-DX13HDK

RAC-DX10HDK/RAC-DX13HDK

780

792

280

420

225

299

9

13

– 5 –

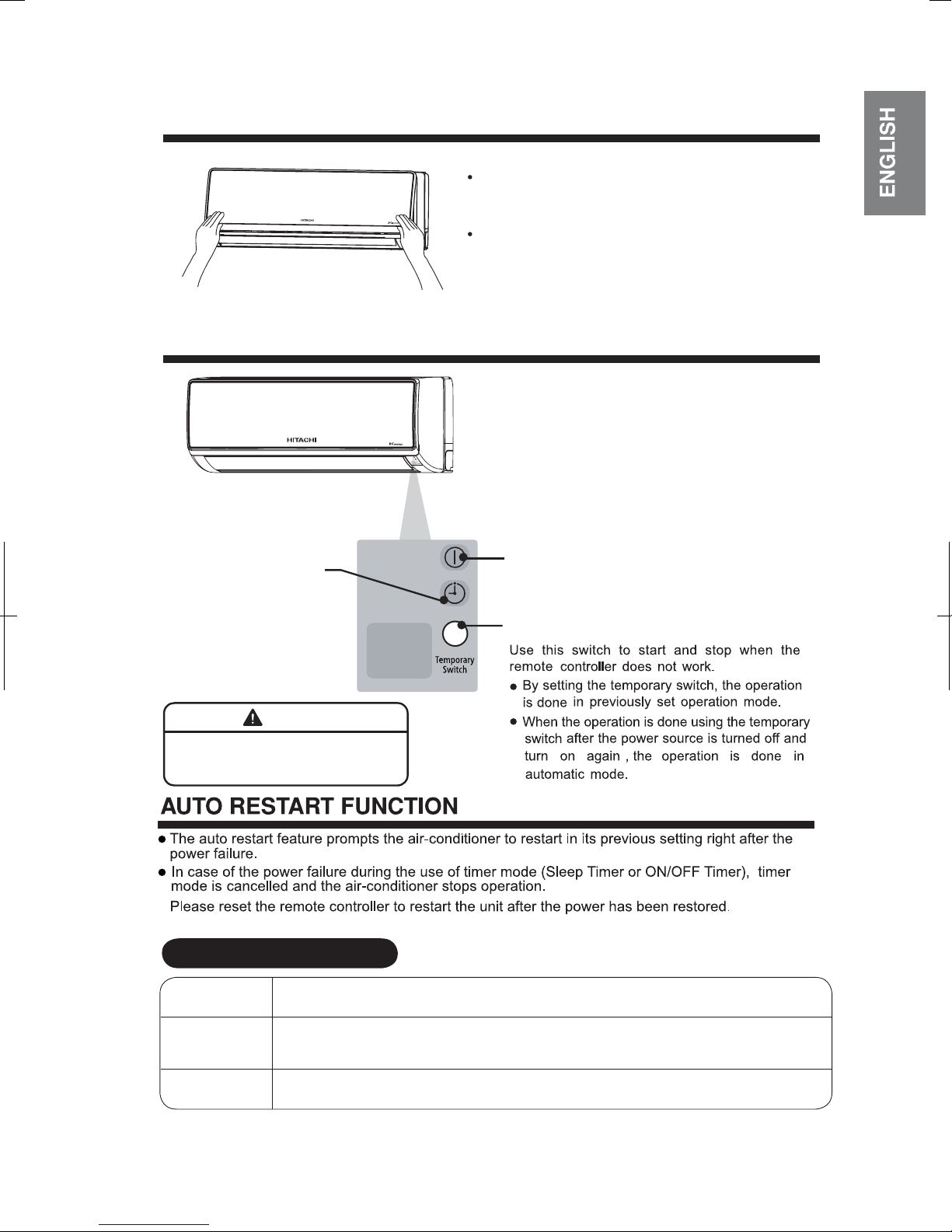

ATTACHING AND REMOVING FRONT PANEL

While gripping both the left and right hand edges

[recessed in the front housing] of the front panel,

lift up to open the front panel.

After completion of job, slightly lift up the front

panel and pull down to close the front panel. Ensure

that the 3 sets of left, centre and right clips are

fully secured.

RECEIVABLE INDICATOR FUNCTIONS

TIMER LAMP (Orange)

This lamp lights when the

timer is working.

OPERATION LAMP (Yellow)

This lamp lights during operation.

TEMPORARY SWITCH

CAUTION

Turn off the circuit breaker or pull out

the power plug if the unit is not be

operated for a long period.



•Performs heating operation when the room temperature is below 23°C.

Set the temperature to be around 23°C.

•Performs dehumidifying operation when the room temperature is 23~27°C.

The preset temperature will be the room temperature at the time of start of air conditioner

operation.

•Performs cooling operation when the room temperature is above 27°C.

Set the temperature to be around 27°C.

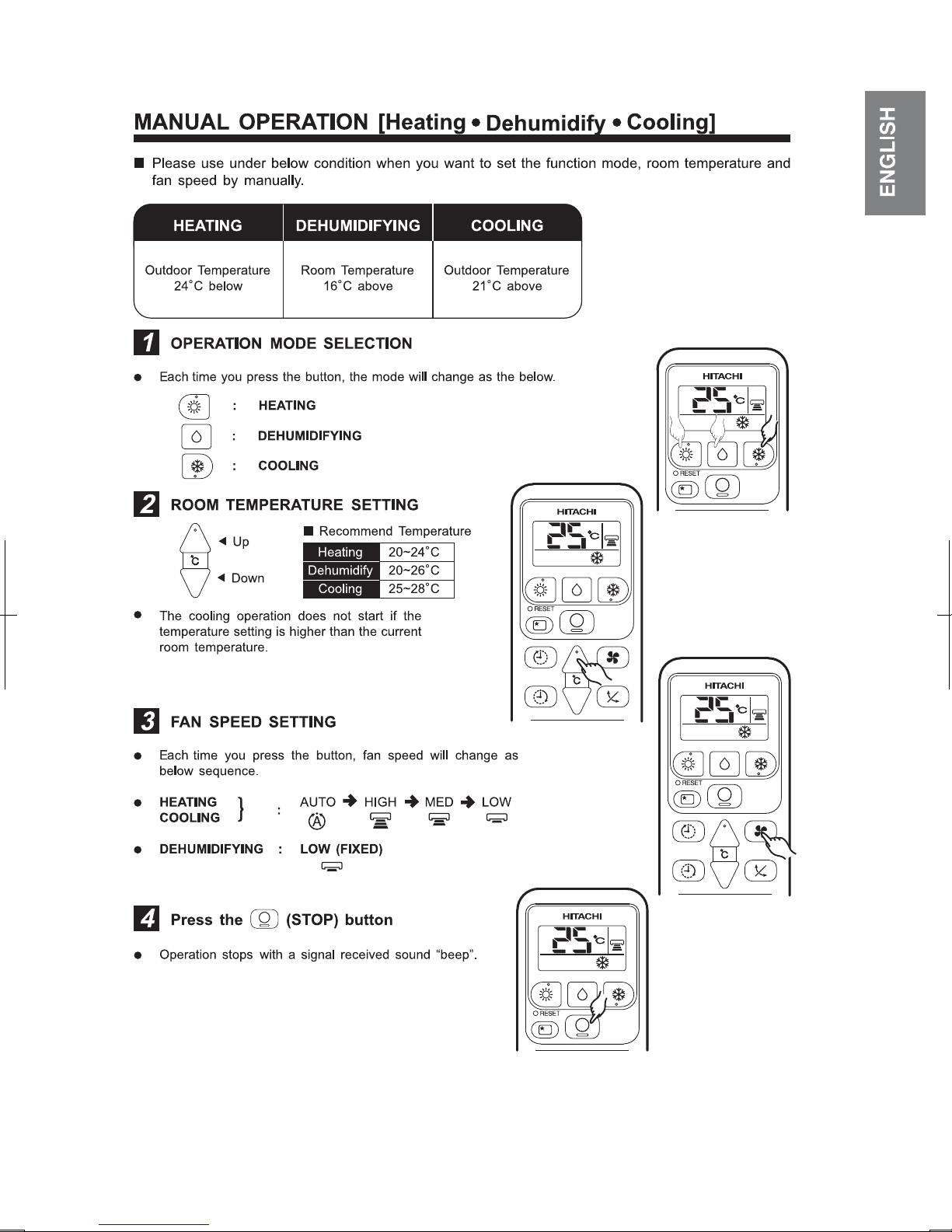

AUTOMATIC OPERATION

Heating

Dehumidifying

Cooling

DEHUMIDIFY / START

COOLING / START

FAN

FAN SPEED

LOW

MED

HI

SLEEP TIMER

STOP

TIMER SELECTOR

ON TIMER

OFF TIMER

AUTO SWING

HEATING / START

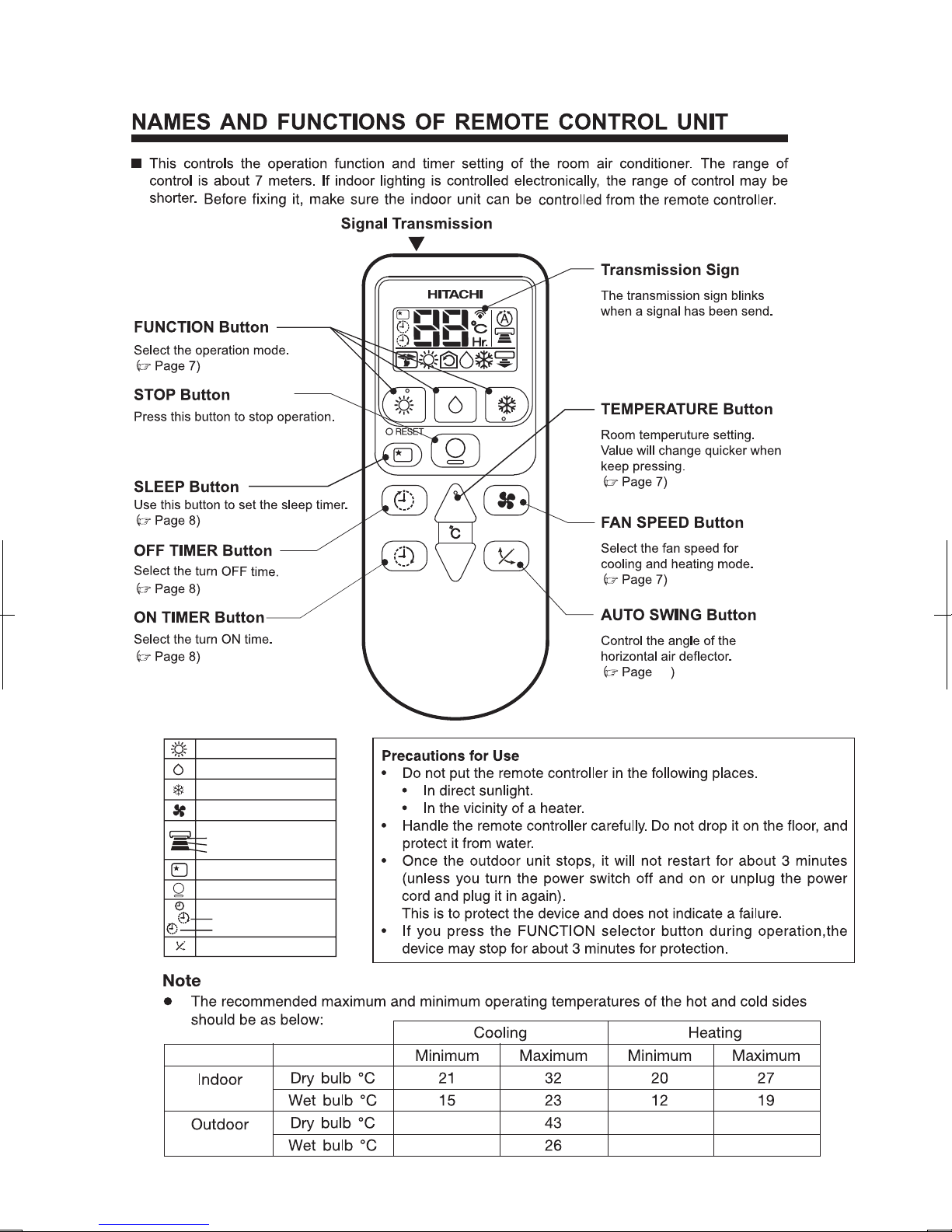

–6–

9

-10 -15 24

18

--- ---

– 7 –

– 8 –

Later se ting sleep timer,indoor FAN and compressor will slow running.t

– 9 –

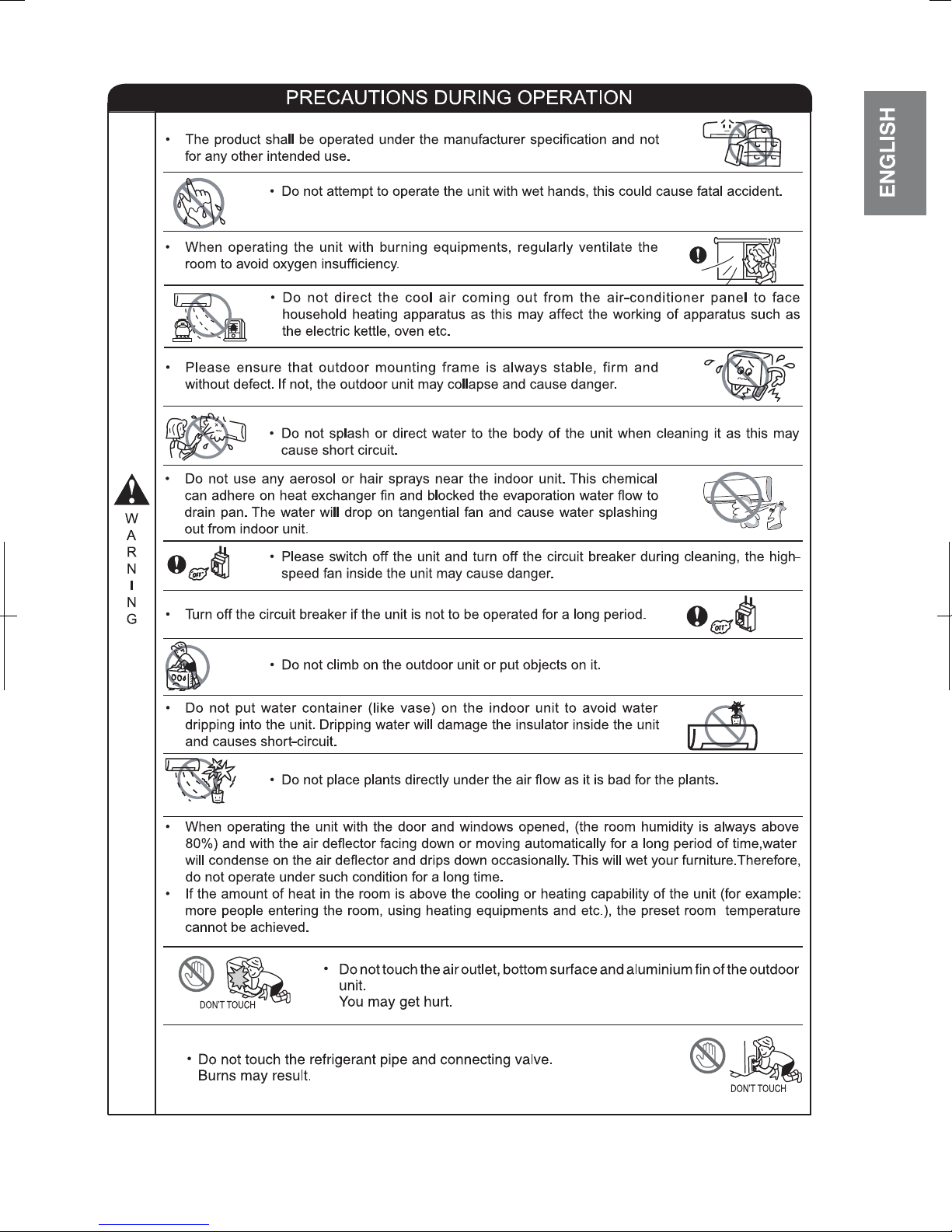

WARNING

Unit has a rotating fan. Switch off before cleaning the

unit or adjusting the sideways louvres. Gently open the

horizontal flap to access the sideways louvres.

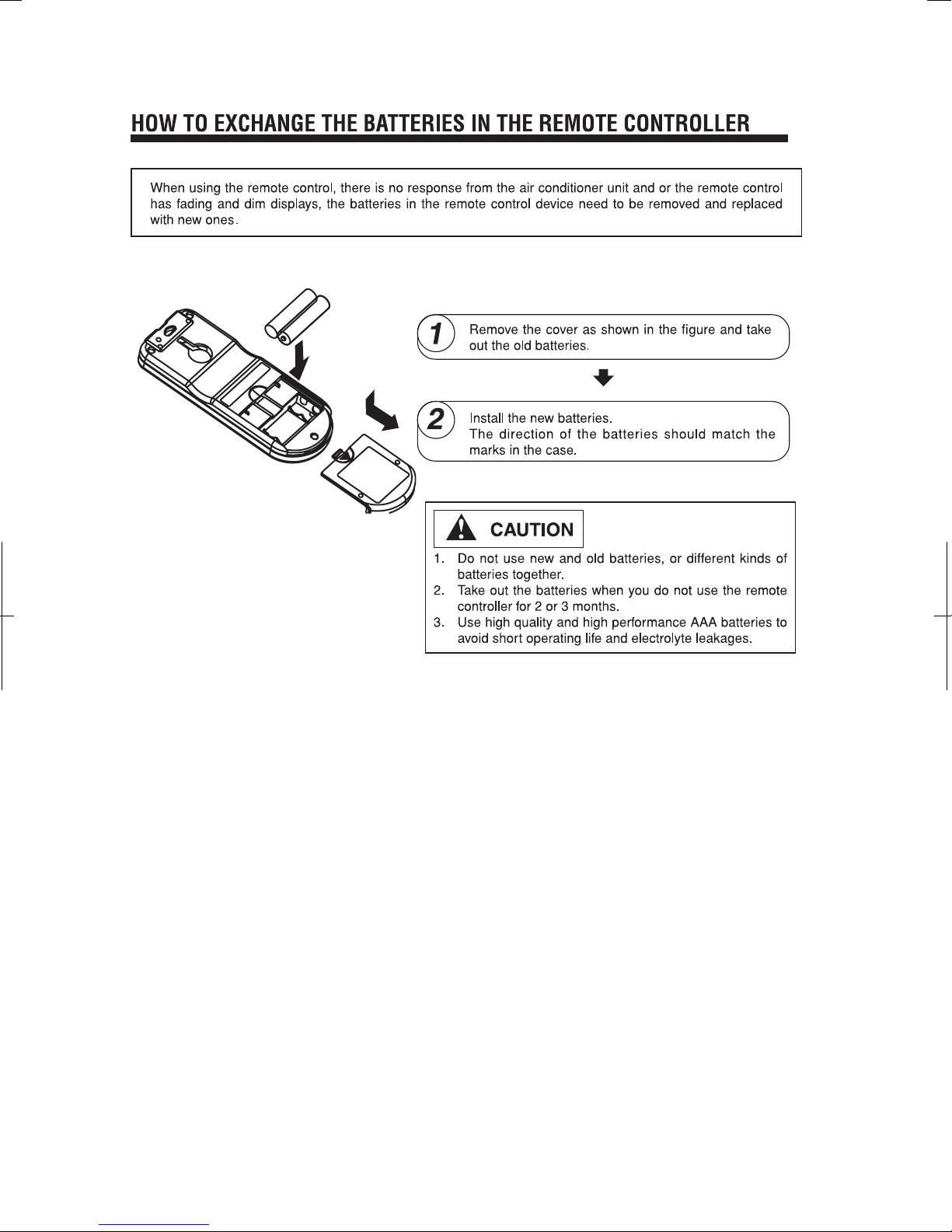

– 10 –

This manual suits for next models
