Hitachi RAS-25CNH2 User manual

SPLIT TYPE

HITACHI

INDOOR UNIT/OUTDOOR UNIT

MODEL

RAS-25CNH2/RAC-25CNH2

OUTDOOR UNIT INDOOR UNIT

RAS-25CNH2

RAC-25CNH2

Instruction manual Page 1~22

To obtain the best performance and ensure years of trouble

free use, please read this instruction manual completely.

Bedlenungsanleitung Suite 23~44

Bitte lesen Sie diese Bedienungsanleitung aufmerksam durch,

um durch richtige Bedienung jahrelangen und störungsfreien

Betrieb zu gewährleisten.

Mode d’emploi Page 45~66

Des performances optimales et un fonctionnement à long

terme seront assurés en appliquant les présentes instructions

après avoir entièrement lu ce mode d’emploi.

Manuale di istruzioni Pag. 67~88

Per garantire la migliore prestazione e la più lunga

durataleggere attentamente e al completo le seguanti

istruzioni.

Manual de instrucciones Página 89~110

Para obtener el mejor funcionamiento y asegurar años de

uso libre de problemas, lea cuidadosamente este manual de

instrucciones.

Manual de instruções Página 111~132

A fim de obter um bom funcionamento e de garantir uma

utilização sem falhas durante muitos anos, é favor ler este

manual de instruções completamente.

O‰ËÁ›Â˜ XÂÈÚÈÛÌÔ‡ ™ÂÏ›‰· 133~154

°È· ÙËÓ Î·Ï‡ÙÂÚË ‰˘Ó·Ù‹ ·ﬁ‰ÔÛË Î·È ÙËÓ Ì·ÎÚÔ¯ÚﬁÓÈ· Î·È

¯ˆÚ›˜ ÚÔ‚Ï‹Ì·Ù· ¯Ú‹ÛË ÙË˜ Û˘ÛÎÂ˘‹˜ ·˘Ù‹˜, ·Ú·Î·ÏÔ‡ÌÂ

‰È·‚¿ÛÙÂ Ï‹Úˆ˜ ÙÈ˜ Ô‰ËÁ›Â˜ ¯ÂÈÚÈÛÌÔ‡ ÙË˜.

Инструкция по эксплуатации

стр. 155~176

Для обеспечения наилууших эксплуатационных

характеристик и многолетней бе отка ной работы

оборудования необходимо полностыо оэнакомиться с данной

Инструкцией по эксплуатации.

“BESTÄIGUNG” und “Bescheingung des Herstellers/Importeurs” sind am Ende dieser Bedienungsanleitung beschrieben.

– 2 –

SAFETY PRECAUTION

●

Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.

●

Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,

if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may

result in serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.

●

The sign indicate the following meanings.

●

Please keep this manual after reading.

WARNING

PRECAUTIONS DURING INSTALLATION

●Do not reconstruct the unit.

Water leakage, fault, short circuit or fire may occur if you reconstruct

the unit by yourself.

●Please ask your sales agent or qualified technician for the installation

of your unit. Water leakage, short circuit or fire may occur if you install

the unit by yourself.

●Please use earth line.

Do not place the earth line near water or gas pipes, lightning-conductor,

or the earth line of telephone. Improper installation of earth line may

cause electric shock.

●A circuit breaker should be installed depending on the mounting site of

the unit. Without a circuit breaker, the danger of electric shock exists.

●Do not install near location where there is flammable gas. The outdoor

unit may catch fire if flammable gas leaks around it.

●Please ensure smooth flow of water when installing the drain hose.

CAUTION

PRECAUTIONS DURING SHIFTING OR MAINTENANCE

PRECAUTIONS DURING OPERATION

●Avoid an extended period of direct air flow for your health.

●Should abnormal situation arises (like burning smell), please stop operating the unit

and turn off the circuit breaker. Contact your agent. Fault, short circuit or fire may

occur if you continue to operate the unit under abnormal situation.

●Please contact your agent for maintenance. Improper self maintenance may cause

electric shock and fire.

●Please contact your agent if you need to remove and reinstall the unit. Electric

shock or fire may occur if you remove and reinstall the unit yourself improperly.

●Do not put objects like thin rods into the panel of blower and suction side

because the high-speed fan inside may cause danger.

●During thunder storm, disconnect and turn off the circuit breaker.

●Do not use any conductor as fuse wire, this could cause fatal accident.

Make sure to connect earth line.

Indicates the instructions that must be followed.

The sign in the figure indicates prohibition.

– 3 –

ENGLISH

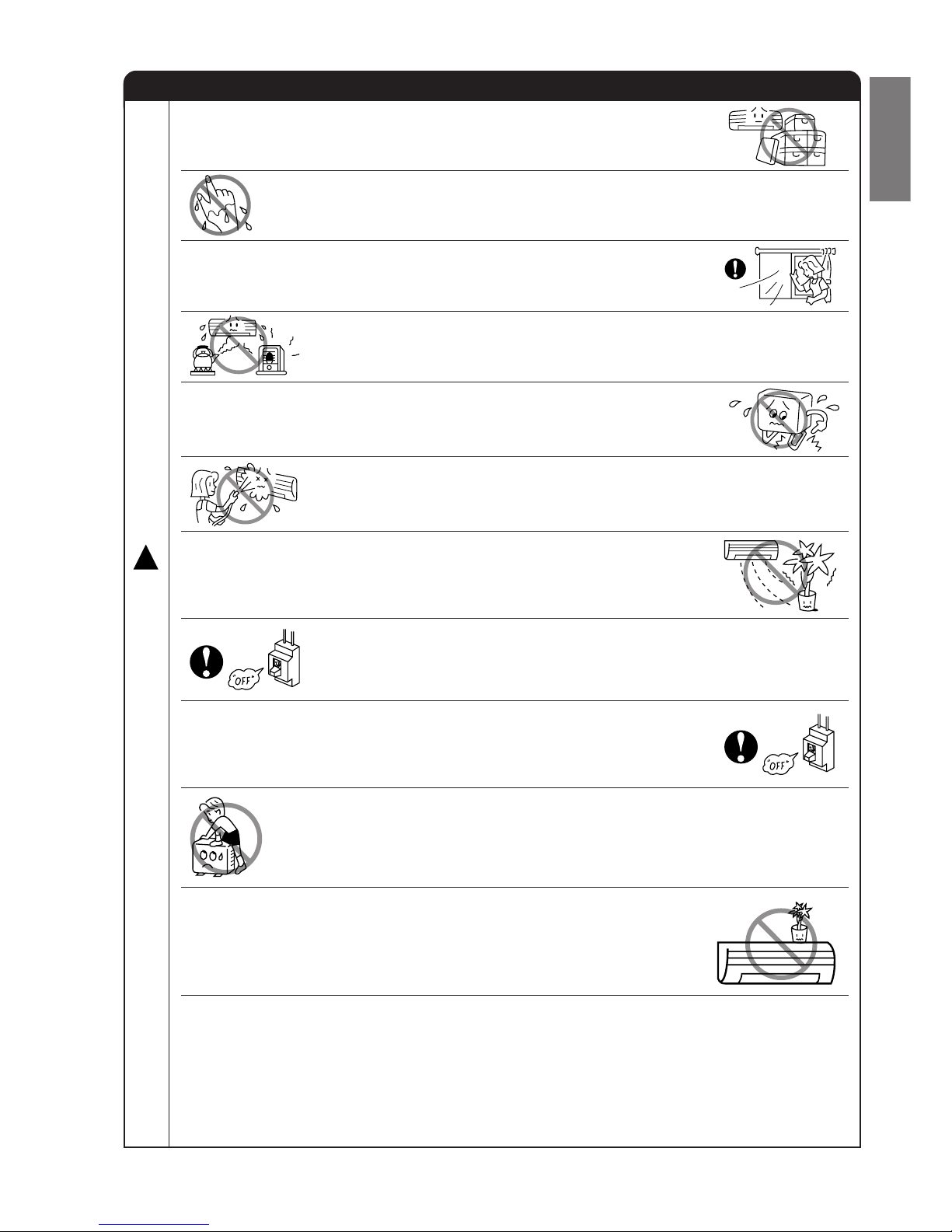

PRECAUTIONS DURING OPERATION

●The product shall be operated under the manufacturer specification and

not for any other intended use.

●Do not attempt to operate the unit with wet hands, this could cause fatal

accident.

●When operating the unit with burning equipments, regularly ventilate the

room to avoid oxygen insufficiency.

●Do not direct the cool air coming out from the air-conditioner panel to face

household heating apparatus as this may affect the working of apparatus

such as the electric kettle, oven etc.

●Do not place plants directly under the air flow as it is bad for the plants.

●Please ensure that outdoor mounting frame is always stable, firm and

without defect. If not, the outdoor unit may collapse and cause danger.

●Do not splash or direct water to the body of the unit when cleaning it as this

may cause short circuit.

●Do not put water container (like vase) on the indoor unit to avoid water

dripping into the unit. Dripping water will damage the insulator inside the

unit and causes short-circuit.

●When operating the unit with the door and windows opened, (the room humidity is always above

80%) and with the air deflector facing down or moving automatically for a long period of time,

water will condense on the air deflector and drips down occasionally. This will wet your furniture.

Therefore, do not operate under such condition for a long time.

●If the amount of heat in the room is above the cooling capability of the unit (for example: more

people entering the room, using heating equipments and etc.), the preset room temperature

cannot be achieved.

●Do not climb on the outdoor unit or put objects on it.

●Please switch off the unit and turn off the circuit breaker during cleaning, the

high-speed fan inside the unit may cause danger.

●Turn off the circuit breaker if the unit is not to be operated for a long period.

– 4 –

INDOOR UNIT

OUTDOOR UNIT

WIDTH (mm)

745

700

MODEL

RAS-25CNH2

RAC-25CNH2

HEIGHT (mm)

248

570

DEPTH (mm)

175

210

MODEL NAME AND DIMENSIONS

NAMES AND FUNCTIONS OF EACH PART

AIR FILTER

To prevent dust from coming into the indoor unit.

(Refer page 16)

POWER PLUG (NOT PROVIDED)

INDOOR UNIT INDICATORS

Light indicator showing the operating condition.

(Refer page 5)

FRONT PANEL (AIR INLET)

HORIZONTAL DEFLECTOR ●VERTICAL

DEFLECTOR (AIR OUTLET)

(Refer page 12)

REMOTE CONTROL

Send out operation signal to the indoor unit. So as

to operate the whole unit.

(Refer page 6)

DRAIN PIPE

Condensed water drain to outside.

CONNECTING CORD

AIR INLET (BACK, LEFT SIDE)

AIR OUTLET

– 5 –

ENGLISH

INDOOR UNIT INDICATORS

TEMPORARY SWITCH

Use this switch to start and stop when the remote

controller does not work.

●By setting the temporary switch, the operation is done

in previously set operation mode.

●When the operation is done using the temporary switch

after the power source is turned off and turn on again,

the operation is done in automatic mode.

OPERATION INDICATOR

OPERATION LAMP

This lamp lights during operation.

The OPERATION LAMP flashes in the following cases

during heating.

(1) During preheating

For about 2–3 minutes after starting up.

(2) During defrosting

Defrosting will be performed about once an hour

when frost forms on the heat exchanger of the

outdoor unit, for 5–10 minutes each time.

TIMER LAMP

This lamp lights when the timer is working.

SIGNAL RECEIVER

There will be a beep sound when this receiver receives

signal from remote controller.

POWER SWITCH

– 6 –

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT

■This controls the operation function and timer setting of the room air conditioner. The range of

control is about 4 meters. If indoor lighting is controlled electronically, the range of control may be

shorter.

Precautions for Use

●Do not put the remote controller under

direct sunlight and high temperature.

●Do not drop it on the floor, and protect

it from water.

●If you press the FUNCTION button

during operation, the air conditioner may

stop for about 3 minutes for protection

before you can start it again.

You can use the remote controller by fixing it on the

wall with the accessory parts.

●Before fixing it,

make sure the

unit can be

controlled by the

remote control

unit at the fixing

position.

REMOTE

CONTROLLER

HOLDER

START/STOP Button

Press this button to start operation.

Press it again to stop operation.

SLEEP Button

Use this button to set the sleep timer.

(Page 10)

Reserve Button

Timer setting reservation.

OFF TIMER Button

Select the turn OFF time.

ON TIMER Button

Select the turn ON time.

Transmission Sign

The transmission sign blinks

when a signal has been send.

TEMPERATURE Button

Room temperuture setting.

Value will change quicker when

keep pressing.

(Page 7)

FAN SPEED Button

Select the fan speed for

cooling and heating mode.

(Page 8)

AUTO SWING Button

Control the angle of the

horizontal air deflector.

( Page 12)

CANCEL Button

Cancel timer reservation.

Signal Transmission

FUNCTION Button

Select the operation mode.

(Page 8)

Hr.

HITACHI

°C

–7 –

ENGLISH

AUTOMATIC OPERATION

■The device will automatically determine the mode of operation, HEAT, COOL or DEHUMIDIFY,

depending on the initial room temperature. The selected mode of operation will not change when

the room temperature varies.

Press the (START/STOP) button

●Operation start with a “beep”sound.

Press the (START/STOP) button

●Make sure the (Automatic) mode have been selected by using

the (FUNCTION) button.

●The fan speed selector does not work at this operation.

STOP

Press the (ROOM TEMPERATURE) button

●Temperature setting change by 1°C for each 1 time press.

Down

●You can raise or lower the temperature setting by a maximum of

3°C.

●The display does not indicate the preset temperature in the Automatic

mode. Device will receive the setting by a “beep”.

■You can slightly adjust the room temperature.

°C

▲ ▲

■CONDITION OF AUTOMATIC OPERATION

●The selected mode of operation will not change during the operation even though the room

temperature change.

Over 27°C COOL

23 ~ 27°C

FUNCTION

27°C

Slightly lower than the

room temperature LOW

FAN SPEED

HIGH at start, LOW after

the preset temperature is

reached

DRY

INITIAL ROOM

TEMPERATURE (APPROX.)

TEMPERATURE

SETTING

Under 23°C HEAT 23°CHIGH at start, MED or

LOW after the preset

temperature is reached

HITACHI

°C

HITACHI

°C

–8 –

MANUAL OPERATION [Heating ●Dehumidify ●Cooling]

■Please use under below condition when you want to set the function mode, room temperature and

fan speed by manually.

OPERATION MODE SELECTION

●Every time you press the button, the mode will change as the below

sequence

(Auto) [(Heat) [(Dry) [(Cool)

ROOM TEMPERATURE SETTING

Down

●The cooling operation does not start if the

temperature setting is higher than the current

room temperature.

FAN SPEED SETTING

●Every time you press the button, fan speed will change as

below sequence.

●HEATING : AUTO [HIGH [MED [LOW

COOLING : ( [[[)

●DEHUMIDIFYING : LOW (FIXED)

: ( )

Press the (START/STOP) button

●Operation start with a signal received sound “beep”.

Press the (START/STOP) button

●As the settings are stored in memory in the remote control unit, you

only have to press the (Start/Stop) button in order to use the

same setting next time.

STOP

HEATING

Outdoor Temperature

21°C below

DEHUMIDIFYING

Room Temperature

16°C above

COOLING

Outdoor Temperature

22°C above

°C

Heating 20~24°C

Dehumidify 20~26°C

Cooling 25~28°C

■Recommend Temperature

▲ ▲

HITACHI

°C

HITACHI

°C

HITACHI

°C

}

HITACHI

°C

–9 –

ENGLISH

TIMER RESERVATION

■ON Timer and OFF Timer are available.

OFF TIME setting

●Select the OFF TIME by pressing the (OFF)

Button.

●Setting time will change according to the below

sequence when you press the button.

●The value change quicker if you keep pressing the

button.

OFF Timer Reservation

■Operation stop at setting time

Press the (Reserve) button

●OFF TIMER reserved with a signal received sound

“beep”.

●The (OFF) Mark starts lighting instead of blinding.

0.5 1.0 1.5 9.5 10 11 12

0.5 hour interval 1 hour interval

ON TIME setting

●Select the ON TIMER by pressing the (ON)

Button.

●At the beginning of setting, time 6 hours was set.

●Setting time will change according to the below

sequence.

●The value change quicker if you keep pressing the

button.

ON Timer Reservation

0.5 1.0 1.5 9.5 10 11 12

0.5 hour interval 1 hour interval

Press the (Cancel) button

●As the time settings are stored in remote controller

memory, you only have to press the (Reserve)

button in order to use the same setting next time.

CANCELLATION of Timer Reservation

Press the (Reserve) button

●ON TIMER reserved with a signal received sound

“beep”.

●The (ON) Mark starts lighting instead of blinding.

■Operation will start for setting

temperature at setting time (The starting

time may different depend on the room

temperature and set temperature).

Hr.

HITACHI

°C

Hr.

HITACHI

°C

Hr.

HITACHI

°C

Hr.

HITACHI

°C

Hr.

– 10 –

Press the (SLEEP) button, and the display changes as shown below.

HOW TO SET THE SLEEP TIMER

Mode

Sleep timer

Indication

1 hour 2 hours 3 hours 7 hours

Sleep timer off

44 44

Sleep Timer: The device will continue working for the designated

number of hours and then turn off.

Point the signal window of the remote controller toward the indoor

unit, and press the SLEEP button.

The timer information will be displayed on the remote controller.

The TIMER lamp lights with a beep from the indoor unit.

How to Cancel Reservation

Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)

button.

The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor unit.

NOTE

If you set the sleep timer when the off-timer or

on/off-timer has been set earlier, the sleep timer

becomes effective instead of the off- or on/off-

timer set earlier.

Hr.

HITACHI

°C

Example: Setting 3 hours

sleep time.

Other manuals for RAS-25CNH2

This manual suits for next models

Table of contents

Languages:

Other Hitachi Air Conditioner manuals

Hitachi

Hitachi RAM-20MQ Instruction Manual

Hitachi

Hitachi RAS-X10CCK User manual

Hitachi

Hitachi Summit RAS-70YH5 User manual

Hitachi

Hitachi RPI-30MH1 User manual

Hitachi

Hitachi RAK-15QEF User manual

Hitachi

Hitachi RAS-S50YHAB User manual

Hitachi

Hitachi RAS-3HVRNME-AF User manual

Hitachi

Hitachi RAK25NH4 User manual

Hitachi

Hitachi RAK-18QXD User manual

Hitachi

Hitachi RAS-08CH8 User manual

Hitachi

Hitachi RAM-18QH2A User manual

Hitachi

Hitachi RAK-VJ25PHAT User manual

Hitachi

Hitachi RAM-200FPS Instruction Manual

Hitachi

Hitachi airHome 300 RAK-CJ18PCASM User manual

Hitachi

Hitachi RWM-(H)FSN3E User manual

Hitachi

Hitachi RAS-S25YHAB User manual

Hitachi

Hitachi RAC-30MH1 User manual

Hitachi

Hitachi RAK-70PPA User manual

Hitachi

Hitachi Summit RAS-18YH5 User manual

Hitachi

Hitachi RAS-10NHZ4(H) User manual

Hitachi

Hitachi R32/R410A Series User manual

Hitachi

Hitachi RAS-14G4 User manual

Hitachi

Hitachi RA-23JS User manual

Hitachi

Hitachi RASC-HNPE CENTRIFUGAL VRF Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
