HIK VISION DS-2CD7153-E User manual

Network Mini Dome Camera

Installation Manual

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Thank you for purchasing our product. If there are any questions, or requests, please

do not hesitate to contact the dealer.

This manual applies to DS-2CD7153-E and DS-2CD7133-E Network Camera.

This manual may contain several technical incorrect places or printing errors, and the

content is subject to change without notice. The updates will be added to the new

version of this manual. We will readily improve or update the products or procedures

described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of

the security or signaling aspects of this product. UL has only tested for fire, shock or

casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL

Certification does not cover the performance or reliability of the security or signaling

aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR

CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF

ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

Installation Manual of Network Mini Dome Camera

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid

danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material

damage.

Warnings:

1. In the use of the product, you must strictly comply with the electrical safety regulations of the

nation and region.

2. Source with DC 12V according to the IEC60950-1 standard. Please refer to technical

specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload may cause

over-heating and can be a fire hazard.If use the POE as the power supply, please make sure that

the POE Switch have the sufficient power.

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and unplug the power

cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

Installation Manual of Network Mini Dome Camera

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit

of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put

on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear may occur

otherwise (which is not a malfunction however), and affecting the endurance of sensor at the

same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor will not be exposed to the laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating temperature

should be between -10°C ~ 60°C , dusty or damp locations, and do not expose it to high

electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating environment.

8. While shipping, the camera should be packed in its original packing, or packing of the same

texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment should be

replaced regularly according to their average life time. The average time varies because of

differences between operating environment and usage history, so regular checking is

recommended for all users. Please contact with your dealer for more details.

Installation Manual of Network Mini Dome Camera

Table of Contents

Chapter 1 Introduction.................................................................................................1

1.1 Network camera Functions and Features .........................................................1

1.2 Applications......................................................................................................1

Chapter 2 Installation...................................................................................................2

2.1 Camera Description..........................................................................................2

2.1.1 Camera Physical Description....................................................................3

2.1.2 Camera Connection .................................................................................4

2.2 Hardware Installation .......................................................................................5

Appendix Product Specification ...................................................................................8

DS-2CD7133-E........................................................................................................8

Specification...................................................................................................10

Dimensions ....................................................................................................11

DS-2CD7153-E........................................................................................................8

Specification.....................................................................................................8

Dimensions ......................................................................................................9

Installation Manual of Network Mini Dome Camera

Chapter 1 Introduction

Network camera is a kind of embedded digital surveillance product that combines the features

of both traditional analog camera and network DVS (Digital Video Server). Due to the embedded

Linux operation system and the latest Davinci hardware platform of TI, the system operates with

high scheduling efficiency. Furthermore, the firmware is burned in the flash, which makes the

product small, reliable and highly stable.

1.1 Network camera Functions and Features

Functions:

Network Function: Support the TCP/IP protocols and IE browsing.

Heartbeat Function: The server can acquire real time operating performance of the network

camera through the heartbeat function.

Alarm Function: Supports Motion Detection.

User Management: Support multilevel right management. The administrator can create up to

15 separate users with different right levels, which highly improves the system security.

Compression Functions:

Support 1 channel video signal and standard H.264 video encoding compression, which

supports both variable bit rate and variable frame rate; besides, you can self-define both the

video quality and its compressed bit rate.

Remote Control:

The product offers a 10M/100M self-adaptive Ethernet interface.

Support TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP protocols.

Set the parameters, browse real time videos or check the camera performance through

software or IE, and store the compressed bit rate through network.

Support remote upgrades and maintenance.

1.2 Applications

This camera is ideal for remote control network applications. E.g.:

1. Network surveillance for supermarkets and factories.

2. Remote surveillance for homes and offices.

3. Indoor monitoring scenes, such as hotel, corridor, stairway.

Installation Manual of Network Mini Dome Camera

Chapter 2 Installation

NOTE:

1. Please check if all the items on the package list have been included with your camera.

2. Read the following contents carefully before the installation.

3. Make sure that all the related equipment is power-off during the installation.

4. Check the power supply to prevent any damage caused by mismatching problems.

5. If the product does not operate properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the camera yourself. Users are responsible for any

problem caused by modification or repairing without authorization.

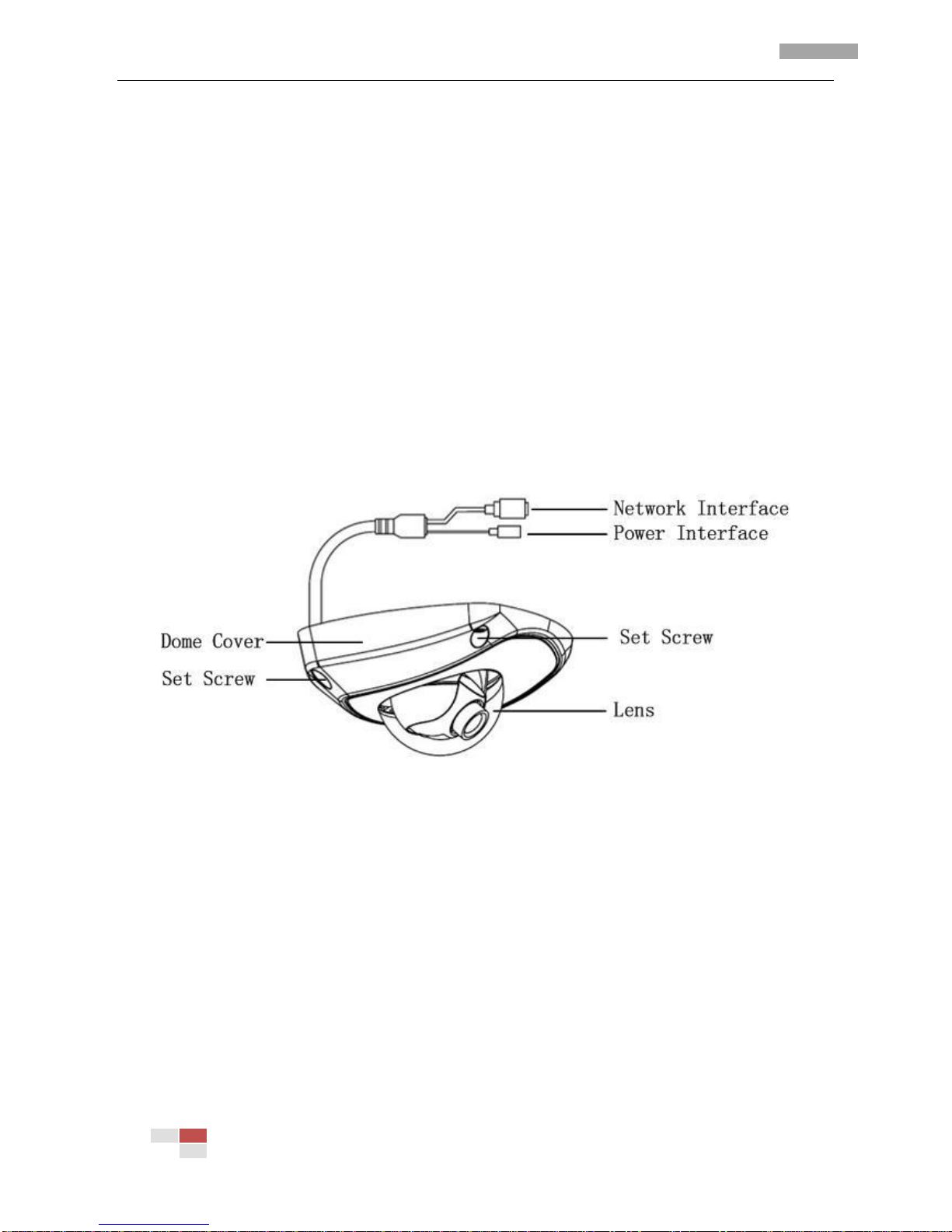

2.1 Camera Description

NOTE: The camera supports PoE power supply.

Installation Manual of Network Mini Dome Camera

2.1.1 Camera Physical Description

Serial NO.

Description

Back box

Lens

P: Power LED indicator, which turns red when power is applied to the unit.

Bottom board

Bottom board set screw hole

Lens set screw

S & L: Network status LED indicator.

When the network is connected, the “S”LED turns orange, while the “L”LED flickers in green.

RESET: Reset all paramaters to factory default settings.

NOTE:

When the camera is power up, press the “RESET” button for about 10 seconds, then all parameters,

including user name, password, IP address, port number, etc., will be reset to the factory default settings.

Installation Manual of Network Mini Dome Camera

2.1.2 Camera Connection

Step1:

Connect one end of the network

cable to the camera and the other

end to PC.

Step2:

Connect one end of the power cord

to the camera and the other end to

power sokcket to supply power for

the camera.

Step3:

Access the camera over IE or client

software to view live video images.

Installation Manual of Network Mini Dome Camera

2.2 Hardware Installation

The ceiling mount is a suitable installation method for this camera. Please stick to the following

steps:

1. Loosen the set screws with a hexagonal screw driver (attached with the camera), and take down

the back box shown as below:

Fig. 2.2.1 Remove the back box

2. Use the screws to fix the bottom board on the ceiling.

Fig. 2.2.2 Fix the bottom board

3. While viewing the video on the computer, adjust the camera’s view angle for your need.

NOTE:

If required, user can apply the pliers to

remove the clip (refer to the part marked

in dotted line) on the side of the back

box and then feed cables through the

opening to secure on the ceiling.
