HIK VISION DS-2CD7133-E User manual

Network Mini Dome Camera

Installation Manual

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Service Tel：+86-400-700-5998

2010-04

Thank you for purchasing our product. If there are any questions, or

requests, please do not hesitate to contact the dealer.

This manual applies to DS-2CD7133-E and DS-2CD7153-E Network

Camera.

This manual may contain several technical incorrect places or printing

errors, and the content is subject to change without notice. The

updates will be added to the new version of this manual. We will readily

improve or update the products or procedures described in the

manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or

reliability of the security or signaling aspects of this product. UL has only

tested for fire, shock or casualty hazards as outlined in UL’s Standard(s)

for Safety, UL60950-1. UL Certification does not cover the performance

or reliability of the security or signaling aspects of this product. UL

MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS

WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY

SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

Installation Manual of Network Mini Dome Camera 1

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly

to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards

to prevent serious injury or

death.

Cautions Follow these precautions

to prevent potential injury or

material damage.

Warnings：

1. In the use of the product, you must strictly comply with the electrical safety

regulations of the nation and region.

2. Source with DC 12V according to the IEC60950－1 standard. Please refer to

technical specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload

may cause over-heating and can be a fire hazard.If use the POE as the power

supply, please make sure that the POE Switch have the sufficient power.

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly

fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and

unplug the power cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by unauthorized repair or

Installation Manual of Network Mini Dome Camera 2

maintenance.)

Installation Manual of Network Mini Dome Camera 3

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for

an extended period of time, put on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear

may occur otherwise (which is not a malfunction however), and affecting the

endurance of sensor at the same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor will not be exposed to the

laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating

temperature should be between -10°C~ 60°C, dusty or damp locations, and do

not expose it to high electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating

environment.

8. While shipping, the camera should be packed in its original packing, or packing

of the same texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the

equipment should be replaced regularly according to their average life time.

The average time varies because of differences between operating

environment and usage history, so regular checking is recommended for all users.

Please contact with your dealer for more details.

Installation Manual of Network Mini Dome Camera

Table of Contents

Chapter 1 Introduction.....................................................................................1

1.1 Network camera Functions and Features..........................................1

1.2 Applications............................................................................................1

Chapter 2 Installation........................................................................................2

2.1 Camera Description ..............................................................................2

2.1.1 Camera Physical Description ......................................................3

2.1.2 Camera Connection ....................................................................4

2.2 Hardware Installation.............................................................................5

Appendix Product Specification.....................................................................8

DS-2CD7133-E................................................................................................8

Specification............................................................................................8

Dimensions...............................................................................................9

DS-2CD7153-E............................................................................................. 10

Specification......................................................................................... 10

Dimensions............................................................................................ 11

Installation Manual of Network Mini Dome Camera 1

Chapter 1 Introduction

Network camera is a kind of embedded digital surveillance product that

combines the features of both traditional analog camera and network DVS (Digital

Video Server). Due to the embedded Linux operation system and the latest Davinci

hardware platform of TI, the system operates with high scheduling efficiency.

Furthermore, the firmware is burned in the flash, which makes the product small,

reliable and highly stable.

1.1 Network camera Functions and Features

Functions:

Network Function: Support the TCP/IP protocols (DDNS, PPPoE, FTP, SMTP, NTP,

HTTPS, SIP addible) and IE browsing.

Heartbeat Function: The server can acquire real time operating performance of

the network camera through the heartbeat function.

Alarm Function: Supports Motion Detection.

User Management: Support multilevel right management. The administrator can

create up to 15 separate users with different right levels, which highly improves

the system security.

Compression Functions:

Support 1 channel video signal and standard H.264 video encoding

compression, which supports both variable bit rate and variable frame rate;

besides, you can self-define both the video quality and its compressed bit rate.

Remote Control:

The product offers a 10M/100M self-adaptive Ethernet interface.

Support various protocols.

Set the parameters, browse real time videos or check the camera performance

through software or IE, and store the compressed bit rate through network.

Support remote upgrades and maintenance.

1.2 Applications

This camera is ideal for remote control network applications. E.g.:

1. Network surveillance for supermarkets and factories.

2. Remote surveillance for homes and offices.

3. Indoor monitoring scenes, such as hotel, corridor, stairway.

Installation Manual of Network Mini Dome Camera 2

Chapter 2 Installation

NOTE：

1. Please check if all the items on the package list have been included with

your camera.

2. Read the following contents carefully before the installation.

3. Make sure that all the related equipment is power-off during the installation.

4. Check the power supply to prevent any damage caused by mismatching

problems.

5. If the product does not operate properly, please contact your dealer or the

nearest service center. Never attempt to disassemble the camera yourself.

Users are responsible for any problem caused by modification or repairing

without authorization.

2.1 Camera Description

NOTE：The camera supports PoE power supply.

Installation Manual of Network Mini Dome Camera 3

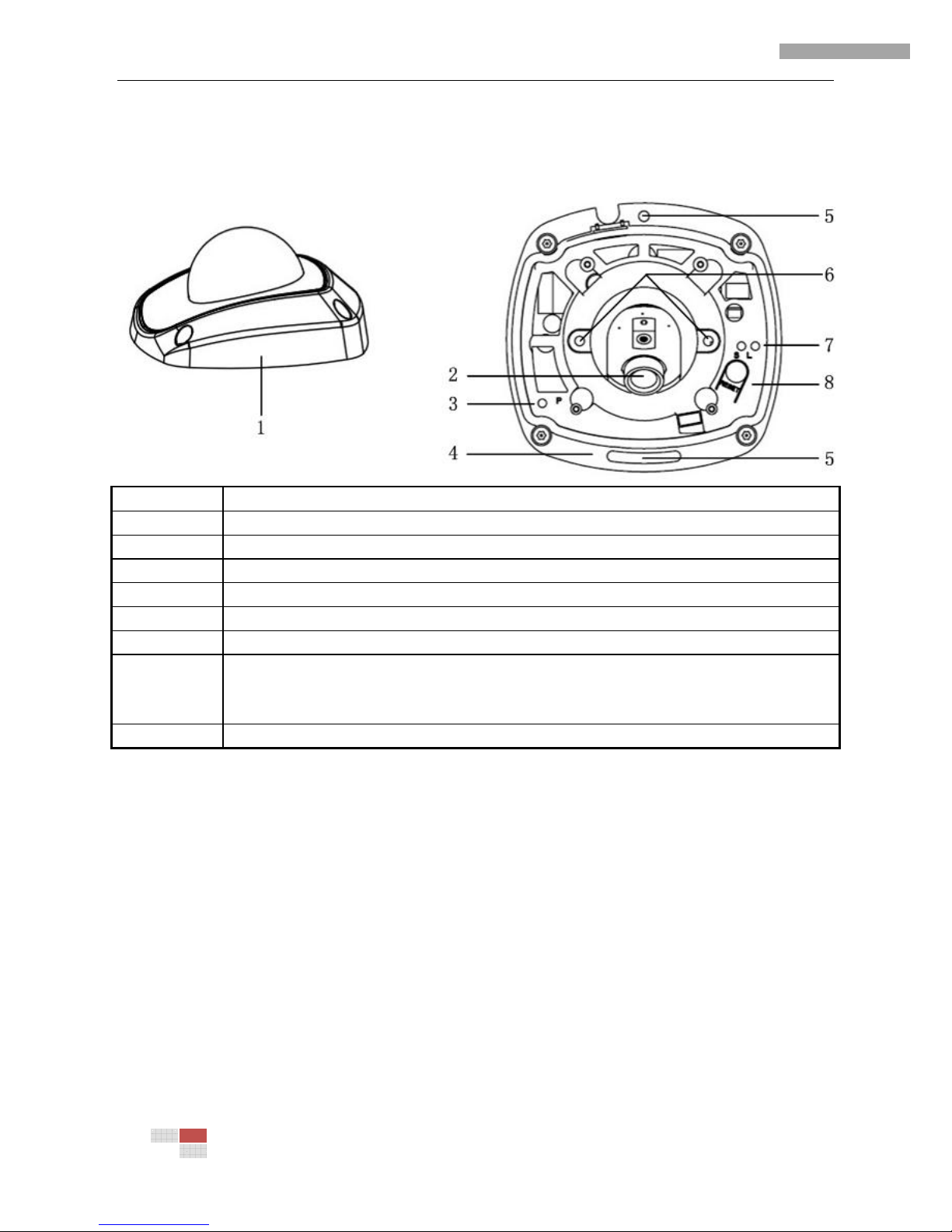

2.1.1 Camera Physical Description

Serial NO. Description

1 Back box

2 Lens

3 P: Power LED indicator, which turns red when power is applied to the unit.

4 Bottom board

5 Bottom board set screw hole

6 Lens set screw

7 S & L: Network status LED indicator.

When the network is connected, the “S” LED turns orange, while the “L” LED

flickers in green.

8 RESET: Reset all paramaters to factory default settings.

NOTE:

When the camera is power up, press the “RESET” button for about 10 seconds, then all

parameters, including user name, password, IP address, port number, etc., will be reset to the

factory default settings.

Installation Manual of Network Mini Dome Camera 4

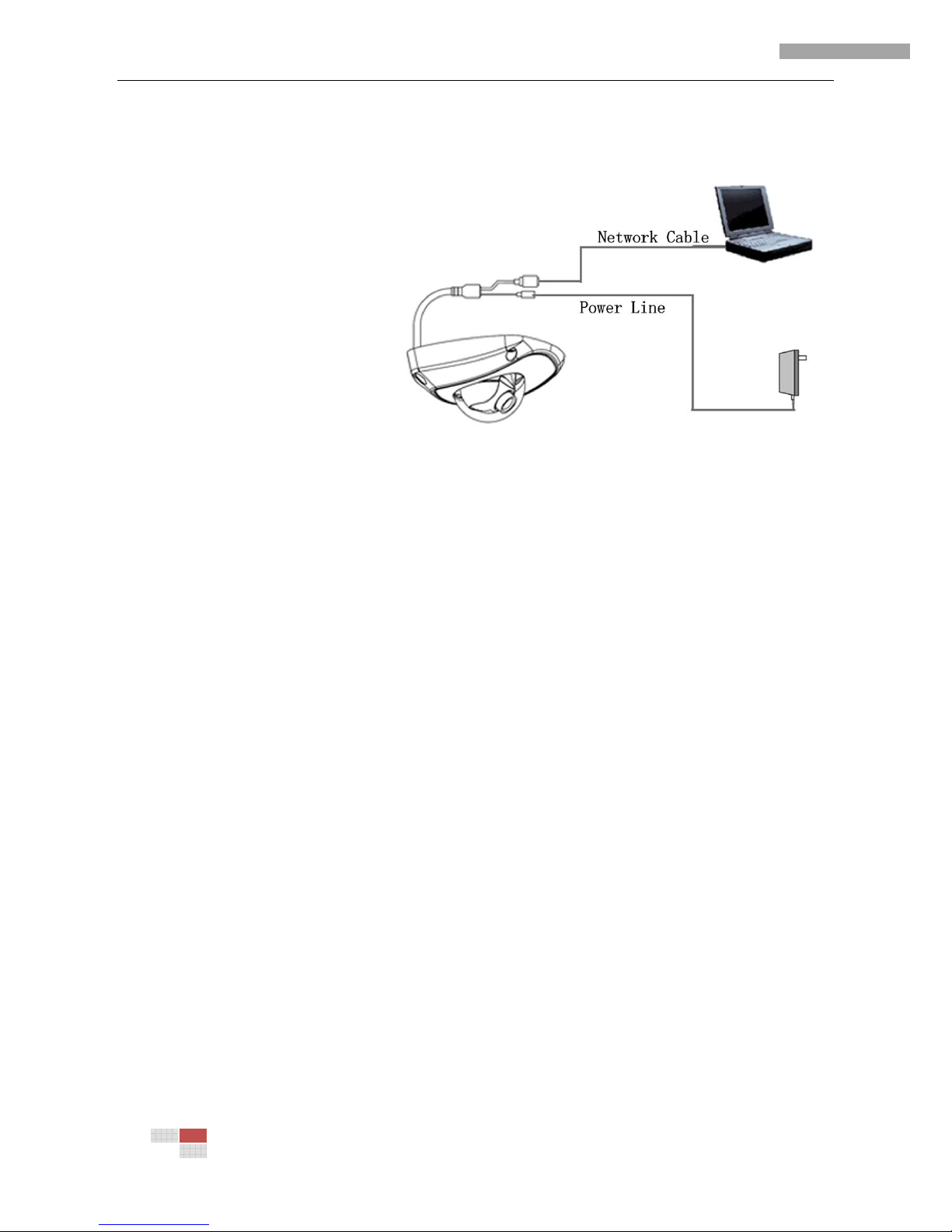

2.1.2 Camera Connection

Step1:

Connect one end of the

network cable to the camera

and the other end to PC.

Step2:

Connect one end of the

power cord to the camera

and the other end to power

sokcket to supply power for

the camera.

Step3:

Access the camera over IE or

client software to view live

video images.
