3 Slimline Series

What is a Programmable Room Thermostat?

A programmable room thermostat is both a programmer and a room thermostat.

A programmer allows you to set “On” and “Off” periods to suit your own lifestyle.

A room thermostat works by sensing the air temperature, switching on the heating when

the air temperature falls below the thermostat setting, and switching it off once this set

temperature has been reached.

So a programmable room thermostat lets you choose what times you want the heating

to be on, and what temperature it should reach while it is on. It will allow you to select

different temperatures in your home at different times of the day (and days of the week)

to meet your particular needs and preferences.

Setting a programmable room thermostat to a higher temperature will not make the

room heat up any faster. How quickly the room heats up depends on the design and size

of the floor heating system.

Similarly reducing the temperature setting does not affect how quickly the room cools

down. Setting a programmable room thermostat to a lower temperature will result in the

room being controlled at a lower temperature, and saves energy.

The way to set and use your programmable room thermostat is to find the lowest

temperature settings that you are comfortable with at the different times you have

chosen, and then leave it alone to do its job.

The best way to do this is to set the room thermostat to a low temperature

– say 18°C, and then turn it up by 1°C each day until you are comfortable with the

temperature. You won’t have to adjust the thermostat further. Any adjustment above

this setting will waste energy and cost you more money.

You are able to temporarily adjust the heating program by overriding or using the

temperature hold feature. These features are explained further on pages 14 and 15 of

this manual.

Programmable room thermostats need a free flow of air to sense the temperature,

so they must not be covered by curtains or blocked by furniture. Nearby electric

fires, televisions, wall or table lamps may also prevent the thermostat from working

properly.

Model: Slimline-E

5 Slimline Series

Installation Procedure

This Slimline Series thermostat is designed to be flush mounted and requires a back

box of 35mm (minimum depth) to be sunk into the wall prior to installation.

Step 1

Carefully separate the front half of the thermostat from the back plate by placing a

small flat head terminal driver into the slots on the bottom face of the thermostat.

Step 2

Place the thermostat front somewhere safe.

Terminate the thermostat as shown in the diagram on page 26 of this booklet.

Step 3

Screw the thermostat back plate securely into the back box.

Step 4

Clip the front of the thermostat back onto the thermostat back plate.

Mount the thermostat at eye level.

Read the instructions fully so you get the best from our product.

Don’t

Do not install near to a direct heat source as this will affect functionality. Do

not push hard on the LCD screen as this may cause irreparable damage.

1 2

3 4

Model: Slimline-E

7 Slimline Series

1 2 3 4 6

7 8 9 10 11 12

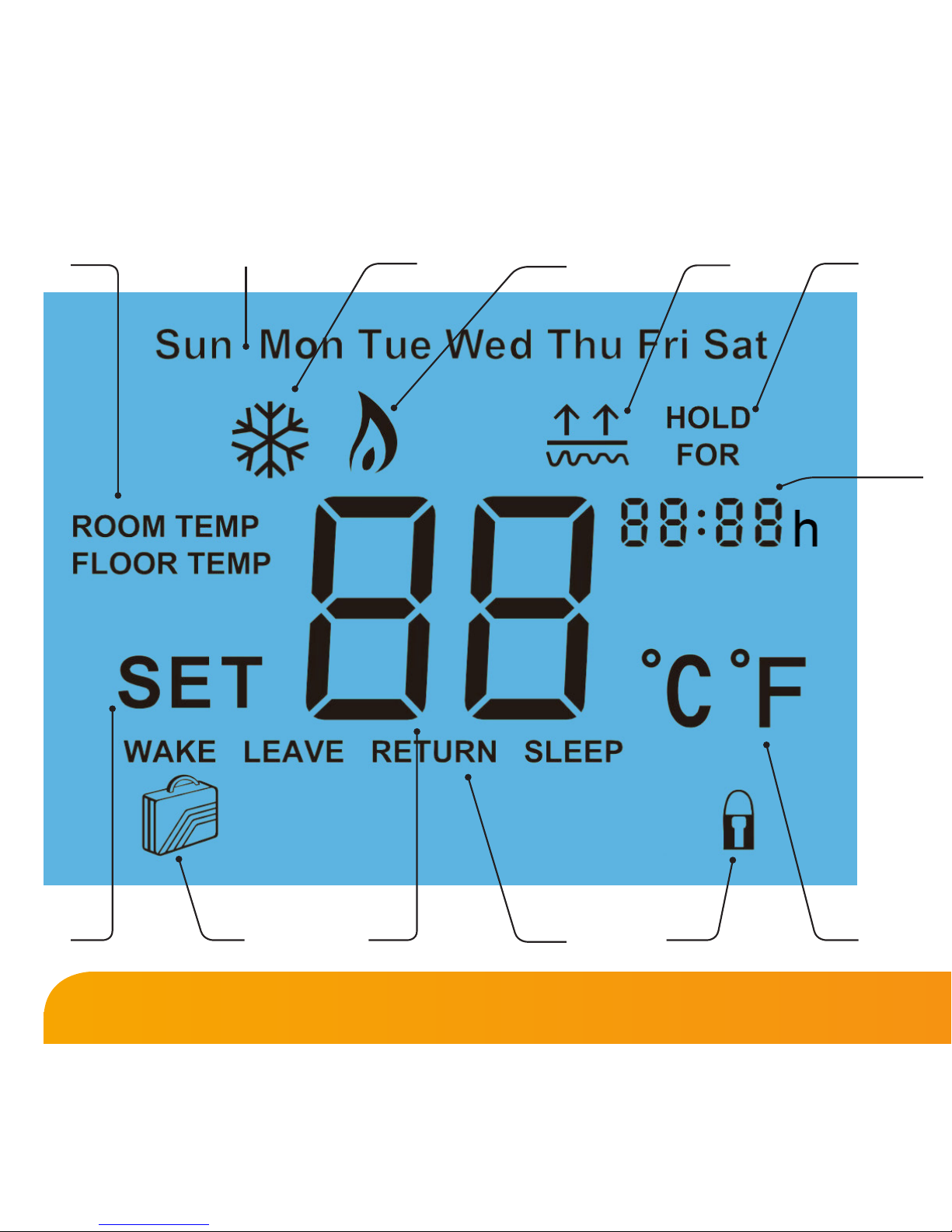

1. Room/Floor Temp - Indicates the current temperature sensor mode.

2. Day Indicator - Displays the current day.

3. Frost Icon - Displayed when the thermostat is in frost protection mode.

4. Flame Icon - Displayed when the thermostat is calling for heat, the flame icon

will flash when the optimum start function is in operation.

5. Floor Temp Limit Icon - Displayed when the floor sensor probe has reached the

temperature limit set on feature 09.

6. Temperature Hold - When a Temp Hold is active, HOLD FOR and the remaining

time period is displayed.

7. Set - Indicates when changes are being made to programs or temperature set

points.

8. Holiday Indicator - Displayed when the thermostat is in holiday mode.

9. Current Temp - Indicates the current sensor temperature.

10. Program Cycle Indicator - Displayed during programming only to show which

period is being altered.

11. Keypad Lock Indicator - Displayed when the keypad is locked.

12. Units of Temperature - Degrees Celsius or Fahrenheit.

13. Clock - Digital clock display in 24h format.

LCD Display

Model: Slimline-E

9 Slimline Series

Setting the Clock

To set the clock, follow these steps.

• With the thermostat turned ON, press the Clock key twice .................................

• Use the Up/Down keys to set the hours .............................................................

• Press H to confirm settings ...............................................................................................

• Use the Up/Down keys to set the minutes ........................................................

• Press H to confirm settings ..............................................................................................

• Use the Up/Down keys to set the day of the week .........................................

• Press A to confirm settings and return to main display .........................................

Day

Hours

Minutes
