Hayward EcoStar SP3400VSP User manual
© 2015 Hayward Pool Products
EcoStar®&
EcoStar SVRS®
Technical &
Installation Guide
SP3400VSP
&
SP3400VSPVR
Drive r1.13
Interface r3.0.8 residential
Interface r3.0.8C commercial
Table of Contents
Safety Precautions Page 1
Installation Page 2-14
Programming Page 15-29
Operation Page 30-31
Programming Scenarios Page 32
Disassembly/Assembly Page 33-38
Password/Commercial Page 39-40
Diagnostic Menu Page 41
•Read and follow all instructions in the owner’s manual and on the equipment.
Failure to follow instructions can cause severe injury and/or death.
•This product should be installed and serviced only by a qualified professional.
•All electrical wiring MUST be in conformance with all applicable local codes,
regulations, and the National Electric Code (NEC). Hazardous voltage can shock,
burn, and cause death or serious property damage. To reduce the risk of electric
shock, do NOT use an extension cord to connect unit to electric supply. Provide a
properly located electrical receptacle. Before working on drive or motor, turn off
power supply to the drive.
•Failure to bond drive to pool structure will increase risk for electrocution and
could result in injury or death. To reduce the risk of electric shock, see installation
instructions and consult a professional electrician on how to bond drive. Also,
contact a licensed electrician for information on local electrical codes for bonding
requirements.
Page 1
Safety Precautions

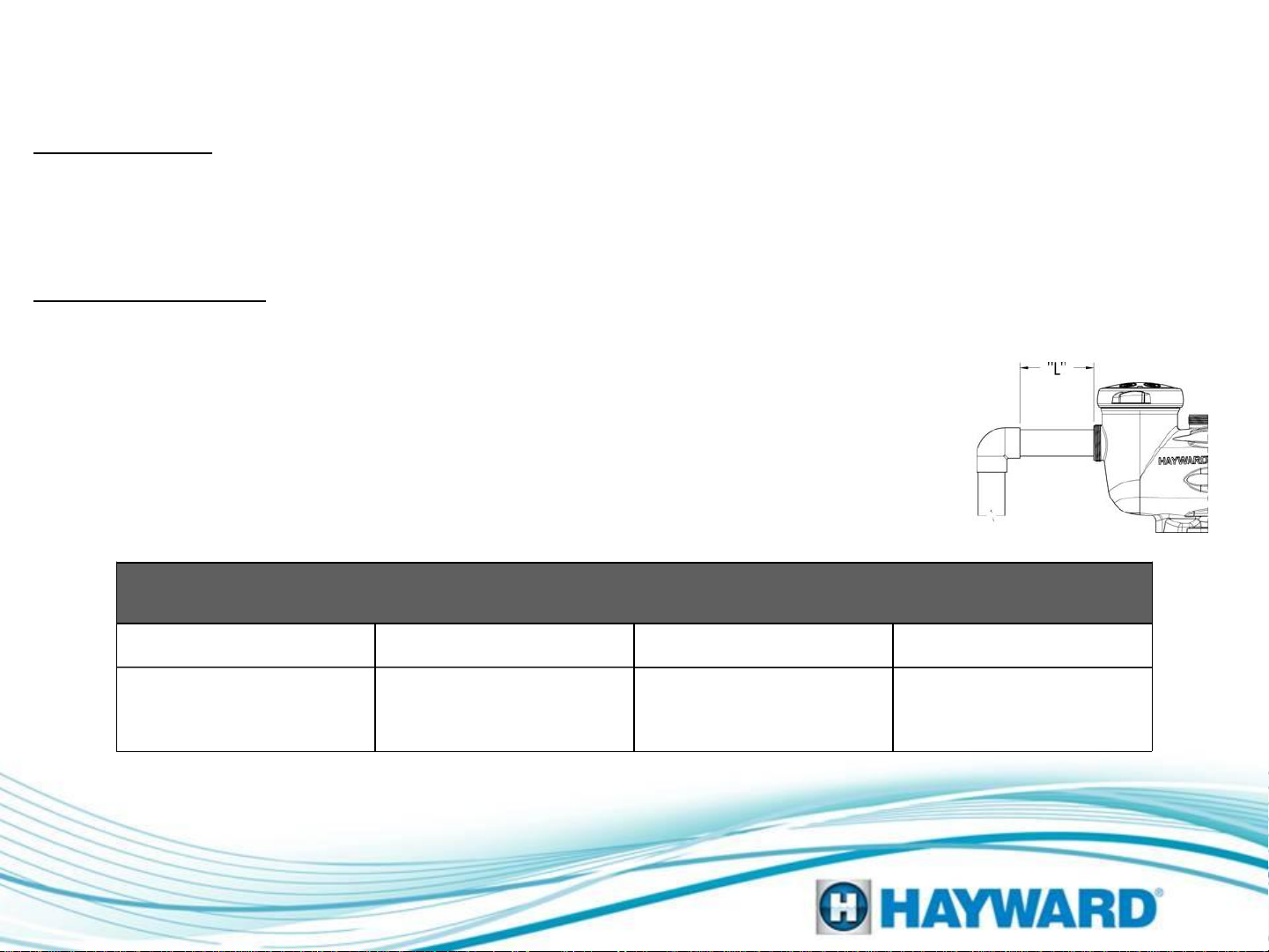

Installation - Plumbing
New Pools: When installing the EcoStar on a new pool, care should
be taken to ensure proper pipe and equipment sizing to
handle the maximum flow required (fig 1).
Existing Pools: When installing the EcoStar on existing pools, care should
be taken to insure the maximum flow does not exceed the
capacity of the pipe and equipment*(fig 1).
MAXIMUM RECOMMENDED SYSTEM FLOW RATE BY PIPE SIZE
1.5”
51gpm 8fps
38gpm 6fps
2”
84gpm 8fps
63gpm 6fps
2.5”
120gpm 8fps
89gpm 6fps
3”
184gpm 8fps
138gpm 6fps
* Refer to equipment manuals for flow rates. Figure 1
Page 2
Note: length of pipe (L) between pump suction port and
first elbow or fitting should be at least 5 times pipe size.
Installation - Electrical

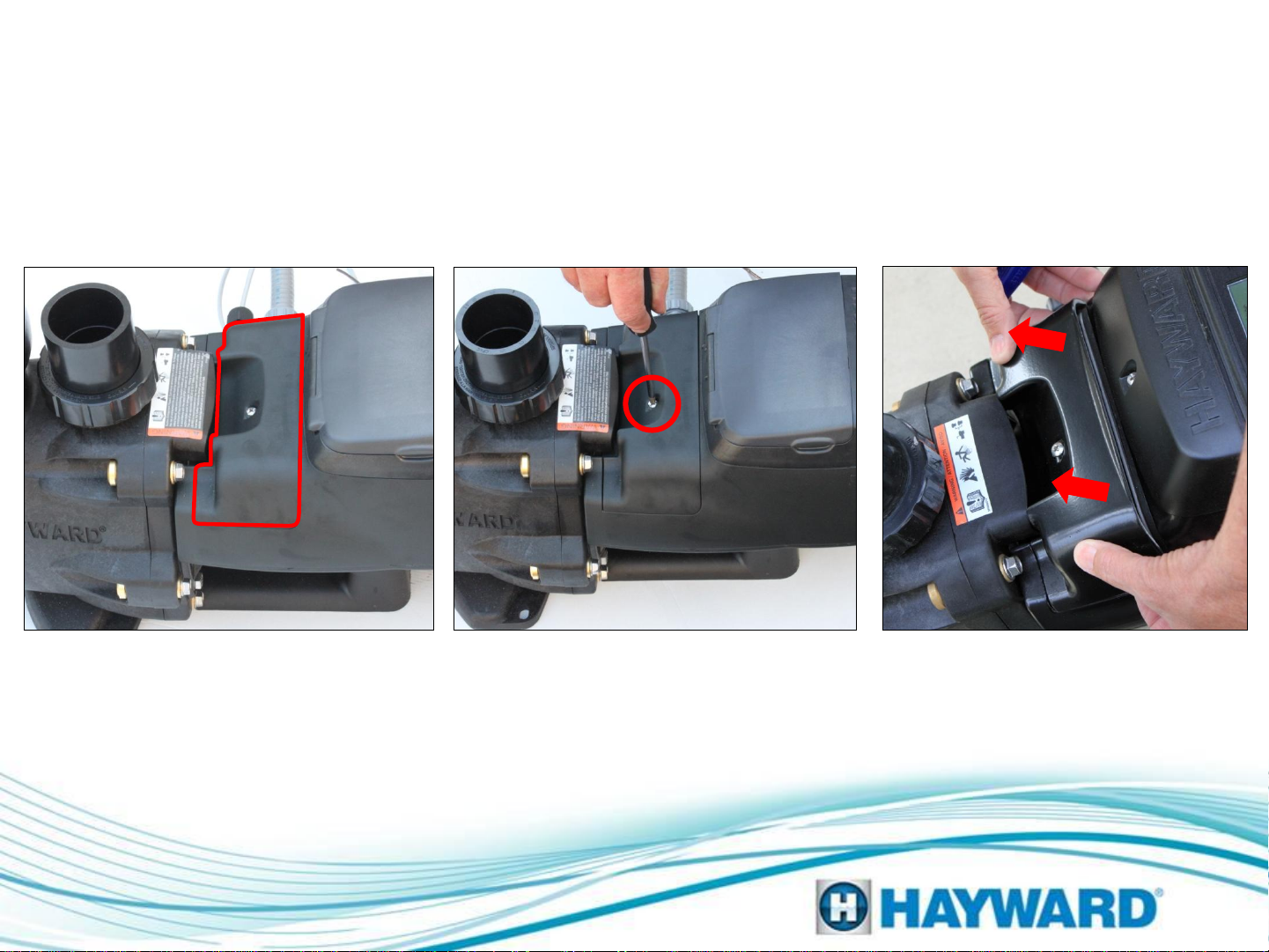

Remove the electrical cover plate as shown below
(fig 2, 3 & 4)
Figure 2 Figure 3 Figure 4
Page 3
Note: If power is removed from the pump, all settings will be protected for at least 5 years.

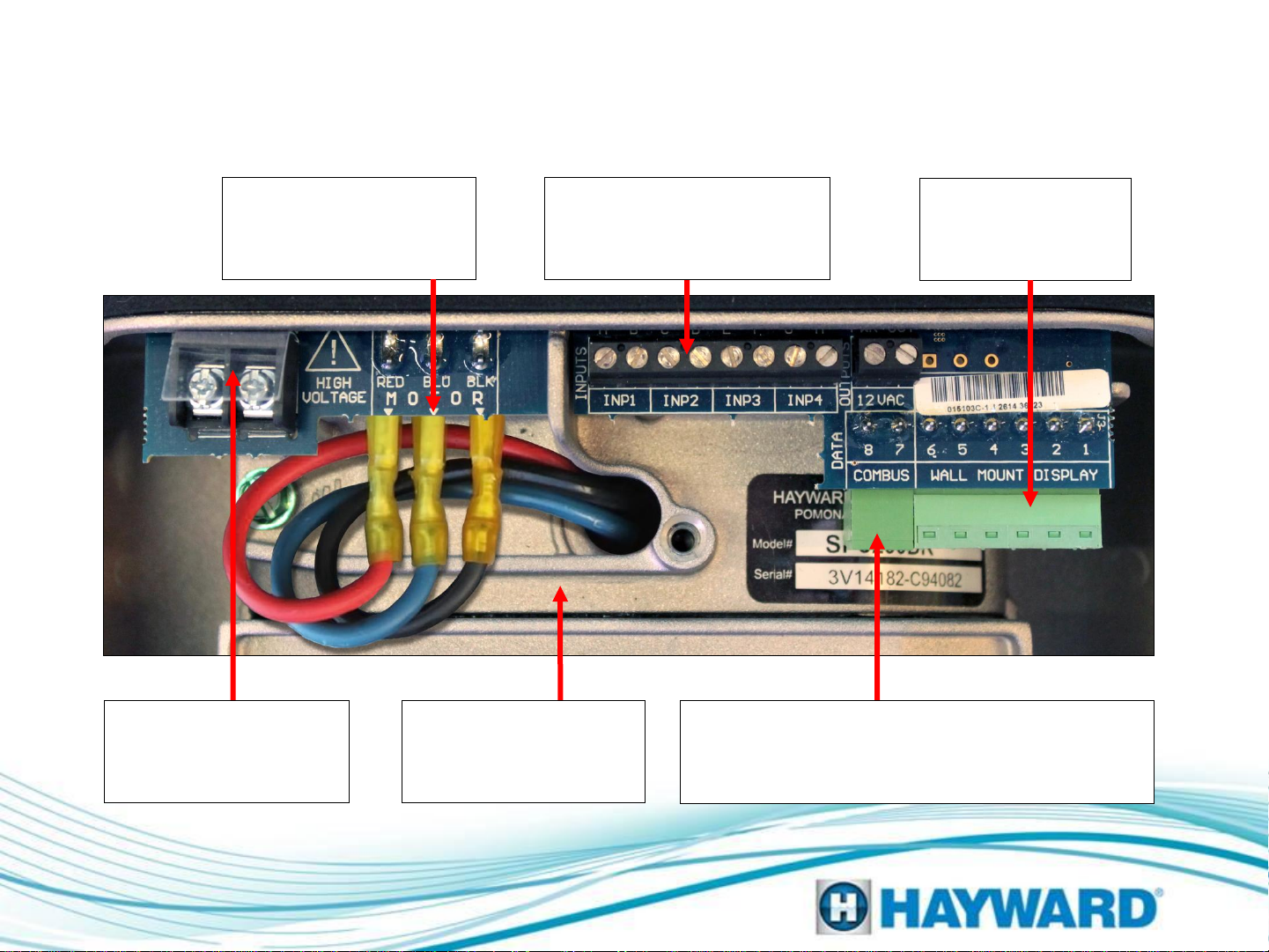

Installation –Electrical
Internal wiring locations
Figure 5
Page 4
Wiring plug for
wall mounted
interface
Wiring connection
for incoming motor
wires
Wiring plug for relay
connected controls &
stop switch
Wiring plug for data link with
Hayward/Goldline compatible
software controls
Wire connection
for incoming line
voltage (230v)
Channel for
running low
voltage data cable

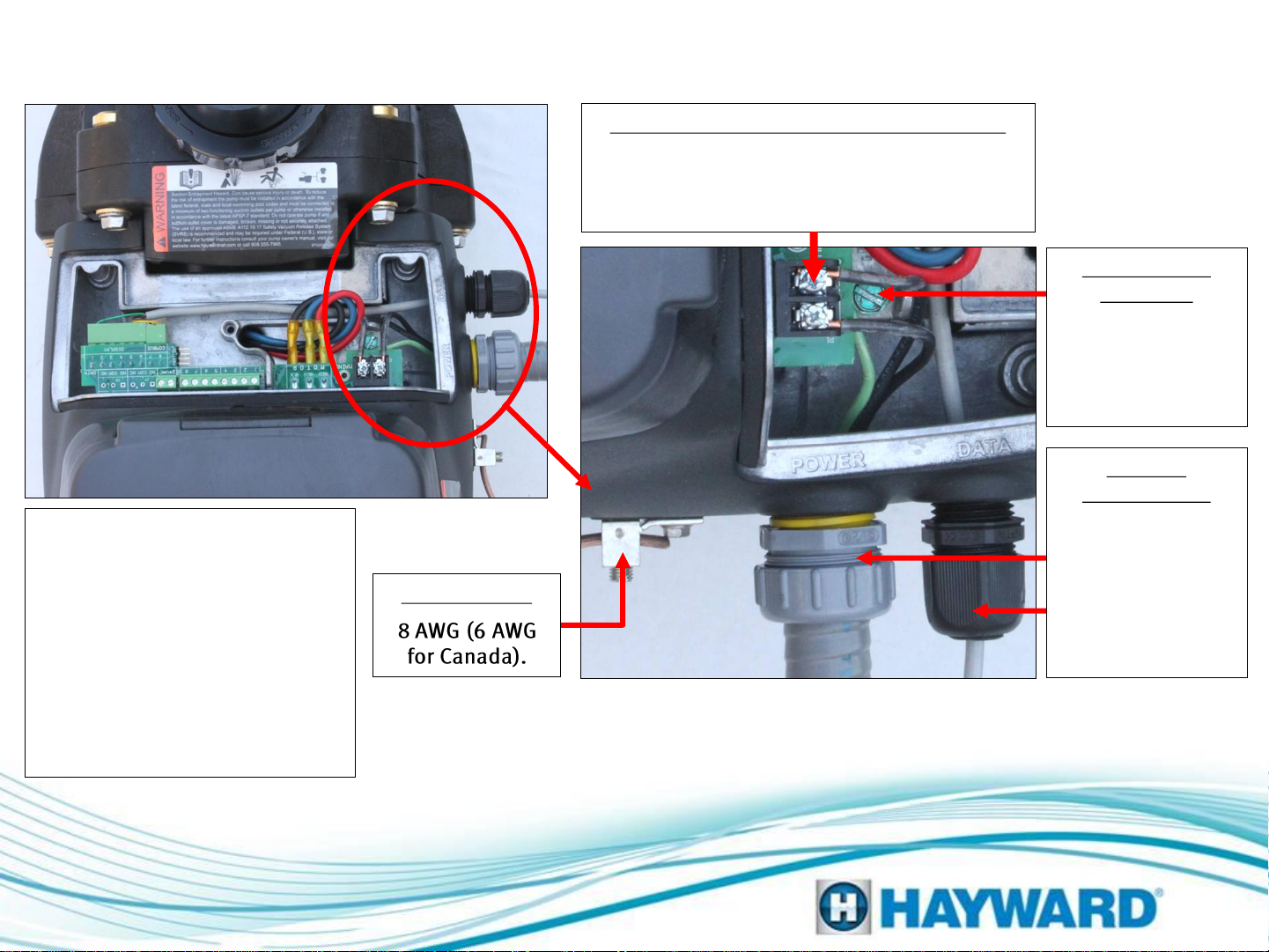

Installation –Electrical/High Voltage
High Voltage Wiring terminals (L1 & L2)
1. Voltage: 230 VAC, 60Hz, Single Phase.
2. Breaker, wire size would be determined
by the NEC and local code requirements.
Ground Wire
Terminal.
It is below high
voltage wires
and should be
connected first.
Conduit
Connections
There are two on
the pump. One
for high voltage
and the other for
the low voltage
data cable.
Make sure the unit is both bonded and grounded!
Figure 6
Page 5
Note: When connecting high
voltage for an EcoStar that is
data connected to a Hayward/
Goldline control, voltage
needs to come directly from a
breaker in the control, or in
the case of an OnCommand,
directly from the main or sub-
panel and not from the filter
pump relay.
Bonding Lug

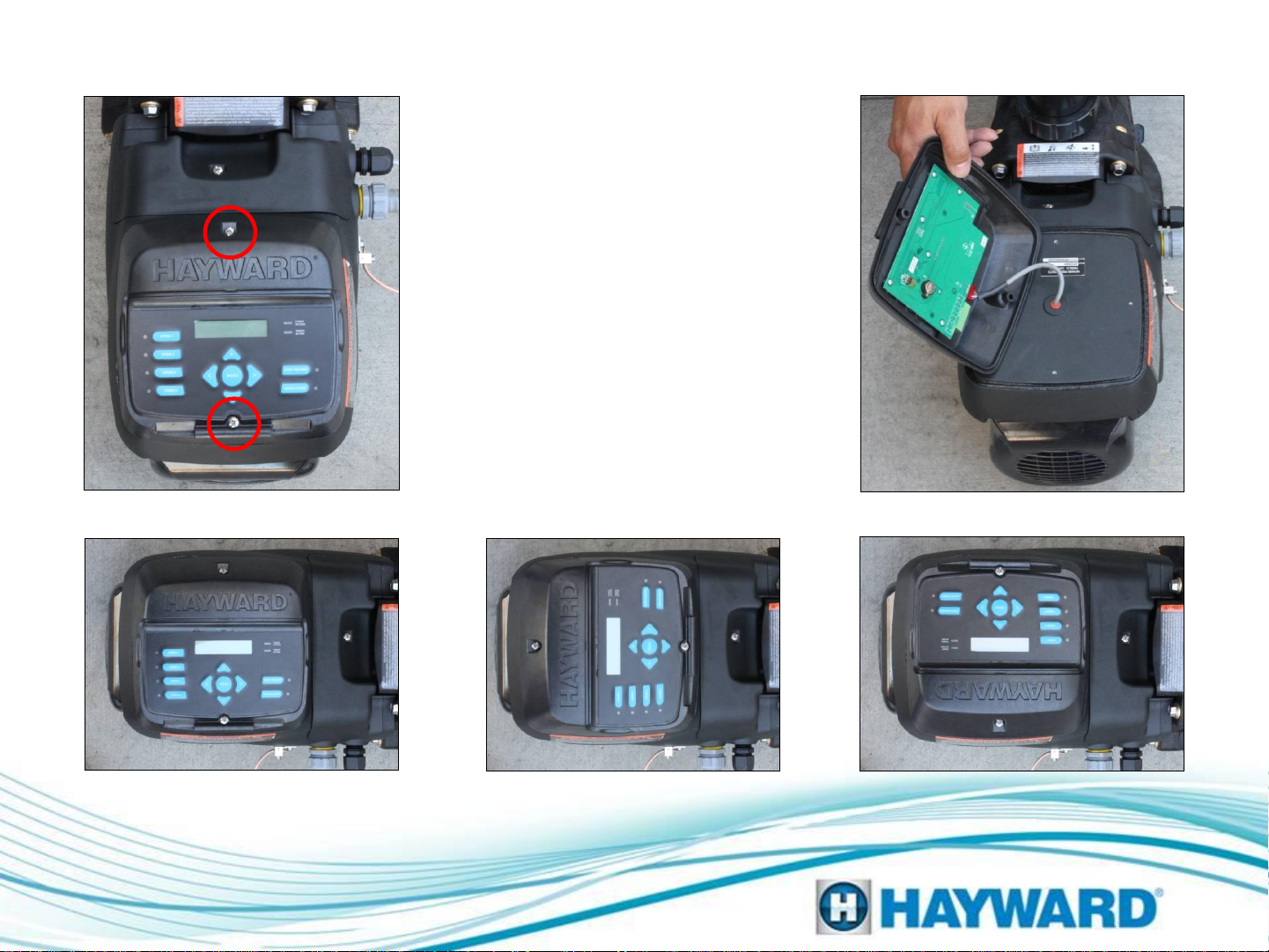

Installation–Interface removal/positioning
1. Remove the two screws as
shown (fig 7).
2. Remove the interface assembly
as shown (fig 8).
3. Reposition interface assembly
as shown (fig 7, 9, 10 & 11) and
re-secure with the two screws
(fig 7).
The interface assembly on the
EcoStar can be configured in
four different positions.
Page 6
Figure 11
Figure 7
Figure 9 Figure 10
Figure 8

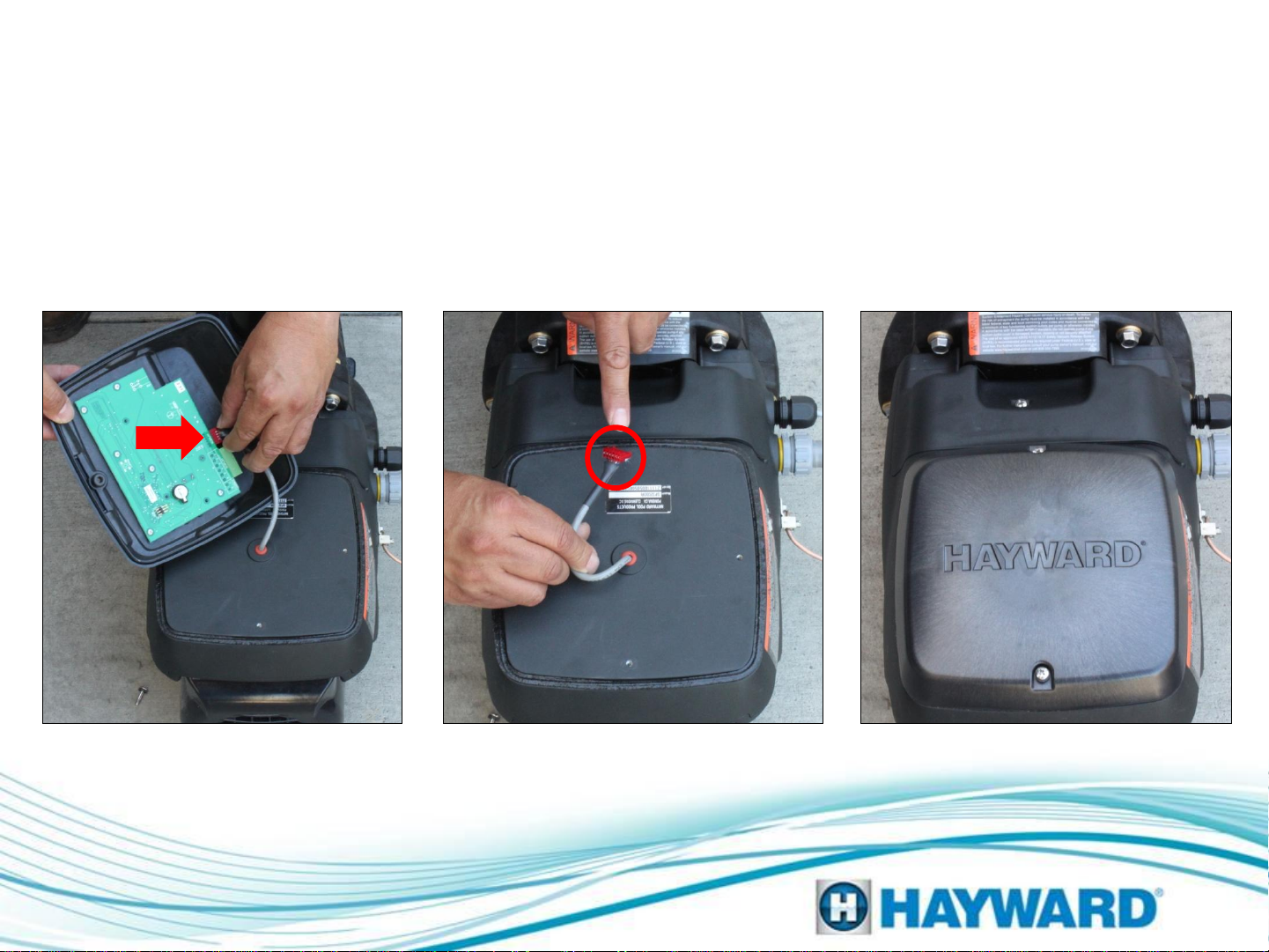

Installation–Interface /Wall mount
1. Wall mount kit is included with the EcoStar and includes blank cover, mounting bracket and new terminal
block for connecting to the interface assembly. Maximum 500’ for data cable used for wall mount or control
connection.
2. After removal of the interface assembly (Page 7) remove the plug connecting the drive to the interface (fig 12).
3. Plug is permanently attached (fig 13), install the blank cover over the plug (fig 14).
Figure 14Figure 13
Figure 12
Page 7
Installation–Interface /Wall Mount

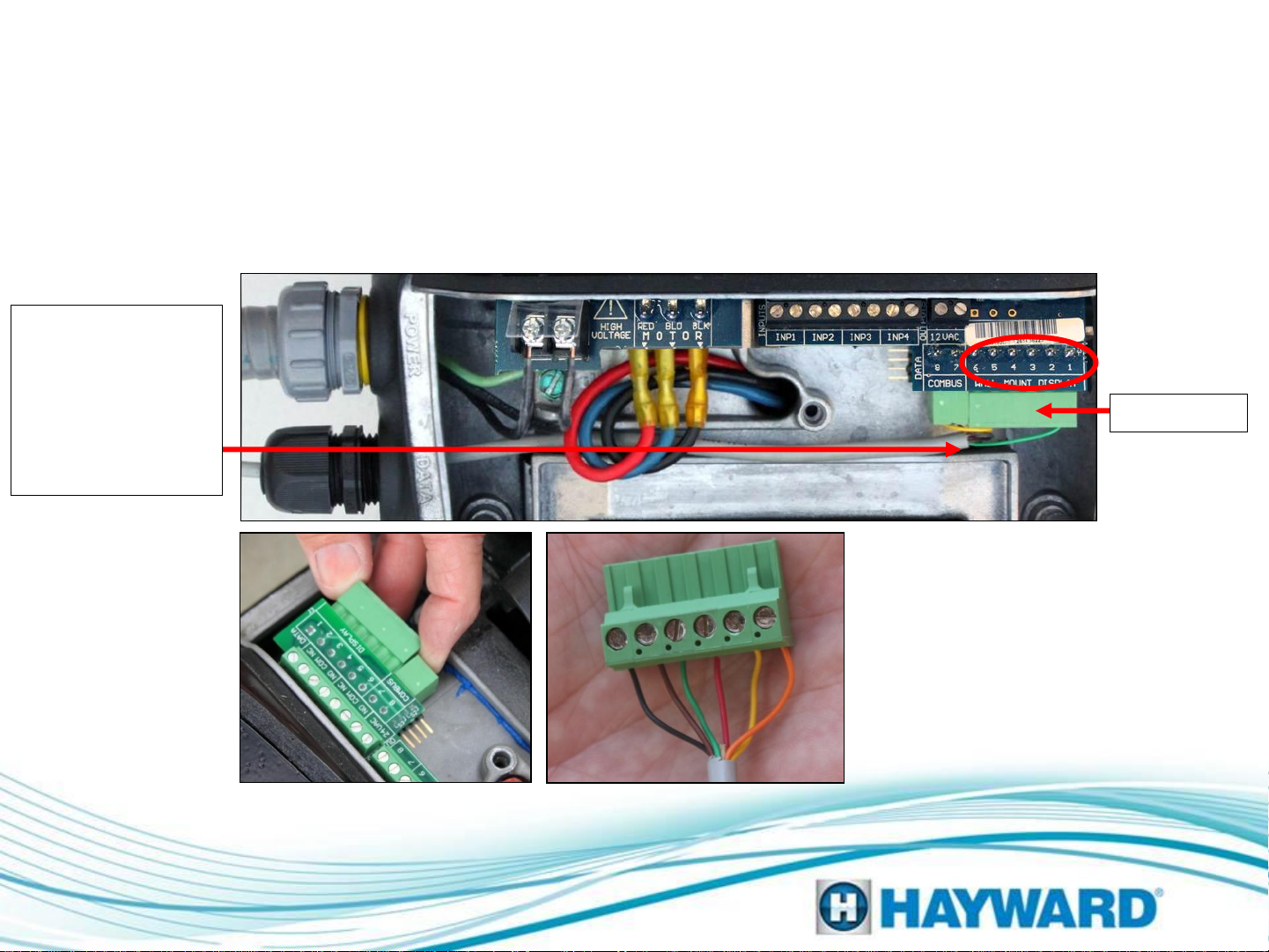

4. The data cable needs to be routed through the second (low voltage) conduit opening (fig 15).
5. Remove the wall mounting data plug from the electrical compartment as shown (fig 16).
6. You will need to procure a six wire data cable, as short as possible, and attach the wires to the data
plug as shown (fig 17) taking care to note the color and corresponding number next to the data plug (fig
15).
Figure 15
Figure 16 Figure 17
Page 8
Data cable is
routed separate of
high voltage and
in it’s own
channel within the
motor electrical
compartment
Data Plug
