Harman JBL EON 718S User manual

QUICKSTART GUIDE

2. PLUG IN THE INPUTS

1. Turn the Main Volume (E) to the left until

the LCD screen displays -100db before

connecting inputs.

2. Connect your devices to the

Input Jacks (B) (G).

3. Tu r n Main Volume (E) until desired

volume is reached.

1. POWER ON THE UNIT

1. Connect the power cord to the

AC Power Connector (I).

2. Press the Power Button [D] for .5

second to engage power.

AC Power Connector

CH2 XLR Male

Loop Thru

CH2 XLR-1/4”

Combo Input

Main /

Menu Navigation

Power

Back Button

LCD Display

CH1 XLR-1/4”

Combo Input

CH1 XLR Male

Loop Thru

EON7 18S

For complete documentation, visit

www.jblpro.com/eon700

EON718s Quickstart Guide - 07/2021

Pour la version française de ce document, veuillez visiter le site www.jblpro.com/eon700

Die deutsche Version dieses Dokuments finden Sie unter www.jblpro.com/eon700

Para la versión en español de este documento, por favor visite www.jblpro.com/eon700

Para a versão em português deste documento, visite www.jblpro.com/eon700

Per la versione italiana di questo documento, visitare www.jblpro.com/eon700

이 문서의 한국어 버전은 www.jblpro.com/eon700 를 방문하십시오문하십시오

有關本文檔的中文版，請訪問 www.jblpro.com/eon700

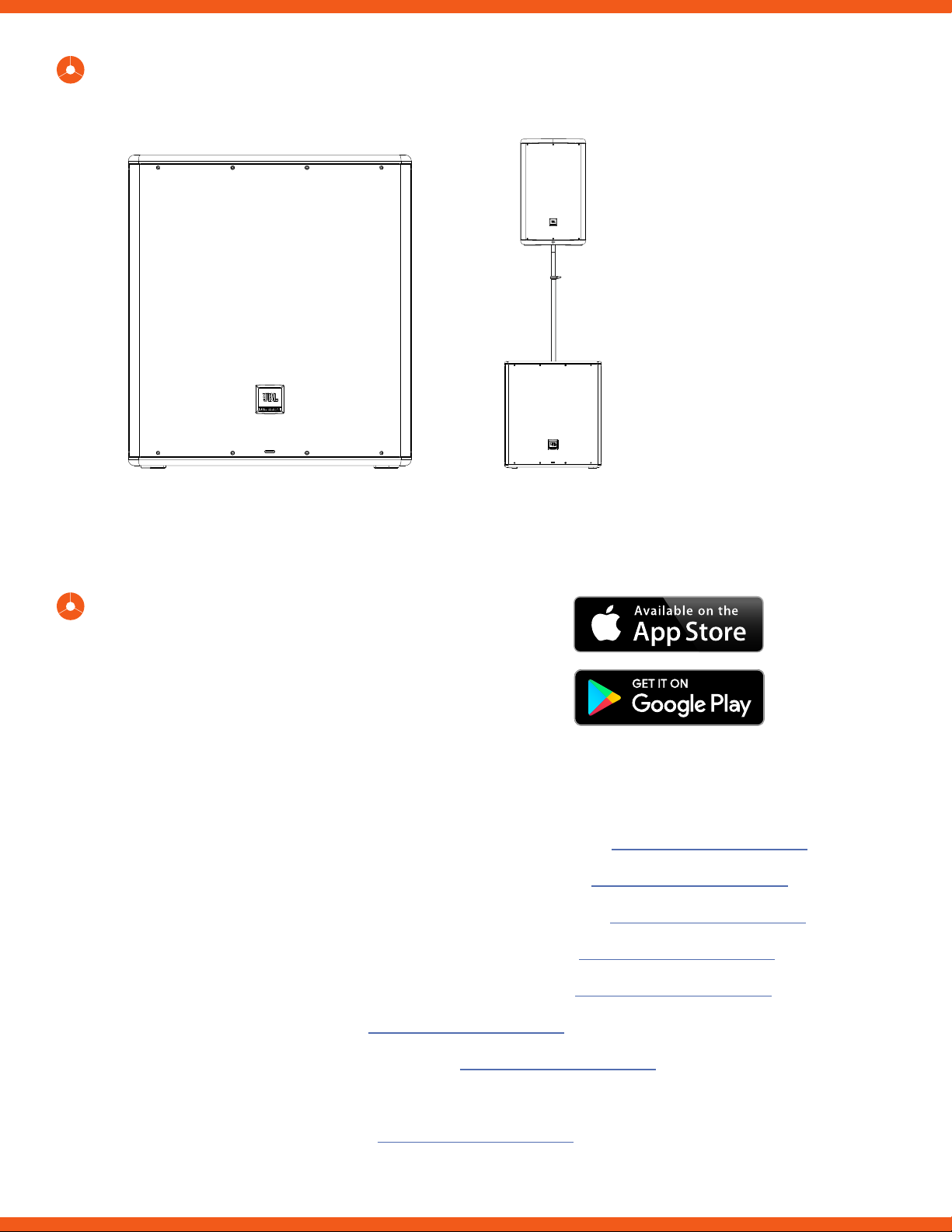

3. PLACE IN DESIRED LISTENING POSITION

Main Speaker Position Pole Mounted

EON715 LINE ART

PROPRIETARY AND CONFIDENTIAL PROPERTY OF

HARMAN. DO NOT DISCLOSE, REPRODUCE, OR

PUBLISH WITHOUT WRITTEN HARMAN APPROVAL.

ROHS/REACH

RESTRICTION OF HAZARDOUS SUBSTANCES/

REGISTRATION, EVALUATION, AUTHORIZATION,

AND RESTRICTION OF CHEMICALS

ALL MATERIALS USED IN THIS PART MUST BE

ROHS/REACH COMPLIANT.

SUPPLIER SHALL PROVIDE A CERTIFICATE OF

ROHS COMPLIANCE AND A REACH DECLARATION

OF SUBSTANCES WITH THE FIRST ARTICLE.

THIRD

ANGLE

PROJECTION

REV

NO.

DIMENSIONS SHOWN ARE FOR REFERENCE AND

INSPECTION ONLY. REFER TO CAD MODEL

PROVIDED WITH THIS DRAWING FOR OVERALL

DEFINITION OF PART GEOMETRY.

2/25/2021

SCALE

TITLE

DO NOT SCALE

DRAWING

SIZE

PROJECT MANAGER/ENGINEER

DATE

1:5

SHEET

DATE

DRAWN BY

4/3/2020

4. JBL PRO CONNECT

1. The JBL Pro Connect app is a Bluetooth Low

Energy control application used to remotely

control the features within the EON 718s. The app

is a free download on iOS and Android.

2. It is recommended that all users download the app

and ensure their unit is operating on the latest

firmware for the best experience.
