Harman Kardon HKB 4 User manual

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

•Nominal Impedance 8Ω

•Max Amp Power 110 watts*

•Frequency Response 80Hz – 20kHz

•Sensitivity 88dB (2.83V @ 1 meter)

•Crossover Frequency 3,400Hz

SYSTEM COMPONENTS:

•Cabinet HKB 4

(Not for Sale)

•Grille 339267-001

•Low-Frequency Transducer 4" (102mm) Polymer-coated

cone, shielded

339787-001

DC Resistance 3.9 ohms ±10%

•High-Frequency Transducer 3/4" (19mm) Titanium-laminate

dome, shielded

338035-001

DC Resistance 3.0 ohms ±10%

•Crossover Network 339793-001

AURAL SWEEP TEST SPECIFICATIONS:

•System Aural Sweep Test 6.0V Input 80Hz to 20kHz

•L.F. Aural Sweep Test 5.0V Input 80Hz to 4kHz

•H.F. Aural Sweep Test 2.83V Input 3kHz to 20kHz

PHYSICAL SPECIFICATIONS:

•Dimensions 10-1/2" x 6-1/2" x 8"

(H x W x D) (267mm x 165mm x 203mm)

•Weight 25.4 lb (11.6kg) Sold in Pairs

WARRANTY:

•Refer to Warranty Statement packed with each product.

*The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

Technical Manual

HKB 4

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

Legend on Page 2

1 2

.205

.110

INPUT

0.20mH

1.5mH

4.7uf

100V

.205

H.F.

L.F.

17.7uf

100V

5.0ohm

10W

—

.250

CROSSOVER NETWORK

339793-001

HIGH-FREQUENCY

TRANSDUCER

338035-001

LOW-FREQUENCY

TRANSDUCER

339787-001

10" GRN

10" GRN/BLK

10" YEL/BLK

10" YEL

YEL/BLK

YEL

+— GRN/BLK

GRN

—

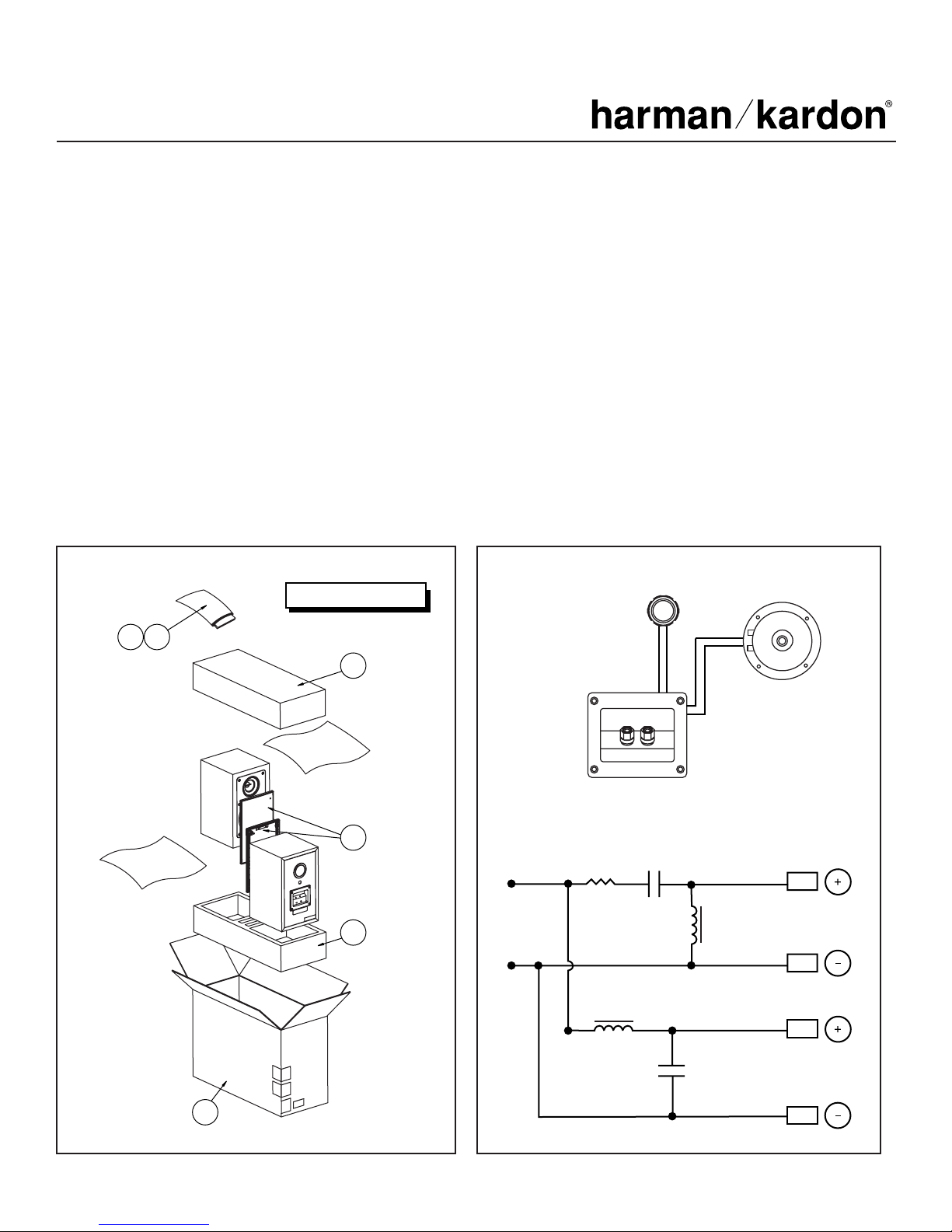

PACKAGING HKB 4 WIRING DIAGRAM

HKB 4 SCHEMATIC

HKB 4 Cabinet – Not for Sale

1513

(4)

(2)

(4)

(6)

HKB 4

Technical Manual

HKB 4

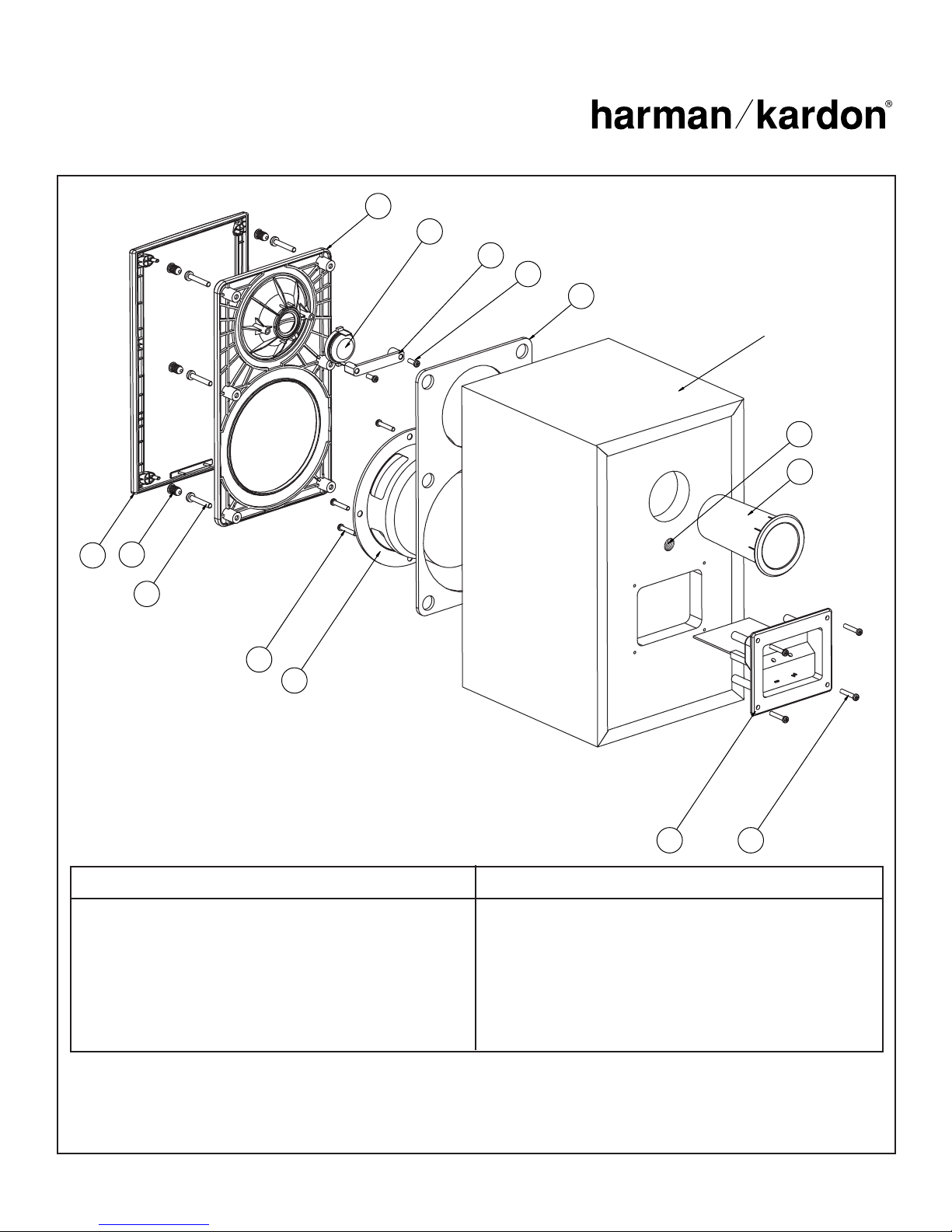

EXPLODED VIEW

Harman Kardon, Incorporated, 250 Crossways Park Drive, Woodbury, New York 11797 6/03

TO SERVICE THE HKB 4

1. Remove the grille.

2. Remove all (6) rubber grille retainers; this can be accomplished by carefully pulling them out of their cavities with long-nosed pliers or similar tool.

3. Remove the (6) Phillips screws that are now exposed.

4. Carefully separate the front baffle, with tweeter attached, from the cabinet.

ITEM

NO. DESCRIPTION QTY. PART NO.

1. Owner’s Manual 1 339777-001

2. Warranty Card 1 339778-001

3. Top & Bottom Pads 2 339780-001

4. Outer Carton 1 339779-001

5. Tweeter 1 338035-001

6. Tweeter Hold-Down Bar 1 338059-001

7. Front Faceplate 1 350704-001

8. Faceplate Gasket 1 339772-001

9. Woofer 1 339787-001

10. Grille 1 339267-001

ITEM

NO. DESCRIPTION QTY. PART NO.

11. Grille Retainer 6 338535-002

12. Port Tube 1 339795-001

13. Crossover Network 1 339793-001

14. Screw (front faceplate) 6 910501-020

PB PPH M4 x 20mm

15. Screw (4 woofers, 4 network) 8 903401-012

PB PPH #6 x .75 BLK

16. Screw (tweeter) MS PHH H/L 2 905402-010

6-19 x 5/8 ZNC

17. Threaded Insert 3/8 - 16 1 339700-001
