Harbor Breeze BTH44ABZC5C User manual

MAYFIELD CEILING FAN

Harbor Breeze® is a registered trademark

4009654

MODEL #BTH44ABZC5C

BTH44BNK5C

BTH44WW5C

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -

5 p.m., EST, Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

EB15408

1Lowes.com/harborbreeze

Español p. 20

ITEM #0331094

0331096

0648636

Safety Information ...............................................................................................................2

Package Contents ...............................................................................................................4

Hardware Contents

..........................................................................................................................

Preparation ..........................................................................................................................5

Initial Installation ..................................................................................................................6

Wiring ..................................................................................................................................8

Final Installation ................................................................................................................10

Operating Instructions .......................................................................................................15

Care and Maintenance ......................................................................................................16

Troubleshooting .................................................................................................................17

Limited Lifetime Warranty ..................................................................................................18

Replacement Parts List .....................................................................................................19

TABLE OF CONTENTS

Lowes.com/harborbreeze

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the

product.

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage

that might exceed the initial cause for return.

• Make sure all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring

handbook if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure all connections are secure to prevent the fan from falling.

• The net weight of this fan, including the light kit, is: 12.72 lbs.

3Lowes.com/harborbreeze

SAFETY INFORMATION

To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a

plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its

support must be able to support the moving weight of the fan (at least 35 lbs.).

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan

are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the

corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control

device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when

installing them, balancing the blades or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

WARNING

DANGER

CAUTION

When using an existing outlet box, make sure the outlet box is securely attached to the building

structure and can support the full weight of the fan. Failure to do this can result in serious injury or

death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after

installation is complete.

Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.

Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to

ensure they are secure.

PACKAGE CONTENTS

Lowes.com/harborbreeze

DESCRIPTIONPART QUANTITY DESCRIPTIONPART QUANTITY

IMPORTANT REMINDER: You must use the

parts provided with this fan for proper installation

and safety.

N 5.4 mm Lock Washer 10

(preassembled) + 1 extra

O Hex Nut (preassembled) 1

P Lock Washer 1

(preassembled)

Q Rubber Washer 1

(preassembled)

R Motor Housing Mounting 4

Screw (preassembled)

S Mounting Bracket Flat 4

Washer (preassembled)

T Motor Housing Lock 4

Washer (preassembled)

U Mounting Bracket Nut 4

(preassembled)

Switch Housing Cap 3

Screw

(preassembled)

A Motor Housing 1

B Mounting Bracket 1

C Motor Assembly 1

D Light Kit Fitter 1

E Glass Shade 1

F Pull Chain Extension 2

G Blade 5

H Finial Plate 1

(preassembled)

I Finial (preassembled)

J Blade Arm 5

K Cap 1

L Bulb 3

M Motor Screw 10

(preassembled) + 1 extra

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble

the product.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire

Cutters

HARDWARE CONTENTS (shown actual size)

PREPARATION

Lowes.com/harborbreeze

Blade

Screw

Qty. 15

+ 1 extra

E3 Wire

Connector

Qty. 4

Fiber

Blade

Washer

Qty. 15

+ 1 extra

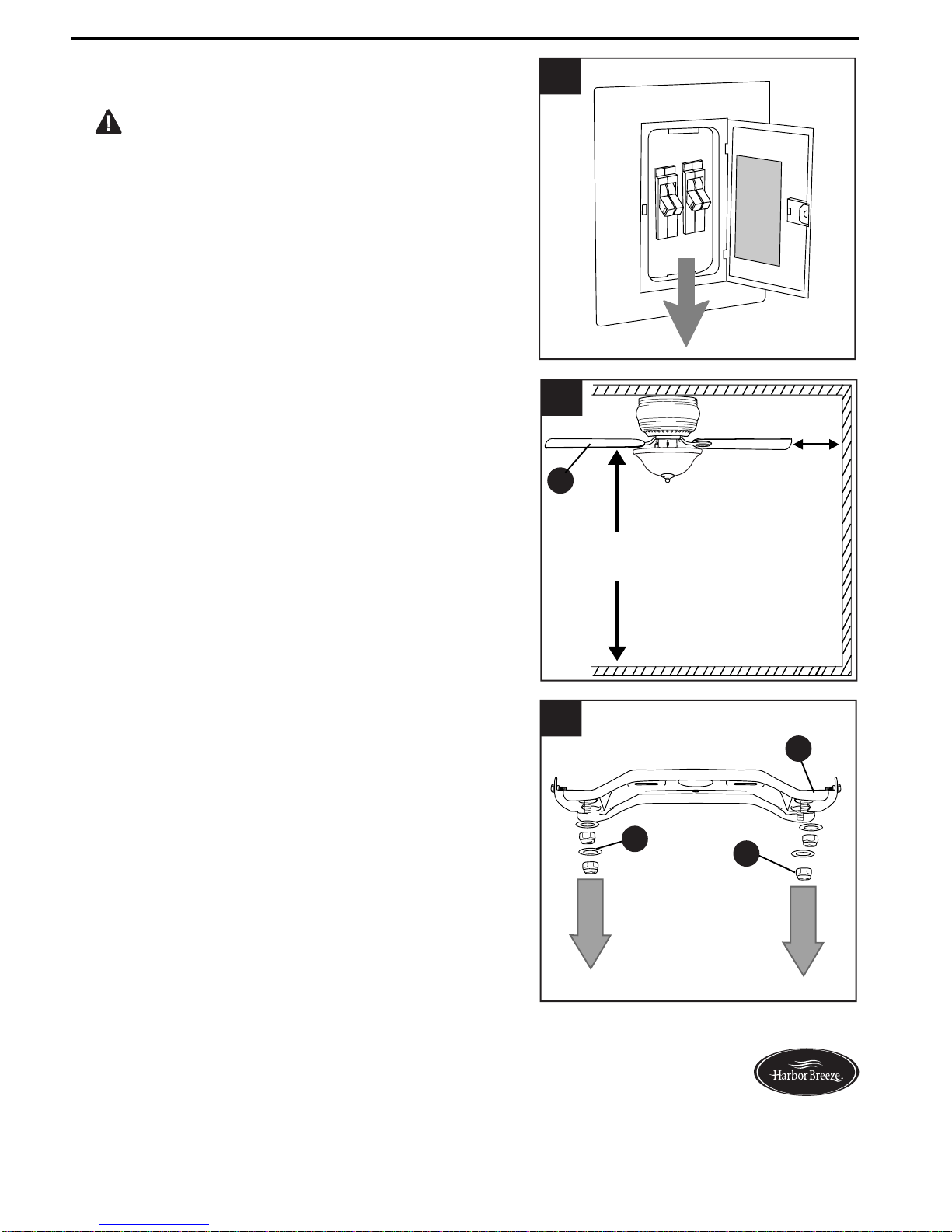

This fan can be mounted as a flushmount on a

regular (no-slope) ceiling only.

Check to make sure blades (G) will be at least

30 in. from any obstruction and at least 7 ft. above

the floor.

Turn off circuit breakers and wall switch to the fan

supply line leads.

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

Remove all mounting bracket nuts (U) and

mounting bracket flat washers (S) from mounting

bracket (B).

INITIAL INSTALLATION

OFF

Lowes.com/harborbreeze

7 ft.

min.

30 in.

min.

Secure mounting bracket (B) to outlet box using

screws, spring washers and flat washers provided

with the outlet box.

*NOTE: It is very important you use the proper

hardware when installing the mounting bracket

(B) as this will support the fan.

Slide the slot in the bar at the top of the motor

assembly (C) onto the "J" hook on the mounting

bracket (B) to support the fan during wiring.

IMPORTANT: Do not use the end of the bar on

the motor assembly (C) with the small round hole

to hang the motor assembly (C) on the mounting

bracket (B).

INITIAL INSTALLATION

Lowes.com/harborbreeze

Remove motor screws (M) and 5.4 mm lock

washers (N) from underside of motor and save

for blade arm (J) attachment later on. [If there are

plastic motor blocks installed with the motor

screws (M) and 5.4 mm lock washers (N), discard

the plastic motor blocks.]

"J" Hook

Bar B

Small Hole

End Bar

WIRING

8Lowes.com/harborbreeze

WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors

provided with this fan are designed to accept only one 12-gauge house wire and two lead wires

from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to

connect to the corresponding fan lead wires, consult an electrician for the proper size wire

connectors to use.

CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is

present.

WARNING: If house wires are different colors than referred to in the following steps, stop

immediately. A professional electrician is recommended to determine wiring.

Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)

that fits your situation and make appropriate wiring

connections as follows: [NOTE: For each wire

connection below, use one of the wire connectors

(CC), making sure to screw wire connector (CC) on

in a clockwise direction.]

1a. FAN AND LIGHT CONTROLLED BY PULL

CHAINS: Connect BLACK and BLUE wire from

fan to BLACK wire from ceiling. Connect WHITE

wire from fan to WHITE wire from ceiling. Connect

all GROUND (GREEN) wires together from fan

(on motor assembly (C) and mounting bracket (B))

to BARE/GREEN wire from ceiling.

1b. FAN CONTROLLED BY PULL CHAIN,

LIGHT BY WALL SWITCH: If you intend to

control the fan light with a separate wall switch,

connect BLACK wire from fan to BLACK wire from

ceiling. Connect BLUE wire from fan to the

BLACK wire from the independent wall switch for

the light. Connect WHITE wire from fan to WHITE

wire from ceiling. Connect all GROUND (GREEN)

wires together from fan (on motor assembly (C)

and mounting bracket (B)) to BARE/GREEN wire

from ceiling.

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH

GROUND/GREEN (BARE)

WHITE

BLACK

WHI

D/G

REE

N (

BAR

GROUND/GREEN

BLACK

WHITE

BLUE

FROM FAN

BLACK

BLUE

WHITE

M FA

WHITE

D/GREE

D/G

WHI

BLACK

120 V Power

from ceiling

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

FAN AND LIGHT CONTROLLED BY PULL CHAINS

GROUND/GREEN (BARE)

WHITE

BLACK

120 V Power

from ceiling

WHITE

/GREEN

(

BARE

)

GROUND/GREEN

BLACK

WHITE

BLUE

FROM FAN

BLACK

WHITE

M FA

WHITE

EEN

D/G

WHITE

BLACK

BLACK (WALL SWITCH)

9Lowes.com/harborbreeze

NOTE: BLACK wire is hot power for fan. BLUE

wire is hot power for light kit. White wire is common

for fan and light kit. BARE/GREEN wire is ground.

WIRING

1c. FAN AND LIGHT CONTROLLED BY TWO

WALL SWITCHES: If you intend to control the fan

and light with separate wall switches, connect

BLACK wire from fan to BLACK wire from the

independent wall switch for the fan. Connect

BLUE wire from fan to the BLACK wire from the

other independent wall switch for the light.

Connect WHITE wire from fan to WHITE wire

from ceiling. Connect all GROUND (GREEN)

wires together from fan (on motor assembly (C)

and mounting bracket (B)) to BARE/GREEN wire

from ceiling.

Wrap electrical tape (not included) around each

individual wire connector (CC) down to the wire.

WARNING: Make sure no bare wire or wire

strands are visible after making connections. Place

BARE/GREEN and WHITE connections on

opposite side of box from the BLACK and BLUE (if

applicable) connections.

Turn spliced/taped wires upward and gently push

wires and wire connectors (CC) into outlet box.

Hardware Used

E3 Wire Connector x 4

IMPORTANT: Using a full range dimmer switch

(not included) to control fan speed will cause a loud

humming noise from fan. To reduce the risk of fire

or electrical shock, do NOT use a full range

dimmer switch to control fan speed.

3. 3

Dimmer

Switch Speed

Switch

For illustrative purposes only--not

intended to cover all types of controls

WHITE

D/GREEN

BLACK

WHITE

BLUE

FROM FAN

BLACK

WHITE

M FA

WHI

REE

D/G

WHITE

WHI

BLACK

BLACK (WALL SWITCH FOR LIGHT)

BLACK (WALL SWITCH)

GROUND/GREEN (BARE)

120 V Power

from ceiling

FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES

10 Lowes.com/harborbreeze

3. Partially insert three blade screws (AA) along

with three fiber blade washers (BB) into holes in

blade (G) to attach blade arm (J) to blade (G).

Then, tighten each blade screw (AA) starting

with the one in the middle.

Repeat Step 3 with remaining blades (G).

FINAL INSTALLATION

1. Remove motor assembly (C) from "J" hook. Align

holes in motor assembly (C) with holes in

mounting bracket (B). Secure motor assembly (C)

with mounting bracket flat washers (S) and

mounting bracket nuts (U) previously removed

(Step 3, page 6).

Hardware Used

Blade Screw x 15

Fiber Blade Washer x 15

2. Temporarily lift motor housing (A) to mounting

bracket (B). Determine which two motor housing

mounting screws (R) in sides of mounting bracket

(B) align with the slotted holes in the top edge of

the motor housing (A) and partially loosen these

two motor housing mounting screws (R). Remove

the other two motor housing mounting screws (R)

and motor housing lock washers (T). Slide motor

housing (A) over motor assembly (C), aligning

slotted holes in motor housing (A) with loosened

motor housing mounting screws (R) in mounting

bracket (B). Twist motor housing (A) to lock.

Re-insert the other two motor housing mounting

screws (R), along with motor housing lock washers

(T), that were previously removed. Tighten all

motor housing mounting screws (R) securely.

Other manuals for BTH44ABZC5C

This manual suits for next models

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze ANNANDALE 42864 User manual

Harbor Breeze

Harbor Breeze FLANAGAN User manual

Harbor Breeze

Harbor Breeze E-TM52BNK5LED User manual

Harbor Breeze

Harbor Breeze 42224 User manual

Harbor Breeze

Harbor Breeze TILGHMAN User manual

Harbor Breeze

Harbor Breeze Calera User manual

Harbor Breeze

Harbor Breeze 40410 User manual

Harbor Breeze

Harbor Breeze 40959 User manual

Harbor Breeze

Harbor Breeze LP8221LCH User manual

Harbor Breeze

Harbor Breeze 00887 User manual

Harbor Breeze

Harbor Breeze CLASSIC STYLE BDB52LW5N User manual

Harbor Breeze

Harbor Breeze TALAMORE TAL60BNK8LR User manual

Harbor Breeze

Harbor Breeze LANSING 40198 User manual

Harbor Breeze

Harbor Breeze 40107 User manual

Harbor Breeze

Harbor Breeze ECHOLAKE 00876 User manual

Harbor Breeze

Harbor Breeze MAZON MZ44BNK3LR User manual

Harbor Breeze

Harbor Breeze AERO 00980 User manual

Harbor Breeze

Harbor Breeze ALTISSA User manual

Harbor Breeze

Harbor Breeze C-TR56BNK3D1R User manual

Harbor Breeze

Harbor Breeze LP8115LAZ User manual

Harbor Breeze

Harbor Breeze 00892 User manual

Harbor Breeze

Harbor Breeze BELLEVUE E-BE44ABZ5C User manual

Harbor Breeze

Harbor Breeze E-ER56ORB3LKLR User manual

Harbor Breeze

Harbor Breeze MZ44WW3LR User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
