Harbor Breeze E-BDB52ABZC5BC4N User manual

ITEM #0152426

0156738

0158620

0204925

SPRINGFIELD II CEILING FAN

Harbor Breeze® is a registered trademark

Español p. 22

MODEL #E-BDB52ABZC5BC4N

E-BDB52BNK5BC4N

E-BDB52LW5BC4N

E-BDB52MBK5BC4N

Questions, problems, missing parts? Before returning to your retailer, call or contact our

customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

E192641

LISTED

Federal regulations require ceiling fans with light kits manufactured or imported after

January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore,

this fan is equipped with a wattage limiting device.

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the

product. If you have any questions regarding the product, please call customer service at

1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage that

might exceed the initial cause for return.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook

(available at Lowe's) if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure that all connections are secure to prevent the fan from falling.

• The net weight of this fan including the light kit is: 19.62 lbs. (8.9 kg).

TABLE OF CONTENTS

Safety Information .....................................………………………………………………...…

….....

2 - 3

Product Overview ...........................................................................................................................4

Package Contents .....……………………………………………………………..….

….

.........

......

Hardware Contents ...................................................................................................................

......

Preparation ...............….…………………..……………………….…………….……………….......6

Initial Installation ............….……………..……………………….……….

…..….

.............................7 - 8

Downrod Style Fan Mounting ............................................................................................8 - 10

Closemount Style Fan Mounting

...........................................................................................10 - 11

Wiring .................................……………………........................................…………...........12 - 13

Final Installation ….…………….……………………….…………….……..........

....

….......

14 - 17

Operation Instructions ............................................................……………………

……

….

...........

17 - 18

Care and Maintenance …

….…

…………………………………………………..….......

.....

.......

Troubleshooting .............………...………………………….……………..………....

….......

19 - 20

Warranty ……………………………….…………………………………………..…

….

.........

........

Replacement Parts List ...........................................................................................

.........

......

............

SAFETY INFORMATION

To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet

box directly to the building structure. The outlet box and its support must be able to support the

moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this

fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your

house wire is larger than 12-gauge or there is more than one house wire to connect to the two fan

lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed

control device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when

installing them, balancing the blades, or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

WARNINGS

CAUTIONS

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

Congratulations on your purchase of this Harbor Breeze®

Ceiling Fan! This product has been specifically designed to

give you all the performance you’ll ever need. Harbor Breeze®

is the perfect fusion of smart innovation and beautiful style.

Designed for more than just air movement, our products are

built to function flawlessly... day after day. Expect showroom

quality at an exceptional price with Harbor Breeze® - available

exclusively at Lowe’s.

Determining how you want your ceiling fan to look and operate is an important step prior to

installation. You can save installation time by deciding which options are best suited for your needs

before beginning the steps outlined in this manual.

Your fan can be installed with or without a downrod.

• Downrod-style mounting is best suited for ceilings 8 ft. (2.44 m) high or higher. For taller ceillings

you may want to use a longer downrod (sold separately) than the one provided.

• Angle-style mounting is best suited for angled or vaulted ceilings. A longer downrod is sometimes

necessary to ensure proper blade clearance.

• Closemount-style mounting is more suitable for ceilings lower than 8 ft. (2.44 m) high.

Your fan also has multiple wiring options available, including:

• Fan and light controlled by pull chain.

• Fan controlled by pull chain, light controlled by wall switch.

• Fan and light controlled by two separate wall switches.

Your fan is remote control adaptable (remote control sold separately).

Harbor Breeze® is a registered trademark

PRODUCT OVERVIEW

*US Pat. No. 7351037 IMPORTANT REMINDER: You must

use the parts provided with this fan for

proper installation and safety.

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

Switch Housing Cap

(preassembled)

Lock Washer

(preassembled)

Canopy Mounting Screw

(preassembled)

Pin (preassembled)

R Clip (preassembled)

S Light Kit Fitter Screw

(preassembled)

T Switch Housing Screw

(preassembled)

U Blade Screw 15

(preassembled)

PART DESCRIPTION QUANTITY

Downrod 1

Canopy

Mounting Bracket

Motor Housing

Plastic Locking Mechanism

Light Kit Fitter

Blade

Blade Arm

Glass Shade

Candelabra Base Bulb

K Pull Chain Extension 2

L Socket Ring 4

(preassembled)

M Motor Screw 10

(preassembled)

HARDWARE CONTENTS (shown actual size)

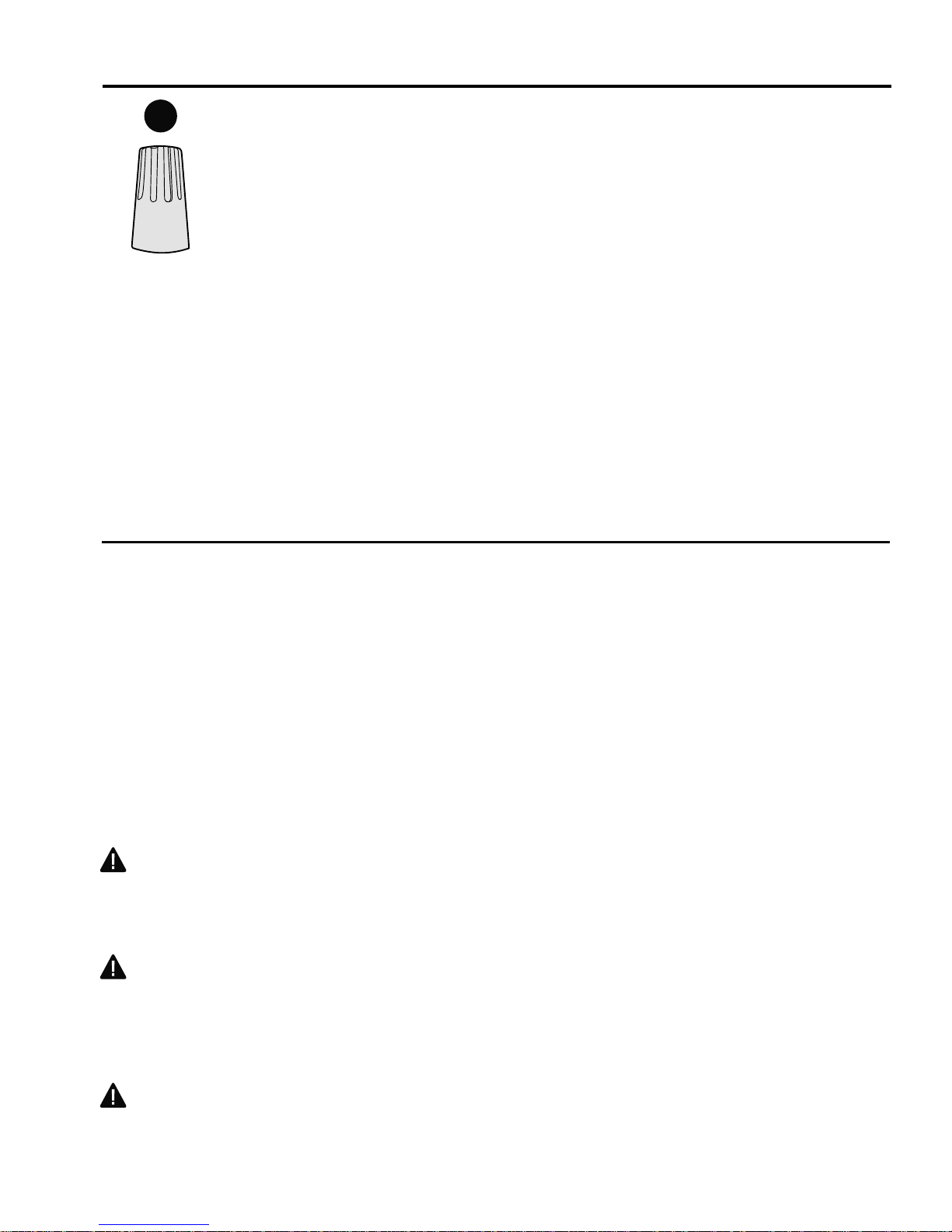

E3 Wire

Connector

Qty. 4

Before beginning assembly of product, make sure all parts are present. Compare parts with “Package

Contents” list and diagrams on the previous page. If any part is missing or damaged, do not attempt

to assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook

(available at Lowe’s) and Wire Cutters

Bulbs Required (included): 4 candelabra-base 40-watt max. bulbs

DANGER: When using an existing outlet box, make sure the outlet box is securely attached to

the building structure and can support the full weight of the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan

after installation is complete.

CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is

present.

After opening top of carton, remove mounting hardware package from foam inserts. Remove motor

from packing and place on carpet or on foam to avoid damage to ﬁnish.

CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they

are secured.

PREPARATION

INITIAL INSTALLATION

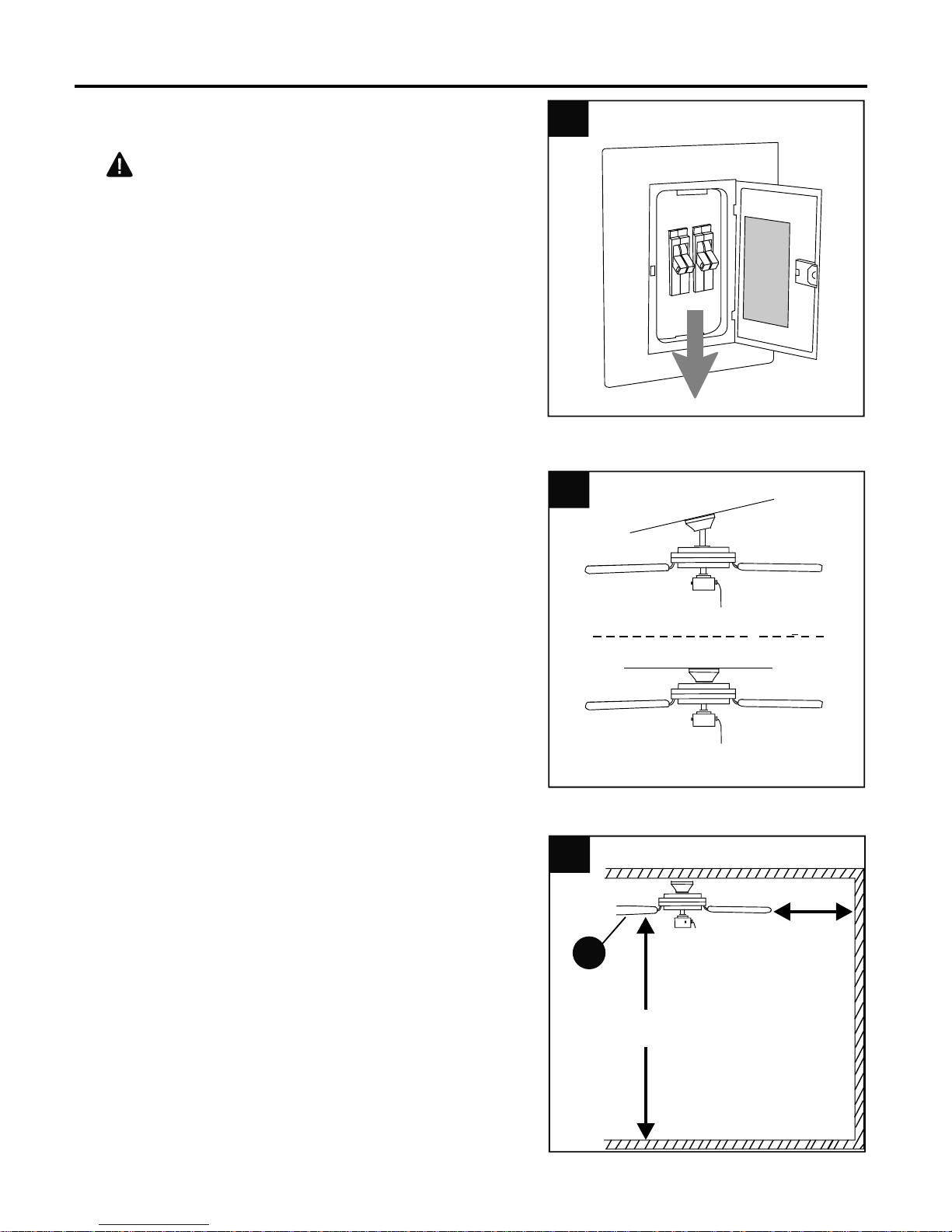

Turn off circuit breakers and wall switch to the fan

supply line leads. (Fig. 1)

DANGER: Failure to disconnect power supply

prior to installation may result in serious injury or

death.

Check to make sure blades (G) are at least 30 in.

from any obstruction. Check downrod (A) length to

ensure blades (G) are at least 7 ft. above the floor.

(Fig. 3)

OFF

Determine mounting method to use. (Fig. 2)

A. Downrod mount (normal or angled ceiling)

B. Closemount (normal ceiling only)

Important:If using the angle mount, check to

make sure the ceiling angle is not steeper than 19°.

7 ft.

min.

30 in.

min.

INITIAL INSTALLATION

5. Remove motor screws (M) and lock washers (O)

from underside of motor. [If there are plastic

motor blocks installed with the motor screws (M)

and lock washers (O), discard the plastic motor

blocks.] (Fig. 5)

Follow mounting instructions on pages 8 - 10 for

“Downrod Style Fan Mounting” or proceed to

pages 10 and 11 for “Closemount Style Fan

Mounting”, depending on mounting method (A or

B) chosen in Step 2 on previous page.

DOWNROD STYLE FAN MOUNTING

1. R

Secure mounting bracket (C) to outlet box using

screws, spring washers, and flat washers

provided with the outlet box. (Fig. 4)

*NOTE:It is very important that you use the

proper hardware when installing the mounting

bracket (C) as this will support the fan.

IMPORTANT: If using the angle mount, make

sure open end of mounting bracket (C) is installed

facing the higher point of the ceiling.

4. 4

Remove pin (Q) and clip (R) from motor housing

yoke at top of motor housing (D) and partially loosen

set screws. (Fig. 1)

*Helpful Hint: Downrod style mounting is best

suited for ceilings 8 ft. (2.44 m) high or higher. For

taller ceilings you may want to use a longer downrod

(not included) than the one provided. Angle style

mounting is best suited for angled or vaulted

ceilings. A longer downrod is sometimes necessary

to ensure proper blade clearance.

Set

Screw

DOWNROD STYLE FAN MOUNTING

Depending on the length of downrod (A) you

use, you may need to cut the lead wires back to

simplify the wiring. If you decide to cut back the

lead wires, it is suggested that you do so in the

following manner:

Take the lead wires and make sure that you

have pulled them all the way through the top of

the downrod (A). Start at the TOP of the ball on

the downrod (A) and measure 8 in. of lead wire,

and then cut the excess wire off with wire cutters

(not included). (Fig. 4)

NOTE: If you do not cut back the lead wires,

Steps 4 and 5 are not necessary and you may

proceed to Step 6 instead.

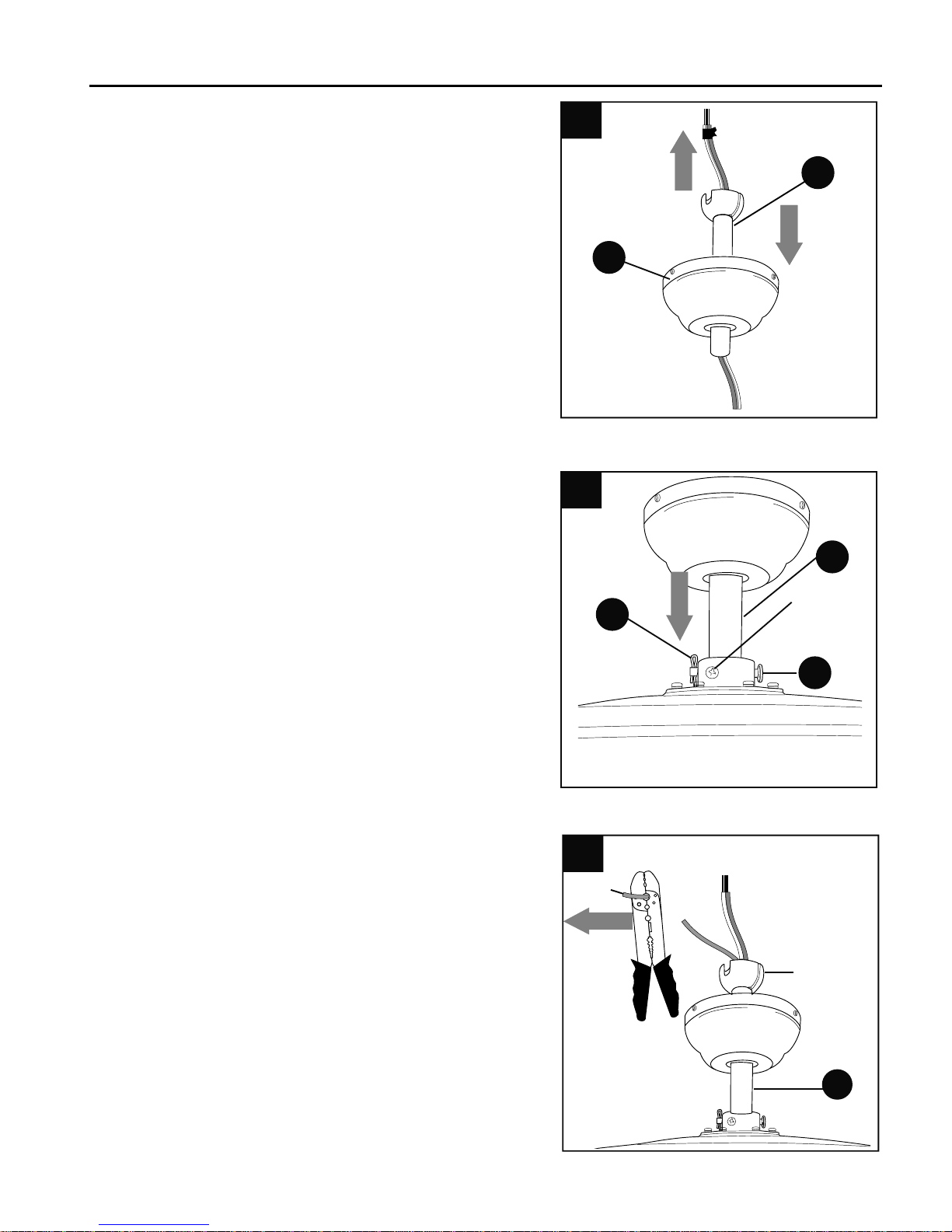

2. Insert downrod (A) through canopy (B). Thread

wires from motor housing (D) through downrod

(A). (Fig. 2)

Slip downrod (A) into motor housing yoke, align

holes and re-install pin (Q) and clip (R).

Re-tighten set screws in motor housing yoke

and then tighten nuts. (Fig. 3)

Set

Screw

Ball

DOWNROD STYLE FAN MOUNTING

If you decided to cut back the lead wires in Step

4, strip 1/2 in. of insulation from end of white

wire. Twist stripped ends of each strand of wire

within the insulation with pliers (not included).

(Fig. 5) Repeat Step 5 for black, blue (if

applicable) and green wires.

Install ball end of downrod (A) into mounting

bracket (C) opening. Align slot in ball with tab in

mounting bracket (C). (Fig. 6)

DANGER: Failure to align slot in ball with tab

may result in serious injury or death.

Continue to "Wiring" instructions on page 12.

Slot

Tab

Remove canopy cover from bottom of canopy (B).

(Fig. 1) [Note: It may be necessary to use the

handle end of a screwdriver (not included) to

remove the canopy cover by tapping on the

canopy cover from the inside of the canopy (B).]

*Helpful Hint: Closemount style mounting is

more suitable for ceilings lower than 8 ft. (2.44 m)

high. The downrod (A), hanging ball, and canopy

cover are not used in this type of installation.

CLOSEMOUNT STYLE FAN MOUNTING

Canopy

Cover

This manual suits for next models

Table of contents

Languages:

Other Harbor Breeze Fan manuals

Harbor Breeze

Harbor Breeze 873 User manual

Harbor Breeze

Harbor Breeze CLRO52-II User manual

Harbor Breeze

Harbor Breeze Santa Ana LP8294LBN User manual

Harbor Breeze

Harbor Breeze 40094 User manual

Harbor Breeze

Harbor Breeze MZ44WW3LR User manual

Harbor Breeze

Harbor Breeze 40821 User manual

Harbor Breeze

Harbor Breeze ECHOLAKE 00876 User manual

Harbor Breeze

Harbor Breeze EXOCET 40764 User manual

Harbor Breeze

Harbor Breeze 40314 User manual

Harbor Breeze

Harbor Breeze L1901 User manual

Harbor Breeze

Harbor Breeze 41107 User manual

Harbor Breeze

Harbor Breeze RC103L User manual

Harbor Breeze

Harbor Breeze 35063 User manual

Harbor Breeze

Harbor Breeze RLC52WW5C1R User manual

Harbor Breeze

Harbor Breeze CALERA 00830 User manual

Harbor Breeze

Harbor Breeze BTH44ABZC5C User manual

Harbor Breeze

Harbor Breeze JP18EB3 User manual

Harbor Breeze

Harbor Breeze TIEMPO E-TM52BNK5CS User manual

Harbor Breeze

Harbor Breeze FREEPORT LP8079LAZ User manual

Harbor Breeze

Harbor Breeze 41161 User manual

Harbor Breeze

Harbor Breeze TILGHMAN WCK52LMW5N User manual

Harbor Breeze

Harbor Breeze BUILDER'S SERIES 40698 User manual

Harbor Breeze

Harbor Breeze 00887 User manual

Harbor Breeze

Harbor Breeze BDB52ABZC5P User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
