Hanter HM 2088 User manual

User Manual

Wireless Digital Alarm System

HM 2088

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Part 9–General Reminders

9.1 If the alarm system is temporarily not in used, keep it in a proper area to

avoid the following conditions:

a. Direct exposure to sunlight

b. Very high or low temperature areas

c. Away from very humid and dusty areas.

d. Disconnect the batteries of the Control Panel and other accessories.

9.2 When in use- the Control Panel, switches, sensors and detectors must be

placed or installed under stable condition.

9.3 The Control Panel, switches, sensors and detectors are not advisable to be

placed or installed at the area with heavy magnetic interference.

9.4 To maximize the signal transmissions, accuracies and extend the life span of

the batteries, all antennas should be extended to its maximum.

9.5 Do not try to repair the alarm system. Consult your local authorized dealer

for further assistance.

Manufactured & Distributed by:

Hanter Marketing Sdn Bhd

12-3, Subang Business Centre, Jalan USJ 9/ 5T

47620 Subang Jaya, Selangor, Malaysia

Tel: 603 8023 4122 Fax: 603 8023 3028

Email: info@hanter.com.my www.hanter.com.my

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Contents

1. System Overview

2. System Workflow

3. Functions and Features

4. Unit Description

5. System Settings and Operations

7. System Installation and Testing

8. Technical Specifications

9. Trouble Shooting

10. General Reminders

Acknowledgement:

Thank you for choosing our Home/Commercial Wireless IntelligentAlarmSystem.

To achieve optimum performance of the system, kindly read the manual.

P. 2

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Item Issues Possible Cause Solution

11 Unable to Long

Distance Remote

Control the

Control Panel via

Telephone

Key in wrong Password

Key in password again.

Password keyed in too fast

Key in password slowly.

12 Additional

detector unable to

match the coding

with Control

Panel

The frequency of the

detector is different from

Control Panel

Make sure both detector

and Control Panel is same

frequency

The coding chips of detector

is not compatible with

Control Panel

Make sure the coding

chips of detector is

compatible.

13 Control Panel

disarm

automatically

Control Panel accidentally

saved foreign signals that

can cause interference

Erase it and reset

The disarm button of

Keychain Remote Control

has been depressed.

Release the depressed

disarm button

14 Control Panel

occasionally

trigger false alarm

Motion Sensor located at the

area near to pets activities.

Re-adjust the motion

sensor location.

Motion Sensor located at the

area near to window that is

heavy in air circulation.

Re-adjust the motion

sensor location

15 Unable disarm by

Keychain Remote

Control or need to

shorten the

distance to disarm

The Control Panel is in the

process of auto-dialing

Wait till it finishes

auto-dial then you may

disarm

Keychain Remote Control

battery is low energy

Change the battery

P. 19

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Part 1 - System Overview

The HM2088, Home/Commercial Digital Wireless Intelligent Security Alarm

System, has a Micro-Processor Chip and wireless RF Control Technology to ensure

the reliabilities, easy installation and operation of the system.

The system consists of a Control Panel that can be installed inside any hidden area

of an office or home. The monitoring sensors such as Wireless Infrared Detector,

Wireless Magnetic Door/Window Switch, Wireless Smoke Detector, Wireless Gas

Leak Detector etc. can mount onto a spot that requires monitoring. The arming and

disarming of the system can operate through the Keychain Remote Control or

keypad of the Control Panel. When the system is armed, any of the

sensors/switches/detectors detects a signal will wirelessly transmit signal to the

Control Panel. It will then trigger the siren and immediately autodial the preset

phone numbers to transmits the pre-recorded alarm voice message to the phone

owner or monitoring centers. When the alarm signal received, the owner or the

monitoring center can take the appropriate action or even report to the police

accordingly. All process will only take a few tens of seconds. The Alarm System

also includes functions of Wireless Door Chime and Long Distance Remote

Controlling of Home ElectricalAppliances via telephone or mobile phone.

The other additional feature is to protect in case of emergency at home for the aged

persons or children. The Emergency Help Button can be triggered in order to

auto-dial the preset telephone numbers to call for help. The alarm system will guard

your home when you are away or resting.

P. 3

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Item Issues Possible Cause Solution

5 During the disarming

status, siren triggered

and auto-dial the

preset telephone

numbers

One of the detectors might be

coded with Emergency Mode

coding

Reset the coding of the

detector according to the

type of detector

Control Panel saved signal the

can cause interference

Delete the saved signal of

the Control Panel and reset

the coding of detectors

6 Alarm is triggered

but the alarm led

light is not on

Telephone line to Control Panel

may not be connected properly

Ensure the telephone line to

Control Panel is well

connected

The preset auto-dial number is

not programmed

Program the preset auto-dial

numbers

7 Control Panel can

auto-dial to preset

mobile phone

numbers, but the

success calls rate is

inconsistently

The telephone line connected to

Control Panel is over loaded

with too much extension lines

Change to a non extension

telephone line.

The reception signal of the

mobile phone set is not stable.

The battery is fitted correctly or

not

Change it to fixed telephone

line or new mobile phone

set. Re-insert or clear the

battery

8 Alarming LED light

always on

Control Panel not disarmed

properly

Disarm again.

9 Control Panel can

auto-dial preset

telephone number

but cannot activate

the siren

Activated the Silent Alarm

feature. (For Model 2088 series

onward)

Deactivate the Silent Alarm

feature.

The siren jack not plug-in

properly

Plug the siren jack properly.

10 No voice message

was heard when

receive telephone

call.

The telephone line connected to

Control Panel is over loaded

Use a non-extension

telephone line

P. 18

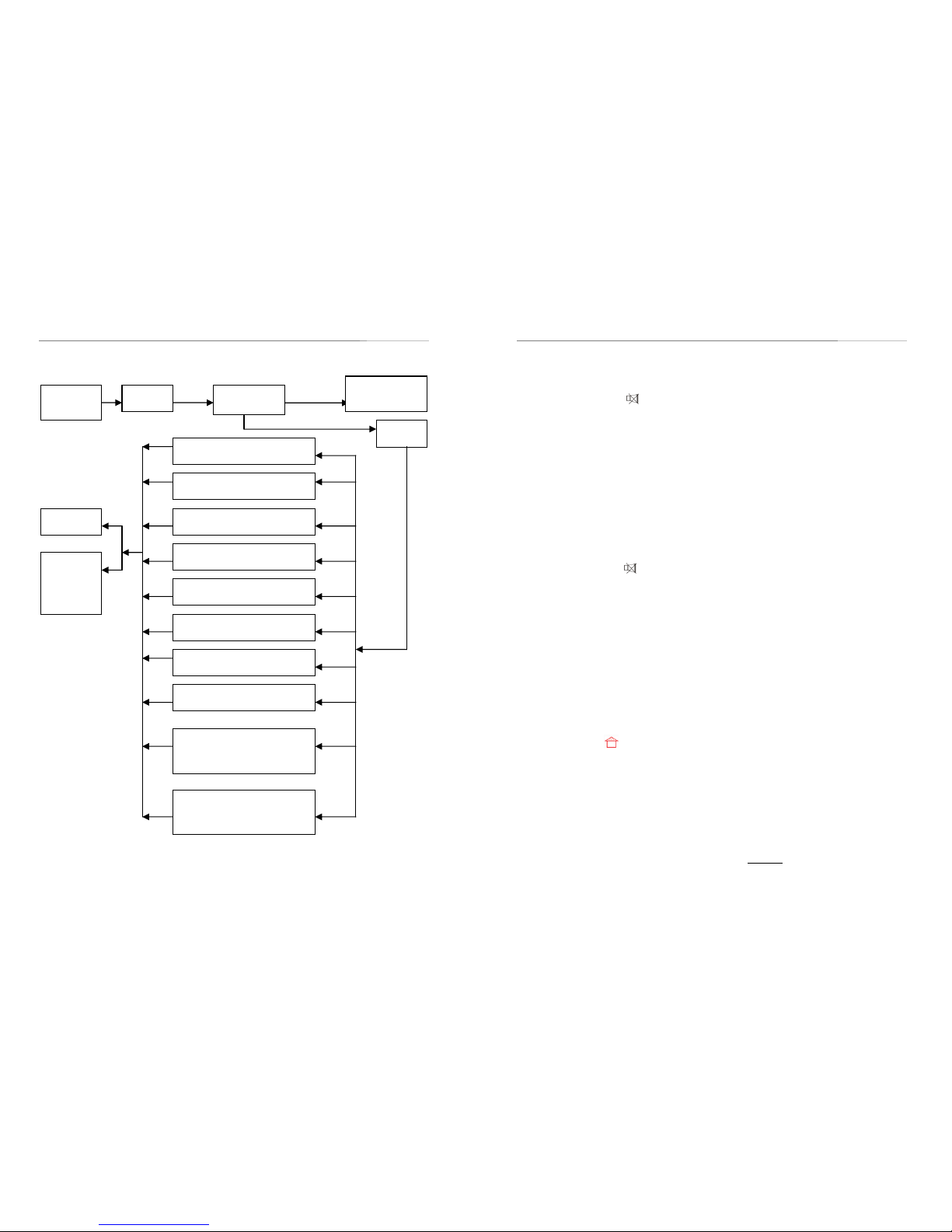

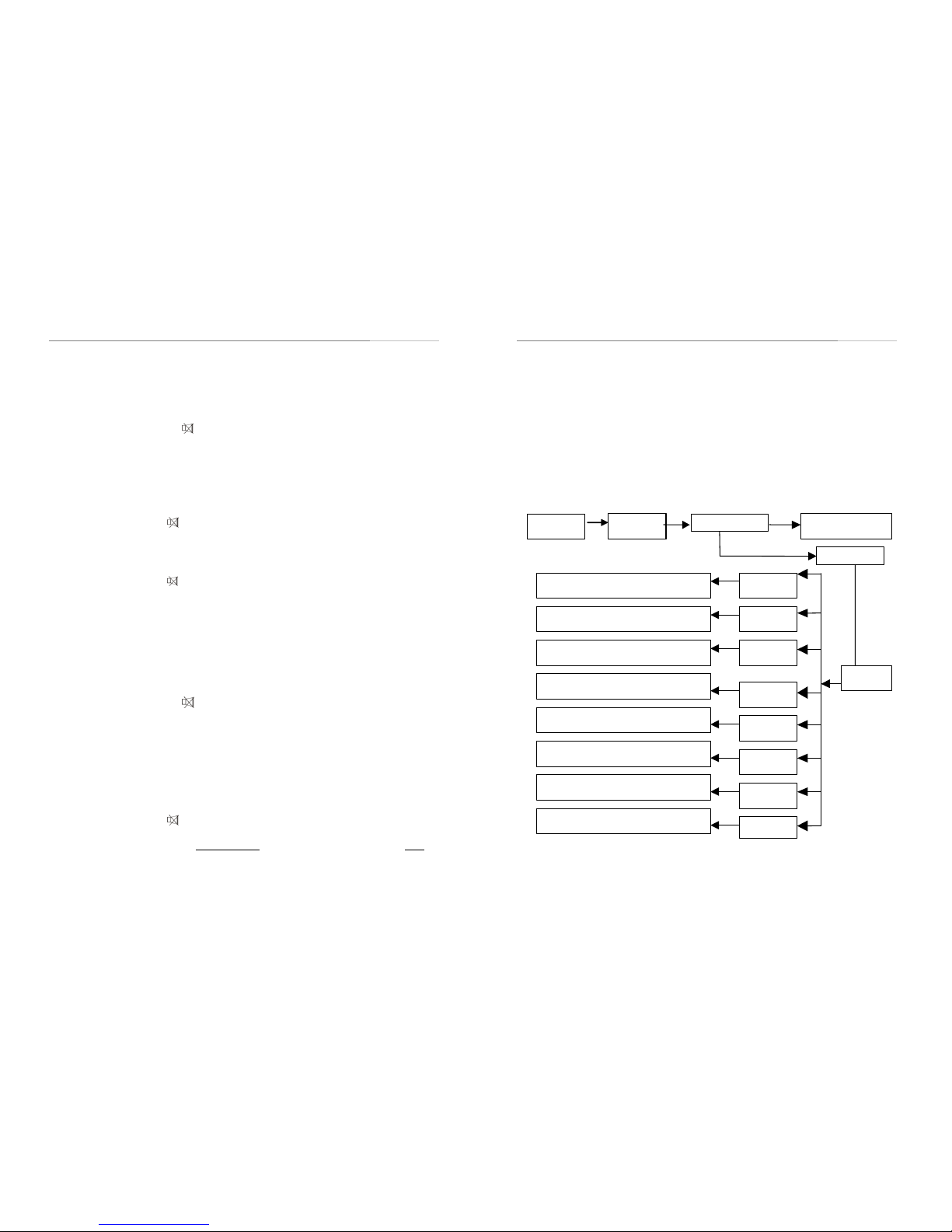

Part 2 – System Workflow

Long Distance Remote Controlling

Transmission Notification

Emergency Arm Door Alarm

Help /Disarm Bell

Control Panel

HM2088 CMS

Mobile phone

Telephone

Motion Sensor

Smoke Detector

Gas Leak

Detector

Glass Break

Detector

Door Switch

Remote

Control

Microwave oven Illuminator Fan Electric curtain

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

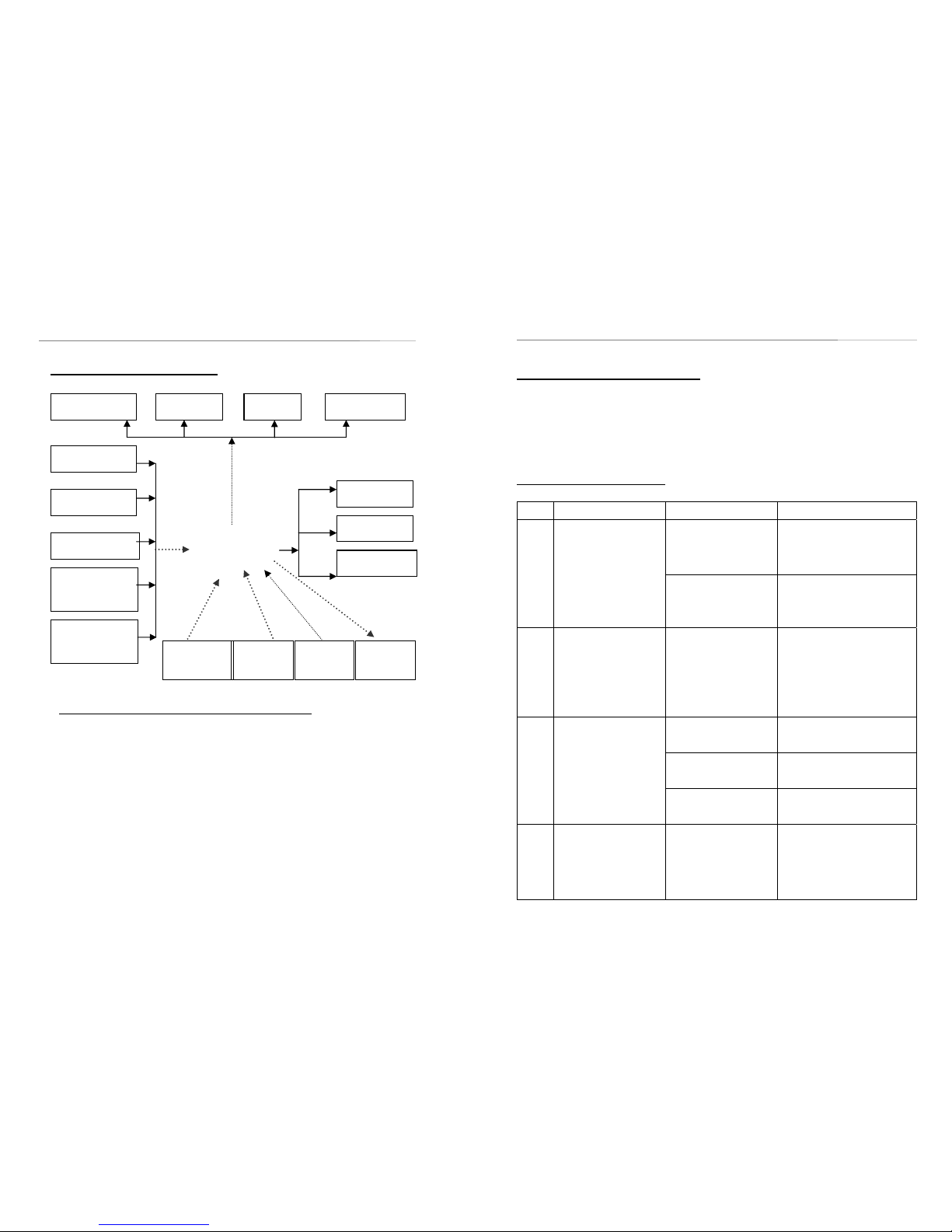

Part 3 – Function and Feature Introduction

3.1 Function Introduction

1. Arming & disarming by Keychain Remote Control and Keypad

2. Long distance remote control by any telephone

3. Remote control of the Home Electrical Appliances by telephone

4. Live feeding record & listening by telephone

5. Alarm reporting on illegal entries by PIR detector and Magnetic Door

Switches

6. Alarm Siren buzzing to warn for illegal intrusion or possible intrusion

7. Smoke & fire alarm

8. Toxic gas leaking alarm

9. Emergency Help alarm

10. Auto-dialing to preset phone numbers for alarm notification

11. Two way voice communications between telephone & Control Panel

P. 4

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Part 7--Technical Specifications

Control Panel

•Operatingvoltage:DC9V ● Receive frequency: 315MHz±0.2MHz

•Operating Temperature:-10°C ~ +55°C ● Dimension:144x143x43mm

•Relative humidity:<95%

Part 8 --Trouble Shooting

Item Issues Possible Cause Solution

Telephone line is in

working condition, but

unable to make call to

preset telephone

numbers when alarm is

triggered.

Telephone line to

Control Panel may not

be connected properly

Ensure the telephone line to

Control Panel is well

connected.

Pre-set auto-dial

numbers is not properly

programmed.

Program the preset auto-dial

numbers in accordance to the

user manual.

2 Control Panel trigger

siren immediately while

enter arming status, but

no auto-dial was make.

Telephone line to

Control Panel may not

be connected properly.

(Activated the anti-cut

function)

Ensure the telephone line to

Control Panel is well

connected

Control Panel is in

working condition, but

the detector has no

response

The batteries energy of

detector is low.

Change batteries

Interference of external

signals.

Test the Control Panel and

detector in close range

The battery is not well

connected

Reinstall the battery or clean

the battery contact point

4 No response from

Control Panel when

power is on

The power supply is not

well connected or not in

working condition,

Reconnect the power supply

and make sure it plug-in to

right port or change the new

adapter.

P. 17

Door

Chime

Siren

Emergency

Button

Emergency

Button

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

12. Wireless Door Chime

13. Monitoring service option by Central Monitoring Station

3.2 Features

1. Easy installation and simple operation

2. Wireless and wired compatible

3. Tampers proof system on telephone line being cut

4. Priority calling when alarm triggered

5. Real time record on Central Monitoring System

6. Press the Emergency Help Button on the Keychain Remote Control to trigger

the siren immediately

7. Saved data will be retained when power failure

8. Identifying alarm event by phone, such as illegal entry, fire-alarm or gas leak

9. Link with Central Monitoring Station through telephone line

10. Add new accessories withAuto-Setting Code

11. Notified by Wireless Door Chime when there is a visitor

Part 4 –Unit Description

4.1 StandardAccessories:

4.1.1 Control Panel

The Control Panel is a device to receive signal from sensors, switches and

detectors. Once signal received, it will immediately trigger the alarm via the siren

and call the preset telephone numbers or Central Monitoring Station

simultaneously for alarm notification.

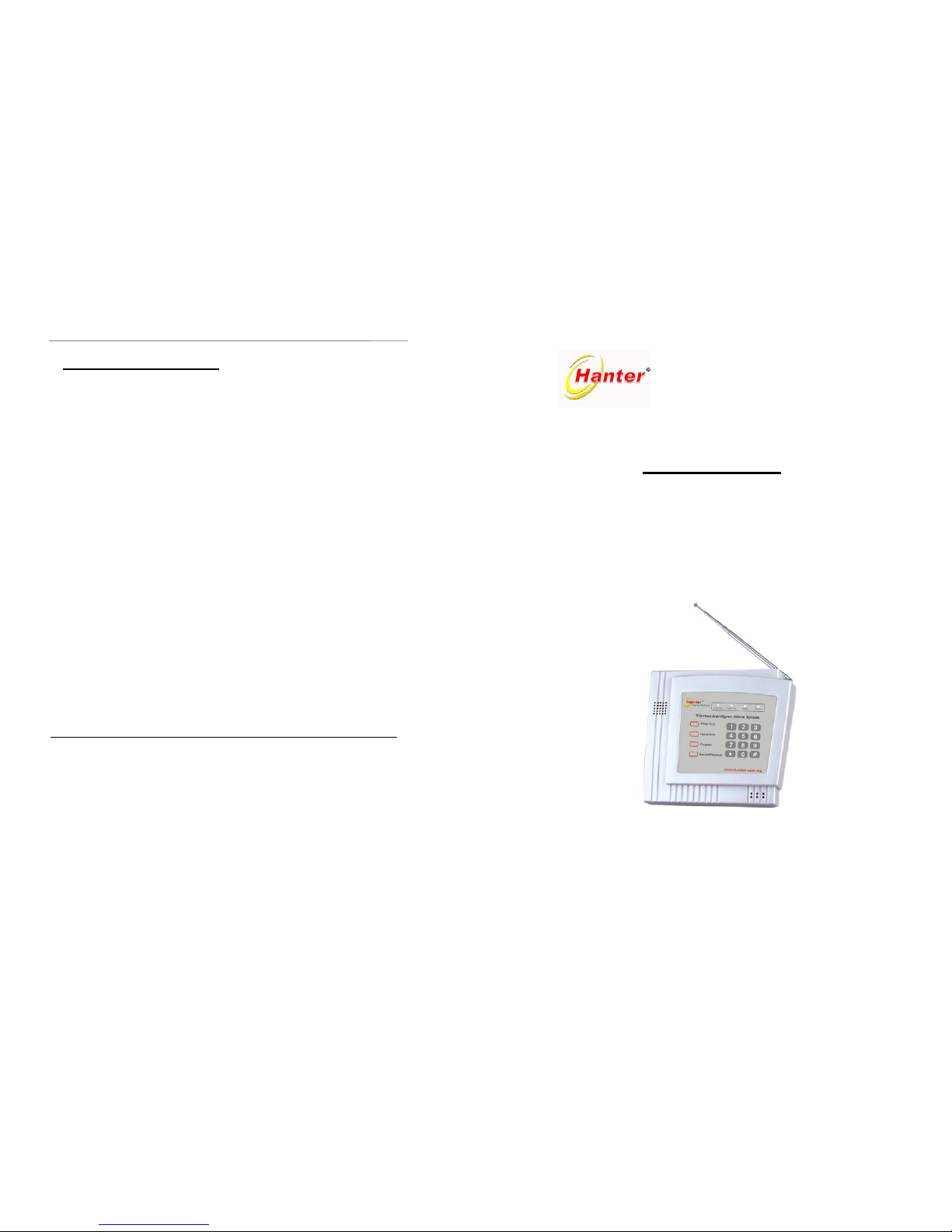

a．Panel Board Illustration

b. LED indicator light on Panel board (from left to right)

Away Arm: The LED light is on, while arming outside

Home Arm: The LED light is on, while arming at home

Alarm: The LED light is on when alarm is triggered

Power: The LED light is in red, when power is on and voltage is normal.

When in orange, need to change the battery

P. 5

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

6.5 Wireless Gas Leak Detector

a. Install the detector per the density of gas.

For the Natural gas and piping coal gases lighter than air, install it close to the ceiling

(lower 0.3~1.2meters).

For the liquefied petroleum gases which is heavier than air, install it close to the

floor (higher than 0.3 to 1.2 meters and inside the range of gas source with direct

1.5meters).

b. The detector should not be located near any areas that emit gas (cooking area).

c. The detector should not be located close to any obstacles (curtain or cabinet etc.)

d. The detector should not be located in the bathroom or any area with too much

vapor.

6.6 Coding/ Pairing

The accessories have been coded with the Control Panel and it is ready to be used

directly. The Coding/pairing function is only applicable for additional or new Keychain

Remote control, Door Switches, Motion Sensors and other accessories.

a. Keychain Remote Control

Step 1: Press the Disarm “ ” key of the existing Keychain Remote Control, the

Control Panel entered disarm status

Step 2: Press the “Code” button at Control Panel

Step 3: The Control Panel will emit a “du” sound and release the button

Step 4: Press the “” key of the new Keychain Remote Control

Step 5: The Control Panel will emit a 5 “du” sound to acknowledge the coding

successful

Step 6: Continue the Step 4 & Step 5 for the rest of the new Keychain Remote

Controls

Step 7: Exit from Coding program by press the key of “”chain Remote Control

b. Door Switches, motion sensors and other accessories

Step 1: Press the Disarm “ ” key of the existing Keychain Remote Control, the

Control Panel entered disarm status

Step 2: Press the “Code” button at Control Panel

Step 3: The Control Panel will emit a “du” sound and release the button

Step 4: On or activate the Door Switches, Motion Sensors and other accessories one

by one

Step 5: The Control Panel will emit a 5 “du” sound to acknowledge the coding

successful

Step 6: Exit from Coding program by press the key of“”chain Remote Control

6.7 Transmitter Erasing

If you want to erase of all the transmitters (including all sensors and detectors), you

need to cut power and pressing and holding the “Code” button on the Control Panel at

first and then connect the power plug, when hear “du” voice, release the “Code” button,

and the transmitters are erased successfully.

P. 16

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

c. Back up Batteries

Open the cover at the back of the Control Panel. Placed the batteries into the

battery compartment and close the cover plate. Do not make any short connection

of the battery terminals under any circumstance. The battery can provide up to 36

hours of power to the Control Panel when there is main power failure.

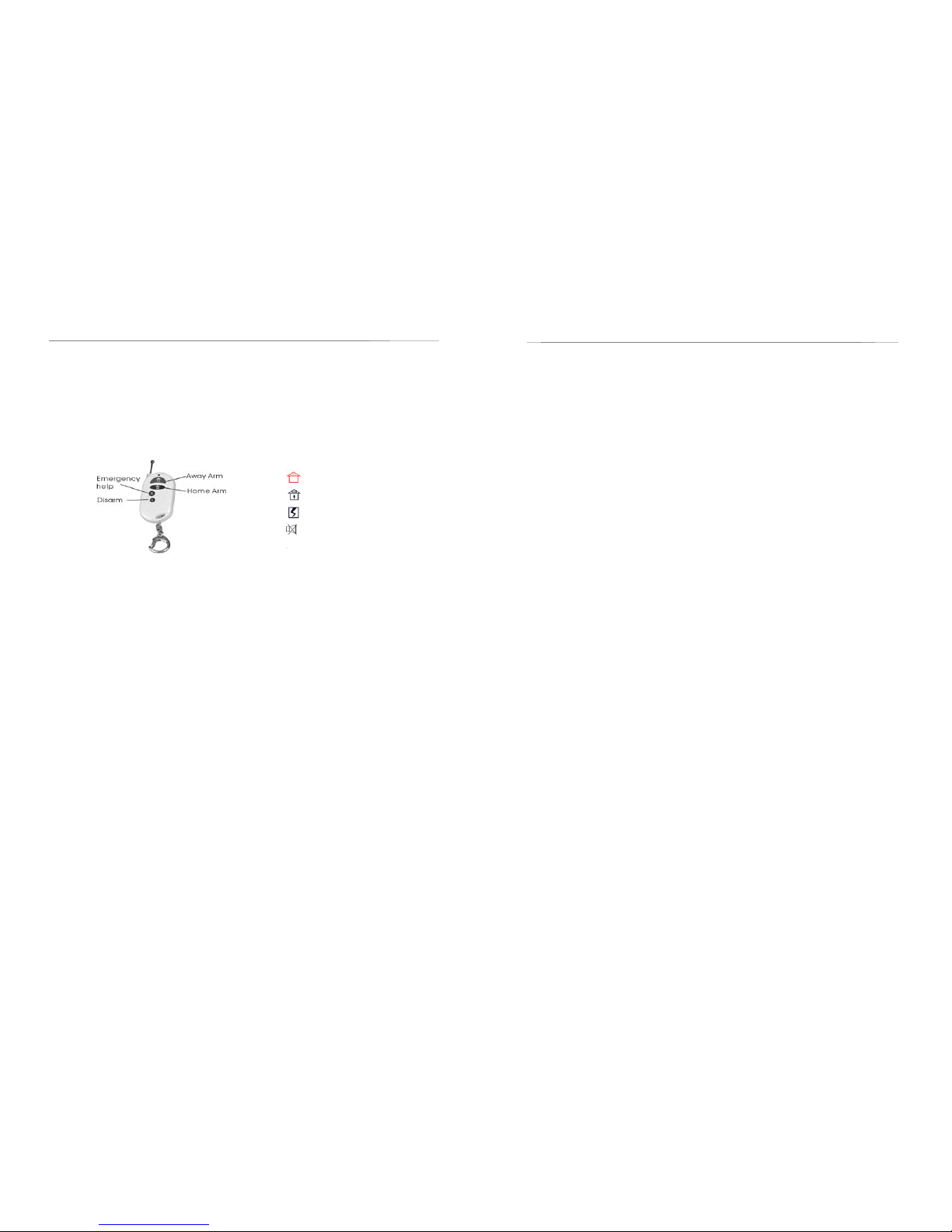

4.1.2 Keychain Remote control

The Keychain Remote Control can be used to operate the Control Panel as the

following:

4.1.3Indoor Wired Siren

When alarm system is in alarm mode, the siren will emit a loud sound of 110db. It

can be installed on any location with enclosed adhesive tape or screws and connect

it to the siren port of Control Panel.

Note: With the completing program the 4 set of numbers will maximize the duration of

Alarm Buzzing to approximately 5 minutes.

4.1.4 Wireless Magnetic Door/Window Switch

It is a 2-piece unit. You can locate the switch unit and magnet bar onto two frames

of the door or window. When the door or window frames separates i.e. the switch

unit and the magnet bar are separated. The switch unit will transmit the signal to the

Control Panel to trigger the alarm siren and then process of auto-dialing to the

pre-set phone numbers will take place.

4.1.5 Wireless Motion Sensor (PIR)

The wireless Motion Sensor adopts wireless digital and microprocessor technology

with low energy consumption design. The core technology of the infrared detector,

the operational amplifier chip, employs custom designed mask (three sets of

built-in operational amplifier, capable of processing digital and analog signals

simultaneously), which makes it a highly intelligent detector with wireless

transmission of digital signals combined with low energy consumption.

4.1.6 Wireless Emergency Help Button

The Wireless Emergency Help Button is a wireless Remote Control Unit. In the

event of emergency, just press the Emergency Help Button.

P. 6

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

6.2 Wireless Door/Window Magnet Switch

The Door/ Window Magnet Switch is equipped with a magnet bar.

(Movement of the magnet triggers an internal sensor in the switch). We

recommend locating the switch unit on the wall at the frame of the door or

window, with the magnet bar on the moving part of the door or window.

Step 1: Open the switch’s cover by screwdriver.

Step 2: Install the switch to the desired location, using the two screws or

adhesive tape.

Step 3: Ensure that the antenna is vertical (pointing up or down).

Step 4: Attach the magnet bar, using the screws or adhesive tape, to the

moving part of the door or window. The gap between the switch and

magnet bar should not be wider than 1.5cm when the door is closed.

Step 5: Opening and closing of the door/window will be confirmed by the

switch’s LED.

Reminder: If the switch or magnetic bar is fix directly on a metal surface, one is

advisable to pre-attach an insulator (plastic piece) in order not to affect the

signal transmission strength of the units.

6.3 Wireless Motion Sensor (PIR)

Step 1: Pry off the back plate with a small screwdriver, and install the

provided battery into the back of PIR detector.

Step 2: Mount the bracket with screws provided at any place you think has

the best coverage by the PIR sensor. Recommended height is about

2.1 meters above the floor.

Step 3: Mount the PIR sensor onto the bracket. The maximum distance

coverage area is up to 12 meters, and it has a detection angle of: 120

degree horizontally, 60 degree vertically.

Reminder:

1) Do not place the detector close to any heating/cooling vents or near any

other object that often changes temperature.

2) The PIR detector should not be placed near any item that generates a

strong electromagnetic signal. (transmitters, electronic regulators etc.)

3) Avoid locations that have intense air circulation.

6.4 Wireless Smoke Detector

Step 1: Install the detector to the desired location

Step 2: Drill two holes on the wall or ceiling per the whole sizes of the

mounting bracket.

Step 3: Fix the mounting bracket on the wall or ceiling with the screws.

Step 4: Twist and lock the detector with the mounting bracket.

P. 15

Away Arm

Home Arm

Emergency help

Disarming

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

4.2 Optional Accessories

4.2.1 Wireless Smoke Detector

The Wireless Smoke Detector is widely used in professional security &

protection alarm system. It will send RF signal to the Control Panel when it

detects smoke. It is recommended to locate this unit at a less or non-smoke

area.

4.2.2 Wireless Gas Leak Detector

The Wireless Gas Leak Detector is widely used in professional security &

protection alarm system. It will send RF signal to the Control Panel when it

detects natural gas, piping coal gas and liquefied petroleum gas etc.

4.2.3 Wireless Glass Break Detector

The Glass Break Detector delivers effective coverage in the presence of plate,

tampered, and laminated glass, with easy sensitivity adjustment. The optimal

performance is dependent on the secured and vibration-free mountings. The

Glass Break Detector can be used in most protected areas, including glass

display panel and rooms with blinds, curtains, or multiple windows, as long as

careful coverage tests are conducted.

4.24 Wireless Door Chime

The Wireless Door Chime is ideal to be installed outside the entrance area.

The visitor can notify the premise owner by pressing the button.

Part 5 – System Settings and Operations

5.1 System Settings (all functions setting under disarming status)

5.1.1 Programming Telephone Numbers (maximum 4 sets of numbers)

Press the “ ” key of the Keychain Remote Control to enter disarming status,

then press “*” key on the Control Panel, input the designated telephone

numbers follow by input *1#, repeat same process for the 2nd set preset number

and end with *2#. The rest are the same except for signing off with *3# and

*4# respectively after each entry. *1# is memory No 1, *2# is memory No 2

and so on.

Note: With the completing program the 4 set of numbers will maximize the duration

of Alarm Buzzing to approximately 5 minutes.

a. To Program Telephone Number

Example: To set 12345678 as 1st set of Telephone Number.

Step 1: Press the “ ” key of the Keychain Remote Control

Step 2: Press “*” key on the Control Panel

Step 3: Press 12345678*1# on the Control Panel

Step 4: The control Panel will emit “Ding Dong” sound to confirm

successfully programmed.

Step 5: Repeat the same steps for the balances 2nd, 3rd & 4th set of Telephone

numbers.

P. 7

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Part6 - System Installation and Testing

6.1 Control Panel

The Control Panel can be placed or installed on a desk or the wall (preferably a

hidden spot but easily accessible)

Step 1: Connect the AC adapter. Insert the adapter jack to the “9V 300mA” port of

the Control Panel. Then plug the AC adapter into an electrical source.

Step 2: Connect an incoming Telephone line to “Line in” port, Grey line to desktop

telephone set and white line to incoming line connector.

Step 3: Insert the Siren jack into the “Siren” port.

Reminder: In order to make the alarm system operates properly, all the above cables must

be well connected.

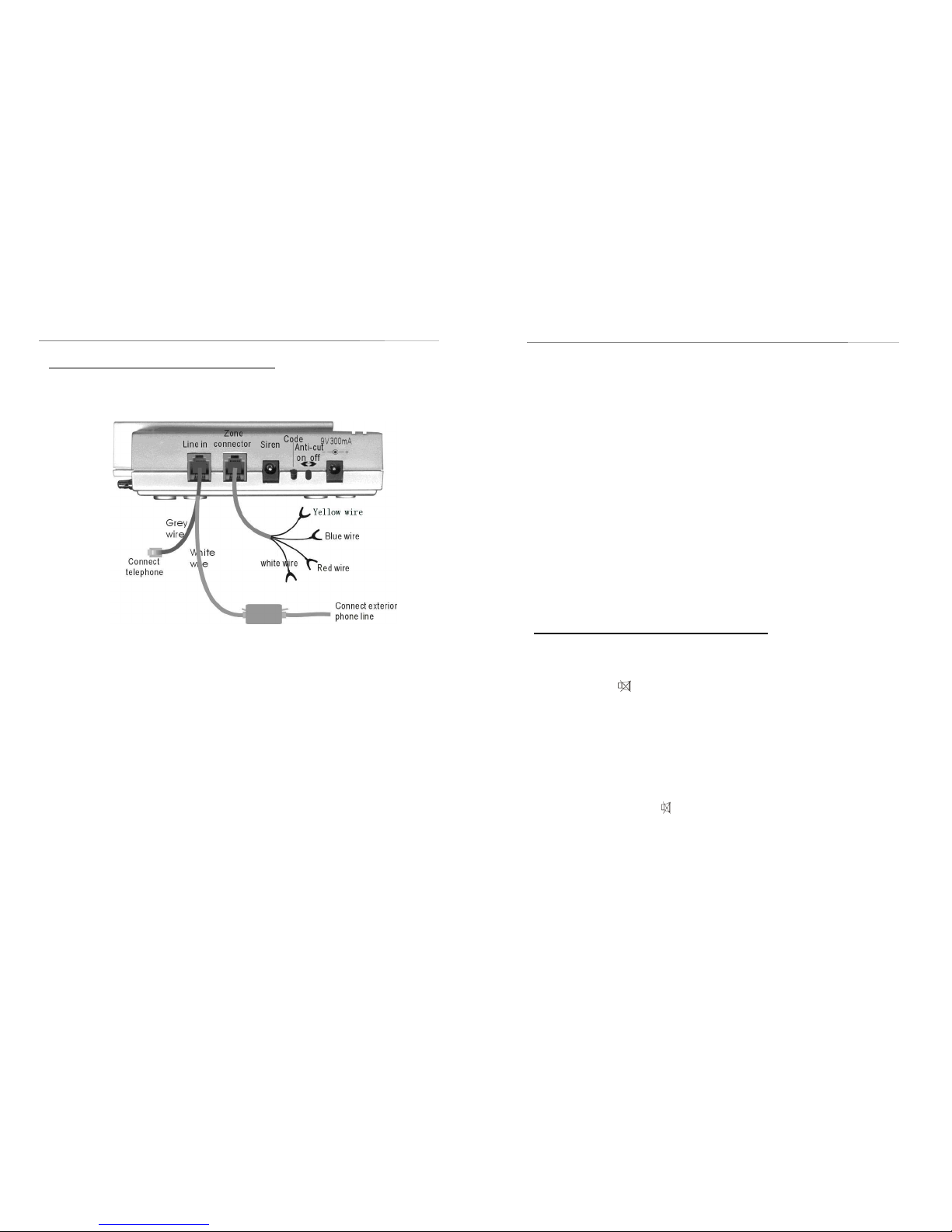

Zone Connector:

The Zone Connector is the connection port to connect wired detectors. It comes with

two group of wire:

Group 1 : Yellow wire & blue wire

Group 2 : white wire & red wire

It can be connect to 2 sets of detectors and using short circuit to trigger alarm. The

blue and red wire link to ground whereby the Yellow wire and white wire are

connected to Detectors.

P. 14

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

b. To Program Telephone Number on extension line

Just by adding “0” or “9” (depend on telephone system setting) in front of each

telephone number.

Example: To set 12345678 as 1st set of Telephone Number on telephone system

that need press 9

Step 1: Press the “ ” key of the Keychain Remote Control

Step 2: Press “*” key on the Control Panel

Step 3: Press 9*12345678*1# on the Control Panel

Step 4: The Control Panel will emit “Ding Dong” sound to confirm successfully

programming.

Step 5: Repeat the same steps for the balances 2nd, 3rd & 4th set of Telephone

number

c. To Program Telephone Number of Central Monitoring Station (CMS)

Step 1: Press “ ” key of the Keychain Remote Control

Step 2: Press “*” on the Control Panel

Step 3: Key in Telephone Number of CMS and follow by “*8#”

Step4: The Control Panel will emit “Ding Dong” sound to confirm successfully

programming.

Step 5: Press “ ” key of the Keychain Remote Control

Step 6: Press “*” on the Control Panel

Step 7: Key in “user code” and follow by “*9#”

Step 8: The Control Panel will emit “Ding Dong” sound to confirm successfully

programming.

Reminder: The Telephone Number of Central Monitoring Station (CMS) must be

stored on memory No. 8 and the six digit User Code provided by the CMS must be

stored on memory No. 9.

d. To delete the Stored Telephone Number

Example: To delete 12345678 as 1st set of Telephone Number.

Step 1: Press the “ ” key of the Keychain Remote Control

Step 2: Press “*” key on the Control Panel

Step 3: Press *1# on the Control Panel

Step 4: The control Panel will emit “Ding Dong” sound to confirm successfully

programming.

Note: When there is an error during entry of telephone number, press“#” to exit and

reset .

5.1.2 Password setting

The default password is “1234”, you may change this password according to the

following steps.

Step 1: Press “ ” key of the Keychain Remote Control

Step 2: Press “*” key on the Control Panel

Step 3: Key in your “new password (total 4 digitals) and follow by “*0#” on

the Control Panel

Step 4: The control Panel will emit “Ding Dong” sound to confirm successfully

programming.

Note: The password can be reset anytime.

P. 8

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

5.2.10 Remote Control of the Home ElectricalAppliances by telephone

When the user is out of the house, he can control the switch on/off of the house hold

appliances (max. 4 group). Dial the telephone number connected with the master

unit. If no one receives the phone after ring 8 times, the phone will stop ringing, and

the system will automatically enter remote controlling household appliance status.

The user need to enter the right password, five “Beeping” voices will acknowledge

access code being valid. (If you enter a mistaken access code three times, the main

unit will auto cut-off the line). You can press the “*” on the telephone, and enter the

relevant number for this operation guides as shown below:

Enter 3 times

5“Beep Invalidpassword

Valid Password

Dial Tele

hone 8 ringing Enter Password

Line disconnected

exi

“Bee

”

Turn on 1st Grou

of Home Electrical A

liance

Turn off 1st Grou

of Ho

e Electrical A

liance

Turn on 2nd Grou

of Home Electrical A

liance

Turn off 2nd Grou

of Home Electrical A

liance

Turn on 3rd Grou

of Home Electrical A

liance

Turn off 3rd Grou

of Home Electrical A

liance

Turn on 4th Grou

of Home Electrical A

liance

Turn off 4th Grou

of Home Electrical A

liance

Press “1”

Press “2”

Press “3”

Press “4”

Press “5”

Press “6”

Press “7”

Press “8”

Press “*”

P. 13

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

5.1.3 Voice Message Recording & Playing

a. Recording

Step 1: Press “ ”keyoftheKeychainRemoteControl

Step 2: Press “Record/Play” key on Control Panel

Step 3:Home Arm LED will light

Step4:Pressthe“1”keyonControlPanel

Step 5:Away Arm LED will light

Step 6: Record 10 second voice message into “Record’ port of the control Panel

(Bottom Right). Sample of message: “Help! Help! Help! Alarm is triggered

at No 86, Northern Street, Uptown, please help!”

Step 7: When finished recording, press “#” to exit

Note: The message can be re-recorded anytime by following the above steps. Any

Language can be used to suit your practicality, as long as the voice projection

are loud and clear.

b. Play back recording

Step 1:Press “ ” key of the Keychain Remote Control

Step 2:Press “Record/Play” key on Control Panel

Step 3:Home Arm LED will light

Step 4:Press “0” key to play the recorded message

Step5: Press “0” key for re-play the record message

Step 6:Press “#” to exit

5.2 Operations

5.2.1 Away Arm

Under Away Arm status, Smoke and Gas Leak Detector will be on armed mode

instantly. Door Switch and Motion Sensor need approximately 30 seconds to enter

arming mode. This is to allow the user to have enough time to leave the monitored

or detected compound. The Away Arm LED will light after 30 seconds.

a. Operate by Keychain Remote Control

Press “”of the Keychain Remote Control, the control Panel will emit “Ding

Dong” sound to confirm the alarm system entering Away Arm status.

b. Operate by Keypad of Control Panel

Step 1: Press the “Program” key on Control Panel

Step 2: Input 4 digits “Password”

Step 3: Press “Away Arm” key

Step 4: The Control Panel will emit “Ding Dong” sound to confirm the alarm

system enters intoAway Arm status

5.2.2 Home Arm

Under Home Arm status, the Control Panel will not receive any signals from Door

Switch and Motion Sensor units. However, it will receive signals from the Smoke

and Gas Leak Detector which are still in armed status.

P.9

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

Enter 3 times

5“Beep” Invalidpassword

Valid Password

Press “0”

Press “1”

Press “#”

Press “2”

Press”3”

Press*” Press “4”

Press “5”

Press “6”

Press “7”

Press “8”

Press “9”

P.12

Dial

Telephone 8 ringing Enter Password

Line disconnected,

Exit

5 Beep

Stop Siren

Start Siren

Activate Silent Alarm

Deactivate Silent Alarm

Home Arm

Away Arm

Enter live feed listening

Quit live feed listening

Enable Control Panel receive signal

from Smoke and Gas Leak Detector

Disable Control Panel receive signal

from Smoke and Gas Leak Detector

Exit

Controlling

Home

Electrical

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

a. Operate by Keychain Remote Control

Press of“”the Keychain Remote Control, the control Panel will emit “Ding

Dong” sound to confirm the alarm system enters into Home Arm status.

b. Operate by Keypad of Control Panel

Step 1: Press the “Program” key on Control Panel

Step 2: Input 4 digits “Password”

Step 3: Press “HomeArm” key

Step 4: The Control Panel will emit “Ding Dong” sound to confirm the alarm

system enters into Home Arm status

5.2.3 Silent Alarm: (The siren will not buzzing when alarm is triggered)

a. Program by Keychain Remote Control

To activate Silent Alarm

Press both “” and key“”the Keychain Remote Control are to turn off the

siren. The Control Panel will emit “Ding Dong” sound to confirm the alarm system

enters into Silent Arm status.

To disable Silent Alarm:

Press both “” and key“”the Keychain Remote Control are to reactivate the

siren. The Control Panel will emit “Ding Dong” sound to confirm the alarm system

successfully disable Silent Alarm status.

b. Program by Keypad of Control Panel

To activate Silent Alarm

Under disarming status, press both “1” & “#” key on the Control Panel, The will emit

“Ding Dong” sound to confirm the alarm system enters into Silent Alarm status.

To disable Silent Alarm

Press both “0”& “#” key on the Control Panel to reactive the siren, the Control Panel

will emit “Ding Dong” sound to confirm the alarm system successfully disable Silent

Alarm status.

5.2.4 Disarm

Press “ ” key of keychain Remote Control to enter into Disarmed Mode. The

Control Panel will emit “Ding Dong” sound to confirm the alarm system successfully

enters disarmed status. The Control Panel will not receive any signal from any

sensors, switches or detectors except Emergency Help Button.

5.2.5 Emergency help

Press “ ” key of the Keychain Remote Control, the Control Panel will be

automatically trigger the siren and immediately autodial the preset telephone

numbers.

Note: When the alarm is triggered, the siren cannot be stopped immediately by Pressing

“” key on the Keychain Remote Control. This is because of our intelligent alarm

System will stop all functions and give priority to call the pre-set telephone numbers.

The sire can be disarmed after 5 – 10 seconds.

P.10

Hanter® Wireless Intelligent Alarm Systems - Model HM2088

5.2.6 Anti-cut

During armed status, when the telephone line is cuts, the Control Panel will

auto-matically trigger the siren.

Note: This feature will not be practical if your telephone is unstable.

5.2.7 Telephone Call Notification (when away from premise)

When the alarm triggered, the user (pre-set number) will receive a call with the

pre-recorded voice message. The option/action is:

a. Press the “*” key of your phone to stop the siren

The system will activate the communication port immediately to enable the owner

listen to whatever movement or activities in the detected compound. The listening

period is 20 seconds. It can be extended every 20 seconds by press “*” key each

time.

c. Next, by pressing “1” and “*” key of the phone keypad, the alarm system will

establish dual communication function that enable the user to communicate with

anybody on the alarming spot via the Control Panel. The communication period is

5 seconds. It can be extended every 5 seconds by press “1” and “*” key each time.

d. Press “#” to exit and the system will back to arming status. The process of

auto-dialing will continue until someone acknowledges it with “#” key.

Reminder: Should you be away for long period and cannot be reached, it is advisable to

reset your priority pre-set numbers.

5.2.8 Identifying Alarm Message by Incoming Call

a.Double “Beep” every 2 seconds means Smoke alarm

b. Single “Beep” every 2 seconds means Gas Leakage alarm

c. No sound (except for voice message announcement) indicates that the alarm is

triggered by either Door Switch, Motion Sensor or Emergency Help Button.

5.2.9 Long Distance Remote Control

Step 1: Dial the Telephone number connected with the Control Panel.

Step 2:After 8 ringing tones, a 5 beeping sound will emerge

Step 3:Enter the Password. Another 5 beeping sound will emerge to confirm

password

Step 4: Press “0” to stop the siren, Press “1” to start siren, Press “2” to activate

Silent Alarm, Press “3” to deactivate Silent Alarm, Press “4” for Home Arm,

Press “5” for Away Arm, Press “6” for live feed listening. Press “7” to quit

live feed listening, Press “8” to enable Control Panel receive signal from

Smoke and Gas leak Detector. Press “9” to disable Control Panel receive

signal from Smoke and Gas leak Detector.

Reminder: It will not work if someone picks up the telephone immediately. If you key

in wrong password (3 times), the line will be disconnected automatically.

P. 11

Other Hanter Security System manuals

Hanter

Hanter HM2078 User manual

Popular Security System manuals by other brands

Inner Range

Inner Range Concept 2000 user manual

Climax

Climax Mobile Lite R32 Installer's guide

CADDX

CADDX NX-6 user manual

FBII

FBII XL-31 Series installation instructions

Johnson Controls

Johnson Controls PENN Connected PC10 Install and Commissioning Guide

Aeotec

Aeotec Siren Gen5 quick start guide

Blaupunkt

Blaupunkt SA 2700 quick start guide

IDEAL

IDEAL Accenta Engineering information

AJAX

AJAX DoubleButton user manual

Swann

Swann SW-P-MC2 Specifications

Ecolink

Ecolink Siren+Chime user manual

Digital Monitoring Products

Digital Monitoring Products XR150 user guide

EDM

EDM Solution 6+6 Wireless-AE installation manual

Highway Safety Group

Highway Safety Group EA401 user manual

Siren

Siren LED GSM operating manual

Detection Systems

Detection Systems 7090i Installation and programming manual

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 instructions

Siemens

Siemens FDM273 manual
