Haier HVH014A User manual
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This wine cooler must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your wine cooler by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your wine cooler before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) If your wine cooler is not being used, we recommend that you remove the
door and leave the shelves in place. This will reduce the possibility
of danger to children.
7) This wine cooler should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only.
8) Do not operate your wine cooler in the presence of explosive fumes.
9) Do not store foods in wine cooler as interior temperature may not be cool
enough to prevent spoilage.
SAVE THESE INSTRUCTIONS
1
English
English
2
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your wine cooler.
Remember to record the model and
serial number. They are on a label in
back of the wine cooler.
Model number
Serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain
warranty service.
DANGER
Risk of child entrapment. Before you throw away your old
wine cooler, take off the doors. Leave the shelves in place so
that children may not easily climb inside.
English
English
Table Of Contents
PAGE
Safety Precautions ..........................................................................1
Parts And Features ..........................................................................4
Installing Your Wine Cooler ..........................................................5
Unpacking Your Wine Cooler..................................................................5
Leveling Your Wine Cooler......................................................................5
Proper Air Circulation ............................................................................5
Electrical Requirements............................................................................6
Use of Extension Cords ..........................................................................6
Installation Limitations ............................................................................6
Door Alignment......................................................................................6
Door Reversal ....................................................................................7-8
Wine Cooler Features And Use ..........................................................9
Initial Set Up ..........................................................................................9
Temperature Adjustment..........................................................................9
Shelving ..............................................................................................10
Normal Operating Sounds....................................................................10
Proper Wine Cooler Care and Cleaning....................................11
Cleaning and Maintenance ..................................................................11
Power Interruptions ..............................................................................12
Vacation and Moving Care ..................................................................12
Troubleshooting..............................................................................13
Warranty Information ..................................................................14
English
3
English
Parts And Features
1. Removable Wire Storage Shelf
(quantity varies by model)
2. 1 Half-Width Wire Storage Rack
3. See-Through Glass Door
4. Pocket Handle (not in all models)
5. Adjustable Temperature Control
(located on the back of unit)
NOTE: The “BH” series has a grip handle.
English
4
1
2
3
4
1
2
3
4
5
6
7
0
c
o
o
l
e
r
model HVH019A
5
English
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the wine cooler accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the wine cooler.
• Your wine cooler has two leveling legs which are located in the
front of your wine cooler. After properly placing your wine cooler in its
final position, you can level your wine cooler.
• Leveling legs can be adjusted by turning them clockwise to raise your
wine cooler or by turning them counterclockwise to lower
your wine cooler. The wine cooler door will close easier when the
leveling legs are extended.
• Also, there is an adjustable support for the lower door hinge. (see fig.5)
After leveling the Beverage Center, adjust the hinge support, up or down
as needed until it rests on the surface on which that unit is placed.
• To assure your wine cooler works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the wine cooler:
Sides……………2 "(50mm)
Top....................2" (50mm)
Back..................2" (50mm)
• Do not over fill your wine cooler for proper internal air circulation.
Installing Your Wine Cooler
Unpacking Your Wine Cooler
Proper Air Circulation
Leveling Your Wine Cooler
5
English
English
English
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the wine cooler.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the wine cooler and may
result in shock hazard.
• Do not install your wine cooler in any location not properly insulated or
heated e.g. garage etc. Your wine cooler was not designed to operate
in temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the wine cooler on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected with the leveling legs located on the front and rear
bottom corners of the wine cooler.
• Your wine cooler is designed for free-standing installation only. It is not
designed for built-in application.
Install Limitations
1. Remove hinge cover screw.
2. Remove the top hinge cover.
3. Loosen the top hinge screws using
a Phillips Head Screwdriver.
4. Adjust the door or put a
spacer in between and then
tighten the screws.
5. Replace the top hinge cover.
Door Alignment (see fig. # 1)
fig. # 1
Use of Extension Cords
• Avoid the use of an extension cord because of potential safety hazards
under certain conditions. If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade grounding plug and a
3-slot outlet that will accept the plug. The marked rating of the extension
cord must be equal to or greater than the electrical rating of the
appliance.
6
English
7
English
Reversing the Door Hinge
1. Remove the top hinge cover screw and then remove
the top hinge cover. (see fig. # 1)
2. Using a Phillips Head Screwdriver, loosen and remove the
screws holding the top hinge in place. (see fig. # 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plugs from the opposite side and
insert the plug in the screw hole openings of the just
removed screws. (see fig. # 2)
5. Unscrew the door pin from the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten. (see fig. # 3)
6. Loosen the screws holding the lower hinge bracket
and remove the hinge.(see fig. # 3) Tilt unit slightly towards back and
remove the lower hinge support.
7. Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet.
Insert and tighten the screws.(see fig. # 3)
8. Align the bottom hole on the left side of the door with the
pin of the lower hinge and slide into place. Tilt unit slightly back to
replace the lower hinge support. Adjust up or down as needed until it
is just touching the surface on which that unit is placed.
fig. # 2
screw hole plugs
English
9. Align the pin of the top hinge with top hole on the left
side of the door and push into place. Replace the screws in the
upper hinge bracket but do not tighten all the way. (see fig. # 2)
10. Make sure the door closes easily but forms a tight seal.
Adjust the door as needed. Once you are satisfied with the door
alignment, completely tighten the upper door hinge screws.
11. Replace the hinge cover, insert the screw and
tighten completely. (see fig. # 2)
12. If the door does not close properly, refer to the
section titled “Door Alignment”.
13. In some models you may have to install the door grip handle to the
opposite side.
fig. # 3
door pin
lower hinge bracket
spacet
8
Installing Grip Door Handle: (Not in all models) (see fig. #4)
As shown in the above figure, install the door handle with the supplied
screws.
fig. # 4
English

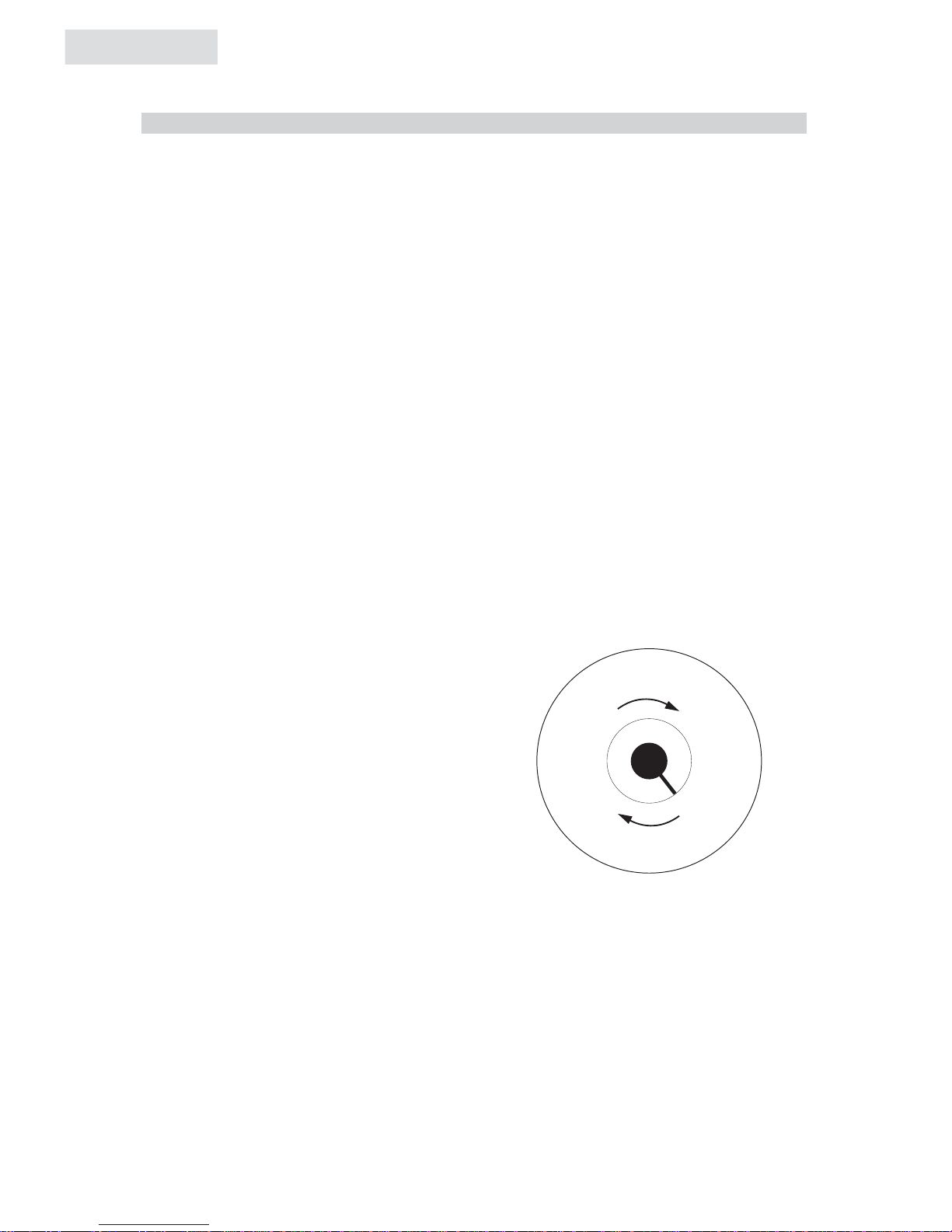

Mechanical Control Unit: See fig. #5
• Your wine cooler has a temperature control knob on the back of the
unit. There are 7 settings: 1 being the warmest and 7 being the coolest.
You can set the temperature of your wine cooler at any
setting you desire.
1
2
3
4
5
6
7
0
c
o
o
l
e
r
fig. # 5
Wine Cooler Features And Use
Mechanical Controlled Units:
The control for this is on the back of the unit. There are 7 settings
plus 0 (OFF). Initially set the temperature setting to 3. Let the unit run for at
least 30 minutes to acclimate itself before making any adjustments.
Initial Setup
Temperature Adjustments:
9
English
