SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This wine cooler must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your wine cooler by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become

frayed or otherwise damaged. Do not use a cord that shows cracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your wine cooler before cleaning or before making any repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certified technician performs the service.

6) If your old wine cooler is not being used, we recommend that you remove

the doors. This will reduce the possibility of danger to children.

7) This wine cooler should not be recessed or built-in an enclosed cabinet. It

is designed for freestanding installation only.

8) Do not operate your wine cooler in the presence of explosive fumes.

9) Do not store foods in wine cooler as interior temperature may not be cool

enough to prevent spoilage.

HVF042ABLwineCooler 10/22/01 11:04 AM _,_ge 3

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!__!!i____________________________________________________________________________!___i

ForFutureReferencePlease

SAVETHESEINSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

As per UL 250 11.2.6

Thank you for using our Haier

product. This easy-to-use manual will

guide you in getting the best use of

your wine cooler.

Remember to record the model and

serial number. They are on a label in

back of the wine cooler.

Model number

Serial number

Date of purchase

Staple your receipt to your manual, Vou will need it to obtain

warranty service.

HVF042ABLwineCooler 10/22/01 11:04 AM_ge 4

PAGE

Safety Precautions .......................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Wine Cooler .......................................................... 5

Unpacking Your Wine Cooler .................................................................. 5

Leveling Your Wine Cooler ...................................................................... 5

Proper Air Circulation ............................................................................ 5

Electrical Requirements ............................................................................ 6

Wine Cooler Features And Use .......................................................... 7

Initial Set Up .......................................................................................... 7

Temperature Adjustment .......................................................................... 7

Shelving ................................................................................................ 8

Interior Light .......................................................................................... 8

Door Lock .............................................................................................. 9

Normal Operating Sounds ...................................................................... 9

Proper Wine Cooler Care and Cleaning .................................... 10

Cleaning and Maintenance .................................................................. 10

Power Interruptions .............................................................................. 11

Vacation and Moving Care .................................................................. 11

Troubleshooting .............................................................................. 12

Warranty Information .................................................................. 14

HVF042ABLwineCooler 10/22/01 11:04 AM ._,_ge 5

1. White Wine Button (-)

2. Red Wine Button (+)

3. interior Light Button (set)

4. LED Temperature Display

5, Door Lock

6. Door Handle

7. Chrome Plated Slide-Out Shelves

8. Adjustable Leveling Legs (not shown)

HVF042ABLwineCooler 10/22/01 11:04 AM ._,_ge 6

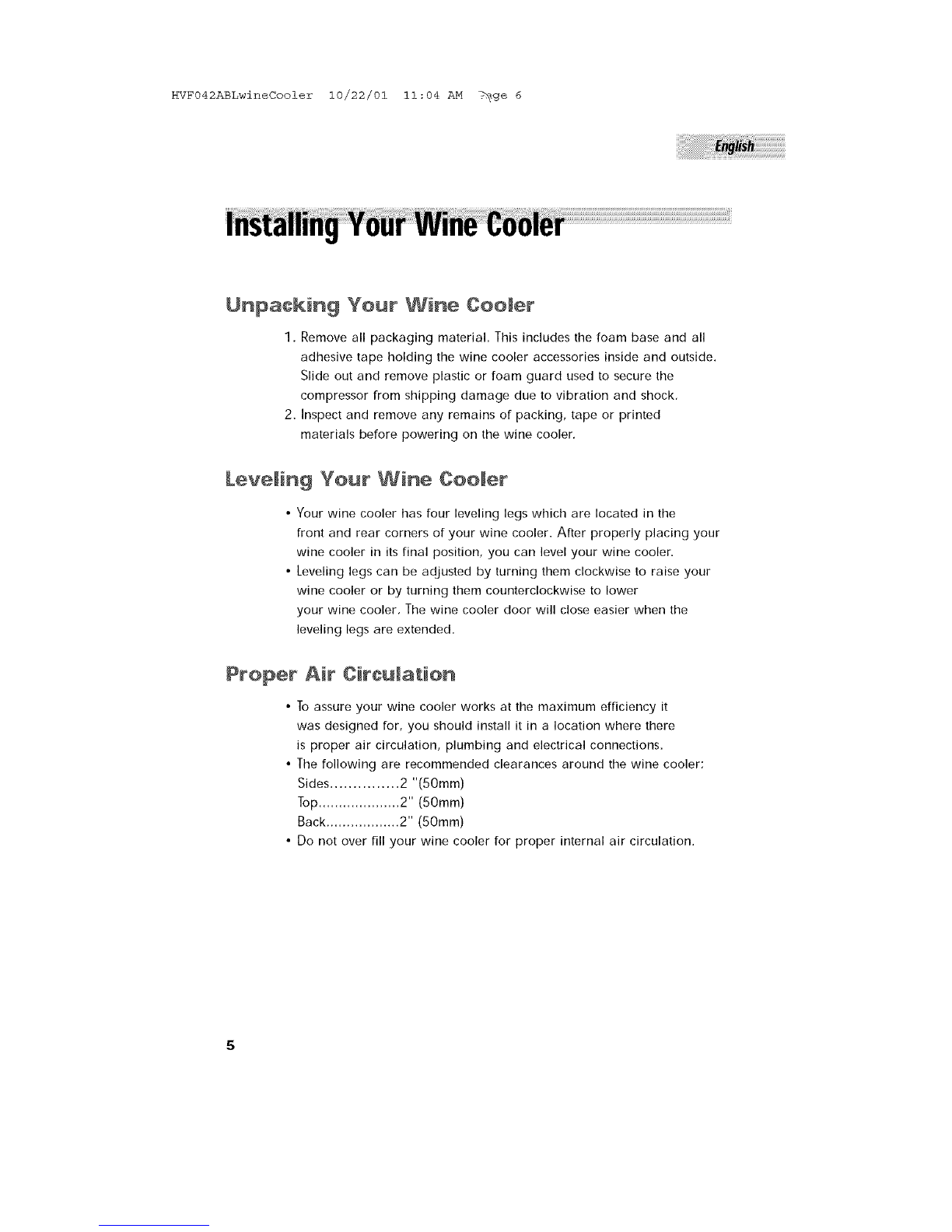

Unpackin 9 Your Wine ¢oo er

1, Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cooler accessories inside and outside,

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due to vibration and shock,

2. Inspect and remove any remains of packing, tape or printed

materials before powering on the wine cooler,

[eye,in 9 Your Wine Coo ÷r

• Your wine cooler has four leveling legs which are located in the

front and rear corners of your wine cooler. After properly placing your

wine cooler in its final position, you can level your wine cooler.

• Levelin 9 legs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower

your wine cooler, The wine cooler door will close easier when the

leveling legs are extended.

Proper Air Circulation

• To assure your wine cooler works at the maximum efficiency it

was designed for, you should install it in a location where there

is proper air circulation, plumbing and electrical connections.

• The following are recommended clearances around the wine cooler:

Sides ............... 2 "(50ram)

Top .................... 2" (50ram)

Back .................. 2" (50ram)

• Do not over fill your wine cooler for proper internal air circulation.

HVF042ABLwineCooler 10/22/01 11:04 AM _ge 7

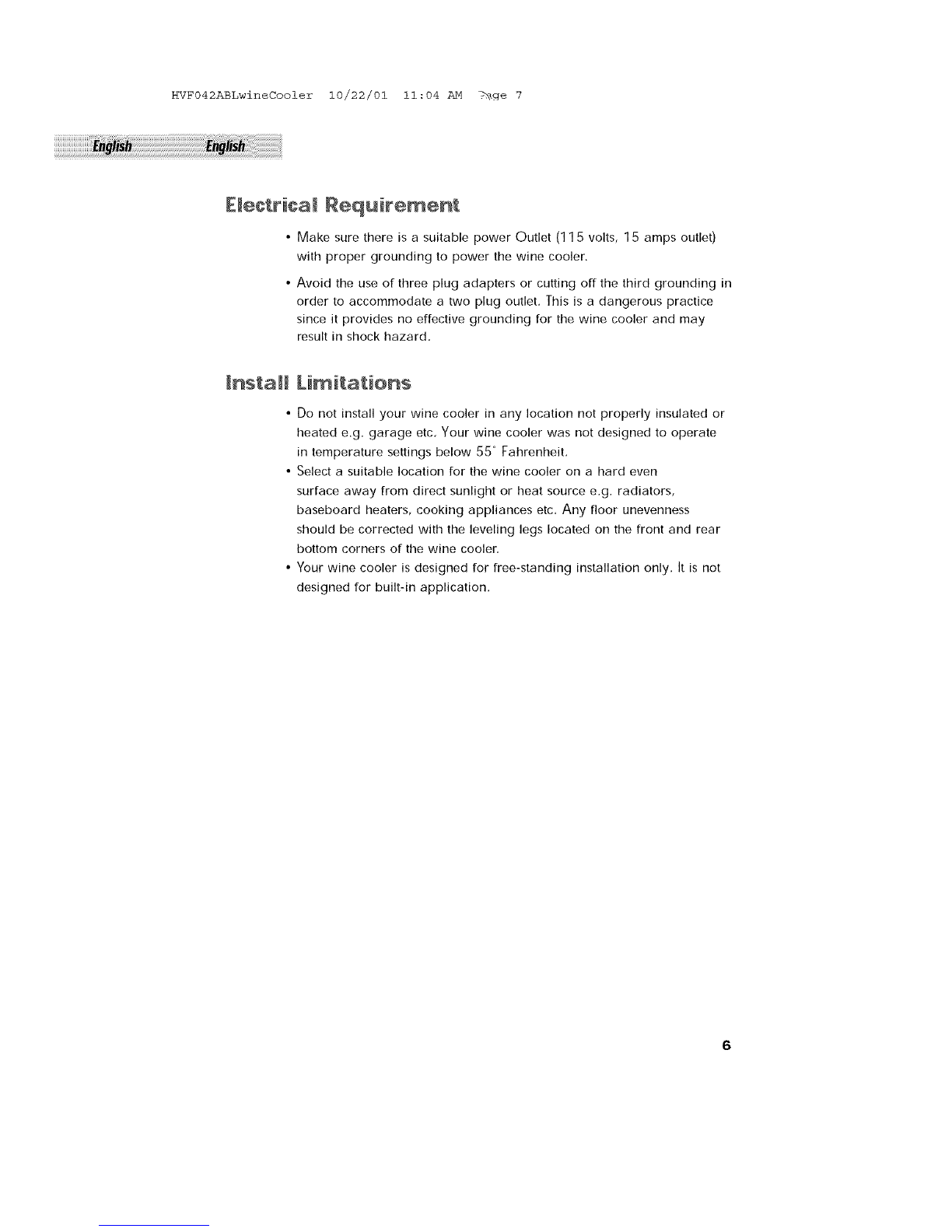

Dectrica_ Requirement

Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

Avoid the use of three plug adapters or cutting off the third grounding in

order to accommodate a two plug outlet, This is a dangerous practice

since it provides no effective grounding for the wine cooler and may

result in shock hazard,

Limitations

Do not install your wine cooler in any location not properly insulated or

heated e.g. garage etc, Your wine cooler was not designed to operate

in temperature settings below 55 ° Fahrenheit.

• Select a suitable location for the wine cooler on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc, Any floor unevenness

should be corrected with the leveling legs located on the front and rear

bottom corners of the wine cooler.

• Your wine cooler is designed for free-standing installation only, It is not

designed for built-in application,

HVF042ABLwineCooler 10/22/01 11:04 AM _ge 8

[nitia_Setup

Once you have plugged the unit into an electrical outlet,

let the unit run for at least 30 minutes to acclimate itself before

making any adjustments. During this time the Red Wine light may stay on.

T÷_peratur÷ Adjustments: See fig, #1

• The wine cooler is preset from the factory to automatically

accommodate temperature requirements for red or white wines.

[f you store mostly white wines, press the "White Wine" button and the

wine cooler will maintain an average temperature between

45 ° to 50 ° F. Pushing the "Red Wine" button will yield an

average temperature between 55 ° to 60 ° F,

• The wine cooler can be set to any temperature you desire to

accommodate your wine storage requirements, To set the temperature,

press both the "White Wine" and "Red Wine" buttons simultaneously

and hold for approximately 3 seconds, Now you are in temperature set

mode, Decrease the temperature by pushing the "White Wine" button

and increase the temperature by pressing the "Red Wine" button,

Pressing the appropriate button 3 times will adjust the temperature 3

degrees, press 4 times equals 4 degrees, 5 times equals 5 degrees, and

so on, Once you have selected the temperature you desire, push the

"Light/Set" button, Now the wine cooler is programmed and the LED

readout will return to current internal temperature reading.

fig, # 1

HVF042ABLwineCooler 10/22/01 11:04 AM _ge 9

There will be a 3 degree variance +/- between the temperature you

select and the temperature indicated on the LED readout.

This occurs because the wine cooler activates and deactivates

trying to maintain your desired temperature. There is often a

10 ° variance between the top and bottom shelves of the wine cooler.

Therefore, if you have set the wine cooler for 50 ° and have a

mix of red and white wines, you may want to put the white wine

on the bottom shelf where the temperature will be 45 ° F, and place the

red wine on the top shelf where the temperature will be 55 ° [.

Shelving

• The shelves are chrome plated for appearance and easy cleaning.

To accommodate different sized bottles the shelves slide out

and can be moved up or down into any of the tracks molded

into the cooler cabinet. Larger bottles or Magnums can be more easily

accommodated at the cross shelves at the bottom of the cooler.

You will notice that the shelves are designed so the bottles do

not line-up directly over one another, This allows free air

movement and provides more space.

Interior Ligb[

• To complement the look of your wine collection, a soft light has been

built into the wine cooler. Simply push the "Light/Set" button and the

light comes on, push again for off, For maximum energy efficiency,

leave light off when not viewing your collection.

HVF042ABLwineCooler 10/22/01 Ii :04 AM _lge i0

Door Lock

• For safety and security, your wine cooler is equipped with a door lock.

To eliminate the risk of accidental child entrapment, the lock was

designed so that the door will not lock until the key is removed

(consistent with UL requirements).

NormaM Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of

the refrigerant circulating through the cooling coils,

• The thermostat control will click when it cycles on and off,
